Indoor P2.5 LED Module 160x160mm
Indoor full-color LED module with 2.5 mm pixel pitch. This component is intended for modular screen assembly and be able to provide stunning contrast, high brightness and accurate color representation. It is widely used for retail advertising, conference room, church, public service announcement and others indoor application.
Key Features
- Pixel Pitch: 2.5mm
- Module Size: 160*160mm
- Module Resolution: 64*64
- Optimized for high-definition image display
- Utilizing high quality LED lamps
- Suitable for various installation styles
- Cost-effective
- Wider viewing angle
What are the technical specifications?
| Item | P2.5mm |
| LED Type | SMD2121 |
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| Interface | HUB75 |
| Module Size | 160mm*160mm |
| Module Resolution | 64pixel * 64pixel |
| Pixel Density | 160000dots/m2 |
| Best view distance | ≧2m |
| Driving Method | 1/16 Scan |
| Brightness | ≧800 |
| Viewing Angle | H:160° V: 140° |
| Working Voltage | DC5V |
| Life Span | ≧100000hours |

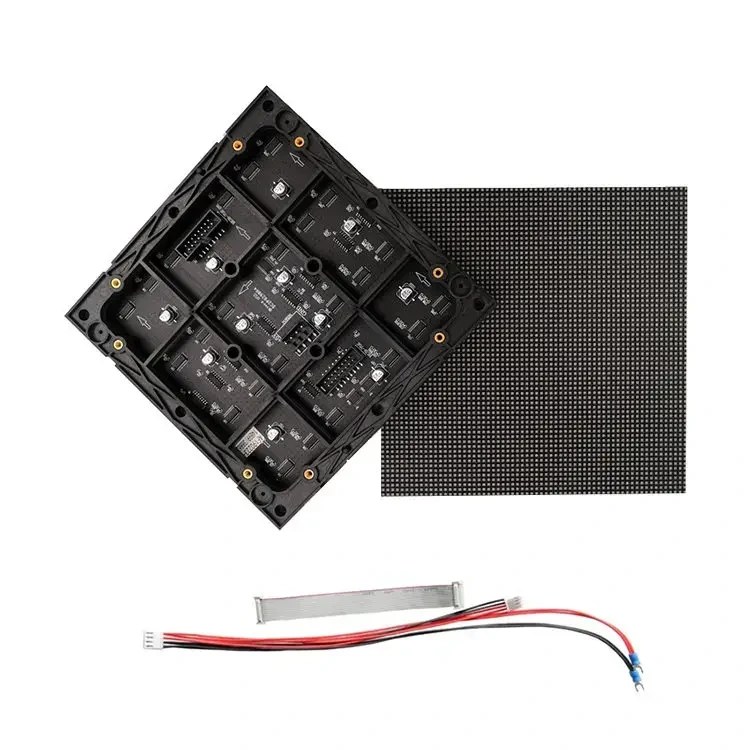

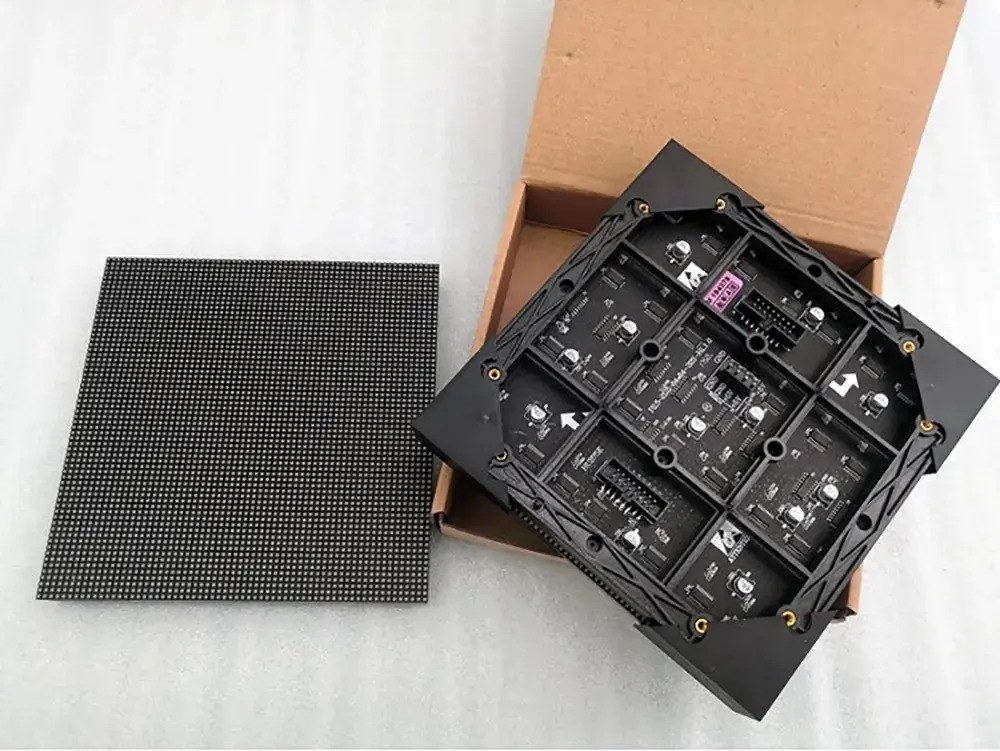

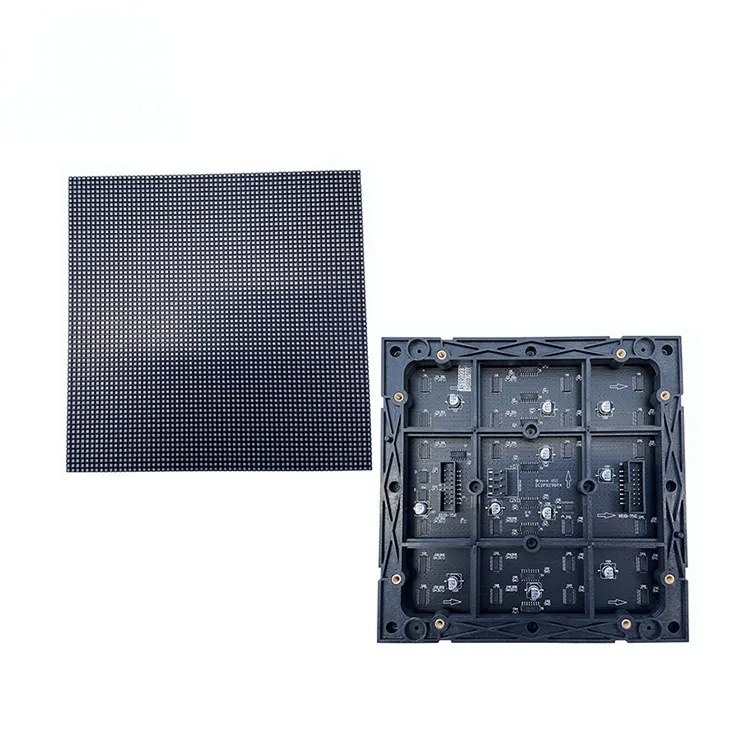

Indoor P2.5mm LED Screen Module
Module Size: 160*160mm Module Resolution: 64*64pixel Module Size: 160*160mm Module Resolution: 64*64pixel

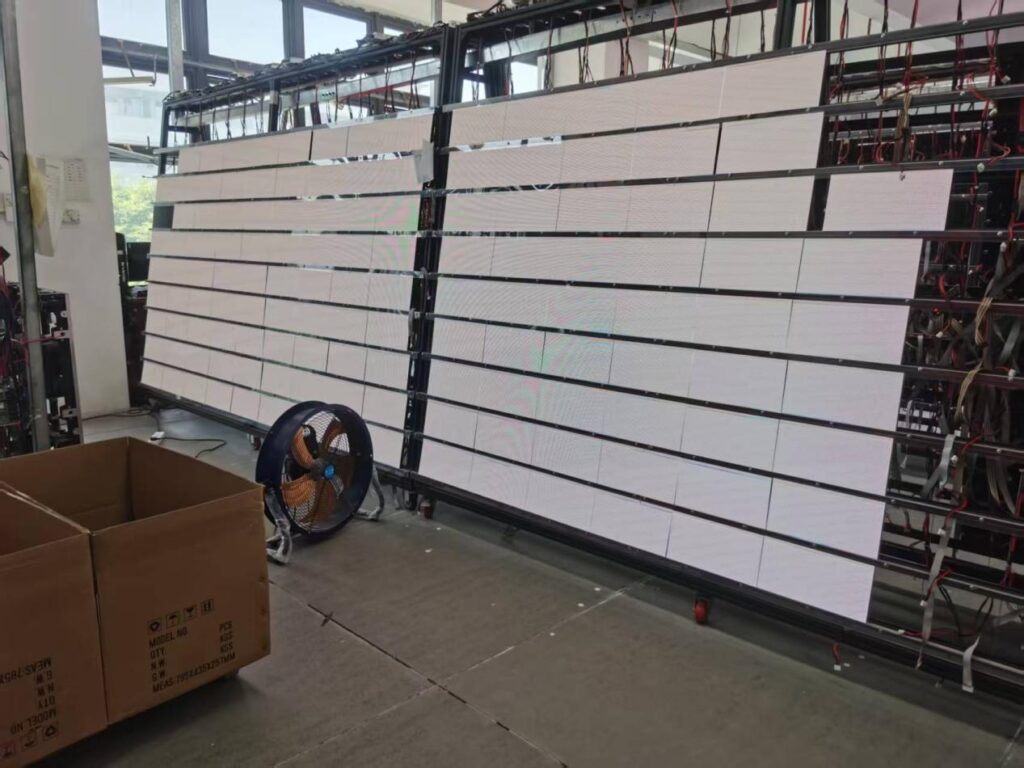

LED Display Screen Module Test
Each module was tested more than 72 hours before shipment.

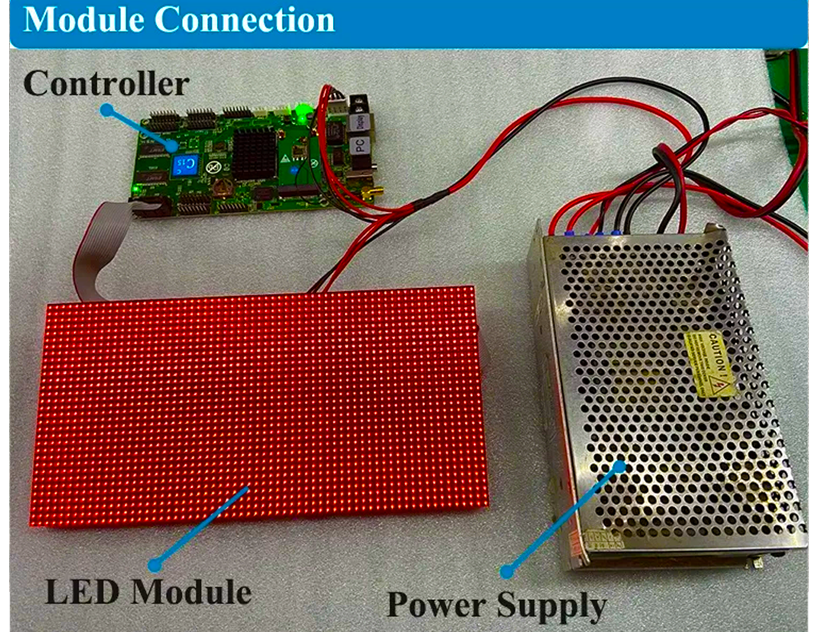

LED Module Connection
The module need power supply and controller to driving.

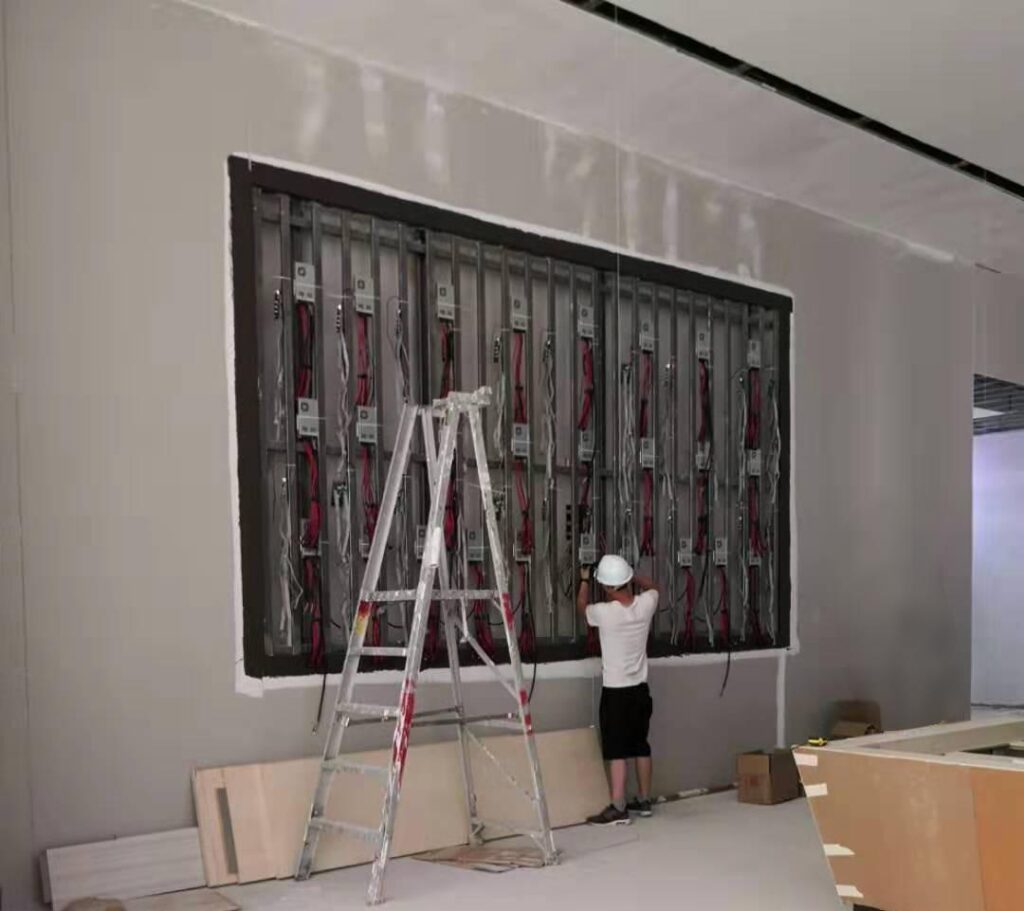

LED Display Assembly
It can be assembled according to your needs of any size of LED screen you need.
Guides for this product line
Solutions using this line
Related Products
Common FAQs
Each module measures 160 × 160 mm and carries 64 × 64 pixels, which works out to 160,000 dots per square metre. It is an indoor module, so it is normally built into a cabinet frame rather than used on its own.
The pixel pitch is 2.5 mm, and the document lists the best viewing distance as ≧2m. Finer pitch keeps detail visible at closer range, while a wider pitch is normally chosen where the audience sits further back.
Brightness is 800 nits with a H:160° V: 140° viewing angle. That level suits indoor rooms where the ambient light is controlled and the screen is viewed from a few metres away.
The module uses a HUB75 interface and is driven at 1/16 Scan scan. In practice that means the 64 × 64 pixel rows are refreshed in 16 groups per frame, which is the standard arrangement for this module size. Working voltage is DC5V.
Indoor modules are held by magnets on the cabinet frame, so a module can be lifted out and replaced by hand without tools. The magnets sit on the module back, and the cabinet provides the matching steel surface.
Modules are quoted per piece rather than per square metre, and the minimum order is a single module. That means one unit can be ordered as a spare, while larger quantities are priced by pitch, size and order volume.
