Sports LED Display Solutions

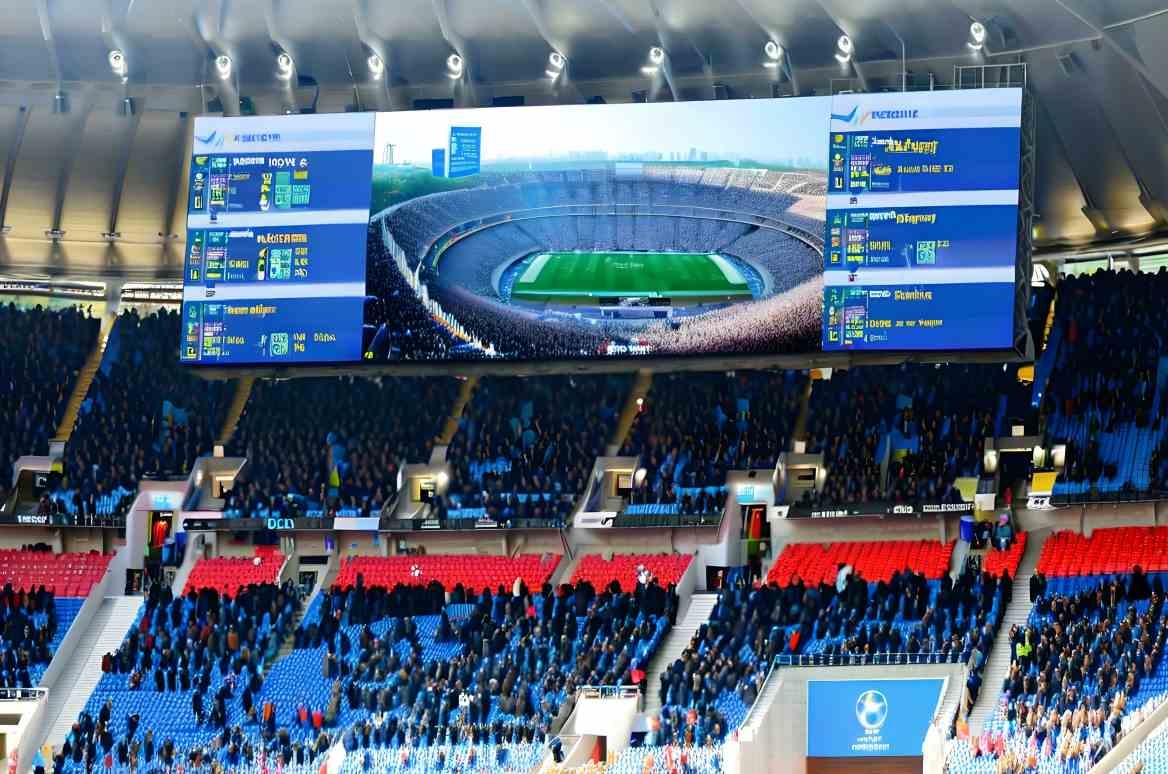

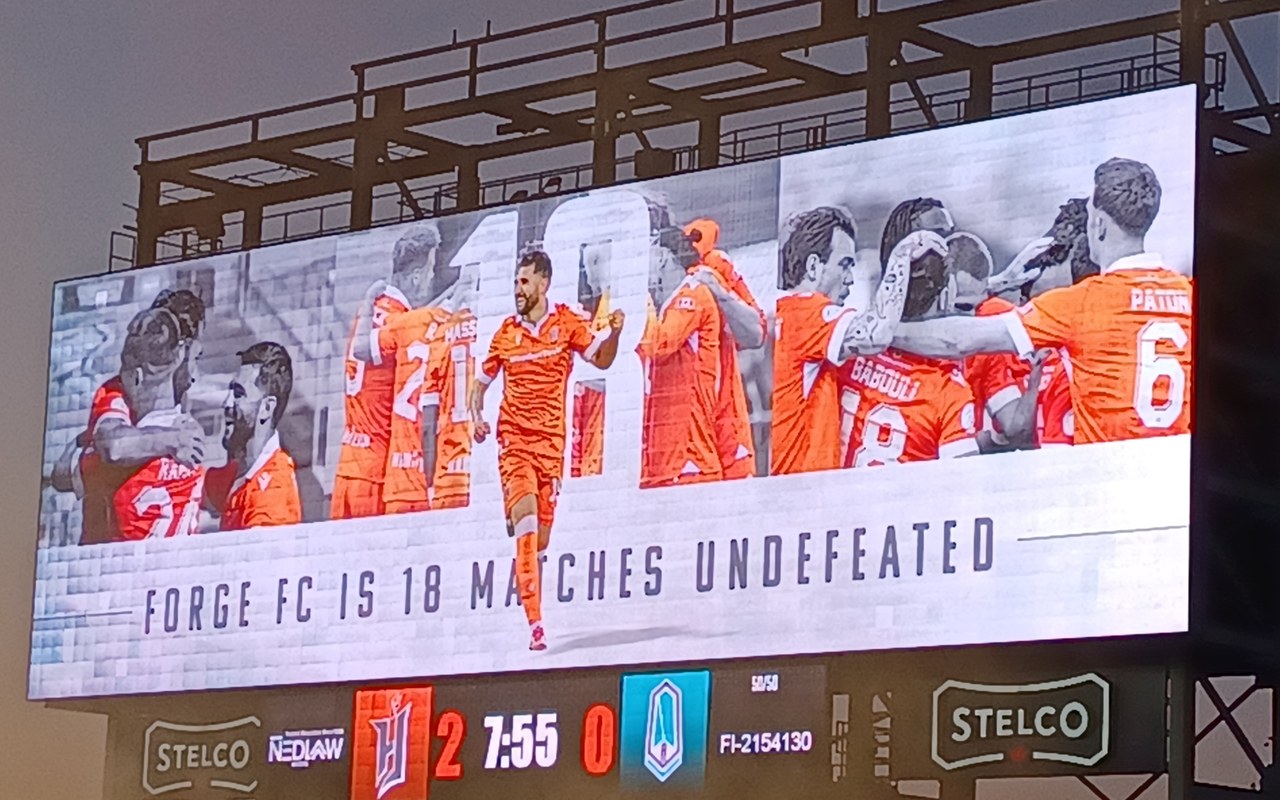

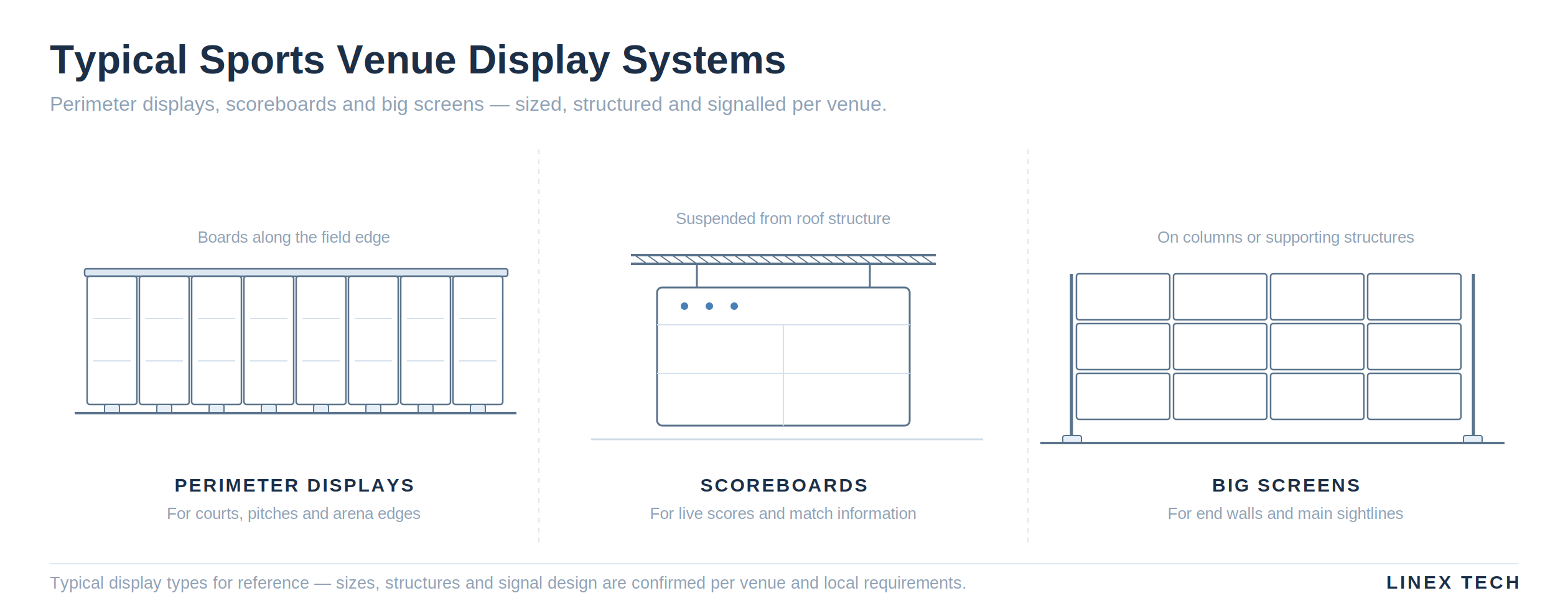

Start with the display’s role, location and expected audience. Perimeter and courtside displays are generally selected for field-level messaging, sponsor content and event graphics. Big screens are used for video, replays and information viewed across the venue, while scoreboard display surfaces prioritize clear match data. Final selection depends on viewing distance, screen dimensions, installation method, content sources, maintenance access and whether the system will be permanent or temporary.

Viewing distance affects screen size, content scale and the level of detail that spectators can recognize. Displays viewed from distant seating normally need larger text and simpler graphics, while courtside displays may be seen at shorter distances and from sharper angles. There is no single specification for every venue. Review the nearest and farthest viewing positions, seating layout, camera requirements and intended content, then confirm the proposed configuration against the product datasheet.

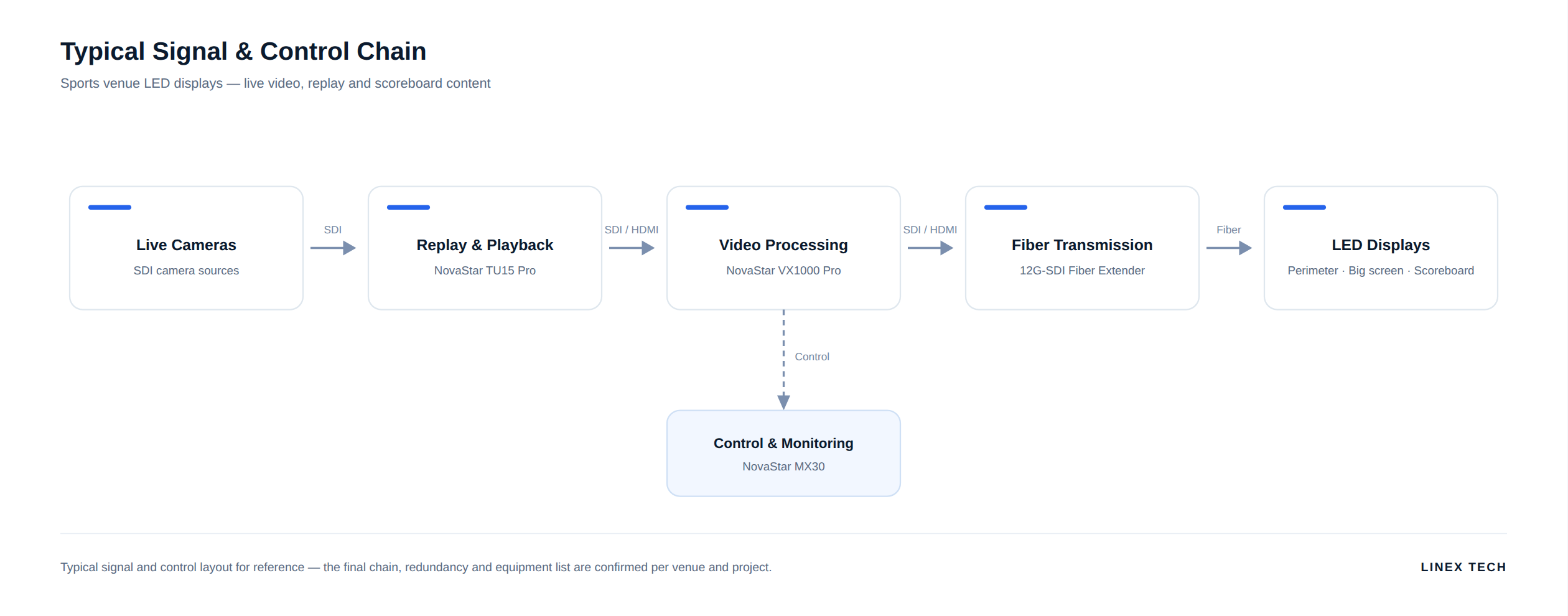

Sports LED systems can be configured for live video, scoring information, advertising, announcements and scheduled graphics, subject to the selected control equipment and content workflow. Confirm how video feeds, scoreboard data and media files will enter the system, and which operator controls each source. Signal format, resolution, switching, synchronization and backup requirements should be agreed with the venue’s AV, broadcast and scoring-system teams before equipment is specified.

Safety planning should cover display position, support structures, cable routing, electrical distribution, access control and possible contact near the playing area. Perimeter and courtside installations may require protective features selected for the sport and venue rules. Structural calculations and local regulations remain project-specific. Installation methods, emergency routes and maintenance procedures should be reviewed by the relevant contractor, engineer and venue operator before installation and again before events begin.

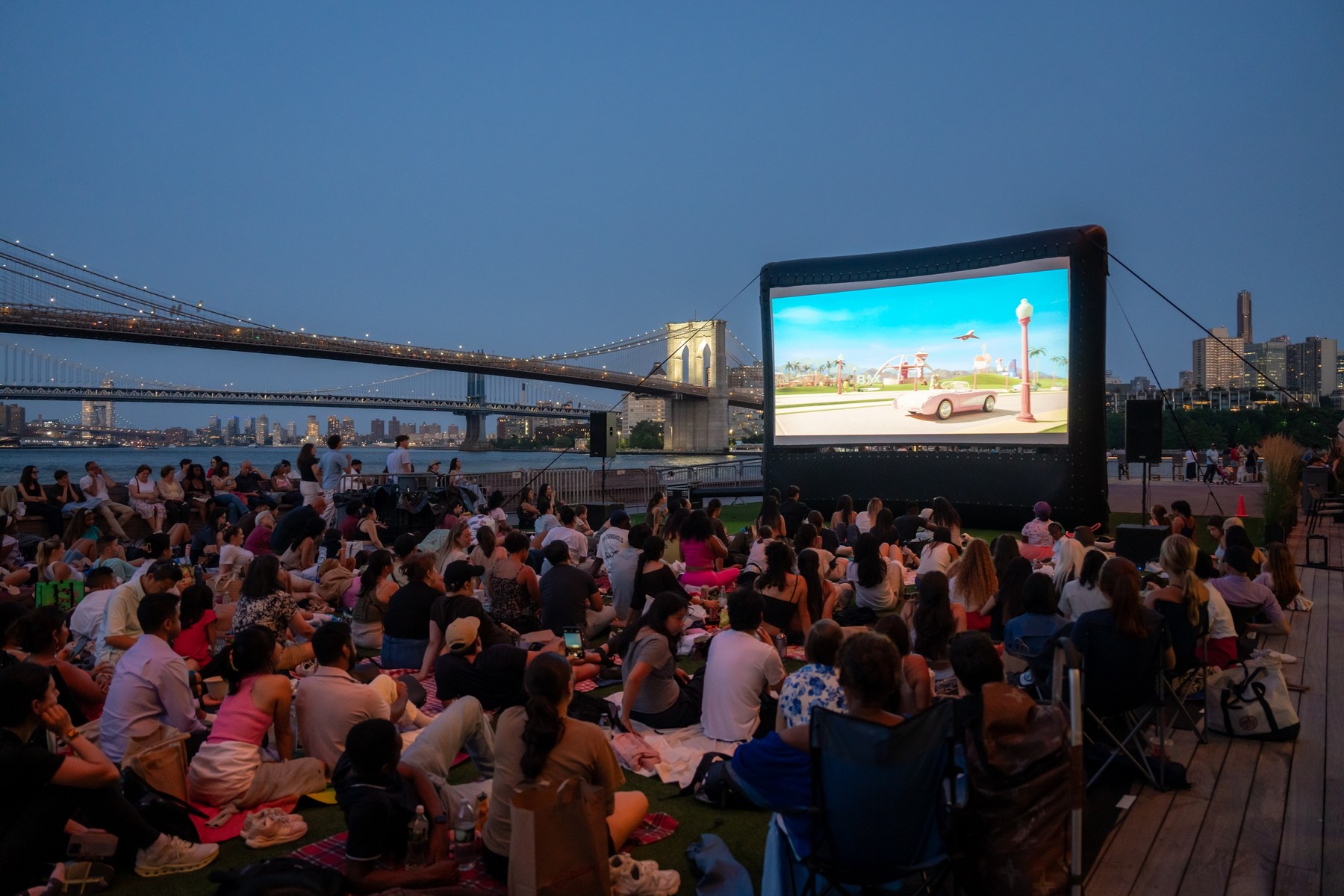

Indoor and outdoor installations face different operating conditions. Outdoor displays may be exposed to rain, sunlight, wind, dust and wider temperature changes, so cabinet selection and supporting structures must suit the site. Indoor arenas may involve shorter viewing distances, restricted mounting space and closer coordination with lighting and other AV equipment. Required protection, brightness, ventilation and structural design depend on the environment and should be confirmed against project requirements and product datasheets.

Provide the venue type, indoor or outdoor location, intended display use, approximate screen dimensions, viewing distances and preferred installation position. Also identify whether the system is fixed or temporary, the expected content sources, available power, control-room location and required maintenance access. Drawings, site photographs and structural information are useful where available. LINEX can then review suitable series options, but final specifications remain subject to technical confirmation and project conditions.
