Fixed LED Displays
Permanent indoor and outdoor screens for buildings, retail and public spaces.
This category covers LED displays intended for long-term installation at a defined location. Systems integrators, contractors, distributors, venue operators, and commercial property teams use them for information, advertising, presentation, monitoring, and audience communication. Typical applications include retail spaces, control rooms, meeting facilities, transport hubs, building exteriors, public areas, showrooms, and reception zones.

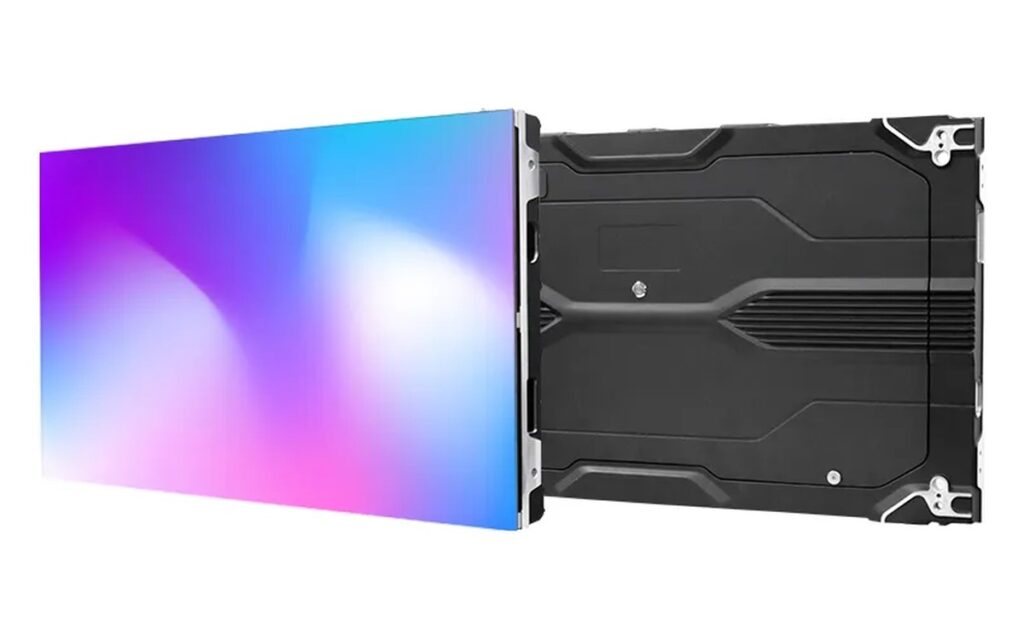

COB-H Series
View details

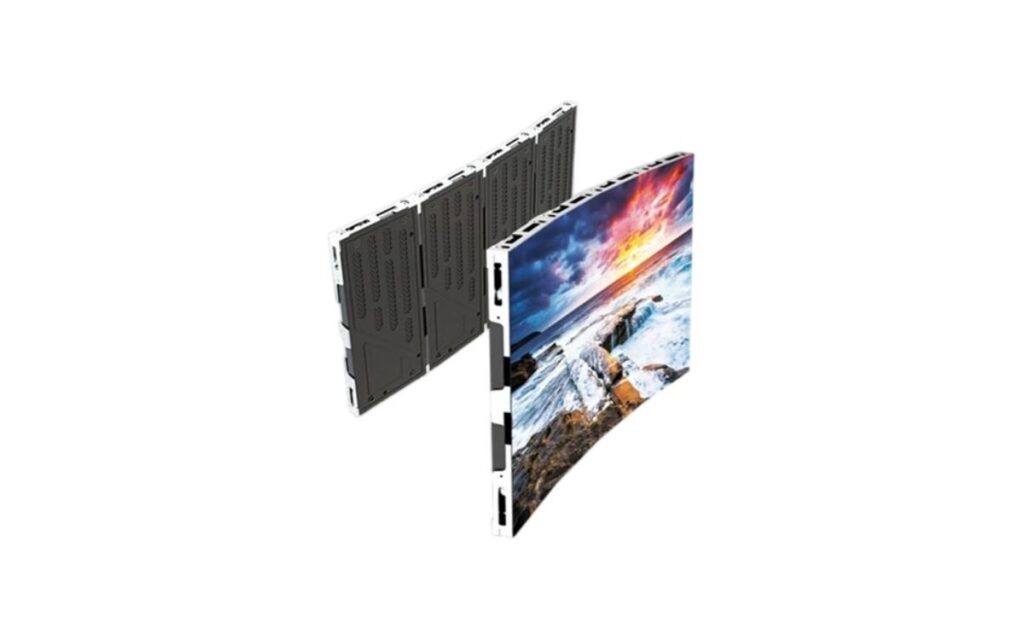

FHD-CU Series
View details
FHD-PRO Series
View details

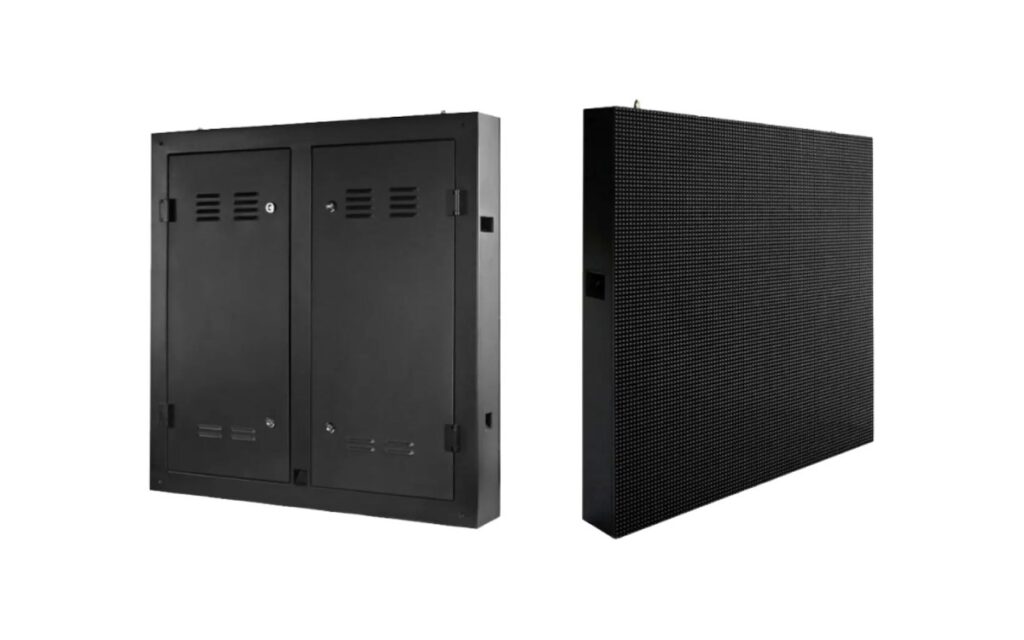

Indoor-Iron Series
View details

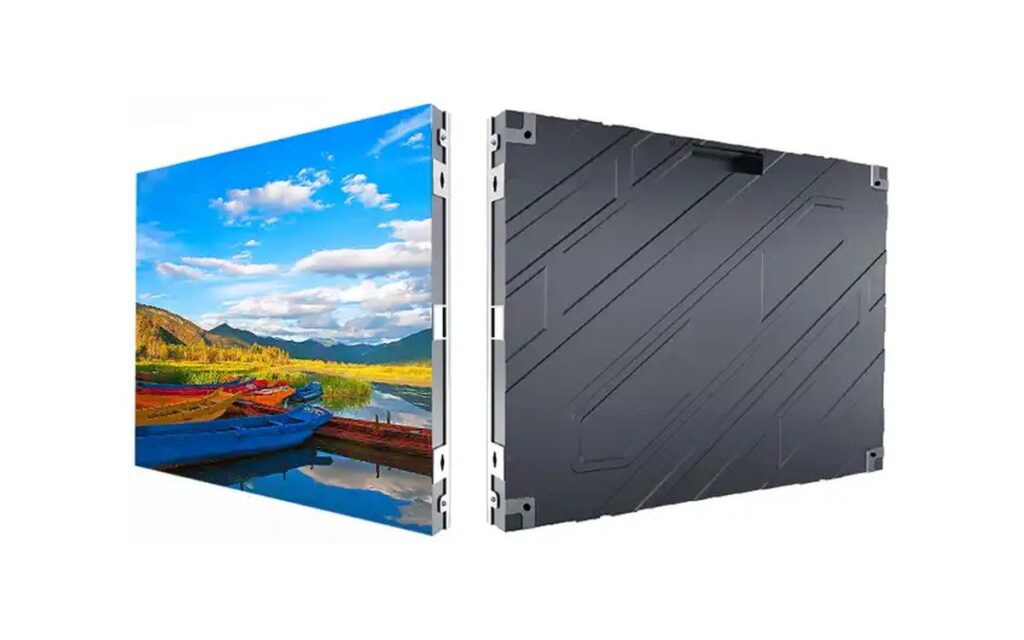

Indoor-BM Series
View details
Indoor-Slim Series
View details

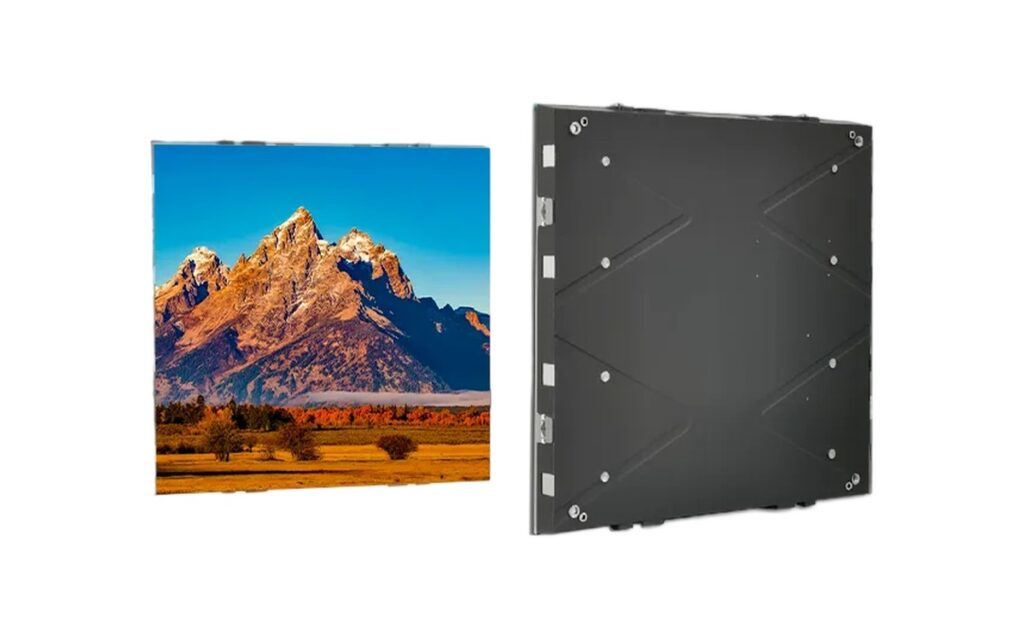

Indoor-Z Series
View details
Outdoor-FS PRO Series
View details

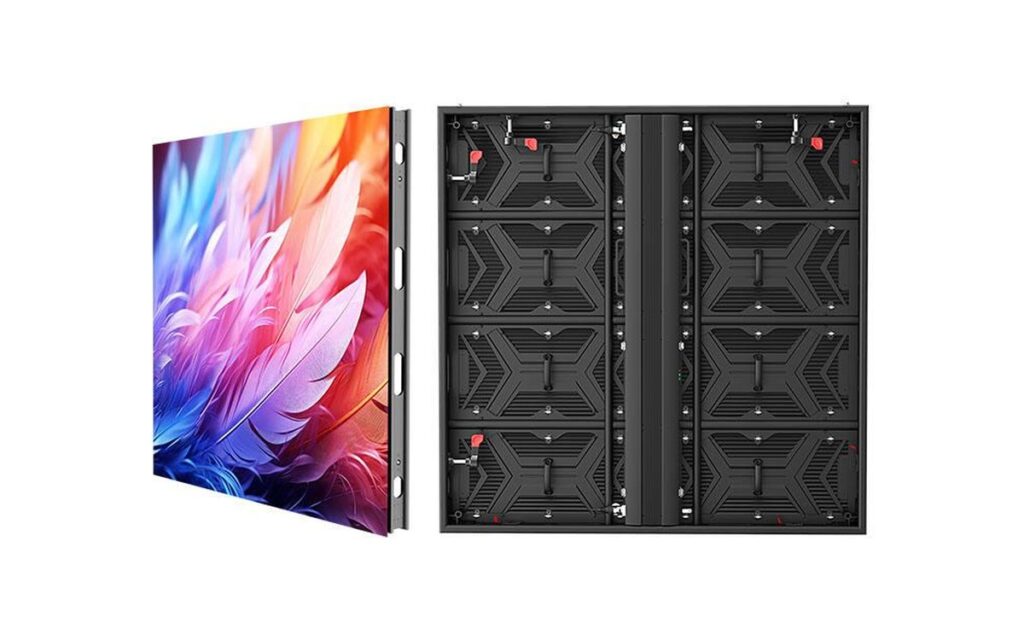

Outdoor-FM Series
View details

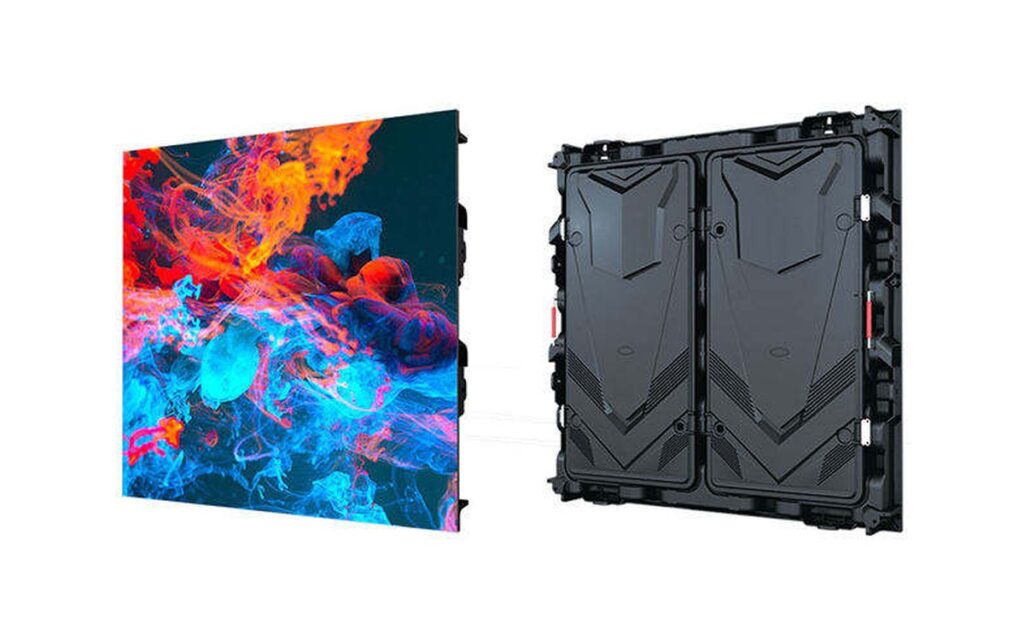

Outdoor-FR Series
View details

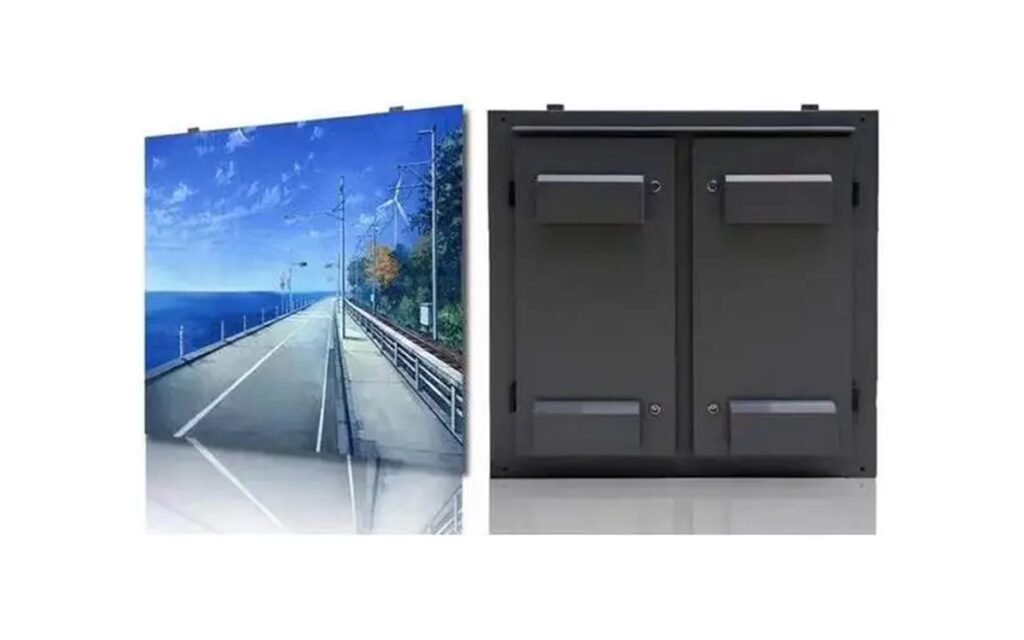

Outdoor-Iron Series
View details
Sport-PLUS Series
View details

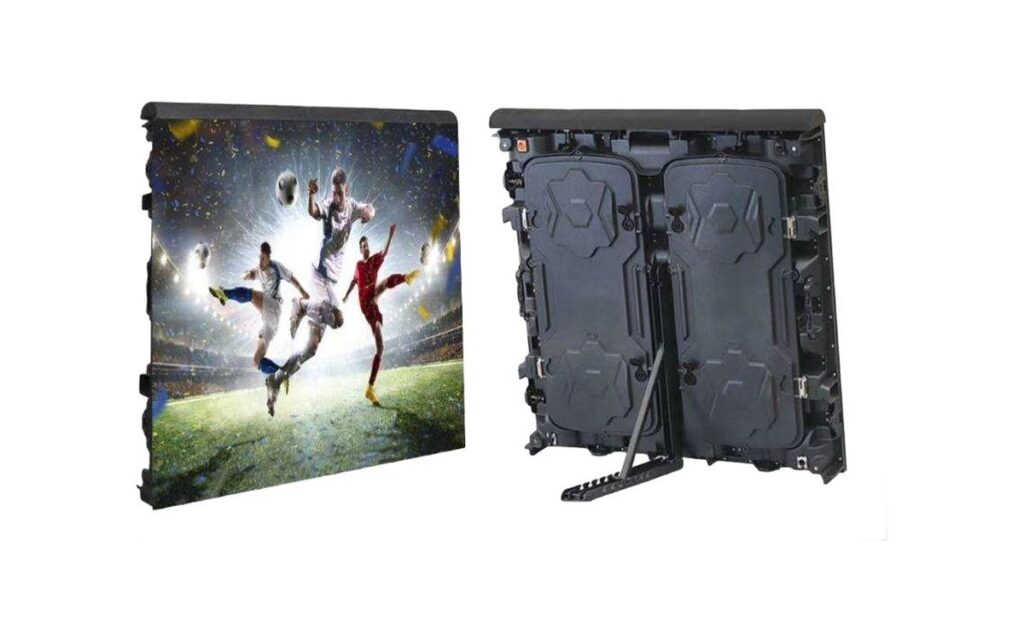

Sport-PMR Series
View details

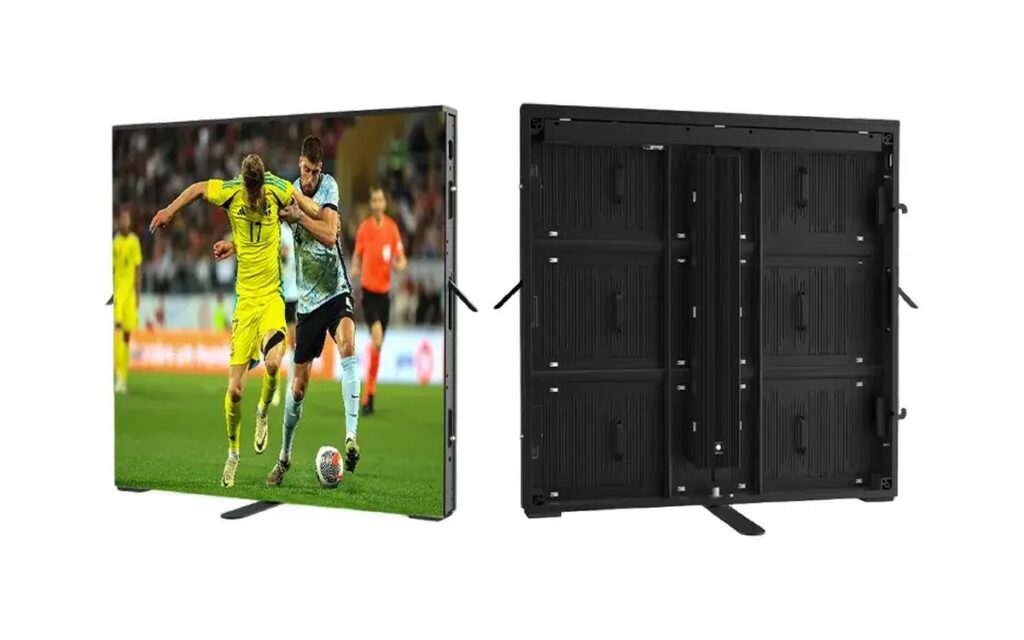

Sport-PRO Series
View details

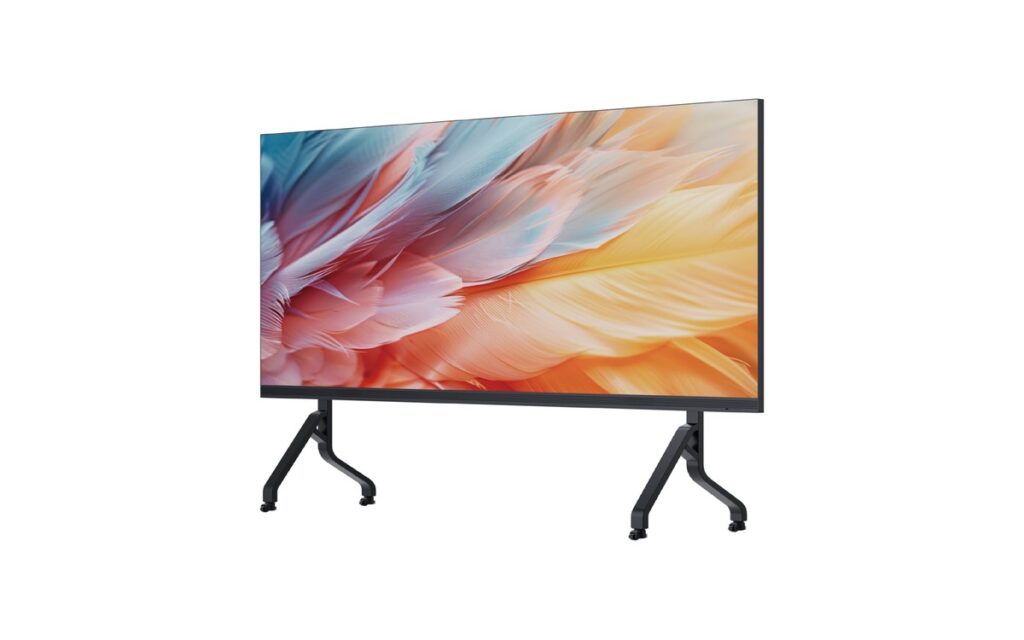

Poster-Conference Series
View details

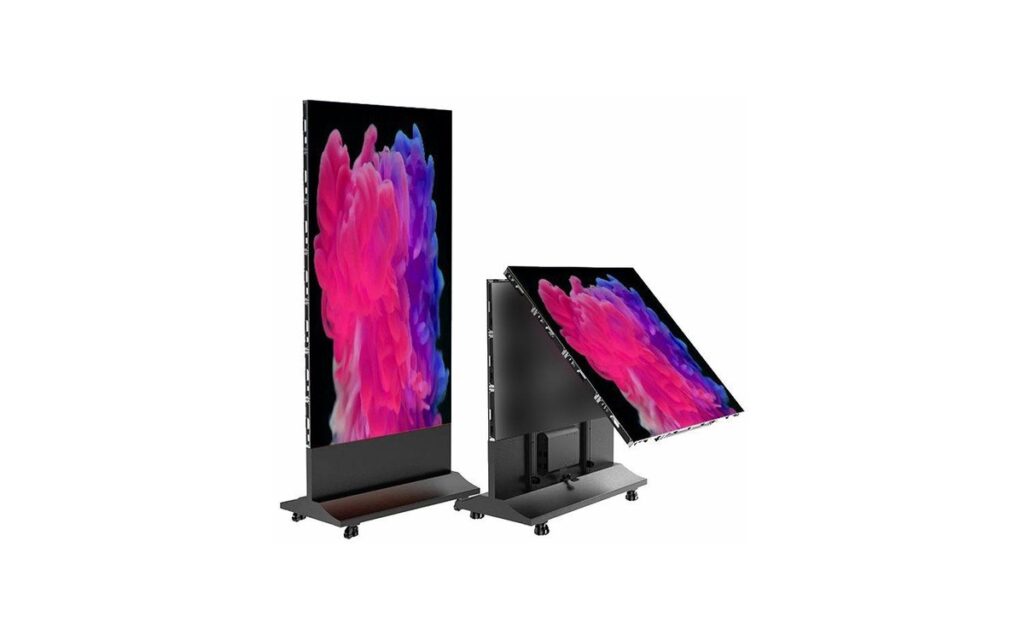

Poster-Double-Fold Series
View details

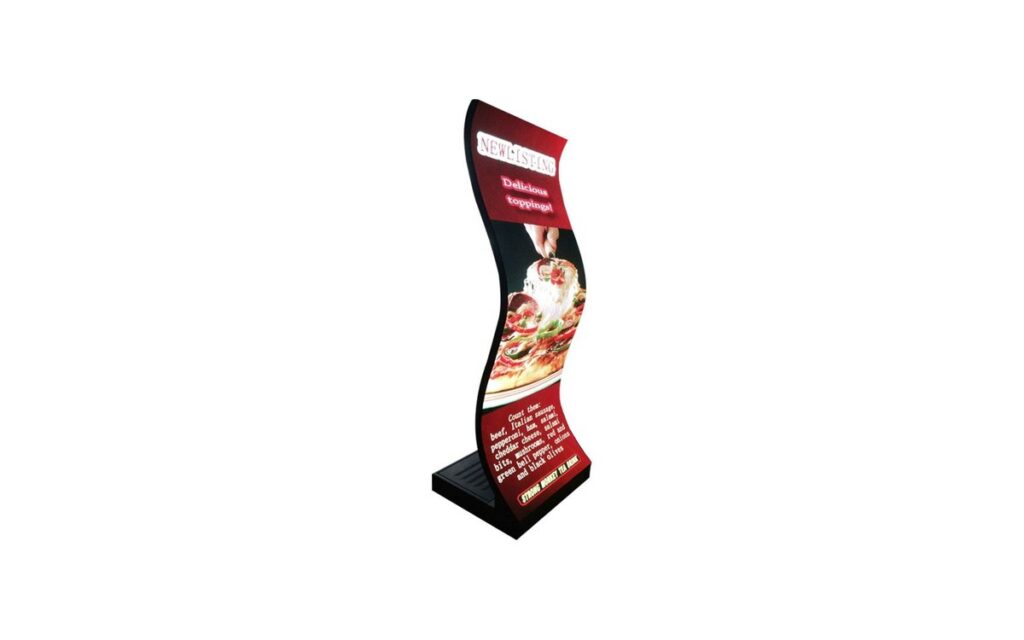

Poster-Flexible Series
View details
Poster-L Series
View details

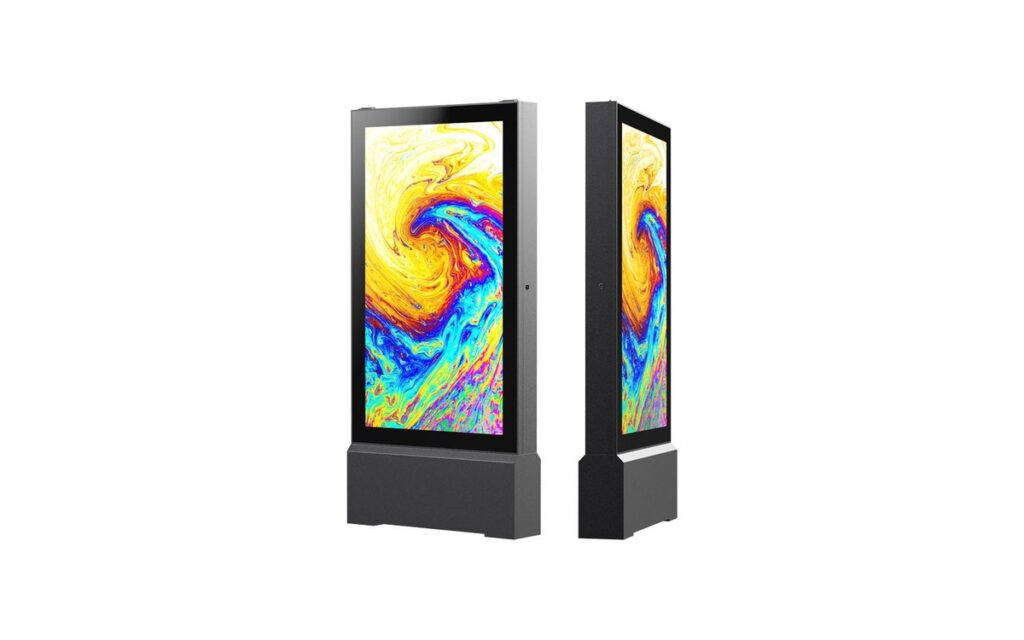

Poster-Outdoor Series
View details

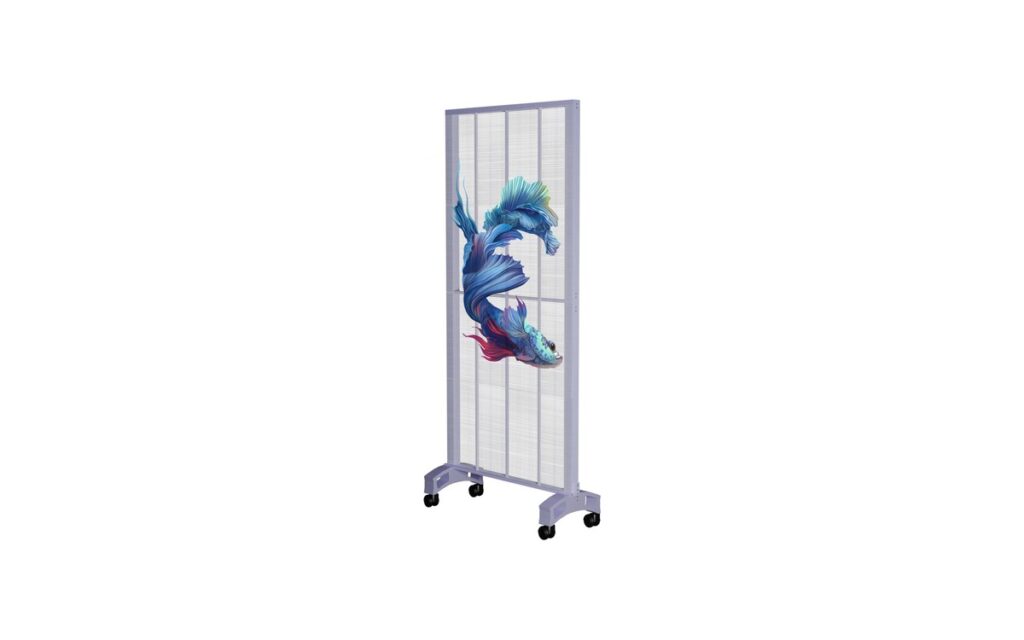

Poster-Transparent Series
View details

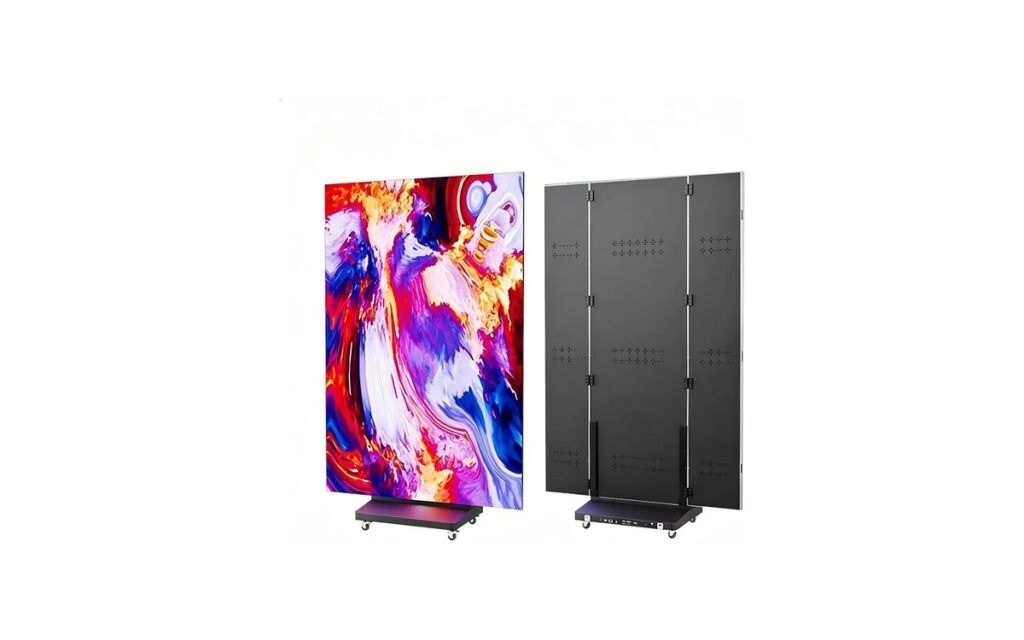

Poster-Tri-Fold Series
View details
Compare Fixed LED Display Series
Compare cabinet types and viewing applications to identify the fixed display series suited to your project.
| Series | Application | Pixel pitch | Brightness | Cabinet | Weight | IP rating |
|---|---|---|---|---|---|---|
| COB-H Series | Fine-pitch indoor | 0.78–1.86mm | 600–900 nits | 600×337.5mm | 4–5kg | — |
| FHD-CU Series | Fine-pitch indoor | 0.78–1.86mm | ≥600 nits | 600×337.5×27.5mm | 4.5kg | — |
| FHD-PRO Series | Fine-pitch indoor | 1.25–2.5mm | ≤1,000 nits | 600×337.5×27.5mm | 4.5kg | IP31 |
| Indoor-Slim Series | Indoor thin | 1.25–3.91mm | ≤1,000 nits | 1000×500×33mm | 8kg | IP65 front · IP31 |
| Indoor-Z Series | Indoor & outdoor | 2.6–4.81mm | 1,300 / 5,500 nits | 500×500mm | 7.5kg | IP43 |
| Indoor-BM Series | Indoor | 1.86–2.5mm | 700–800 · 4,000 nits | 640×480mm | 7.8kg | IP43 |
| Indoor-Iron Series | Indoor | 2.5–5mm | 800–1,200 nits | 640–960mm | 45–55kg/m² | — |
| Outdoor-FS PRO Series | Outdoor | 4.4–10mm | ≥6,000 nits | 960×960 / 1440×960mm | 25kg | IP66 |
| Outdoor-FM Series | Outdoor | 3–10.4mm | ≥6,000 nits | 1000×1000 / 1500×1000mm | 22.5kg | IP65 |
| Outdoor-FR Series | Outdoor | 3–10mm | 5,000–9,500 nits | 960×960mm | 25–30kg | — |
| Outdoor-Iron Series | Outdoor | 4–10mm | 5,500–8,000 nits | 960×960mm | 30kg | — |
Standard configurations can be customized to meet project requirements.
Fixed Display Applications
Match the installation environment and viewing needs to an appropriate fixed display series.
Corporate Lobbies & Reception
Fine-pitch indoor panels support close viewing in reception areas and corporate lobbies.
Retail & Commercial Buildings
Choose from a slim indoor cabinet, an indoor/outdoor cabinet, or outdoor options for building facades.
Sports Venues
Outdoor cabinets with high brightness and large panel sizes support venue display installations.
Outdoor Billboards & Facades
Steel and iron cabinet options are designed for outdoor billboards and facades.
Conference & Meeting Rooms
Fine-pitch indoor panels suit rooms where viewers sit close to the display.
Transport & Public Information
Indoor cabinets with standard or high-brightness options support public information installations.
Fixed LED Display Options
Fine-pitch indoor and high-brightness outdoor displays for permanent installation.
Viewing Distance and Installation Method
Match pixel pitch to viewing distance, then confirm wall structure, mounting method and power routing.
Service Access and Long-Term Support
Front or rear service access, spare modules and maintenance planning for multi-year operation.
Prepare Your Fixed Display Quote
Share installation and viewing requirements so the display configuration can be matched to your project.
Frequently Asked Questions
Fixed installations are quoted per square metre; the price depends on pixel pitch, cabinet size, indoor or outdoor brightness, IP rating and quantity.
960×960 mm is the common outdoor cabinet, with 1440×960 mm and 1440×640 mm options on Outdoor-FS PRO.
IP65 suits most building facades and billboards; IP66 is specified where driving rain, dust or wash-down is heavier.
5,000–6,500 nits works for most facades; 8,000–9,500 nits is used for direct-sun billboards and high ambient light.
