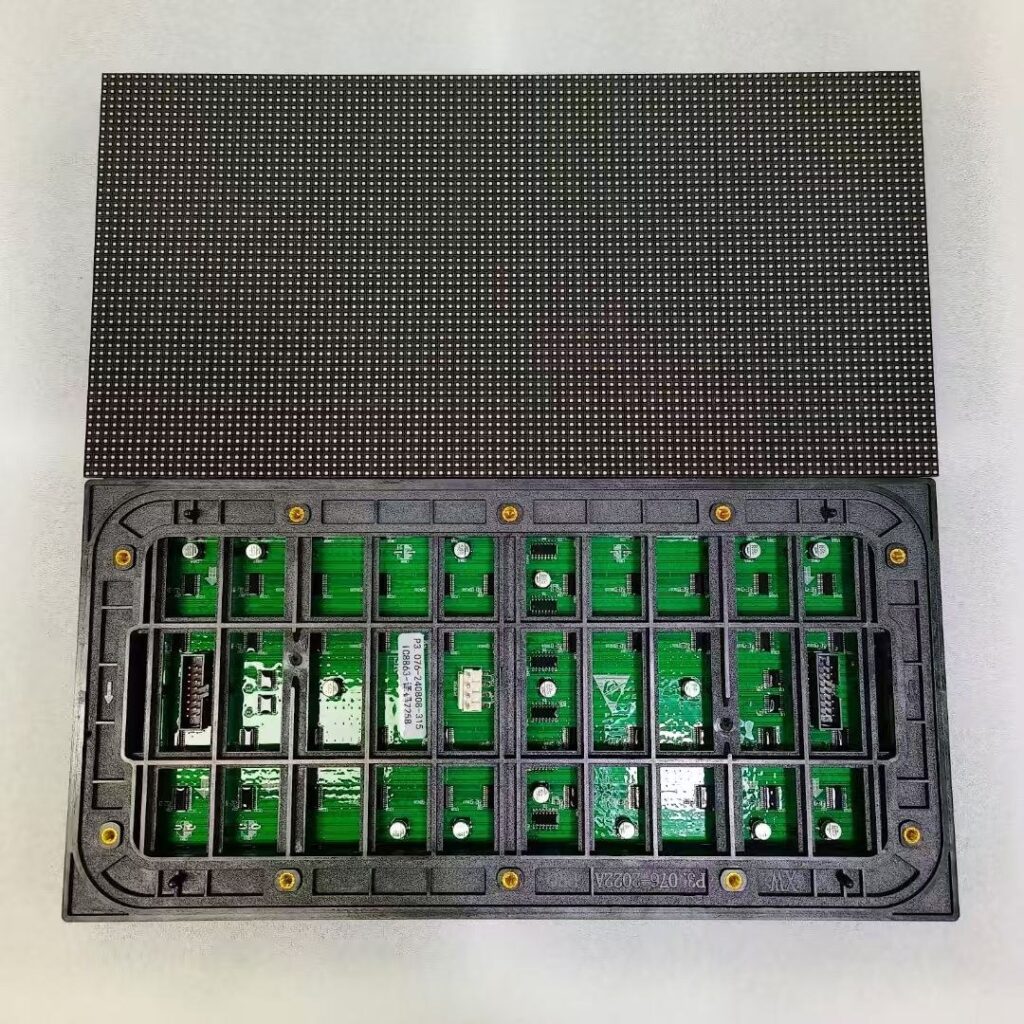

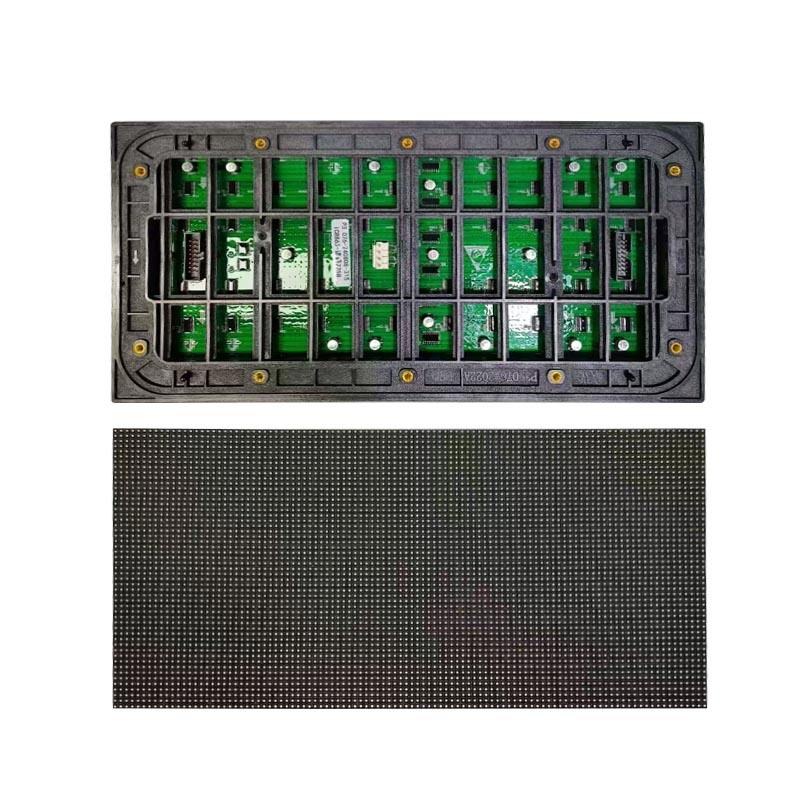

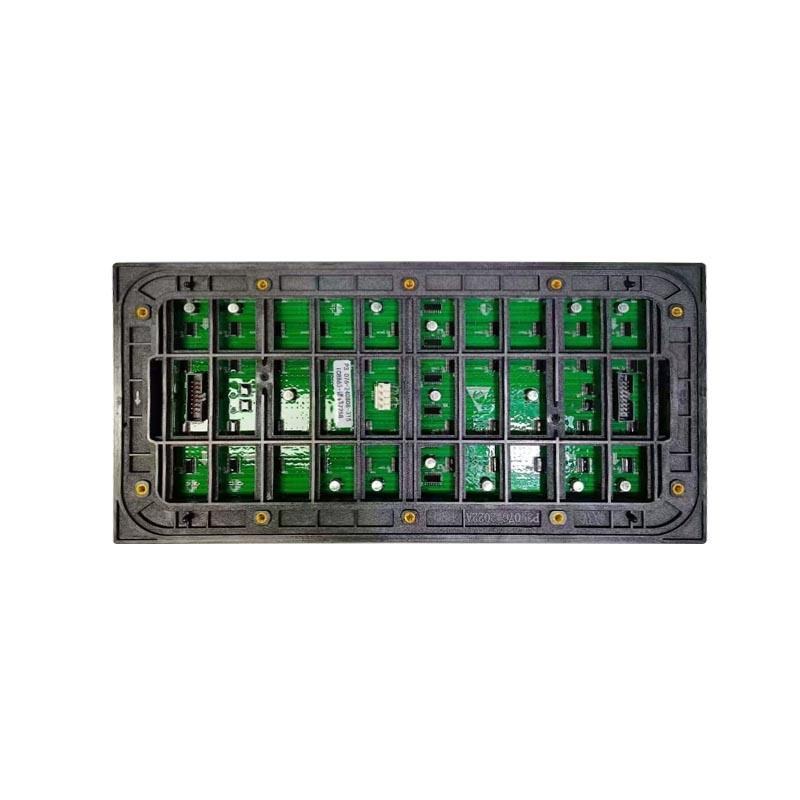

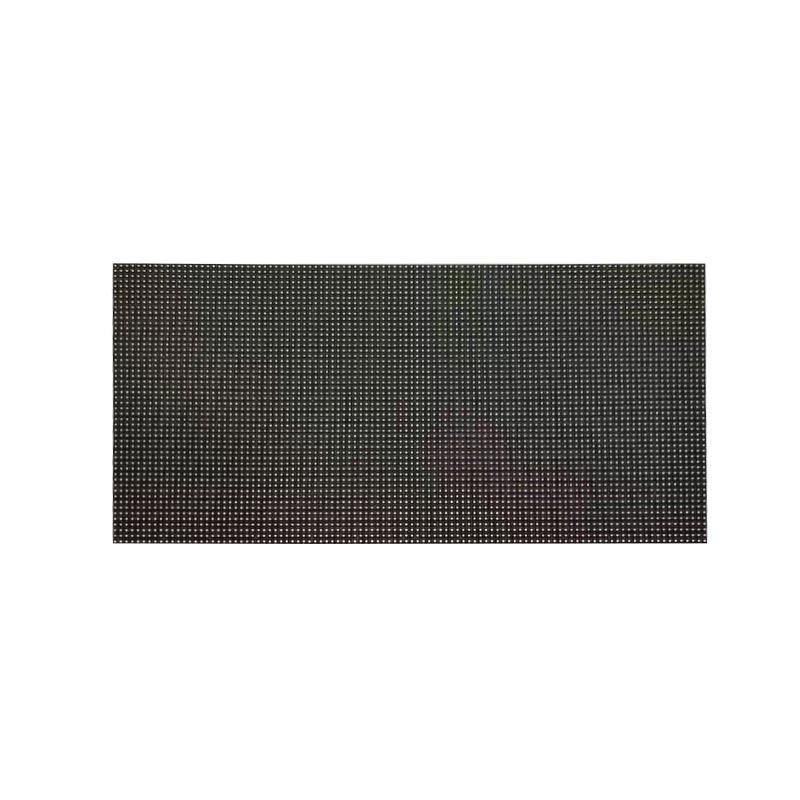

Outdoor P3.076 LED Module 320x160mm
P3.076 Outdoor LED display module with pixel pitch of 3.076 mm,isdesigned to inform and captivate the audience outdoors. Suitable for digital billboards and any outdoor applications such as stadium scoreboards, outdoor advertising and roof billboards.
Key Features
- Pixel Pitch: 3.076mm
- Module Size: 320*160mm
- Module Resolution:104*52
- Optimized for high-definition image display
- Utilizing high quality LED lamps
- High brightness and better contrast
- Support multiple outdoor applications
- Cost-effective
- Wider viewing angle
What are the technical specifications?
| Model | P3.076 |
| Pixel Pitch | P3.076 mm |
| Module Size | 320 × 160 mm |
| Module Resolution | 104 × 52 pixels |
| LED Lamp Type | SMD1515 |
| Brightness | 5,000–7,500 nits (Adjustable) |
| Refresh Rate | 1,920–3,840 Hz |
| Greyscale | 16-bit; 65,536 shades per primary color; approximately 281 trillion colors |
| Driving Method | 1/13 Scan |
| Minimum Viewing Distance | >3 m |
| Pixel Density | 105,625 dots/m² |
| IP Rating | IP65 |
| Typical Power Consumption | 250 W/m² |
| Maximum Power Consumption | 750 W/m² |
| Panel Material | Die-cast Aluminum / Aluminum / Steel |
Guides for this product line
Solutions using this line
Related Products
Common FAQs
Each module measures 320 × 160 mm and carries 104 × 52 pixels, which works out to 105,625 dots per square metre. It is an outdoor module, so it is built into a sealed cabinet and finished as a complete screen.
The pixel pitch is P3.076 mm. Finer pitch keeps detail visible at closer range, while a wider pitch is normally chosen where the audience sits further back.
Brightness is 5,000–7,500 nits (Adjustable) nits. That level is intended for outdoor use, where the image has to stay readable in daylight.
It is driven at 1/13 Scan scan. In practice that means the 104 × 52 pixel rows are refreshed in 13 groups per frame, which is the standard arrangement for this module size.
Outdoor modules are fixed with screws into the cabinet, and the assembled screen carries an IP65 rating. Screw fixing keeps the module compressed against the gasket so the cabinet stays sealed.
Modules are quoted per piece rather than per square metre, and the minimum order is a single module. That means one unit can be ordered as a spare, while larger quantities are priced by pitch, size and order volume.
