Glass-R Series
Glass-R is a portable, easy-to-assemble transparent LED stage display for rental scenarios. Standard 500×500mm and 500×1000mm cabinets combine vertically, with 3840Hz~7680Hz refresh.
Key Features

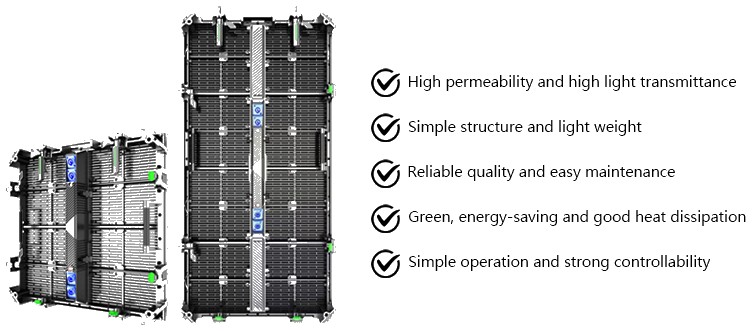

- High permeability and light transmittance
- Portable, lightweight structure for rental use
- 3840Hz~7680Hz high refresh rate
- 500×500mm and 500×1000mm cabinets combine vertically
- 35% transparency rate, no framework
- Rear-removable modules for plug-and-play maintenance
- IP65 outdoor waterproof design
Technical Specifications
| Model | 3.91×7.81mm |
|---|---|
| Pixel Pitch | 3.91x7.81mm |
| Pixel package | SMD1921 |
| Cabinet size(mm) | 500x500/500x1000 |
| Cabinet resolution(dots) | 128*64/128*128 |
| Best view distance | ≥3m |
| Pixel Density | 32768dots/㎡ |
| Brightness | Indoor ≥1000cd, Outdoor ≥4500cd |
| Cabinet Weight | 500x500mm panel 3.75kg / 500x1000mm panel 7.5kg |
| Waterproof level | Indoor IP30 Outdoor IP65 |
| Refresh Rate | 3840-7680Hz |
| Life Span | ≧100000hours |
| Working Voltage | 100-240V, 60Hz |
| Humidity-operating | -10%～90% |
| Operating temperature | -40ºC~45ºC |
Product Highlights
Rental Transparent LED Screen
The rental transparent LED screen is a highly portable and easy-to-assemble stage display product specially designed for rental scenarios.

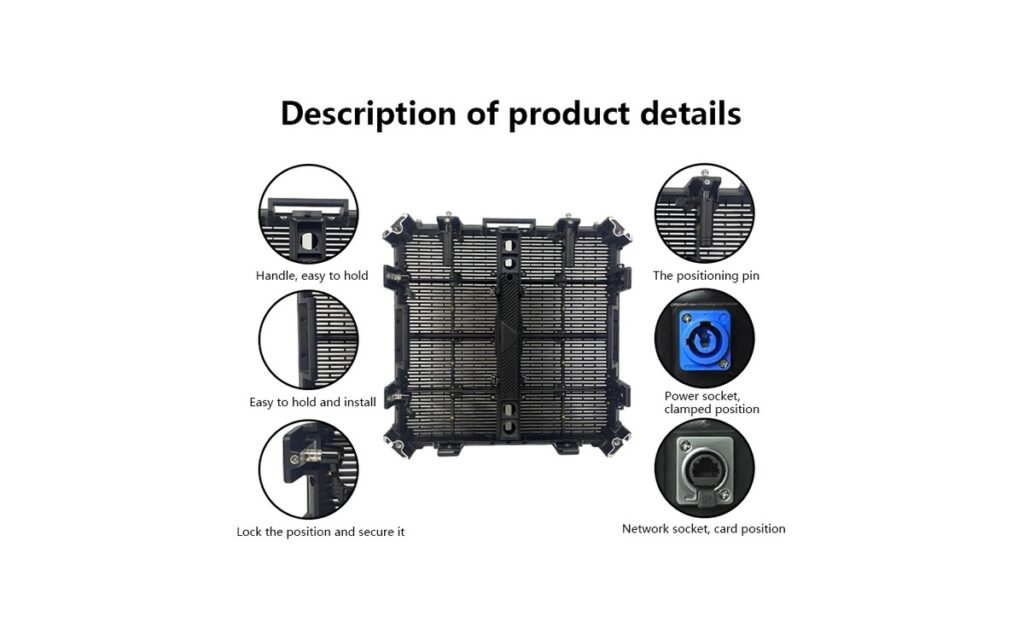

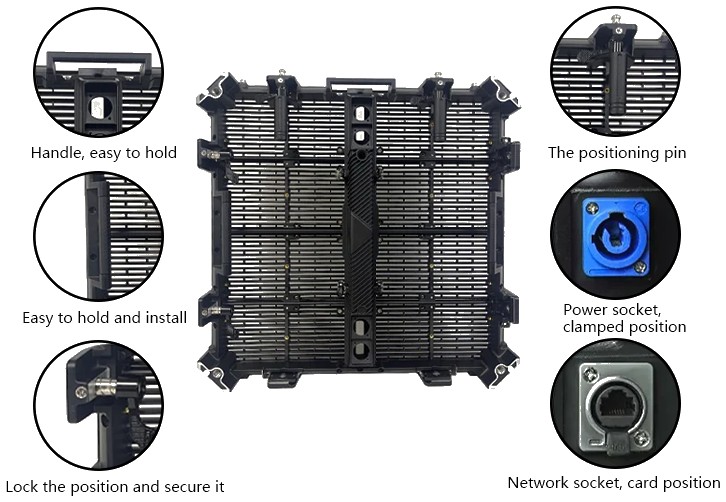

Product Details & Maintenance
Rear-removable modules support convenient plug-and-play maintenance. The lightweight, transparent screen has a 35% transparency rate and no framework for multi-purpose use. A quick-lock system enables fast, stable modular installation. More than 30% energy saving compared with other products reduces operating costs. Installation and maintenance are easy, and supporting structures have a low cost.

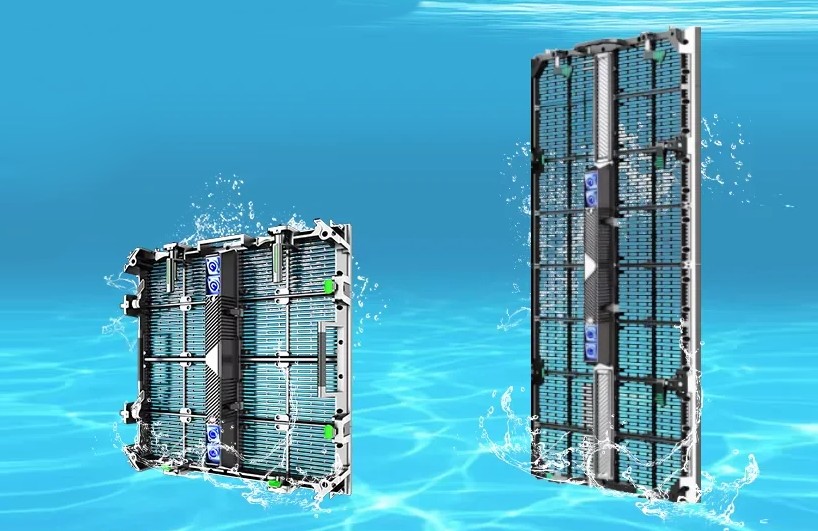

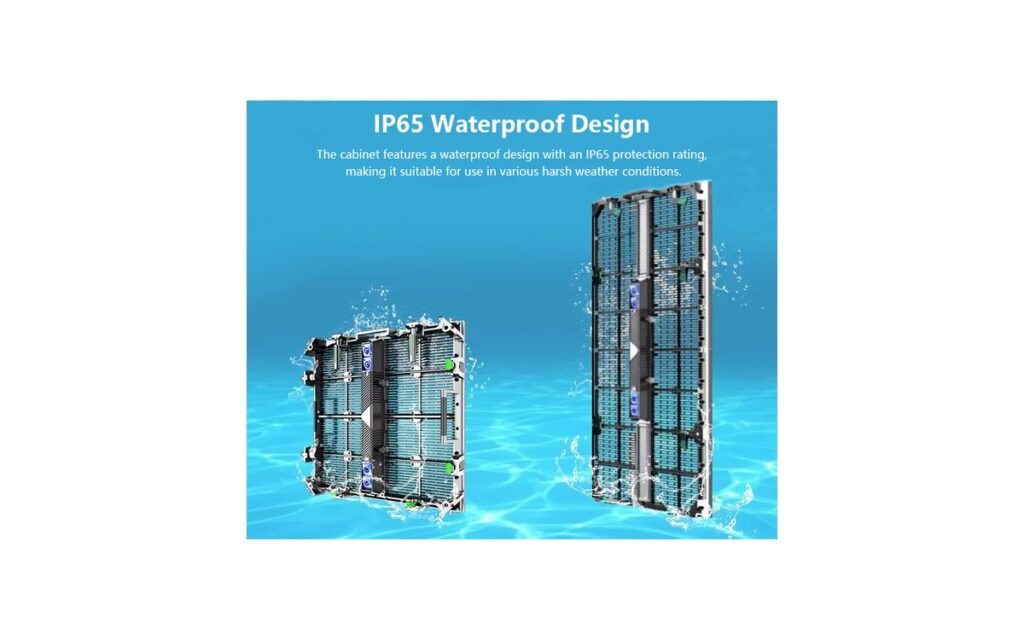

IP65 Waterproof Design
The cabinet features a waterproof design with an IP65 protection rating, making it suitable for outdoor rental use.

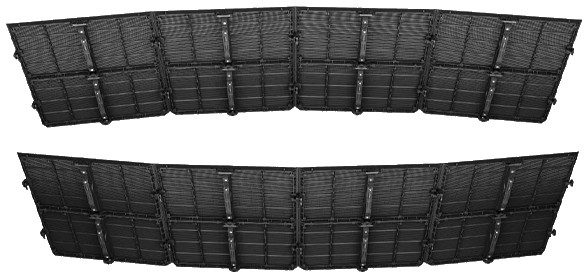

Concave and Convex Curve Lock
The -15° to +15° curve locks support straight, concave, and convex configurations for creative stage designs.

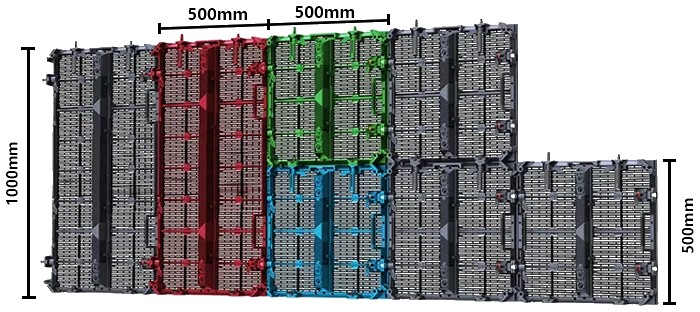

Seamless Splicing
Standard straight cabinets are available in 500×500mm and 500×1000mm sizes. Screen sizes can be freely combined for seamless large-scale displays.
