Glass-S Series
Glass-S Series is a thin, lightweight transparent LED display for indoor and outdoor windows, broadcasting stages and rental events. It features a 3840Hz~7680Hz refresh rate and an elegant design.
Key Features
- Thin, lightweight design for events and window applications
- 40% transparency for indoor and outdoor display use
- 3840Hz~7680Hz refresh rate for event visuals
- 90° angle and curved design options
- Quick locks for easy installation
- Front and rear service options
Technical Specifications
| Model | H3.9-V7.8 | H3.9-V7.8 |
|---|---|---|
| Pixel Matrix Per Sq.m | 65,536 | 65,536 |
| Pixel Configuration | SMD1921 | SMD1921 |
| Brightness (cd/㎡) | 5000 | 2000 |
| Module Dimension | 500x125mm | 500x125mm |
| Cabinet Dimension | 1000x500mm / 3.28 x1.64ft | 1000x500mm / 3.28 x1.64ft |
| Cabinet Resolution | 256 x 64 | 256 x 64 |
| Transparency | 40% | 40% |
| Cabinet Material | CNC Aluminum | CNC Aluminum |
| Cabinet Weight | 7.5kg | 7.5kg |
| Power Con.(W/㎡) (Max / Avg) | 800W/200-400W | 400W/150W |
| Service Access | Rear | Rear |
| Refresh Rate (HZ) | ≥3840HZ | ≥3840HZ |
| Grey Scale (bit) | ≥16 | ≥16 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° |
| IP Rate | IP64 | IP45 |
| Operation Temperature | -40° ~ 45° | -40° ~ 45° |
| Input Voltage (AC | 110V / 240V | 110V / 240V |
Product Highlights

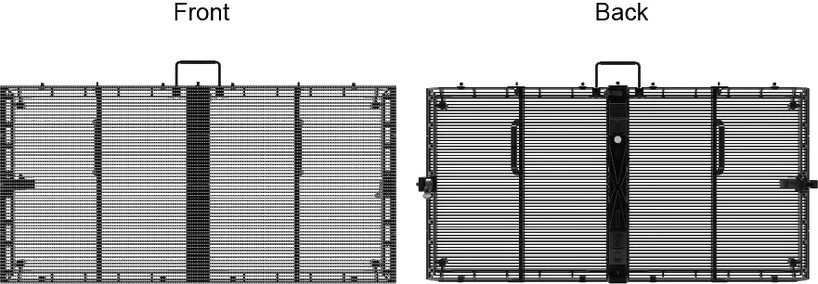

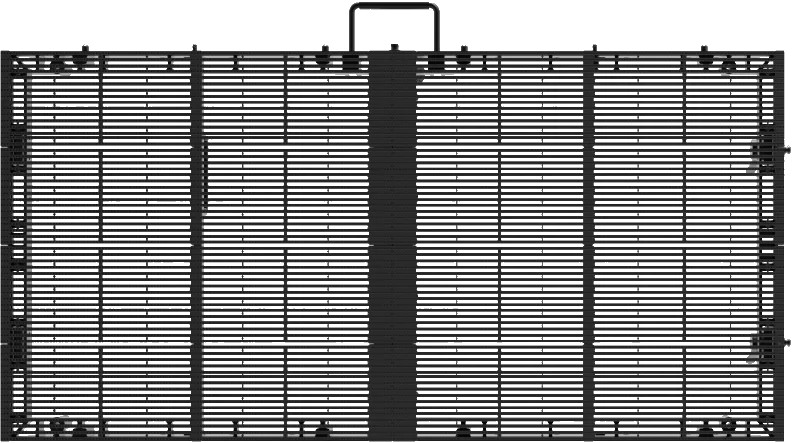

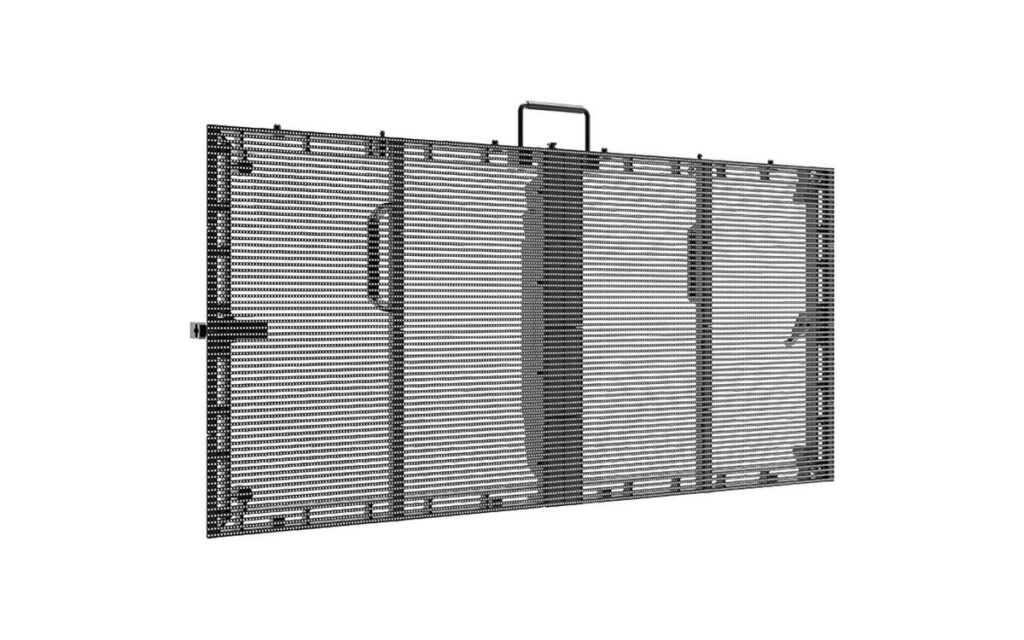

Clean and Clear Cabinet Design
A beautiful, transparent cabinet design for celebrations, parties and concerts, with an exquisite appearance and the smallest-size power box.

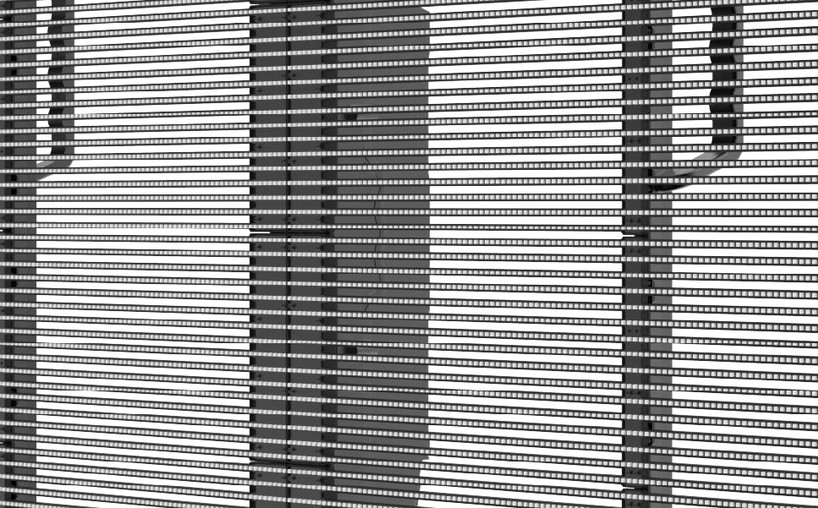

High Transparency
High transparency supports better LED display rendering. Indoor: IP45 and 2,000nits brightness. Outdoor: IP65 outdoor waterproof and 5,000 nits brightness, providing waterproof performance for use in rainy days.
Diverse Installation Shapes

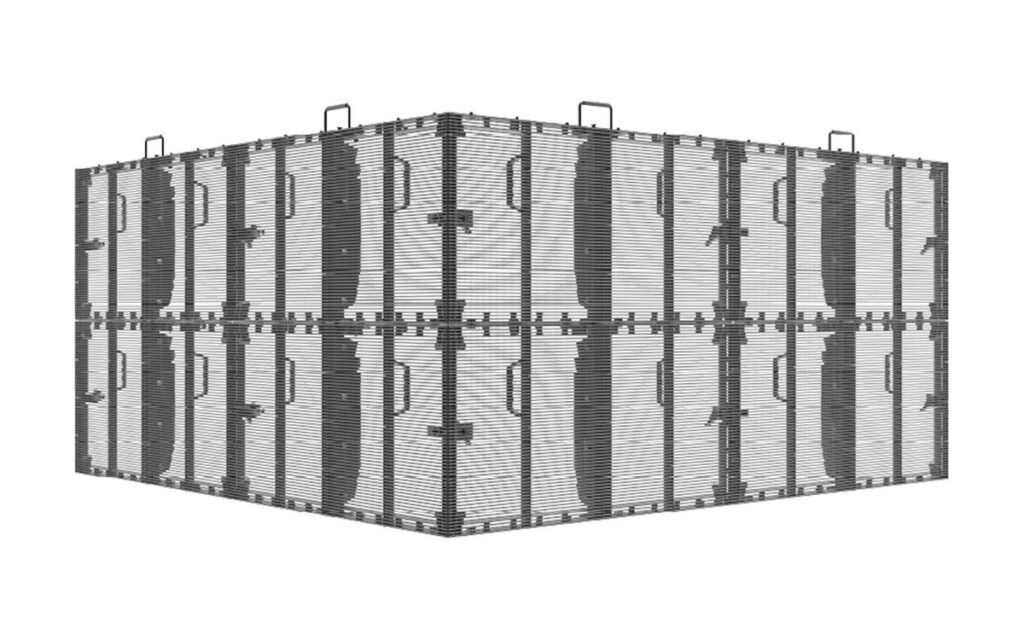

Supports hoisted installation, fixing on the back frame, internal and external arcs, and right angles. The 90 Degree Right Angle Design Solution enables left and right cabinet 90° splicing to create a four-sided cube design.

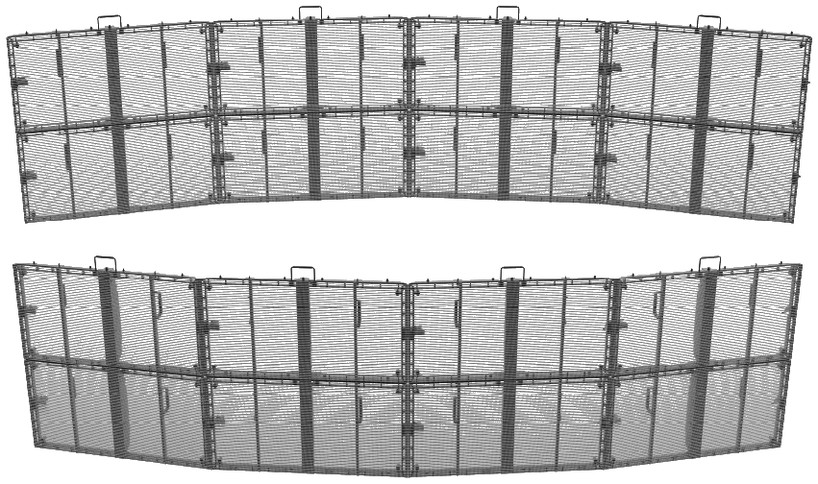

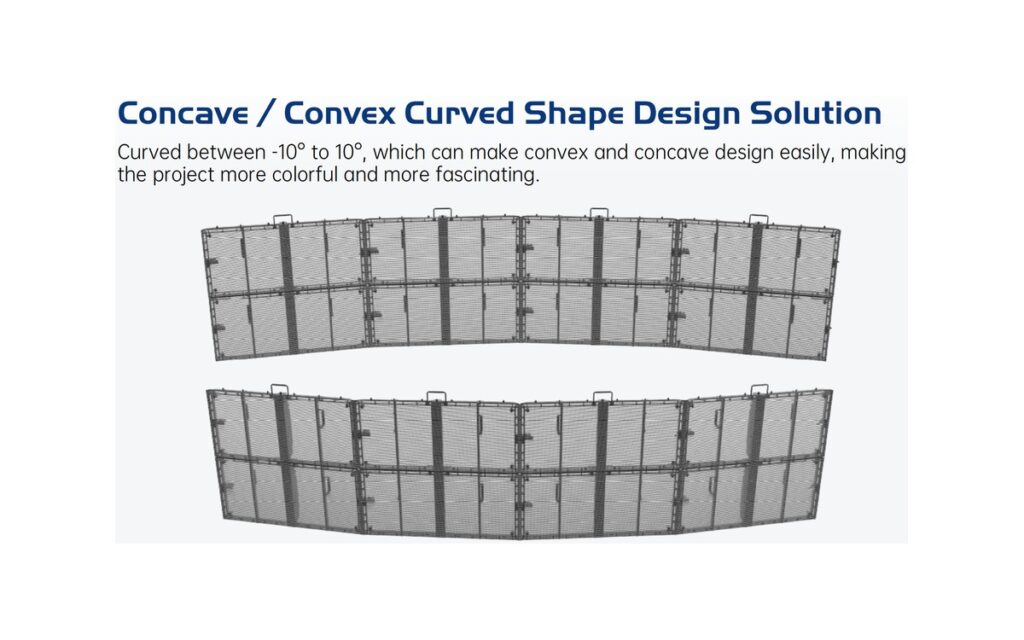

Concave / Convex Curved Shape Design Solution
The curved design ranges from -10° to 10°, enabling convex and concave designs and making projects more colorful and fascinating.
