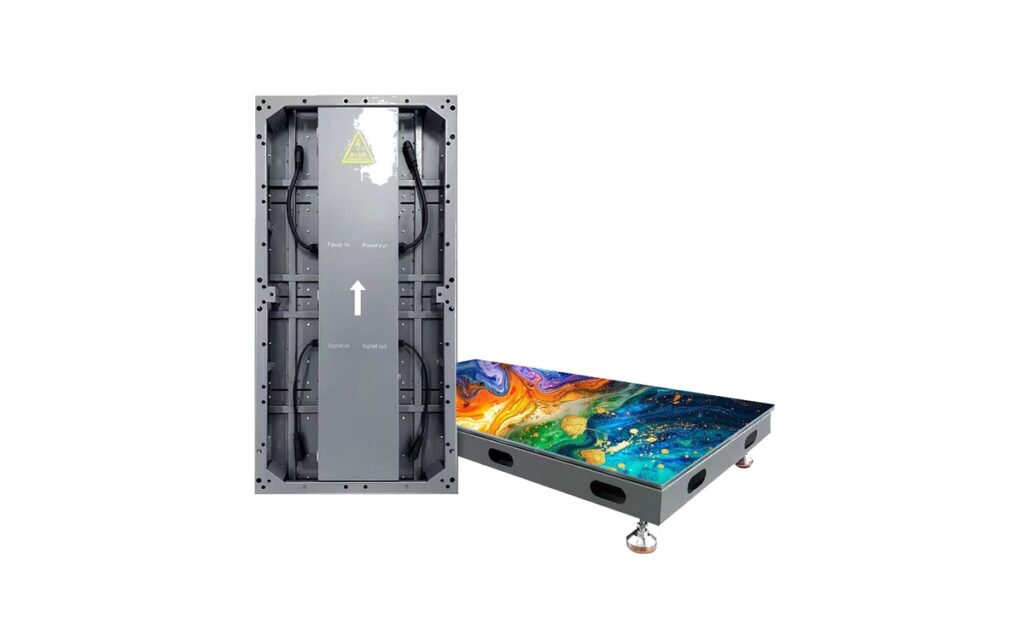

Floor-G Series
Floor-G Series is a new, in-demand LED floor display technology with high protection and high load-bearing capacity. Indoor floor LED display available in P2.5, P2.6, P2.9, P3.9 and P4.8 for bars, stages, KTV and more.
Key Features
- Stable Mask
- IP54
- High Load-Bearing Capacity
- Fast & Easy Maintenance
- 500×500mm / 500×1000mm Standard Sizes
Technical Specifications
| Model | P2.5 | P2.6 | P2.9 |
|---|---|---|---|
| Pixel Pitch | 2.5mm | 2.6mm | 2.9mm |
| Module Resolution | 100×100 dots | 96×96 dots | 84×84 dots |
| Module Pixels | 10,000 dots | 9,216 dots | 7,056 dots |
| Cabinet Resolution | 200×400 dots | 192×384 dots | 168×336 dots |
| Pixel Density | 160,000 dots/m² | 147,456 dots/m² | 112,896 dots/m² |
| Minimum Viewing Distance | ≥2.5m | ≥2.6m | ≥2.9m |
| LED Type | SMD1415 | ||
| Driving Mode | 1/21 scan | ||
| Module Size | 250×250mm | ||

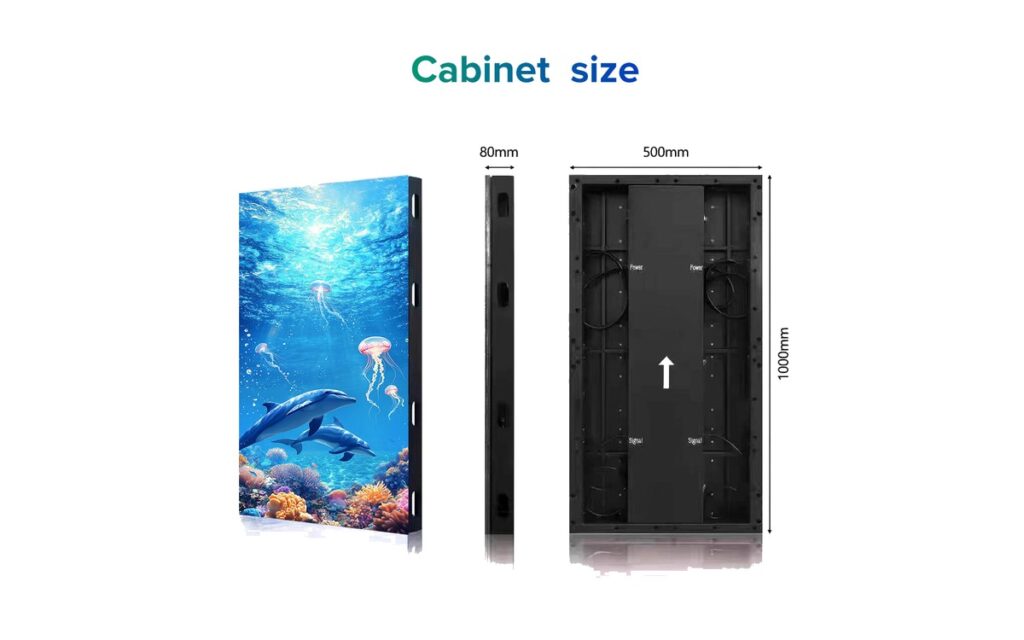

| Cabinet Size | 500×1000mm | ||
| Brightness | 900–1500 nits | ||
| IP Grade | IP54 / IP45 | ||
| Refresh Rate | 3840–7680Hz | ||
| Gray Scale | 16bit | ||
| Viewing Angle | 160° / 160° (H/V) | ||
| Max. Power Consumption | 400W / panel | ||
| Avg. Power Consumption | 200W / panel | ||
| Input Voltage | AC 100–240V, 50–60Hz | ||
| Operating Temperature | -10℃ ~ +60℃ | ||
| Operating Humidity | 10–90% RH | ||
| Cabinet Material | Iron | ||
| Cabinet Weight | 24kg | ||
| Operating System | Windows (10 / 11, etc.) | ||
| Signal Source | DVI, HDMI | ||
Product Highlights

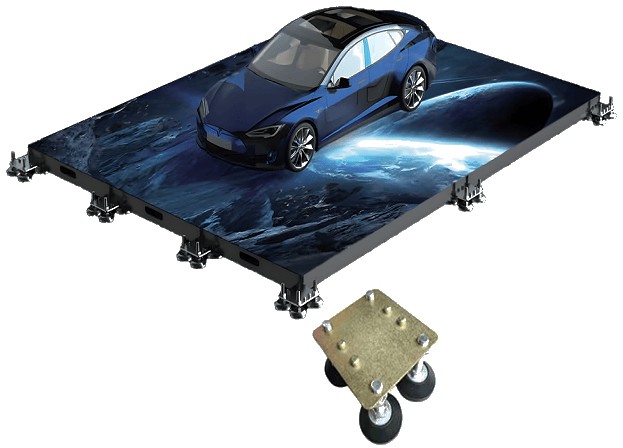

High Load-Bearing Capacity
Each square meter can bear up to 2200kg thanks to a strong cabinet structure and multilayer subdivision PC mask. Each cabinet has four adjustable feet supporting heights from 130mm to 170mm — and the special reinforcement structure with wire-buckle design greatly enhances cabinet stability.

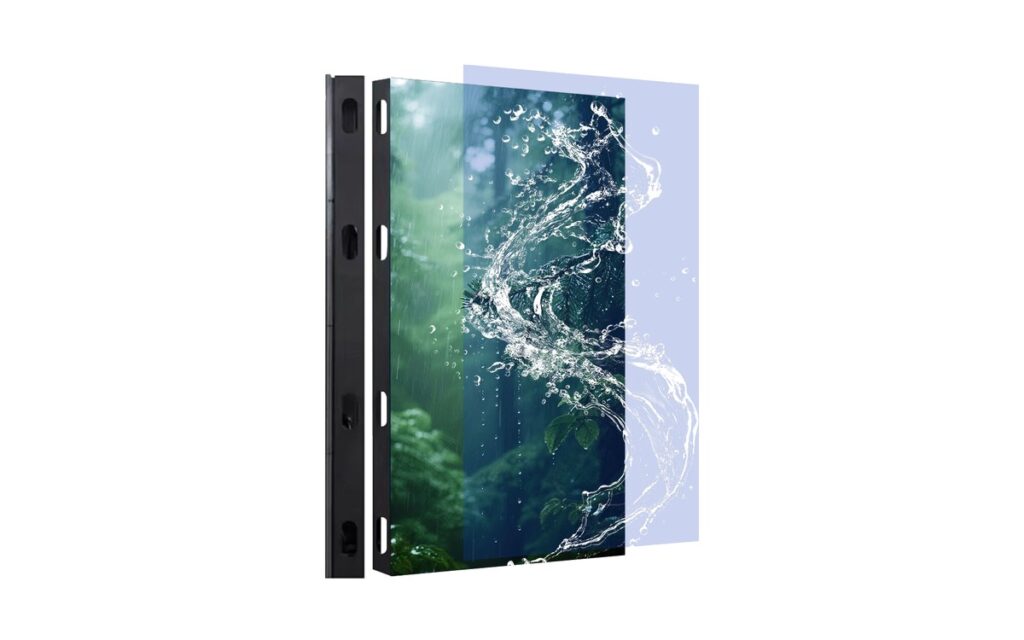

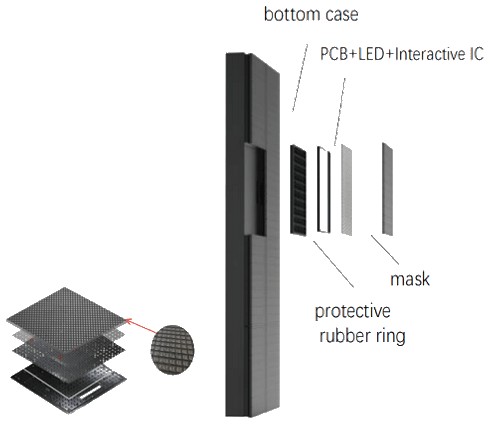

Strong PC Mask Design
A private-mode anti-scratch mask with a convex design that enhances wear and scratch resistance, plus an IP54 protective rubber ring for waterproof performance. Enough distance is reserved between the LEDs and the mask, so the LEDs won't be affected when people stand on the screen — and the multilayer subdivision PC mask realizes a higher protection level.

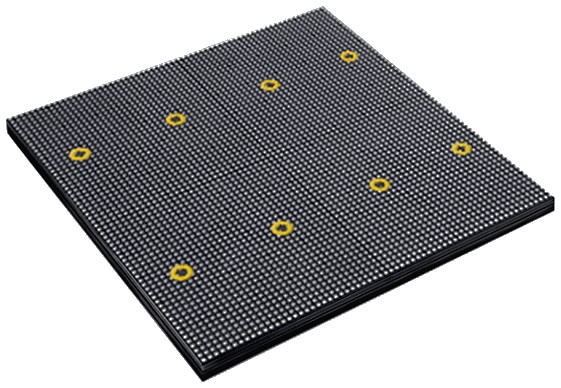

Interactive Induction
Each module has 8 built-in chips achieving a 0.016s response time. Sensitivity is adjustable — reaction speed and time can be changed in the software according to different needs. The built-in chip responds much faster than radar sensors.

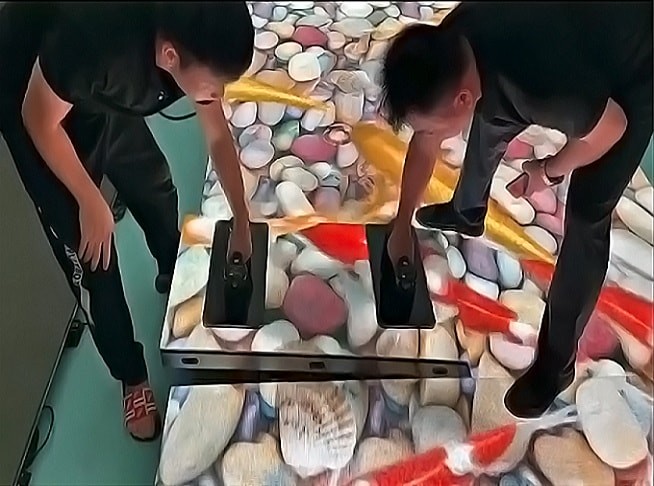

Cabinet Front Maintenance
Magnetic suction cabinet design supports removing any cabinet freely without affecting the normal operation of other parts — also more convenient for replacing modules.

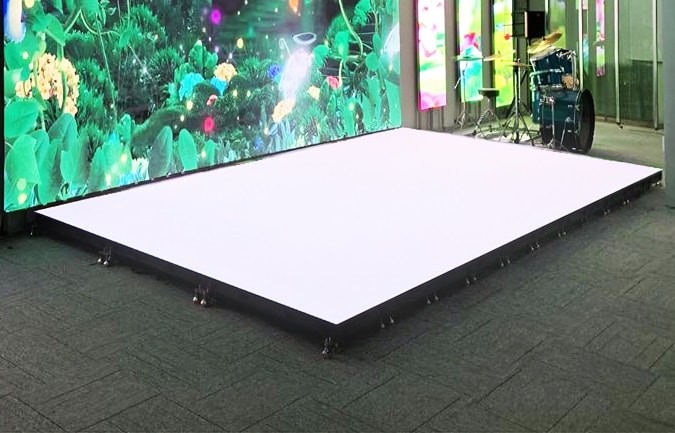

High Brightness – 1500 nits
Unlike regular indoor screens that only reach 800 nits, this product reaches 1500 nits using outdoor LEDs — and it has better moisture resistance.
