Floor-R Series
Floor-R Series is a new, in-demand LED floor display technology — the LED screen surface has many interactive driver ICs, so people and the screen have a perfect interaction effect. Ideal for shopping malls, wine bars, shops, plazas, amusement parks, exhibitions, auto shows, interactive walls, weddings, night clubs and more.
Key Features
- 2T Loading Capacity
- Better Heat Dissipation
- Cable-Free Connection
- Die-Casting Aluminum Cabinet
- Free Height-Adjustable Base Support
- Interactive Sensors Integrated
Technical Specifications
| Model | P2.5 | P2.6 | P2.976 | P3.91 | P4.81 | P5.2 | P6.25 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 2.5 | 2.6 | 2.976 | 3.91 | 4.81 | 5.2 | 6.25 |
| LED Configuration | SMD1415 | SMD1921 | |||||
| Pixel Density (dots/m²) | 160,000 | 147,576 | 112,896 | 65,536 | 43,264 | 36,864 | 25,600 |
| Module Resolution | 100×100 | 96×96 | 84×84 | 64×64 | 52×52 | 48×48 | 40×40 |
| Module Dimensions (W×H×D, mm) | 250.85×250.85×18 | 249.8×249.8×18 | 249.6×249.6×18 | 249.4×249.4×18 | |||
| Brightness (cd/m²) | 1200 | ||||||
| Max. / Avg. Power (W) | 200 / 100 | ||||||
| Viewing Angle | 150° / 150° | ||||||
| Module Size (mm) | 500×500×78 | ||||||

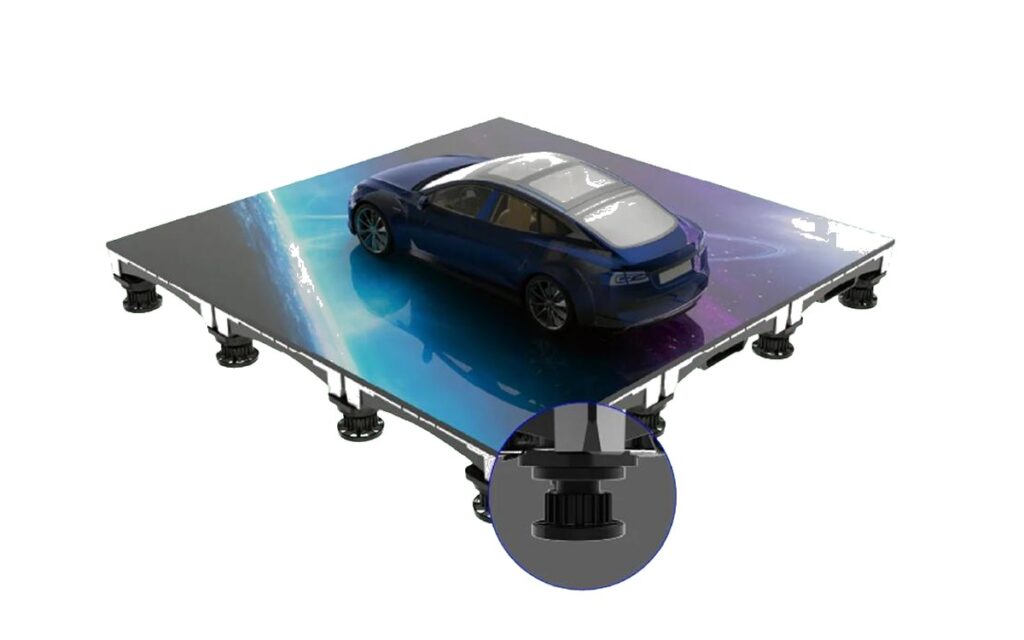

| Max. Load Bearing | 1500kg/m² | ||||||
| Refresh Rate | 1920–7680Hz (optional) | ||||||
| Protection Level | IP54 / IP45 | ||||||
Product Highlights

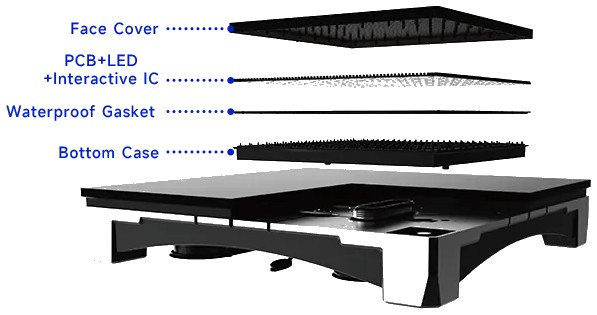

Advanced DOB Encapsulation
Adopting advanced DOB encapsulation technology, the display integrates a three-layer protection structure — a protective layer, a cushioning soft layer and a functional layer. This design enhances impact resistance, waterproof performance, dust protection and overall reliability, extending the product lifespan.

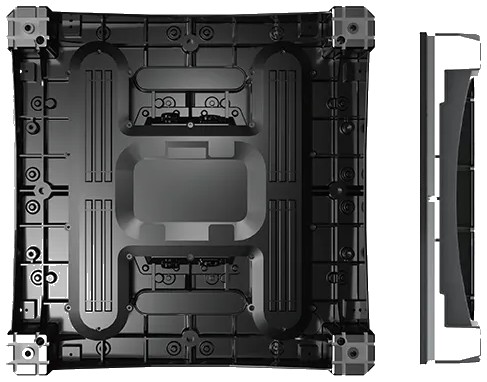

Die-Casting Aluminum Cabinet
Featuring a standard 500×500mm die-casting aluminum cabinet, the Floor-R Series offers a robust and stable structure with excellent load-bearing capacity and durability — designed to withstand frequent foot traffic and demanding application environments.

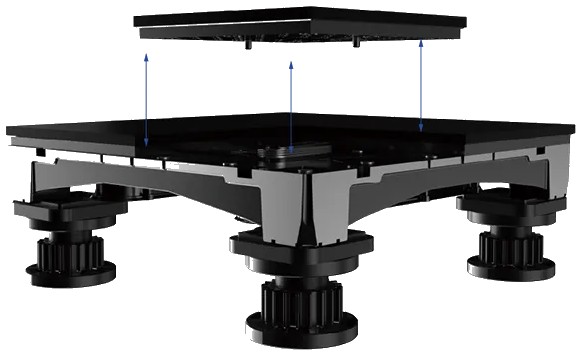

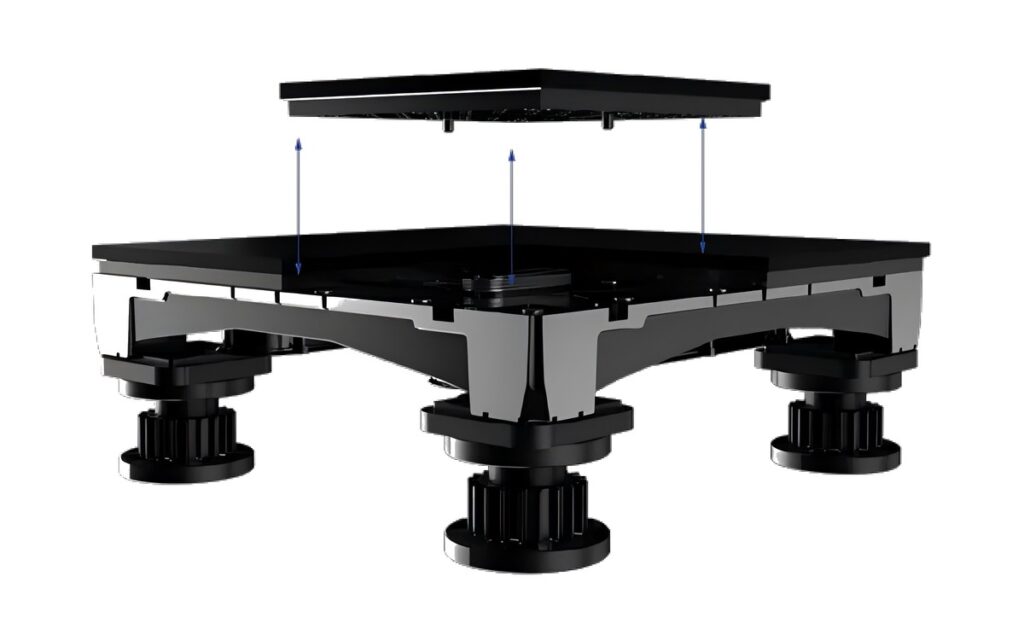

Front Maintenance Module Design
The modular front-maintenance design enables quick installation, easy adjustment and convenient maintenance — improving project efficiency while reducing operation and maintenance costs.

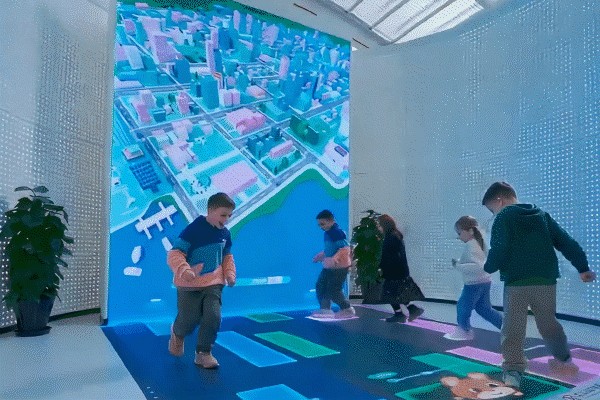

Intelligent Interactive Experience
Built-in interactive sensing chips work together with the control system to enable interactive floor display applications — supporting human-screen interaction, interactive games and other innovative scenarios for an immersive digital experience.

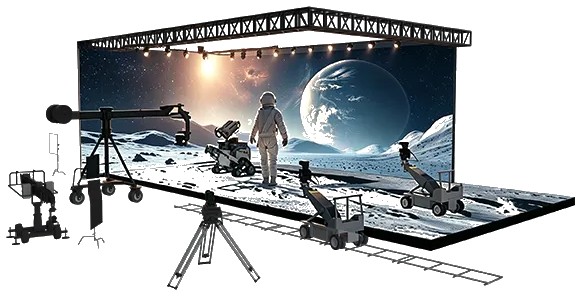

Flexible XR Creative Applications
Supporting XR display modes, the Floor-R Series can be configured into various creative structures — including multi-fold screens, curved screens and U-shaped screens — ideal for exhibition halls, broadcasting studios, stage performances and digital cultural tourism projects.
Related Products
Common FAQs
500×500×78 mm per module, with 250×250 mm LED modules inside.
P2.5, P2.6, P2.976, P3.91, P4.81, P5.2 and P6.25 mm.
1,500 kg/m², with die-cast aluminium cabinets and height-adjustable base supports.
Interactive driver ICs and integrated sensors detect footsteps and trigger content; no external camera tracking is required.
Per square metre, depending on pitch, interactive option and destination.
