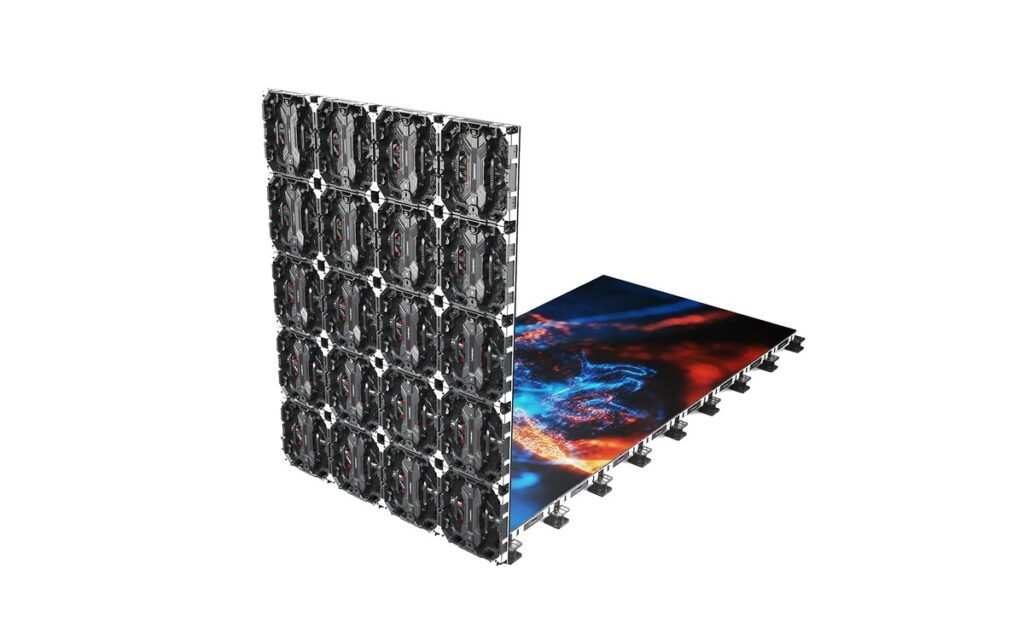

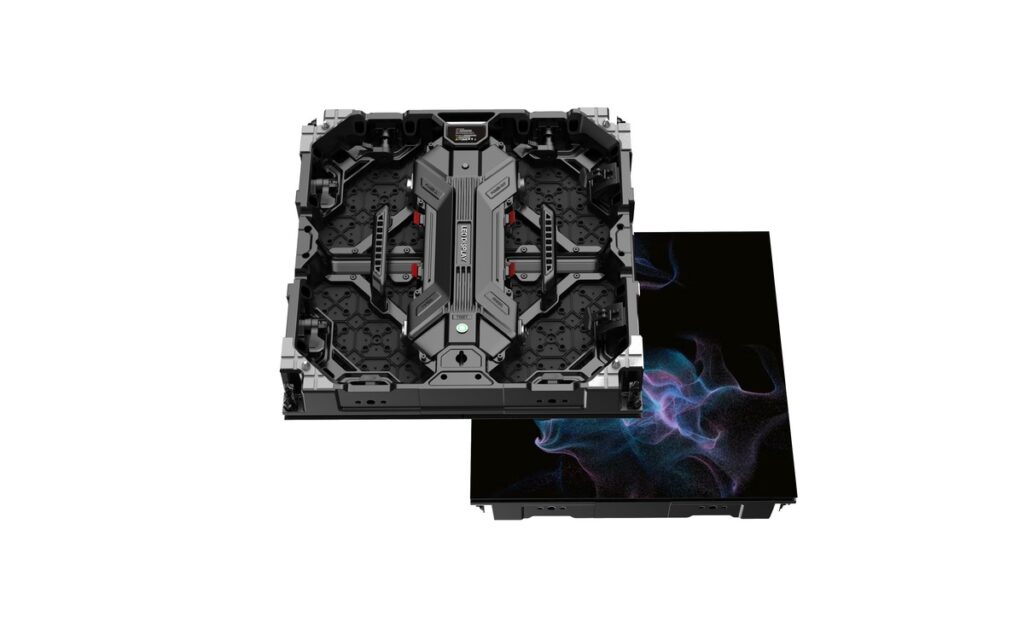

Floor-T Series
Floor-T Series combines robust protection with easy installation and maintenance. With an IP65-rated surface, it resists water, dust and impact, ensuring reliable performance in high-traffic indoor environments. Ideal for museums, bars, shopping malls, stages and studios — delivering durability, safety and seamless integration.
Key Features
- 1.5, 1.9, 2.5, 2.9 & 3.9mm Pixel Pitches
- Front Service Access
- Better Heat Dissipation
- Cable-Free Connection

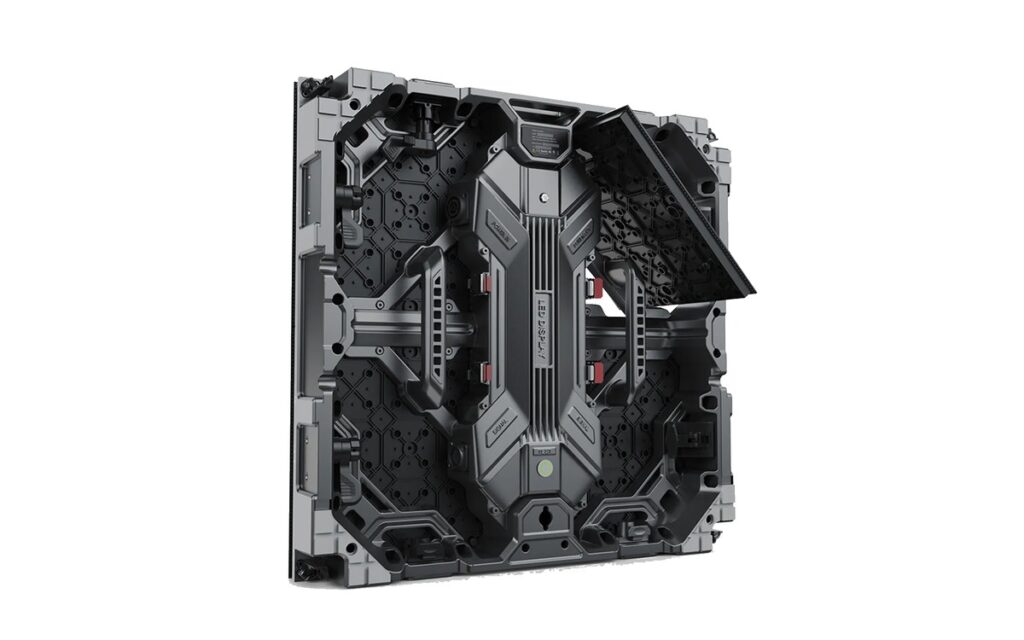

- Die-Casting Aluminum Cabinet
- Free Height-Adjustable Base Support
- Interactive Sensors Integrated
Technical Specifications
| Model | TF1.5 | TF1.9 | TF2.5 | TF2.9 | TF3.9 |
|---|---|---|---|---|---|
| Physical Parameters | |||||
| Pixel Pitch (mm) | 1.5625 | 1.953 | 2.5 | 2.976 | 3.91 |
| Module Size (W×H) mm | 250×250 | ||||
| Cabinet Size (W×H×D) mm | 500×500 | ||||
| Cabinet Weight (kg) | 10.5 | ||||
| IP Level | IP67 F & R / IP54 | ||||
| Load Capacity (T/m²) | 2–2.5 | ||||
| Optical Parameters | |||||
| Cabinet Resolution (L×W) pixels | 320×320 | 256×256 | 200×200 | 168×168 | 128×128 |
| Aspect Ratio | 1 : 1 | ||||
| Brightness (nits) | 700 / 1000 | ||||
| Refresh Rate (Hz) | 3840 | ||||
| Color Temperature (K) | 2,500–10,000 | ||||
| Electrical Parameters | |||||
| Power Consumption Max (W/m²) | 800 | ||||
| Power Consumption Avg (W/m²) | 270 | ||||
| Working Voltage | AC 100–240V, 50–60Hz | ||||
| Additional Features | |||||
| Lifetime (Hours) | 100,000 | ||||
| Interactive | Interactive / Non-interactive | ||||
| Operating Temp (℃) | -20 ~ +50 | ||||
| Humidity Range (%) | 10–80 | ||||
Product Highlights

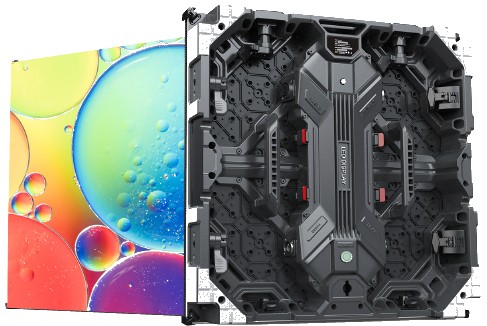

Intelligent Interactive Sensing
Equipped with built-in laser sensors and MCU control chips, the Floor-T Series offers high sensitivity and strong anti-interference capabilities. Combined with our independently developed floor interactive sensing system, it enables a contactless interactive experience.

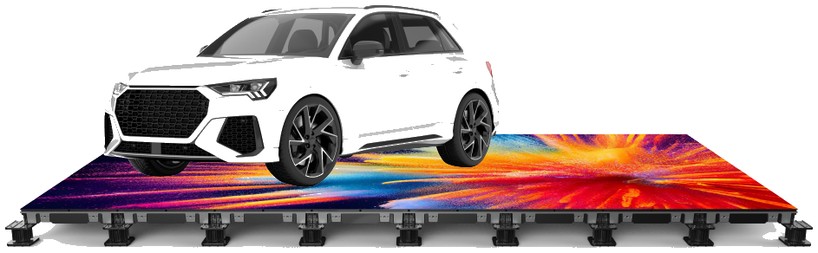

High Load-Bearing Capacity
The die-casting cabinet adopts a skeleton-type load-bearing design and pressure-resistant materials, with a load-bearing capacity of 2000–2500kg/m².

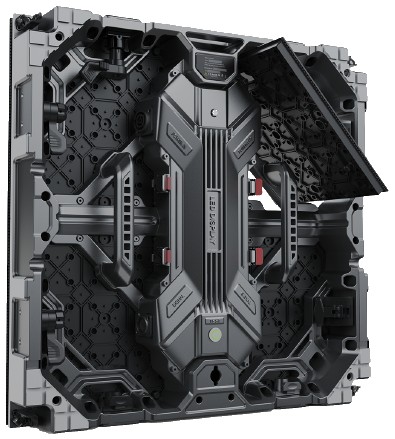

Comprehensive Protection
Corner anti-collision design, optional spring lock on the cabinet, and an anti-slip and anti-scratch surface with IP54 protection rating.
COD Colloidal Membrane
The module adopts COD colloidal permeable membrane pressing technology, ensuring high ink color consistency while effectively protecting the LED beads from temperature variations, friction and impacts.

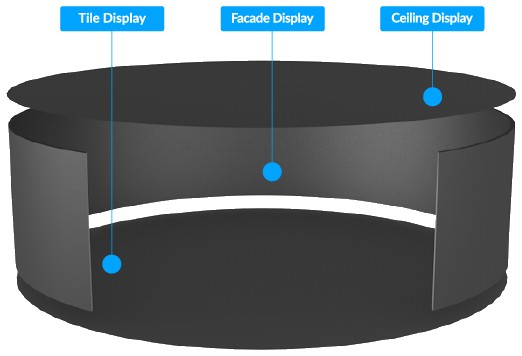

Various Installation Methods
The Floor-T Series works not only as a tile display but also supports curved installation, hanging installation and floor-standing installation — meeting diverse installation requirements, and it's the perfect choice for XR virtual shooting solutions.
