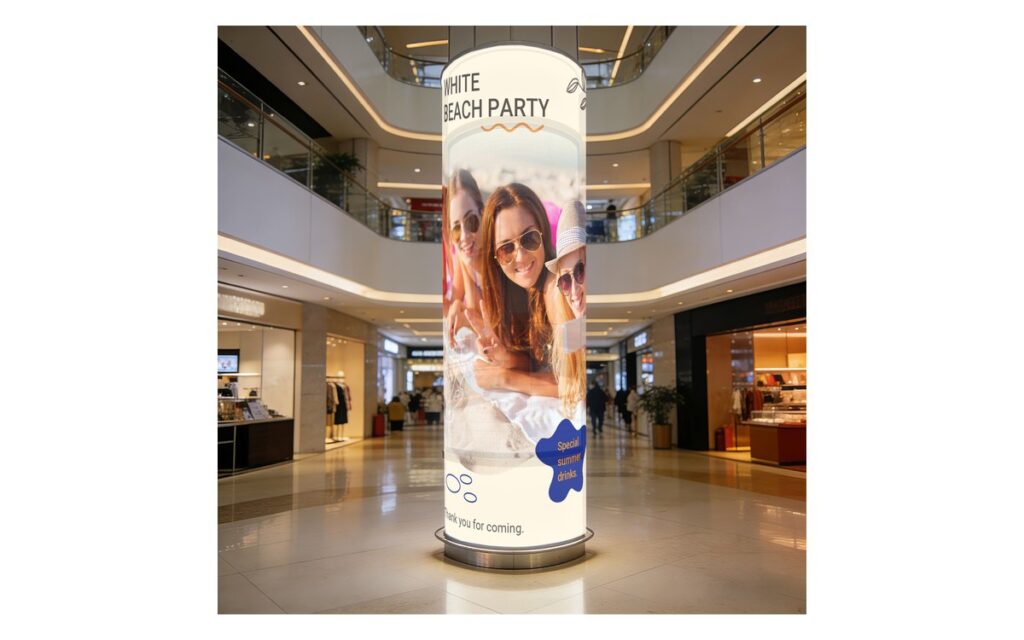

Cylindrical LED Displays
Built with flexible silicone LED modules for seamless curved and cylindrical installations. Available in P1.25–P4 with 600–900 nits brightness, 1920–3840Hz refresh rate, 140° viewing angle and front maintenance. IP45 rated for indoor creative display applications.
Key Features
- No Degumming
- No Warping
- Big Bending Angle
- Good Flexibility
- Wide Viewing Angle
- Super High Definition
- High Contrast
Technical Specifications
| Model | FLEX1.25 | FLEX1.579 | FLEX1.667 | FLEX1.875 | FLEX2 | FLEX2.5 | FLEX3 | FLEX4 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.25 | 1.579 | 1.667 | 1.875 | 2 | 2.5 | 3 | 4 |
| Pixel Matrix / m² | 640,000 | 401,111 | 360,000 | 284,444 | 250,000 | 160,000 | 111,111 | 62,500 |
| Pixel Configuration | SMD1010 | SMD1010 / SMD1212 | SMD1010 / SMD1212 | SMD1212 / SMD1515 | SMD1515 | SMD1515 | SMD1515 / SMD2121 | SMD2121 |
| Brightness (nits) | ≥600 | ≥650 | ≥700 | ≥750 | ≥750 | ≥750 | ≥900 | ≥850 |
| Scan | 1/48 | 1/38 | 1/36 | 1/32 | 1/30 | 1/24 | 1/20 | 1/15 |
| Module Dimension | 240×120mm (0.79×0.39ft) | |||||||
| Module Material | Silicone Rubber / Soft Bracket | |||||||
| Module Weight | 0.215kg | 0.203kg | 0.195kg | 0.216kg | 0.205kg | 0.175kg | 0.175kg | 0.17kg |
| Power Con. (Max / Avg) | 1000 / 340 W/m² | 1000 / 340 W/m² | 800 / 270 W/m² | 800 / 270 W/m² | 800 / 270 W/m² | 800 / 270 W/m² | 800 / 270 W/m² | 800 / 270 W/m² |
| Service Access | Front | |||||||
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | ≥2880 | ≥2880 | ≥1920 | ≥1920 | ≥1920 |
| Grey Scale (bit) | 14 | |||||||
| Viewing Angle (H/V) | 140° / 140° | |||||||
| IP Rating | IP45 | |||||||
| Operating Temperature | -10°C ~ 50°C | |||||||
| Input Voltage (AC) | 100V or 240V | |||||||
Product Highlights

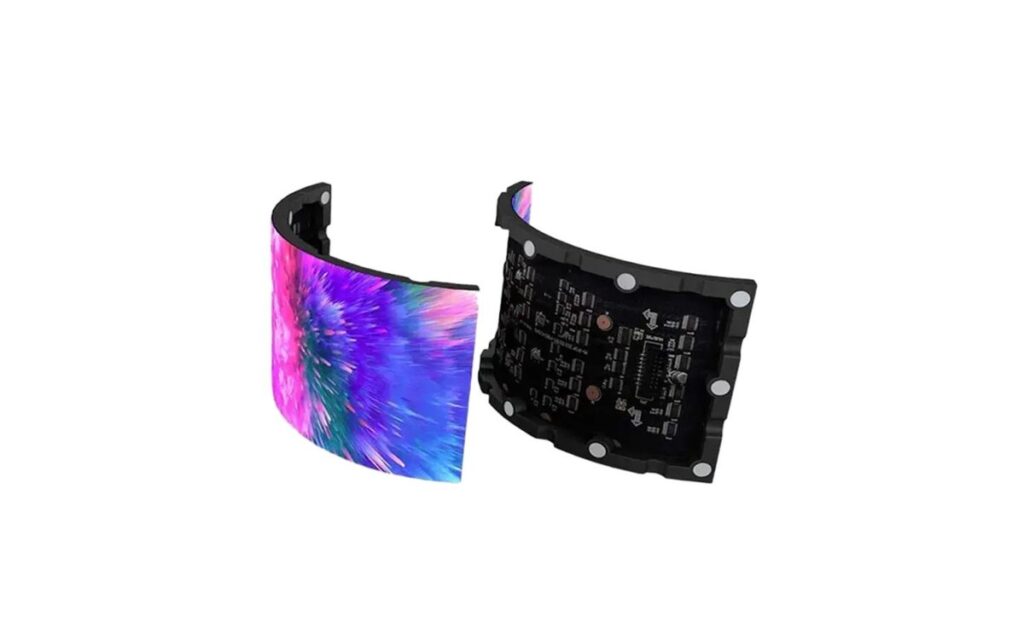

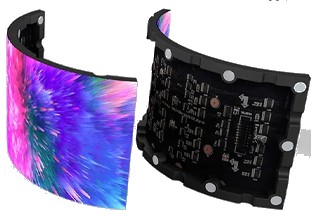

New Silicone Frame Design
New design with a silicone frame and mask plus embedded magnets to reduce stitching gaps. Soft, thin, strong magnetic columns make this a patented flexible LED module.

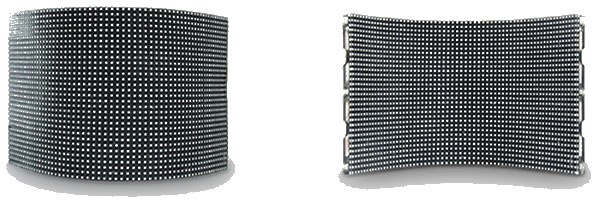

Ultra-Thin & Lightweight
Super light and slim — thickness of only 8mm, saving labor and shipping costs. Extremely flexible: it can be made into creative shapes for any installation site, with stable performance from high-quality raw materials.

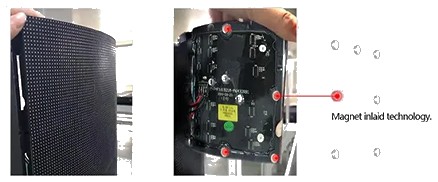

Embedded Magnet Structure
Silicone frame with embedded magnet design — easy to assemble and disassemble for front service maintenance.

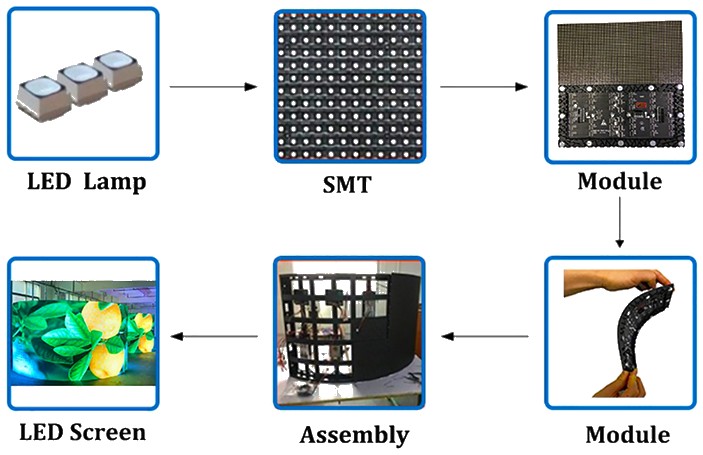

Quick Magnetic Installation

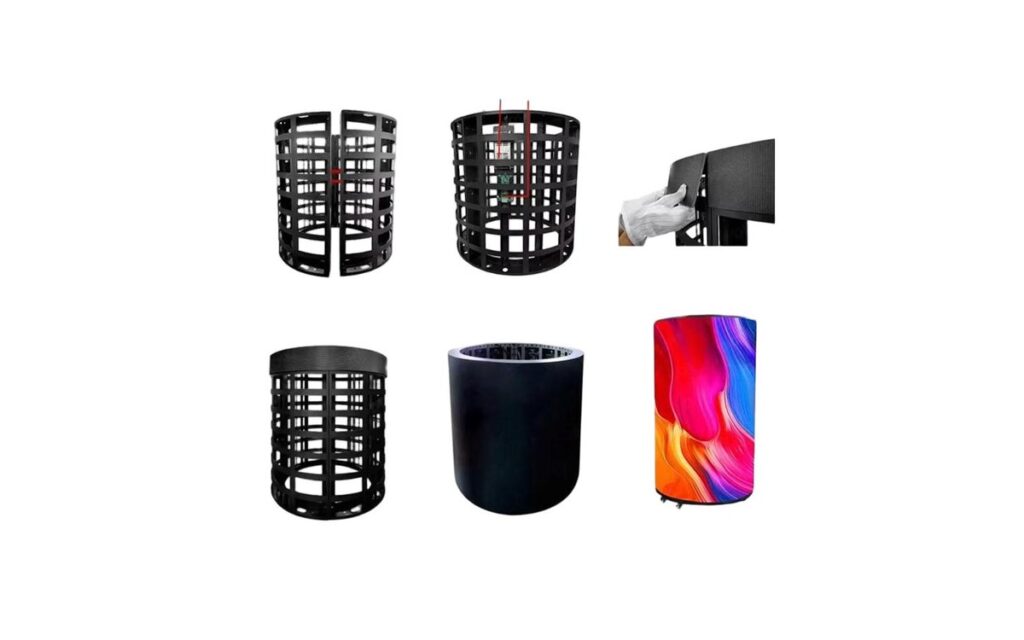

Modules splice directly for easy operation, with magnetic assembly for quick installation or replacement. Can be built with or without a cabinet, greatly reducing screen weight, and attaches to any shaped iron structure.
Roll, Bend & Swing
The flexible LED screen can be rolled, bent and swung into virtually any designed shape.
