DJ Table LED Displays
DJ Table LED display for reception desks, DJ booths and bar counters. Available in P1.86 and P2.5 with GOB protection, 600 nits brightness, 3840Hz refresh rate and a durable iron cabinet structure for indoor commercial and entertainment spaces.
Key Features
- Built-in Speaker
- Smart Control
- Wide Viewing Angle
- Ultra-High Definition
- Modular Design
- Front Maintenance
- High Contrast
Technical Specifications
| Model | P1.8 / 1675mm | P2.5 / 1675mm | P1.8 / 1065mm | P2.5 / 1065mm |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.86 | 2.5 | 1.86 | 2.5 |
| Pixel Density (dots/m²) | 288,906 | 160,000 | 288,906 | 160,000 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1212 | SMD1515 |
| Scan | 1/43 | 1/32 | 1/43 | 1/32 |
| Module Arrangement / Pcs | 8×6 | 6×6 | ||
| Cabinet Size (W×H×D) | 1675×1100×585mm | 1065×1100×585mm | ||
| Display Size (W×H) | 2560×960mm | 1920×960mm | ||
| Weight | 127kg | 97kg | ||
| Module Dimension | 320×160mm (1.05×0.52ft) | |||
| Brightness (nits) | 600 | |||
| Material | Iron | |||
| Grey Scale (bit) | 12–16 | |||
| Refresh Rate (Hz) | 3840Hz | |||
| Power Con. (Max / Avg) | 600 / 200W | |||
| Service Access | Front Service | |||
| IP Rating | IP43 | |||
| Input Voltage (AC) | AC 110–240V 50/60Hz | |||
| Operation System | Novastar | |||
| Operating Temperature | -20℃ to 60℃ | |||
| Operating Humidity | 10% to 85% | |||
Product Highlights

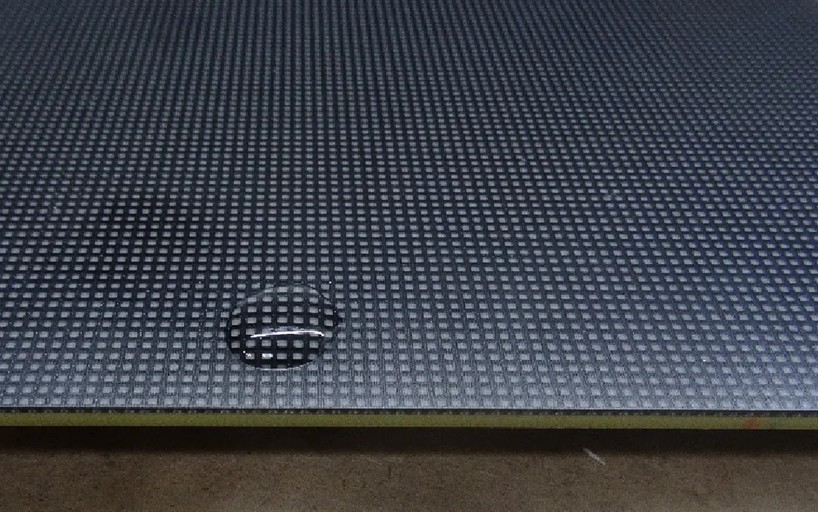

GOB Protection
The GOB process provides protection against impacts, water and static electricity — repeated movement will not cause any damage to the screen surface.
Plug and Play
Various standard sockets are available to meet the needs of customers in different regions. No complicated wiring or professional debugging required — one main power cable and one main network cable.

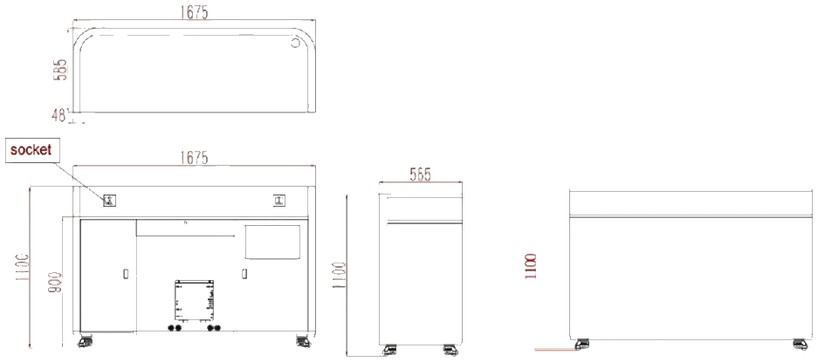

Customized Sizes
Standard cabinet sizes of 1675×1100×585mm and 1065×1100×585mm — sizes can also be customized based on the 320×160mm module.

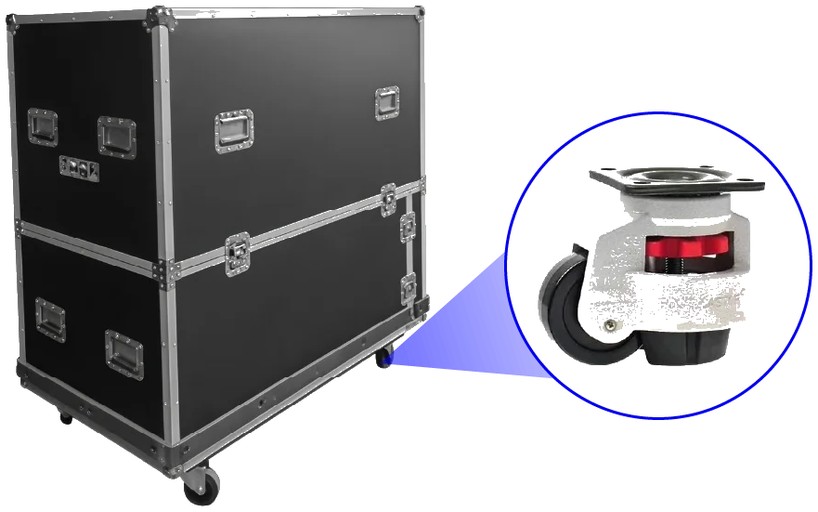

Movable Wheels & Flight Case
Packed in a flight case, it is impact-resistant, waterproof and insulating to ensure the safety of the product during transportation.

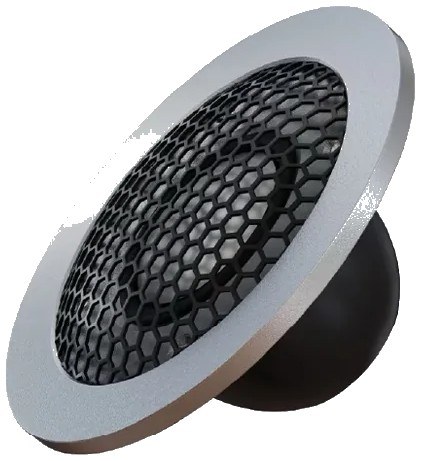

Built-in Small Speaker
The mixing effect can be monitored in real time without the need for external speakers, greatly simplifying the equipment setup process.
