Magic Cube LED Displays

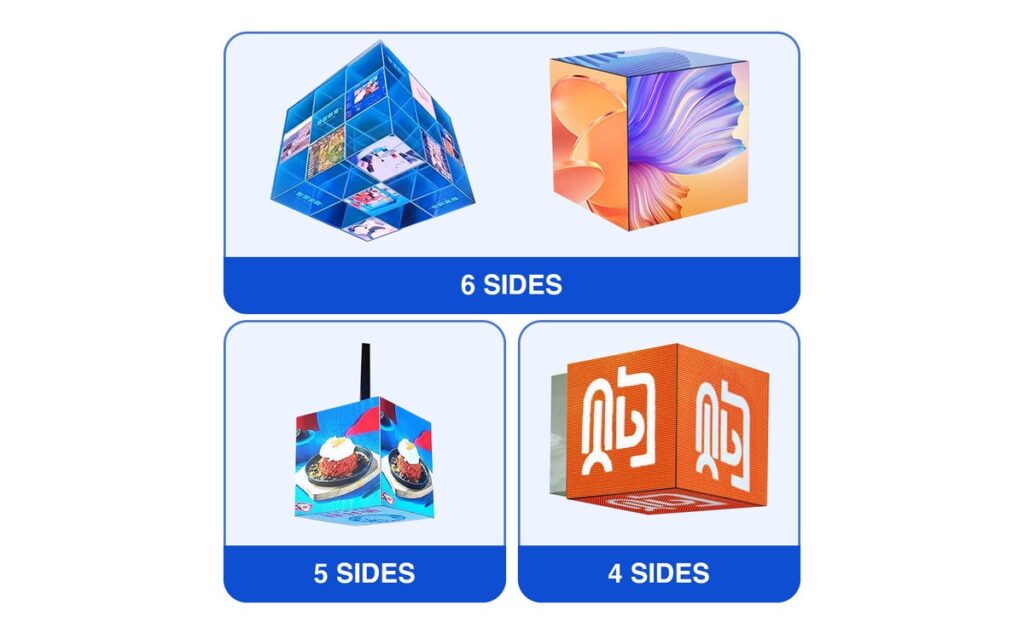

Multi-sided magic Cube LED display for creative indoor and outdoor installations. Available in P2–P6.67 with 4-, 5- or 6-face configurations, high refresh rate, wide viewing angle and flexible hanging, floor-standing or wall-mounted installation.
Key Features
- Unique Shape, Multi-Faceted Splicing
- Stable Performance
- High Contrast & High Fidelity
- Wide Viewing Angle
- Various Installation Methods: Floor-Standing & Hoisting
Technical Specifications
| Model | Indoor P2 | Indoor P2.5 | Indoor P4 | Outdoor P2.5 | Outdoor P3.076 | Outdoor P4 | Outdoor P5 | Outdoor P6.67 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 2 | 2.5 | 4 | 2.5 | 3.076 | 4 | 5 | 6.67 |
| Pixel Density (dots/m²) | 250,000 | 160,000 | 62,500 | 160,000 | 105,625 | 62,500 | 40,000 | 22,500 |
| Pixel Configuration | SMD1515 | SMD1515 / SMD2121 | SMD2121 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Brightness (cd/m²) | 600–800 | 600–800 | 600–800 | 5000 | 5000 | 5000 | 5000 | 6000 |
| Scan | 40 | 32 | 20 | 16 | 13 | 10 | 8 | 6 |
| Power Con. (Max / Avg) | 720 / 240 W/m² | 710 / 230 W/m² | 500 / 180 W/m² | 900 / 300 W/m² | 900 / 300 W/m² | 900 / 300 W/m² | 900 / 300 W/m² | 900 / 300 W/m² |
| Service Access | Front / Rear | Front / Rear | Front / Rear | Rear | Rear | Rear | Rear | Rear |
| Refresh Rate (Hz) | ≥1920 | |||||||
| Grey Scale (bit) | ≥14 | |||||||
| Viewing Angle (H/V) | 140° / 140° | |||||||

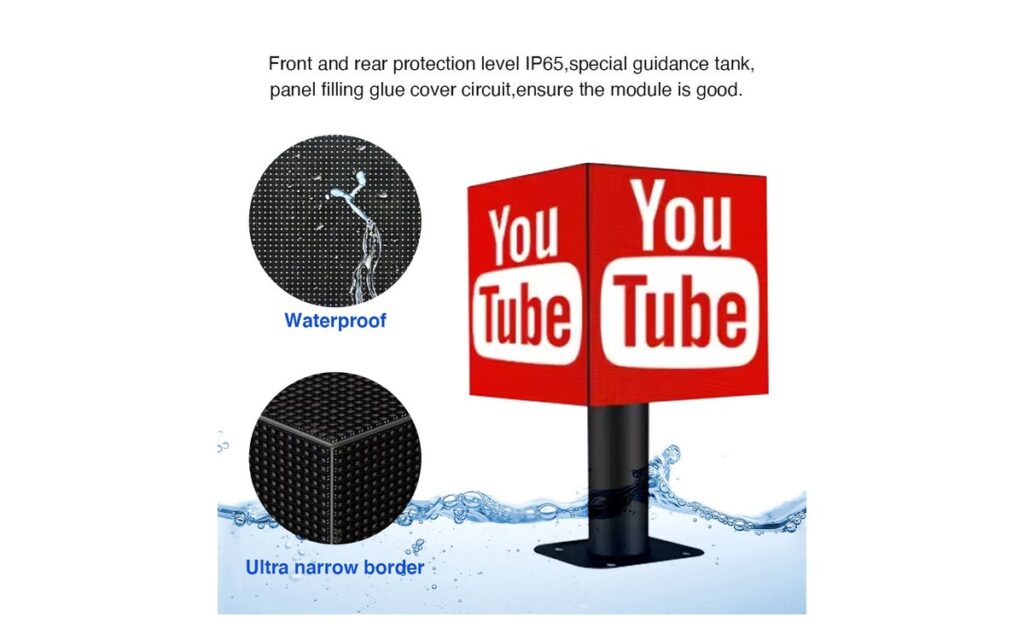

| IP Rating | IP43 | IP65 | ||||||
| Operating Temperature | -20℃ ~ 60℃ | |||||||
| Input Voltage (AC) | 110 / 220V | |||||||
| Installation | Hoisting, floor-standing, side wall mounting, etc. | |||||||
Product Highlights

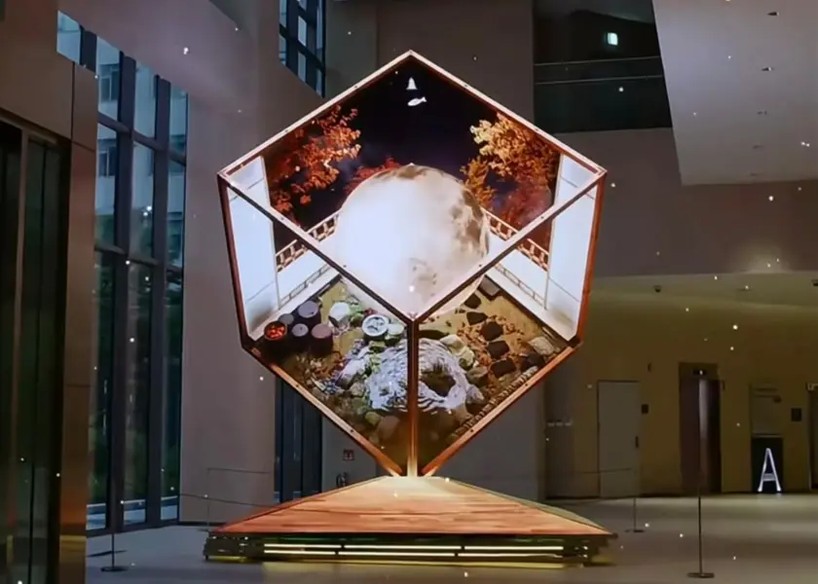

3D Content Playback
Beyond a standard cube — six independent faces can showcase synchronized or distinct content simultaneously. Playing custom 3D videos transforms it into a captivating, high-resolution DOOH advertising display.

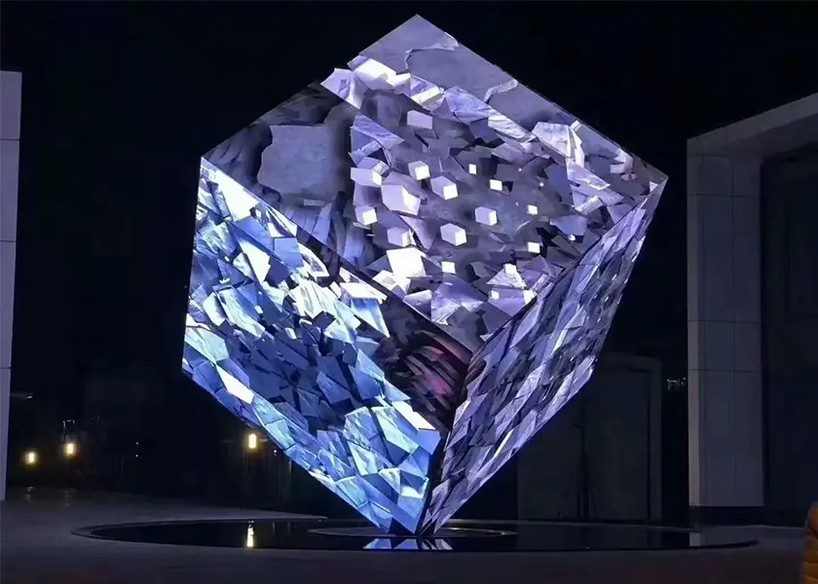

Indoor/Outdoor Use
Versatile beyond the storefront — it brilliantly displays retail information while doubling as an eye-catching outdoor installation, with high brightness and durable 24/7 performance.

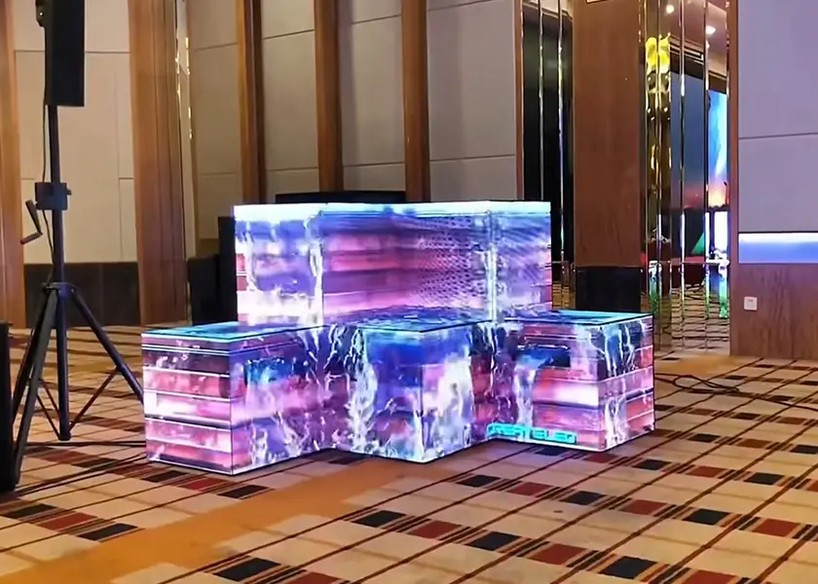

Multi-Screen Combination
Seamlessly synchronize multiple LED screens to transform any wall, architectural column or public space into an expansive, high-resolution digital canvas for large-format advertising.
