Spherical LED Displays
High-impact spherical LED display available in 1–2.5 m diameters with P2/P2.5 pixel pitch. Featuring up to 1000 nits brightness, 1920–3840Hz refresh rate, 14-bit grayscale, automatic brightness adjustment and synchronous/asynchronous control. Designed for indoor creative displays, exhibitions and commercial spaces.
Key Features
- Attractive Appearance
- Vivid Visual Effect
- Simple & Easy Installation
- High Contrast & High Fidelity
- Excellent Heat Dissipation
- Customizable
- Seamless Connection
- Excellent Color Uniformity
Technical Specifications
| Model | 2.5m | 2m | 1.5m | 1.2m | 1m |
|---|---|---|---|---|---|
| Pixel Pitch | P2 / P2.5 | ||||
| LED Type | SMD1515 / SMD2121 | ||||
| Scanning | 24s / 27s | ||||
| Brightness | 1000cd | 800cd | 850cd | 850cd | 850cd |
| Weight | 550kg | 400kg | 400kg | 100kg | 80kg |
| Grey Scale | 14bit | ||||
| Input Voltage (AC) | 220V | ||||
| Power Frequency | 50/60Hz | ||||
| Brightness Adjustment | Manual / Automatic | ||||
| Refresh Rate (Hz) | 3840 | 1920 | 1920 | 3000 | 1920 |
| Display Mode | Synchronous / Asynchronous | ||||
| Color Temperature | 3000K–9500K | ||||
| Working Temperature | -20°C ~ 60°C | ||||
| Operating Humidity | 10% ~ 90% | ||||
| Service Life | > 100,000 hours | ||||
| Resolving Power | 3500×1900 | 2408×1204 | 1760×670 | 1400×720 | 1200×654 |
Product Highlights
360° Full-View Display
Full color, high definition and a 360-degree viewing angle deliver a striking visual effect. Waterproof treatment for outdoor use — no fear of wind and sun.
Key Advantages
Low current, low heat, high contrast and high refresh rate. Supports hanging installation, standing on the ground or mobile use.

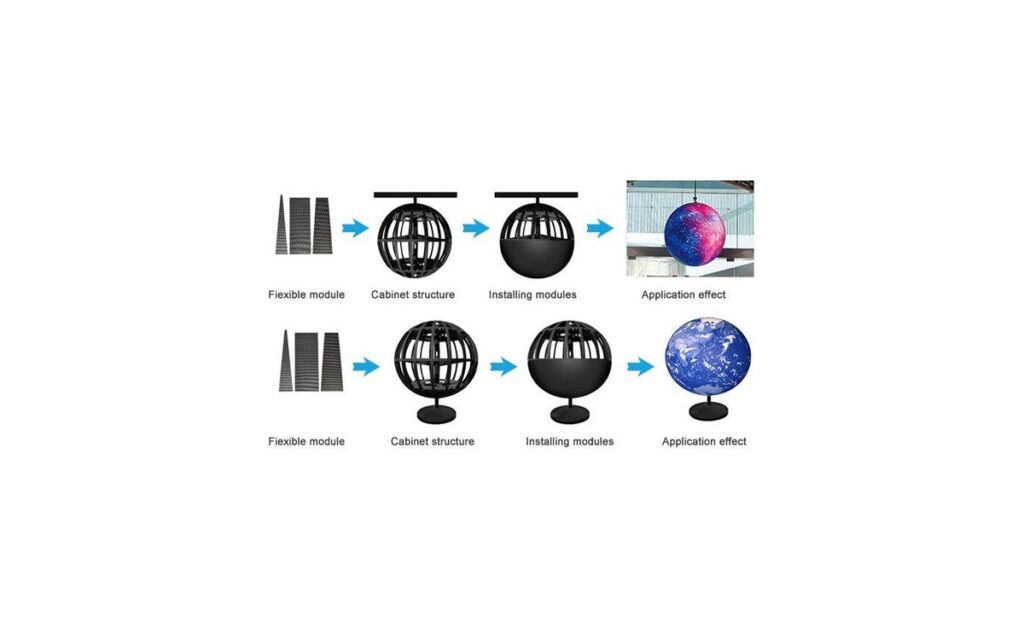

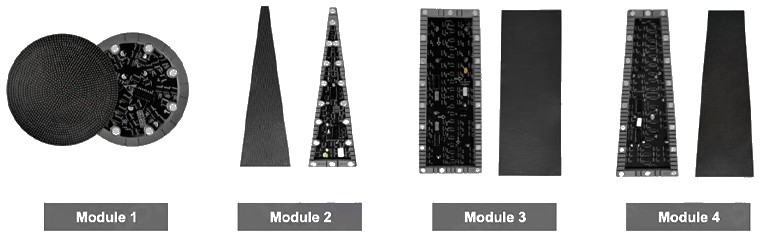

Hundreds of Module Shapes
We have supplied hundreds of different shaped LED modules for customers worldwide, formed into all kinds of LED displays — rich experience in customization.
Various Diameters
1m to 2.5m diameters available — customizable according to the actual requirements of the market and customers.

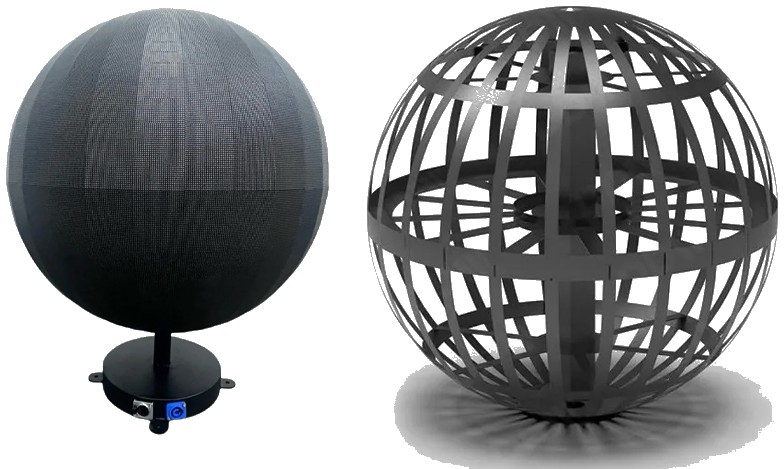

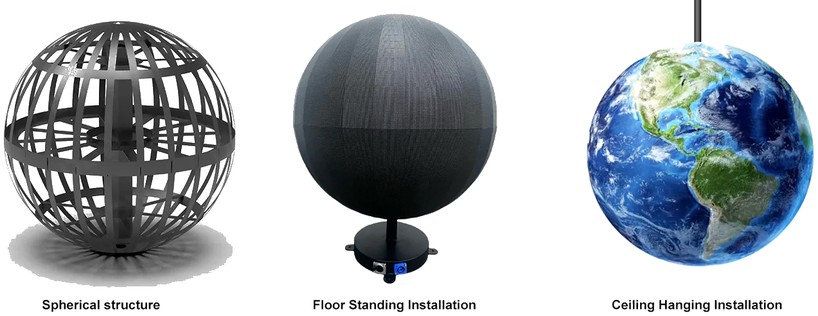

Flexible Installation
Spherical structure, floor-standing or ceiling-hanging installation modes to suit different sites.
