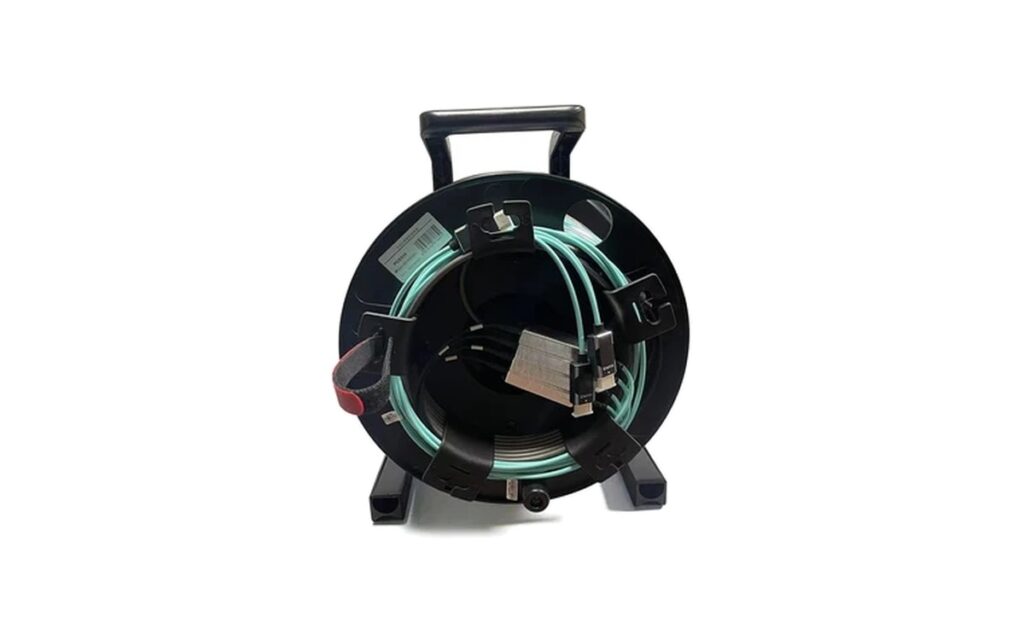

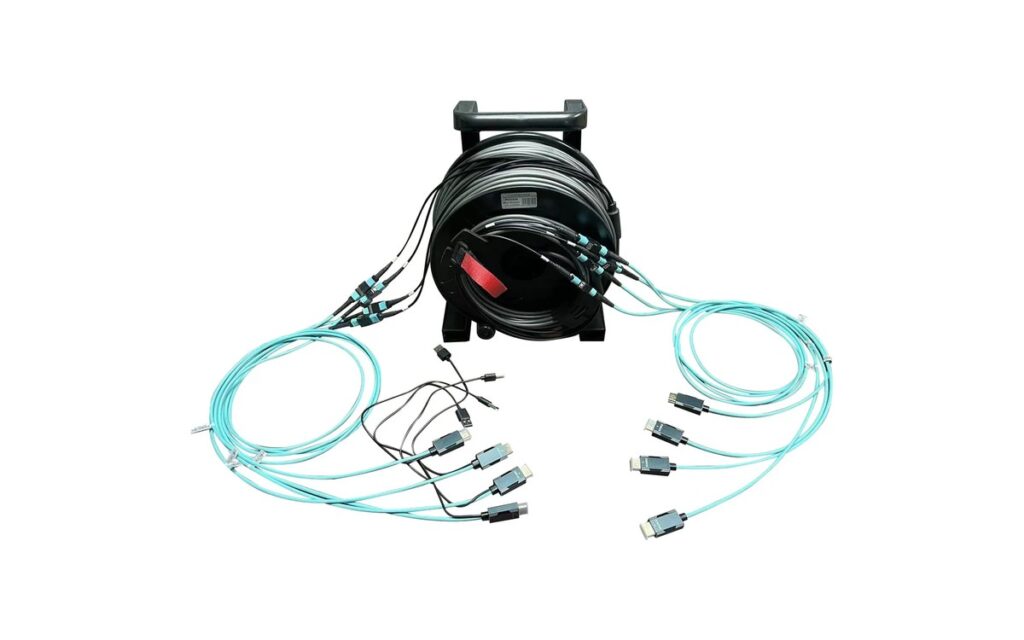

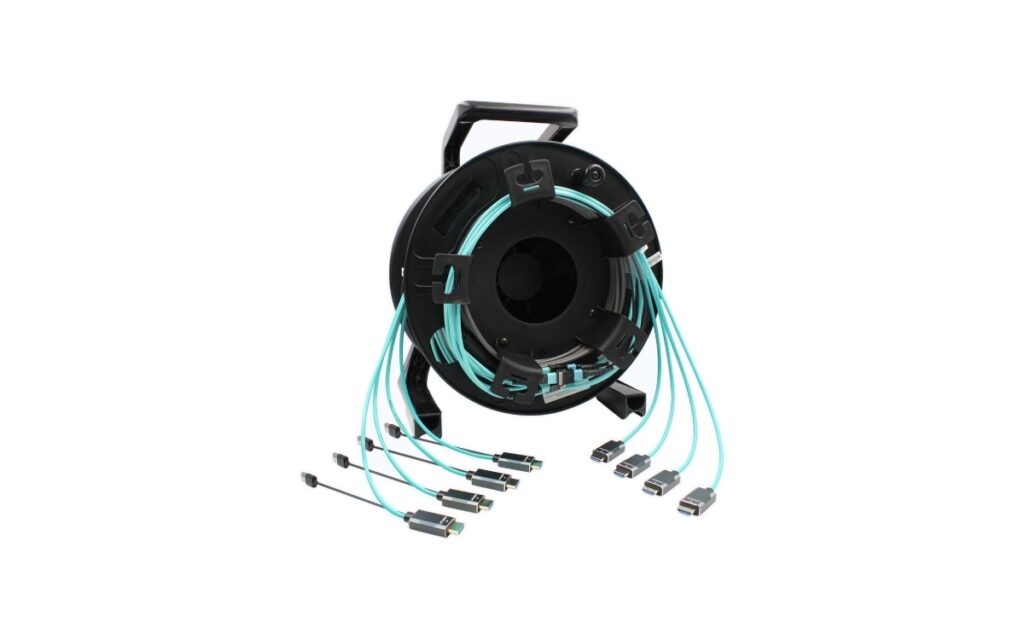

HDMI 2.1 Multi Core Armour Cables 8K@60Hz
HDMI 2.1 active optical cables support 48 Gbps bandwidth and 8K@60Hz resolution for LED rental screens and fine-pitch LED installations. Available with detachable connectors and lengths up to 200 m.
Key Features
- 48 Gbps bandwidth and 8K@60Hz resolution
- Supports Dynamic HDR and eARC
- Detachable HDMI connectors
- Armored HDMI 2.1 active optical cable
- Lengths up to 200 m
- Compatible with ROXTONE PCD Series Wire Reels
- 2 IN / 2 OUT or 4 IN / 4 OUT configurations
Technical Specifications
| Model | Specification |
|---|---|
| Product Type | HDMI 2.1 Active Optical Cable (AOC) |
| Bandwidth | 48 Gbps |
| Maximum Resolution | 8K@60Hz |
| Supported Features | Dynamic HDR, eARC |
| Connector Type | Detachable HDMI Connectors |
| Cable Protection | Armored HDMI 2.1 Cable |
| Maximum Length | Up to 200 m |
| Cable Reel | Compatible with ROXTONE PCD Series Wire Reels |
| Channel Configuration | 2 IN / 2 OUT or 4 IN / 4 OUT |
| Application | LED rental screens and fine-pitch LED installations |
