SDI Cable 3G HD
SDI Cable 3G HD supports professional short-distance video connections up to 1080p. PTFE insulation, a copper conductor, silver-plated shielding and gold-plated BNC male connectors provide flexible, heat-resistant performance with low signal loss.
Key Features
- Supports HD-SDI, 3G-SDI, MADI, Word Clock and Sync
- Video transmission up to 1080p
- PTFE insulation is lightweight, flexible and heat-resistant
- Copper conductor with silver-plated shielding

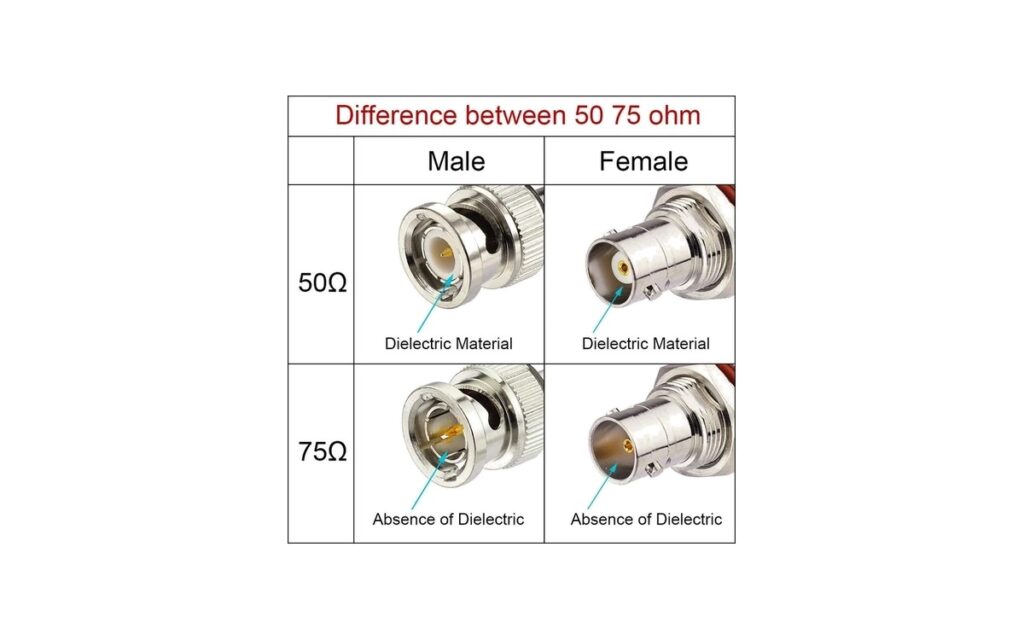

- Gold-plated BNC male connectors, 75Ω impedance

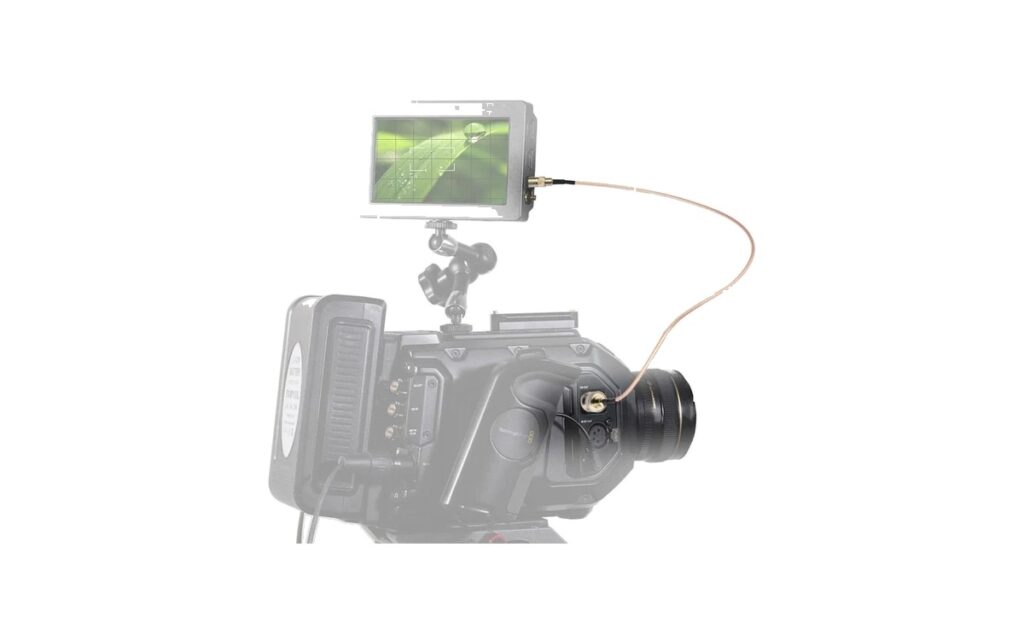

- Compatible with SDI cameras, monitors and broadcast equipment

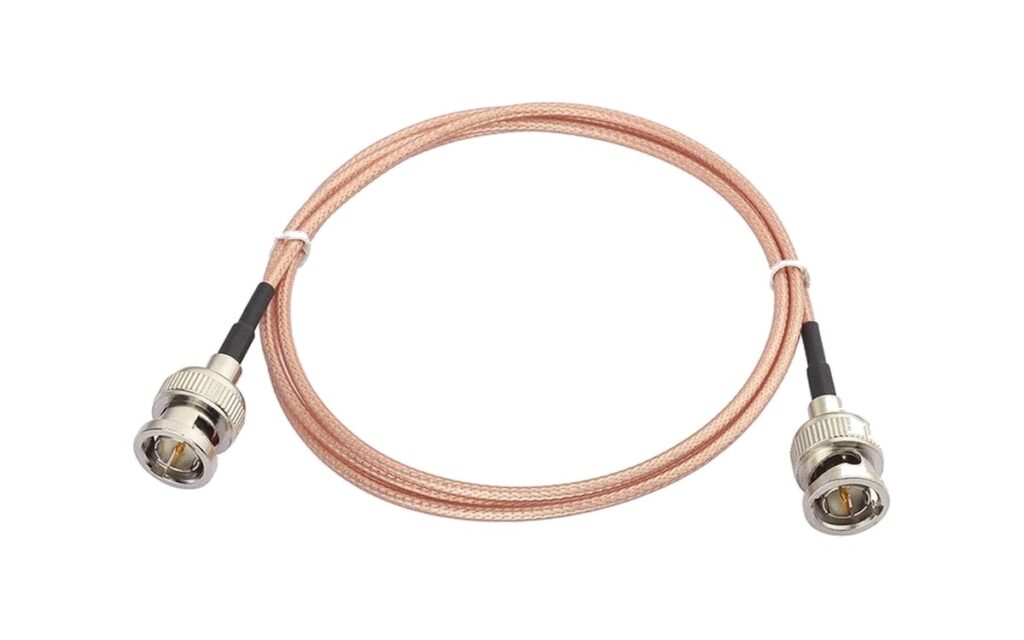

- RG179 cable, 1 m / 39 in straight length

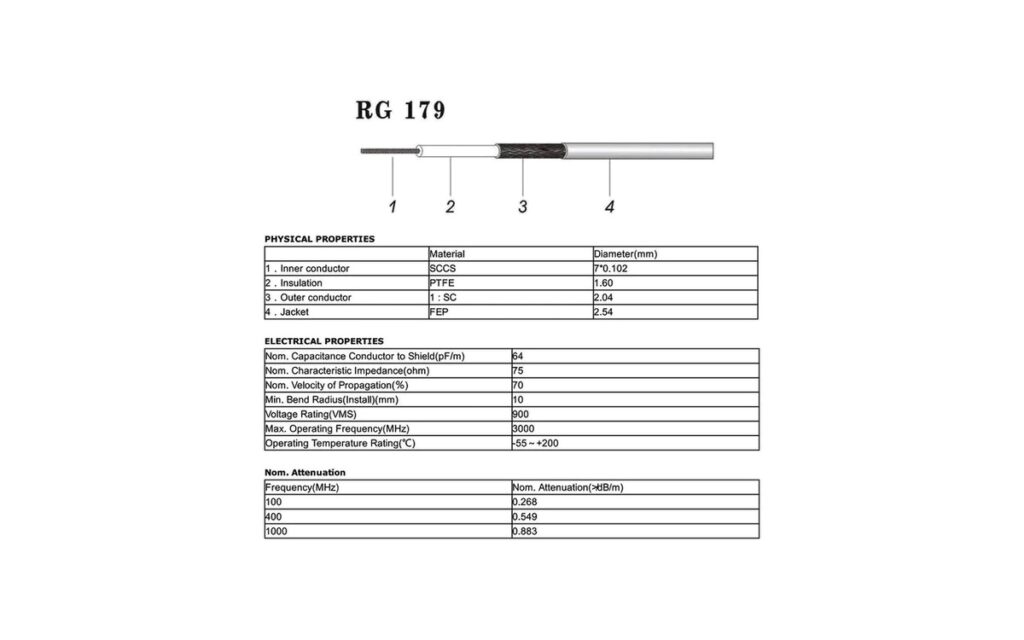

Technical Specifications
| Model | Specification |
|---|---|
| Nom. Capacitance Conductor to Shield | 64 pF/m |
| Nom. Characteristic Impedance | 75 Ω |
| Nom. Velocity of Propagation | 70% |
| Min. Bend Radius (Install) | 10 mm |
| Voltage Rating | 900 VMS |
| Max. Operating Frequency | 3000 MHz |
| Operating Temperature Rating | -55 to +200°C |
