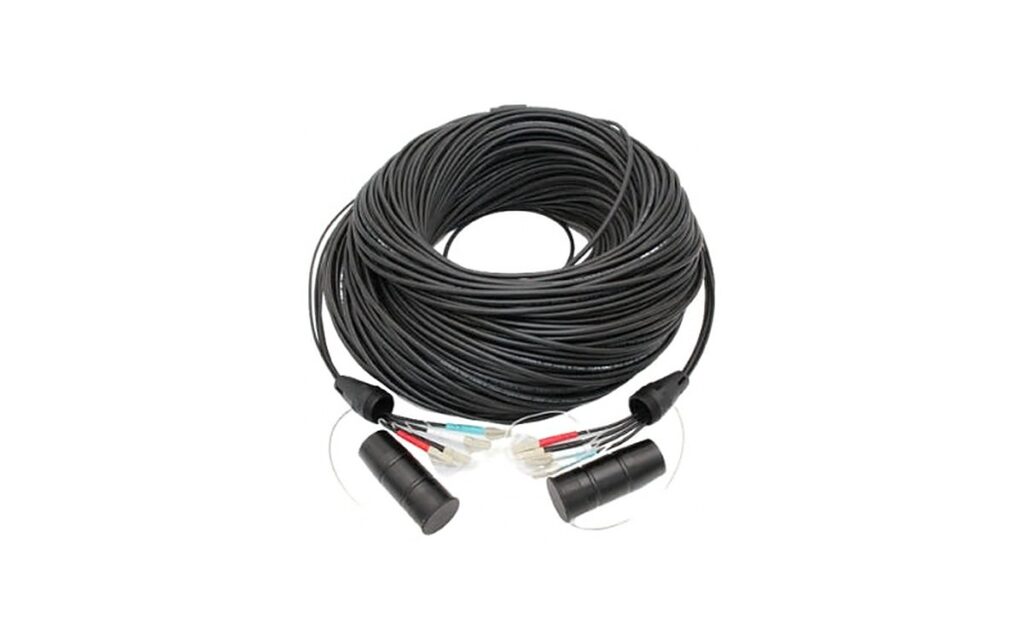

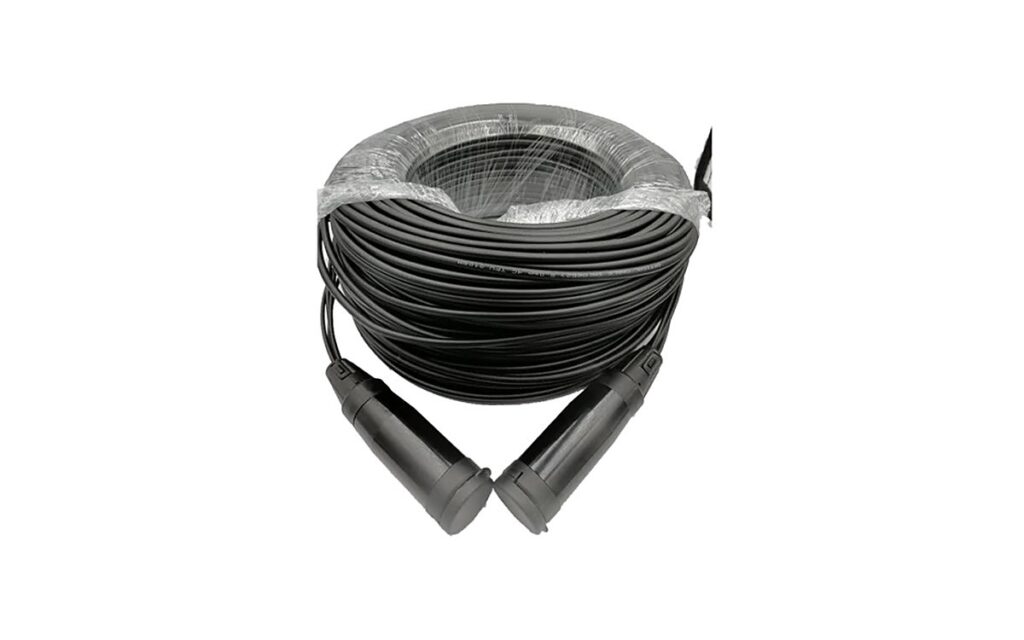

TPU-Armour Fiber Cables
TPU-Armour Fiber Cables support AV, broadcast and LED video wall applications with single-mode or multi-mode fiber. LC connectors and TPU, stainless-steel, Kevlar and metal-braid construction support reliable field use.
Key Features
- Single-mode YOFC G657.A1, 2kms at 10gbps
- YOFC multi-mode OM3, 300m at 10gbps
- LC connectors, SC and ST customizable
- TPU jacket with spiral stainless-steel armor
- Kevlar and metal braid reinforcement
- Anti freeze, wear, pressure and tensile resistance
Technical Specifications
| Model | Single Mode | Multi Mode |
|---|---|---|
| Connector Type | LC (SC & ST customizable) | LC (SC & ST customizable) |
| Connector Color | Neutral Blue | Neutral Blue |
| Fiber Type | Single-mode (9/125 μm) | OM3-300 (50/125 μm) |
| Fiber Wavelength | 1310–1550 nm | 850–1300 nm |
| Fiber Core Brand | YOFC | YOFC |
| Number of Cores | 2 / 4 / 6 / 8 / 12 | 2 / 4 / 6 / 8 / 12 |
| Branch Length | 1 m | 1 m |
| Reinforcement Structure | DuPont Kevlar with metal weave | DuPont Kevlar with metal weave |

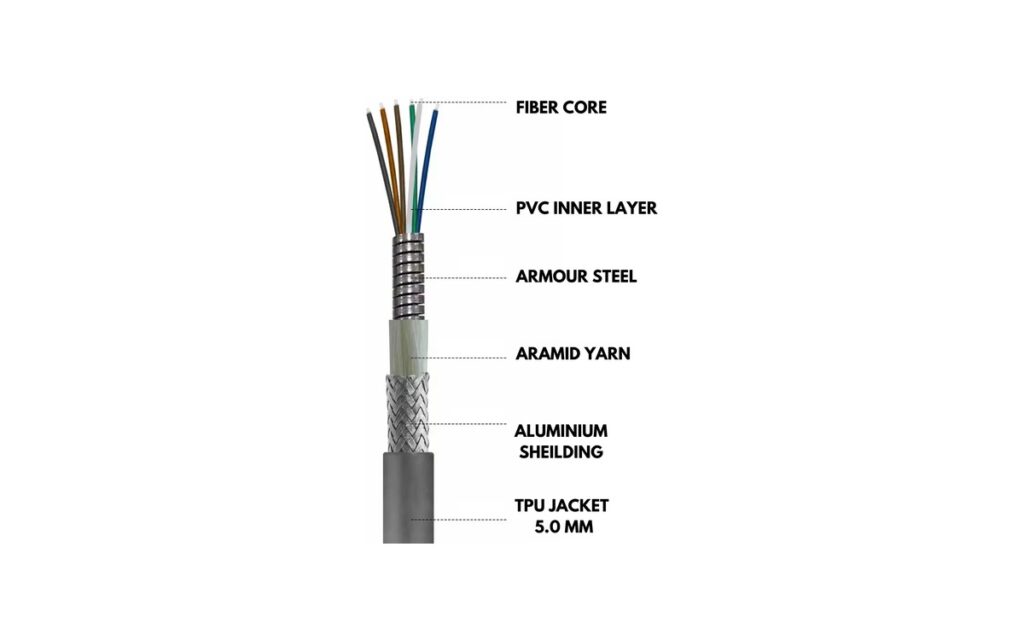

| Structural Layers | Optical fiber + spiral armored tube + Kevlar + metal braid + outer jacket | Optical fiber + spiral armored tube + Kevlar + metal braid + outer jacket |
| Jacket Outer Diameter | 5.0 ± 0.1 mm | 5.0 ± 0.1 mm |
| Jacket Material | Matte frosted TPU | Matte frosted TPU |
| Jacket Color | Matte Gray | Matte Gray |
| Spiral Tube Diameter | 2.8 ± 0.1 mm | 2.8 ± 0.1 mm |
| Spiral Tube Material | SUS 201 Stainless Steel | SUS 201 Stainless Steel |
| Spiral Tube Color | Silver | Silver |
| Core Cladding Diameter | 0.6 ± 0.05 mm × 4 | 0.6 ± 0.05 mm × 6 |
| Core Cladding Material | PVC | PVC |
| Core Cladding Color | Multiple | Multiple |
