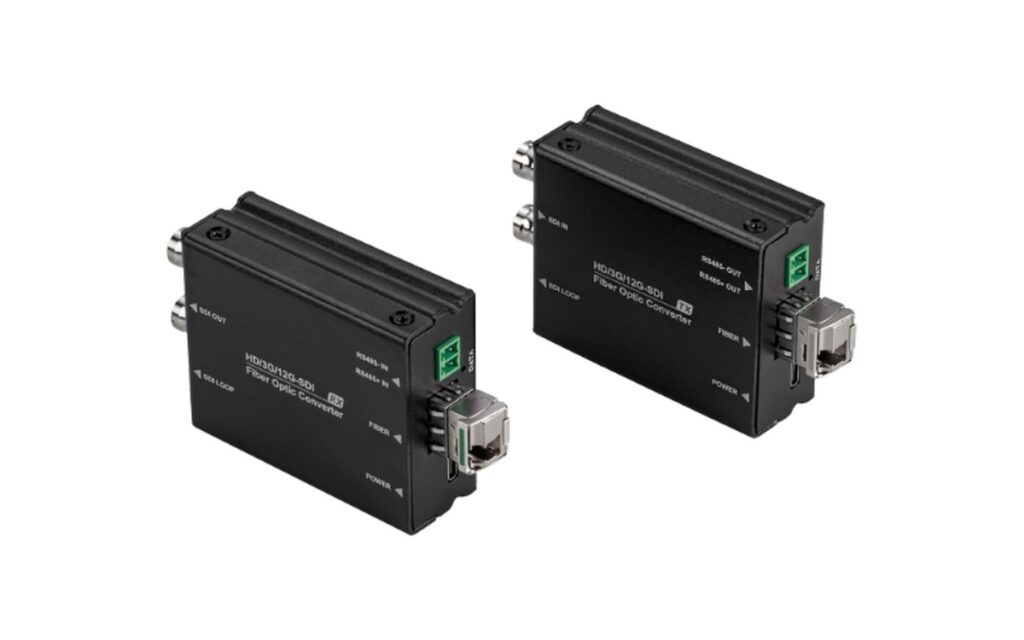

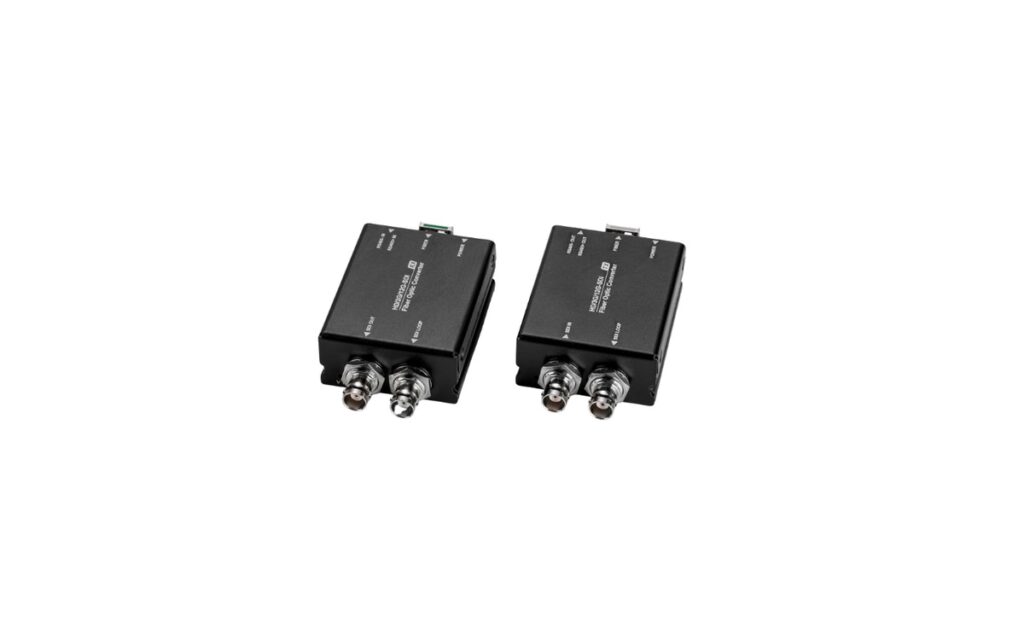

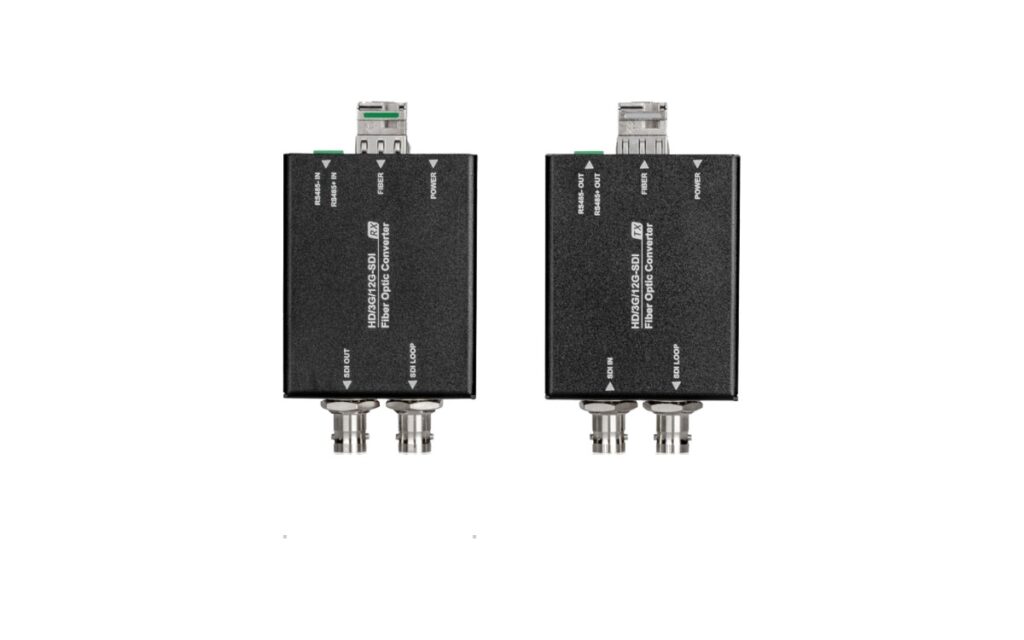

12G-SDI Fiber Optic Extender
The 12G-SDI Fiber Optic Extender transmits ultra-high-definition SDI video with zero latency and reverse RS485 data over long distances using modular SFP technology. Designed for professional broadcasting and cinema.
Key Features
- Supports 12G, 6G, 3G, HD and SD-SDI signals
- DVB-ASI and AES10 (MADI) compatible
- Up to 10 km over single-mode fiber
- Reverse RS-485 for PTZ or lens control
- Hot-swappable SFP optical modules
- Clock recovery at transmitter and receiver
- USB power, LED indicators and plug-and-play
Technical Specifications
| Model | Parameter | Specification |
|---|---|---|
| Video Processing | Supported SDI Standards | 12G-SDI (SMPTE ST-2082-1), 6G-SDI (SMPTE ST-2081-1), 3G-SDI (SMPTE ST-424), HD-SDI (SMPTE ST-292), SD-SDI (SMPTE ST-259) |
| Format Compatibility | DVB-ASI, AES10 (MADI) | |
| Local Monitoring | Transmitter Loop Out port | |
| Signal Integrity | Clock Recovery | Integrated clock recovery at both transmitter and receiver |
| Supported Data Rates | 11.88 Gbps, 5.94 Gbps, 2.97 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps | |
| Input Signal Processing | Automatic cable equalization (EQ) | |
| Output Signal Processing | Integrated cable driver (CD) | |
| Optical | Optical Module | Hot-pluggable SFP optical module |
| Fiber Configuration | Single-fiber or dual-fiber options | |
| Transmission Distance | Up to 10 km over single-mode fiber | |
| Control | Reverse Data | 1-channel reverse RS-485 |
| Power & Operation | Power Supply | USB device power supply |
| Status Indication | LED status indicators | |
| Operation | Plug-and-play; no software setup or manual calibration required |
