Outdoor-FM Series
Outdoor-FM is a thin, lightweight fixed LED display with Nationstar lamp beads, multiple cabinet sizes, and wall-mounted or hanging installation for outdoor advertising and roadside billboards.
Key Features
- High-end outdoor billboard display
- 6000~10000nits high brightness
- 3840~7680Hz high refresh rate
- Front and rear dual maintenance
- Front and back side IP68 protective level
- Customizable sizes and flexible splicing
- Gap-free curved surface display
Technical Specifications
| Model | 2.976 | 3.91 | 4.81 | 6.25 | 7.8 | 10.4 |
|---|---|---|---|---|---|---|
| Pixel Matrix Per Sqm. | 112,896 | 65,536 | 43,264 | 25,600 | 16,384 | 9,216 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Brightness (nits) | ≥6000 | |||||
| Scan | 1/21 | 1/16 | 1/13 | 1/8 | 1/4 | 1/2 |
| Module Dimension | 500x250mm | |||||
| Cabinet Dimension | 1000x1000mm/1000x500mm;1500x1000mm/1500x500mm | |||||
| Cabinet Material | Profile Aluminum | |||||
| Cabinet Weight | 22.5kg | |||||
| Power Con. (W/Sqm.) | Max.1104W/Avg.200~300W | |||||
| Service Access | Front &Rear Access | |||||
| Refresh Rate (HZ) | ≥3840 | |||||
| Grey Scale (bit) | 16bit | |||||
| Contrast Ratio | 8000:1 | |||||
| Viewing Angle(H/V) | 160°/160° | |||||
| IP Rate | IP65 | |||||
| Operation Temperature | -20℃~+60℃ | |||||
| Operation Humidity | 10%～90% | |||||
| Input Voltage (AC) | AC90-264V,47-63Hz | |||||
Product Highlights
Super Light and Thin

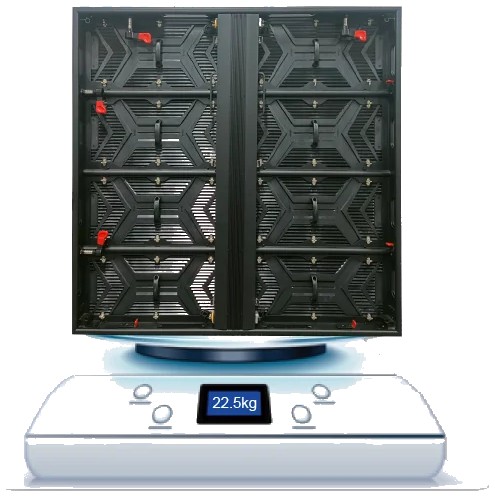

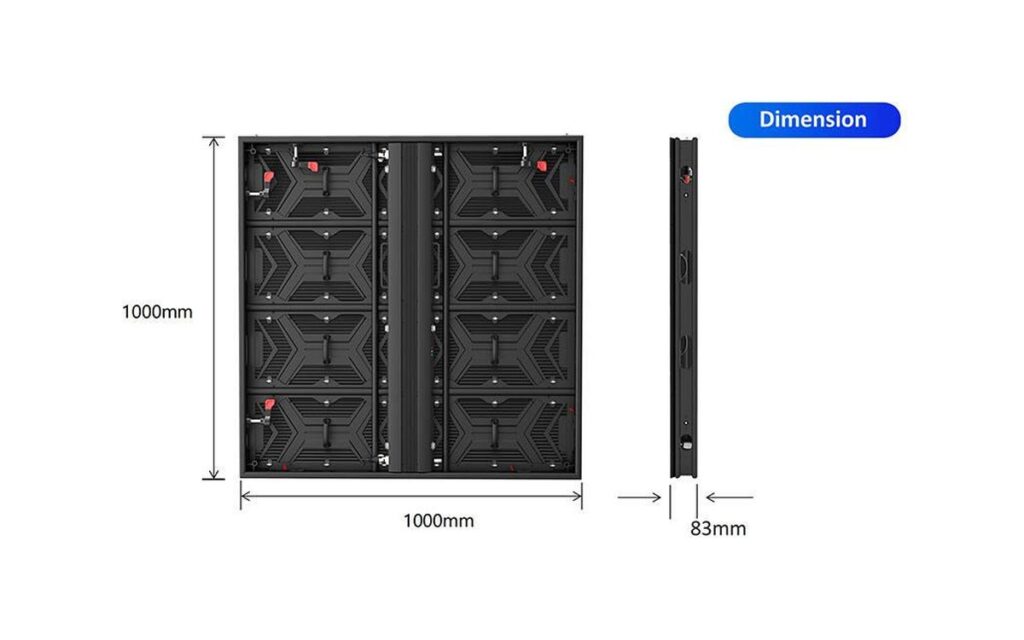

The 1000x1000mm standard cabinet is 83mm thick and 22.5kg/pc, with a simple, sturdy build that is thinner and lighter than iron material for elegant outdoor billboards. Dual seamless fast locks and side locks include 4 quick locks per cabinet. Precise hole positions enable fast, simple, seamless splicing, saving labor and cost.
Precise Aluminum Cabinet
Profile aluminum provides high strength and better flatness, with a tolerance of less than ±0.1mm. The precise cabinet creates a flat, seamless display surface for strong visual effects.
All-in-one Power Box & Cable-free Design
One power box integrates the power supplies and receiver card without complex cables, providing a clean, user-friendly design for easy assembly and maintenance. 6000nits high brightness delivers clear outdoor visuals, is brighter than 5000nits, and suits huge billboards and long-distance viewing.

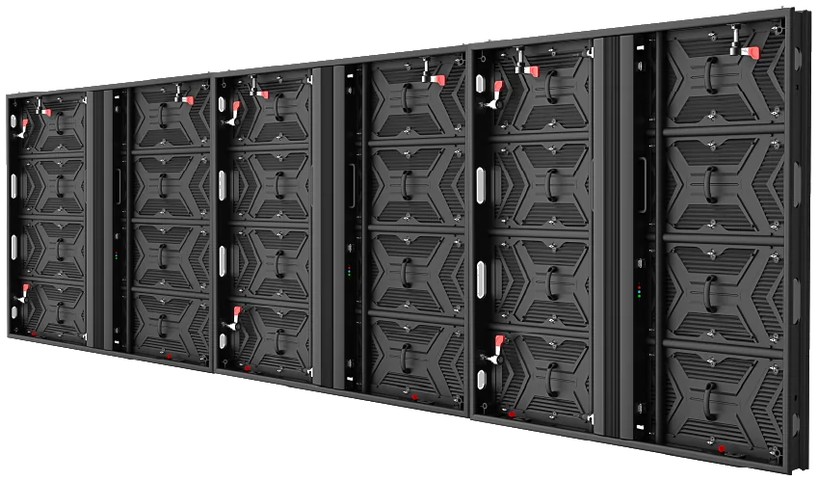

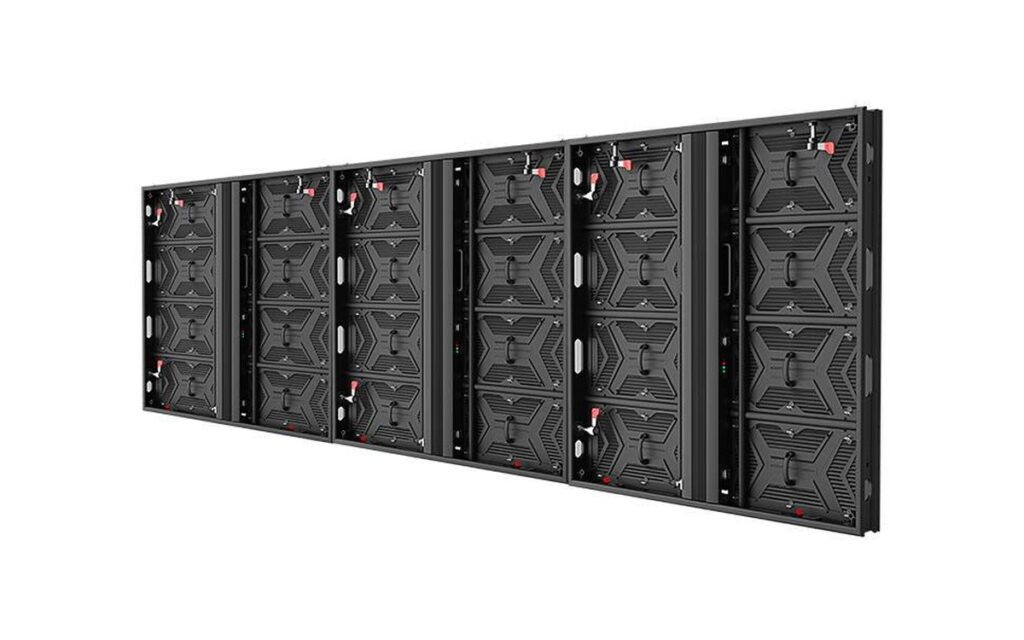

Flexible Splicing

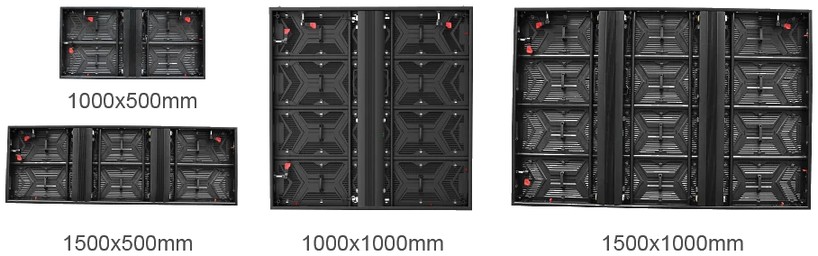

Multi-size options include 1000x1000mm, 1000x500mm, 1500x1000mm and 1500x500mm for accurate, flexible screen sizing. Front maintenance supports wall mounting with exclusive plates that are simple, light and firm. Cabinets mount directly on the wall with no rear service channel, maintaining an elegant appearance.

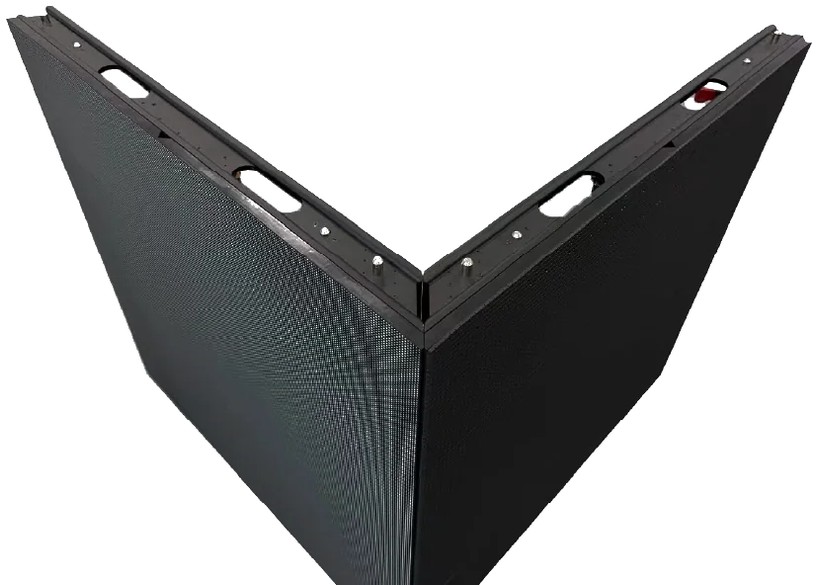

Right Angle Design
The beveled cabinet supports multi-sided column LED screens and right-angle screens for flexible configurations. Exclusive hanging bars enable hanging installation without safety concerns.
Corner Screen

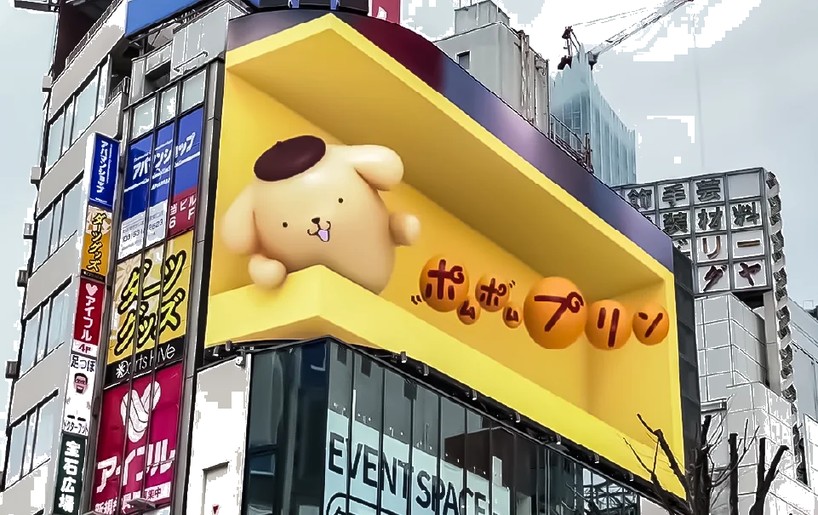

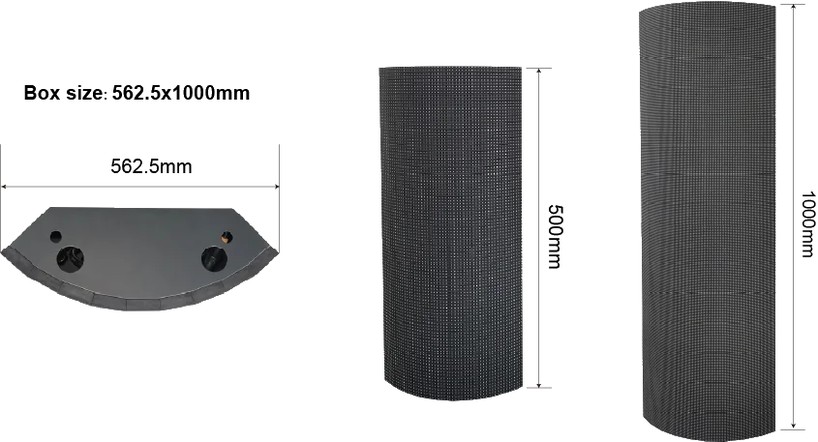

Customized 62.5x250mm small modules pair with a narrow 562.5x1000mm cabinet. The compact modules create a seamless corner cabinet with smooth transitions, no black seam and perfect splicing, making it suitable for 3D applications and displaying 100% of the best 3D video effect.
Related Products
Common FAQs
Four formats: 1000×1000 mm, 1000×500 mm, 1500×1000 mm and 1500×500 mm, all built from 500×250 mm modules and weighing 22.5 kg.
≥6,000 nits as standard, with high-brightness builds reaching 10,000 nits for direct-sun roadside positions.
IP65 with both front and rear service access, so modules and power supplies can be reached from either side.
P6–P10 for viewing distances above 8 metres, P4–P5 where pedestrians or slow traffic pass closer to the screen.
Per square metre, based on pitch, brightness, cabinet format, quantity and destination. Steel structure and installation are quoted separately.
