FHD-CU Series
FHD-CU Series is an ultra-thin, lightweight curved indoor LED display with a 600X337.5mm dimension. It suits conference rooms, airports, retail stores, theaters, hotels, shopping malls and entertainment centers.
Key Features
- Ultra-thin, lightweight curved indoor LED display
- 600X337.5X27.5mm panel, 4.5kg weight
- Hard cable-free connection with screw fixing
- SMD 3 in 1 LED encapsulation technology
- Frontal service design for easy installation
- Inner and outer arc splicing support
Technical Specifications
| Model | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 |
|---|---|---|---|---|---|
| LED Type | Mini4 in 1 | Mini4 in 1 | SMD1010 | SMD1010/1212 | SMD1010/1515 |
| Physical density(Dot/sqm) | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Module resolution | 192X216 | 320X180 | 240X135 | 192X108 | 160X90 |
| Panel Resolution | 768X432 | 640X360 | 480X270 | 384X216 | 320X180 |
| Module QTY(WXH) | 4X2 | 2X2 | 2X2 | 2X2 | 2X2 |
| Drive mode | 1/48 scan | 1/46 scan | 1/45 scan | 1/48 scan | 1/45 scan |
| Module size(mm) | 150X168.75 | ||||
| Panel Dimension (WXHXD/mm) | 600X337.5X27.5 | ||||
| Panel weight(kg) | 4.5 | ||||
| Maintenance Mode | Front maintenance | ||||
| Cabinet Material | Die-casting aluminum | ||||
| Brightness Carlibration | Have | ||||
| Brightness(Nits) | ≥600 | ||||
| Color temperature(K) | 1000-18500 Optional | ||||
| Viewing angle(V/H) | 170°/170° | ||||
| Brightness/Color uniformity | ≥99.8% | ||||
| Contrast ratio | 10000 : 1 | ||||
| Frame frequency | 50/60 | ||||
| Grey level | 16bit | ||||
| Refresh rate(Hz) | 3840 | ||||
| Max. power consumption(W/sqm) | 350 | ||||
| Avg. power consumption(W/sqm) | 100 | ||||
| Protection level | IP31 | ||||
| Power input | AC90-264V,47-63Hz | ||||
| Wroking temperature/humidity(℃/RH) | -20~60℃/10%~85% | ||||
| Storage temperature/humidity(℃/RH) | -20~60℃/10%~85% | ||||
Product Highlights
Lightweight and Thin

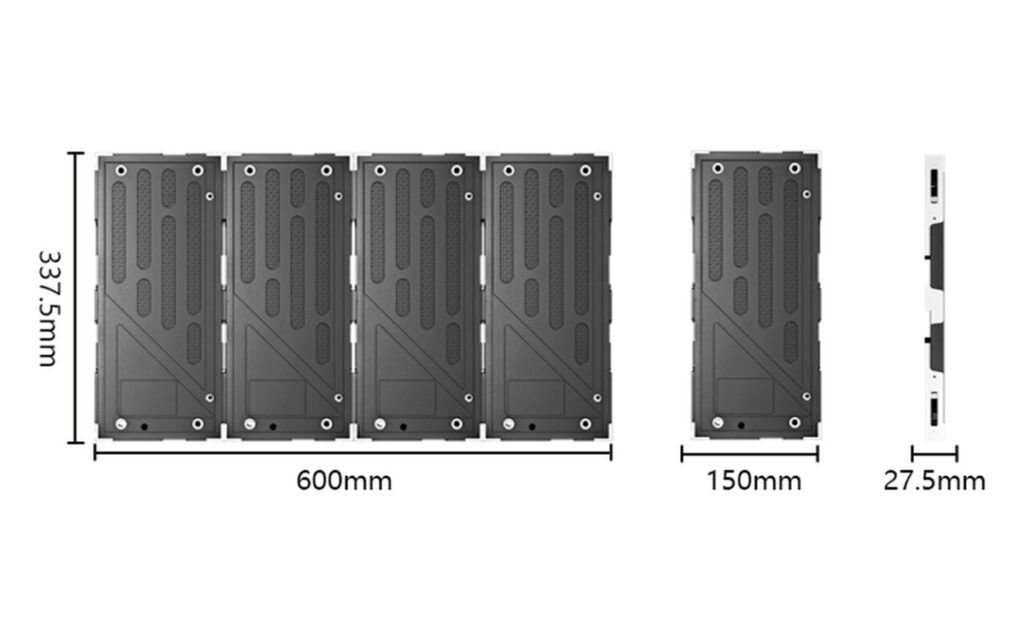

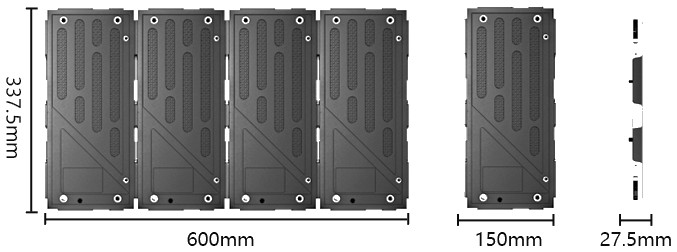

Portable and stable, the display weighs 4.5kg and is 27.5mm thick. Its lightweight design simplifies carrying, transport and installation while helping reduce labor costs.
Multifunction

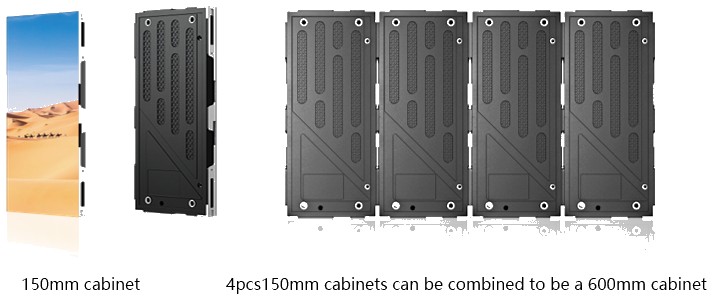

The 150mm small cabinet can be customized for different display requirements.

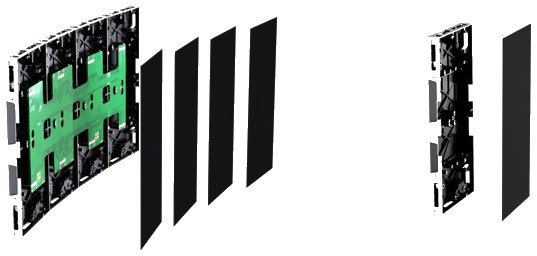

Easy maintenance
FHD-CU Series and the 150mm small cabinet support full front maintenance, making installation and maintenance easier.

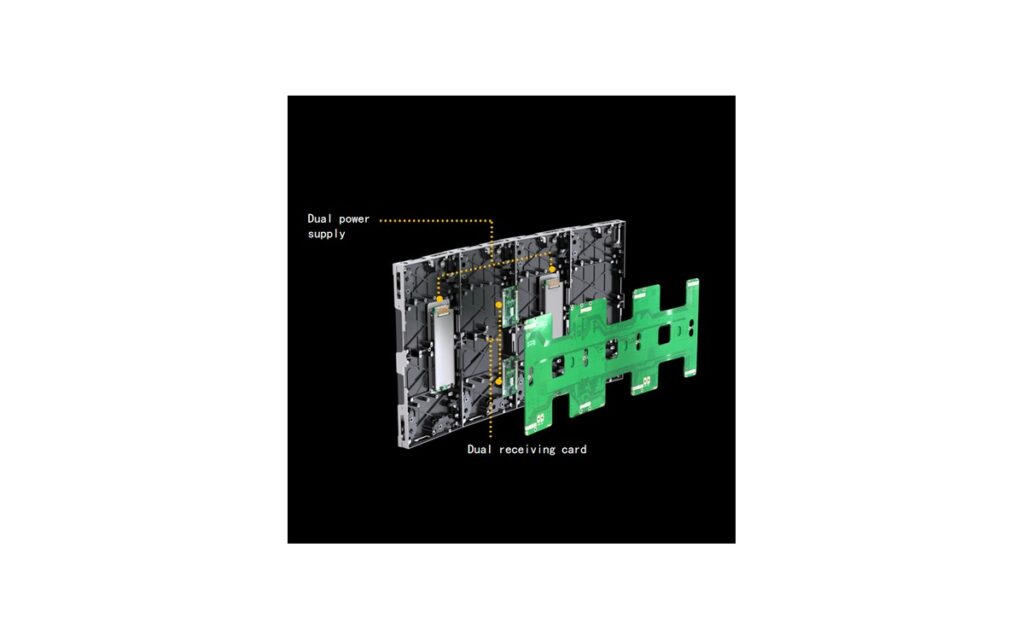

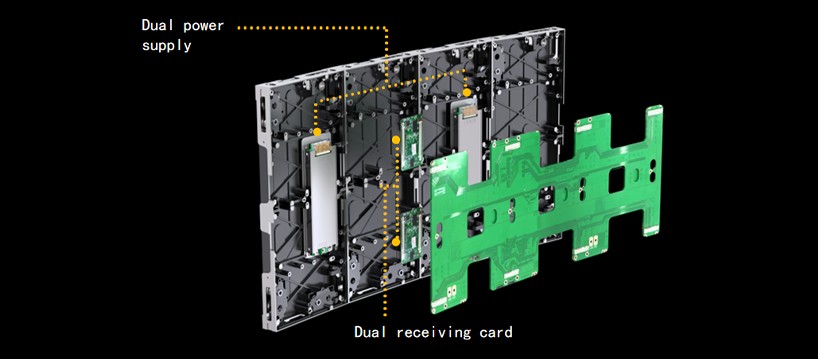

Power and date back up system
The power supply is not interrupted and the signal is not lost, supporting more stable and reliable operation.
Seamless splicing

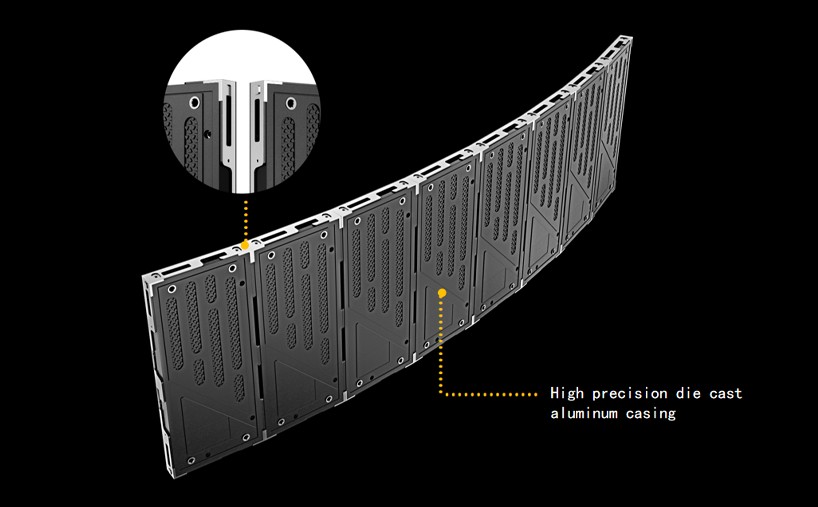

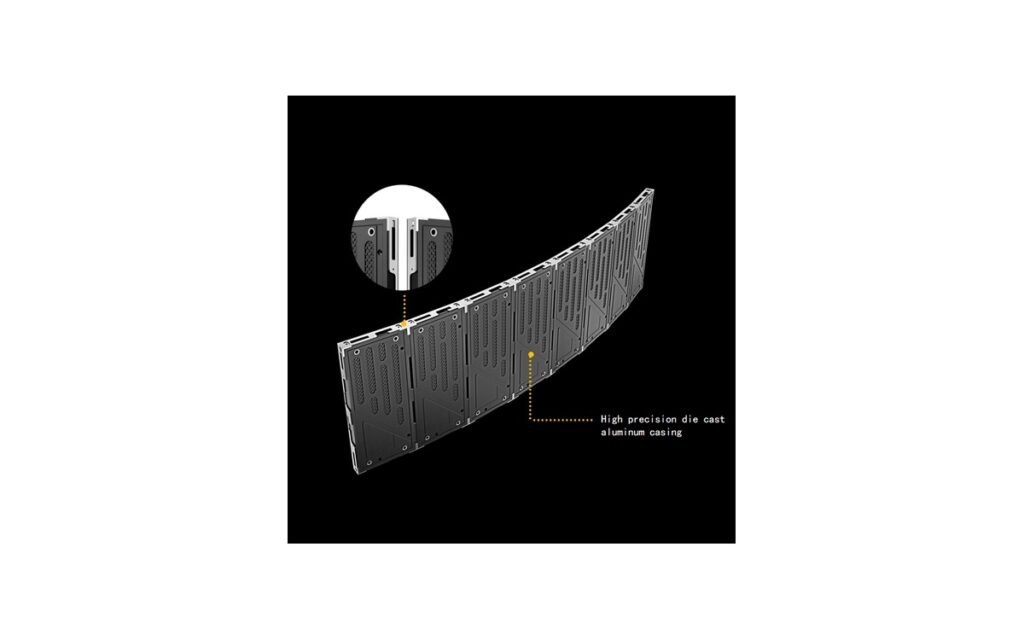

CNC high-precision die-cast aluminum casing, hard-link design, and anti-collision concave and convex platforms improve screen flatness in multiple dimensions.

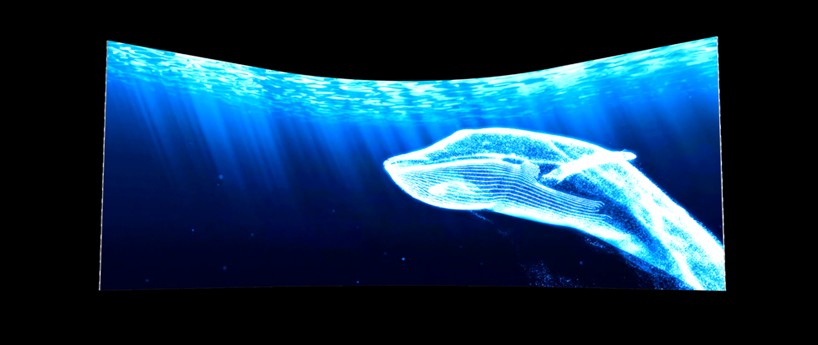

Curve-shape
The display supports inner and outer arc splicing to create various curved shapes.

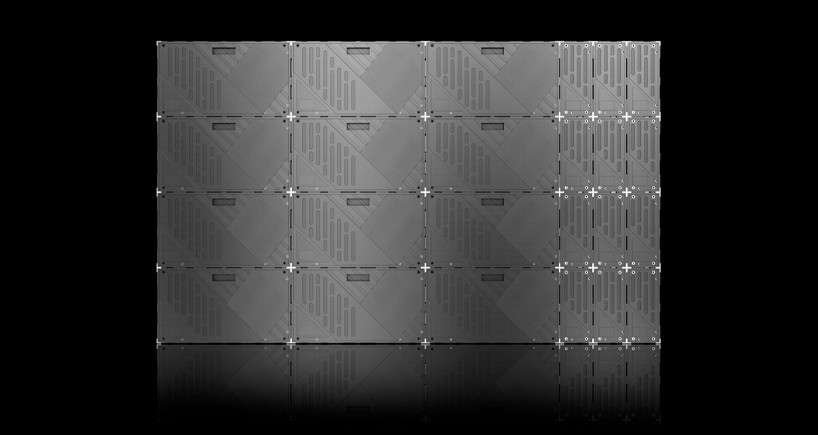

Flat screen
The 150mm small cabinet flexibly supplements the size and improves matching with the required display size.
