FHD-PRO Series
FHD-PRO is an ultra-thin, lightweight indoor LED display with a 16:9 format and front access. Its cable-free design and support for curved, wall-mounted, suspended, or wheeled configurations suit a range of professional spaces.
Key Features
- 16:9 format for indoor applications
- Ultra-thin and lightweight, with 27.5mm cabinet depth
- Cable-free design for installation and maintenance
- Dual backup for power and data

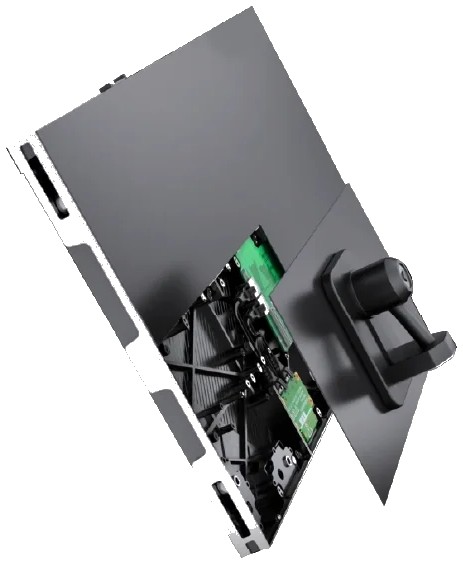

- Full front access for installation and service
- Supports curved designs and right-angle configurations
Technical Specifications
| Model | 1.25 | 1.56 | 1.875 | 2.5 |
|---|---|---|---|---|
| Pixel Matrix Per Sq.m | 640,000 | 409,600 | 284,444 | 160,000 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Brightness (nits) | ≤1000 | ≤1000 | ≤1000 | ≤1000 |
| Scan | 1/45 | 1/48 | 1/45 | 1/30 |
| Module Dimension | 300×168.75mm | 300×168.75mm | 300×168.75mm | 150×337.5mm |
| Cabinet Dimension | 600×337.5×27.5mm, 150×337.5×27.5mm | |||
| Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Cabinet Weight | 4.5KG/pcs | 4.5KG/pcs | 4.5KG/pcs | 4.5KG/pcs |
| Power Con. (W/sqm.) | Max.350W / Avg.100W | Max.350W / Avg.100W | Max.350W / Avg.100W | Max.350W / Avg.100W |
| Service Access | Full Front Access | Full Front Access | Full Front Access | Full Front Access |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 |
| Contrast Ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Viewing Angle (H / V) | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° |
| IP Rate | IP31 | IP31 | IP31 | IP31 |
| Operation Temperature | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ |
| Operation Humidity | 10% ~ 85% | 10% ~ 85% | 10% ~ 85% | 10% ~ 85% |
| Input Voltage (AC) | AC 110~220V, 50-60Hz | AC 110~220V, 50-60Hz | AC 110~220V, 50-60Hz | AC 110~220V, 50-60Hz |
Product Highlights
Wider Viewing Angle+HDR
The 170° viewing angle and high color coverage support natural-looking images. HDR displays more detail in high dynamic range content. The 16:9 format follows the international standard for high-definition television and matches the stated ergonomic field-of-view ratio.
Ultra Light and Thin

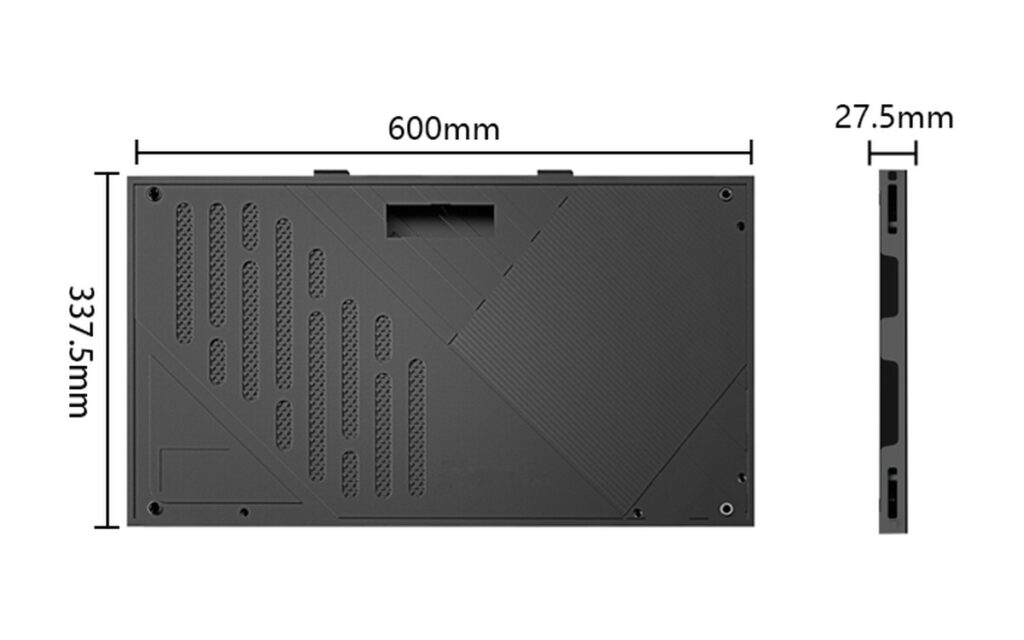

The cabinet is 27.5mm deep and weighs 4.5kg at 600×337.5mm. Cable-free design supports faster installation and maintenance while reducing labor, time, and cost.

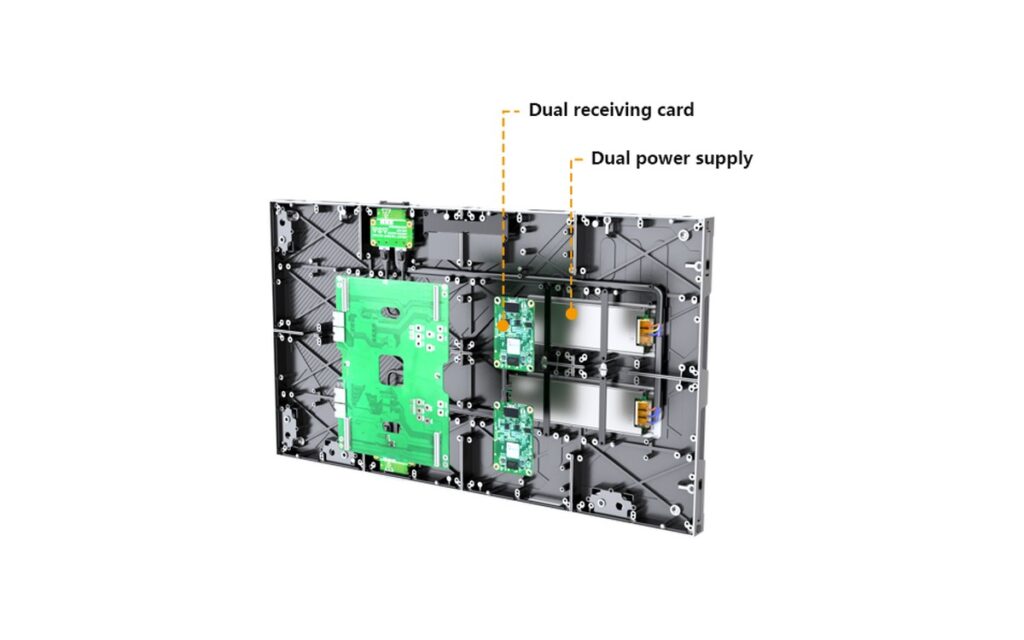

Power Supply and Signal Double Backup

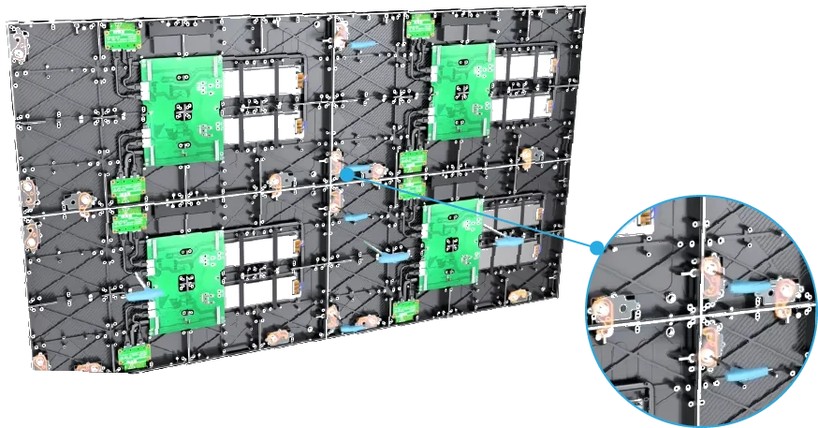

The screen can continue working if the power supply or receiving card is damaged. The Eagle Hook Lock reduces gaps between cabinets and makes installation more convenient and faster.

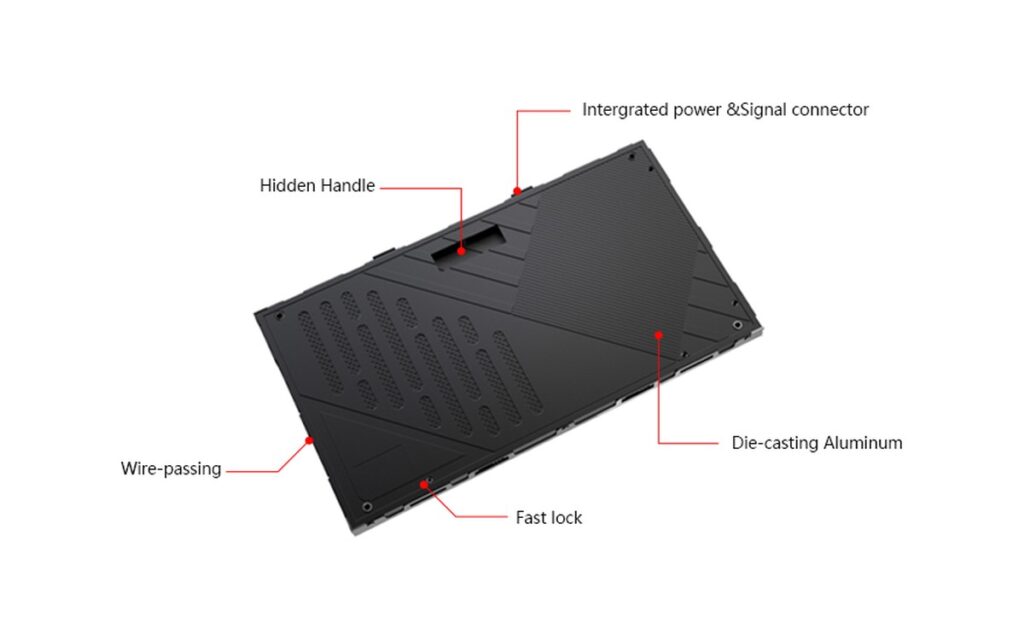

Hidden Handles and Anti-slip Texture

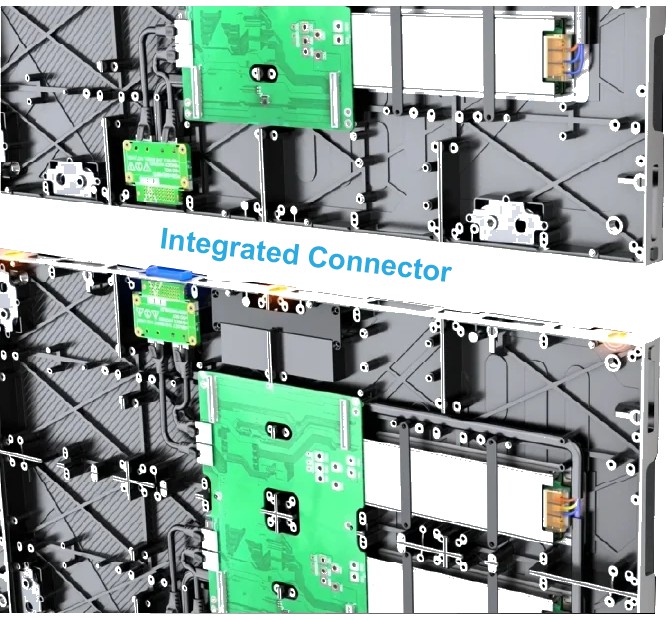

Hidden cabinet handles aid installation without increasing thickness. The anti-slip pattern allows the cabinet to hang directly on a bracket. Integrated connectors transmit signals and power between cabinets.
Convex and Concave Design Solution

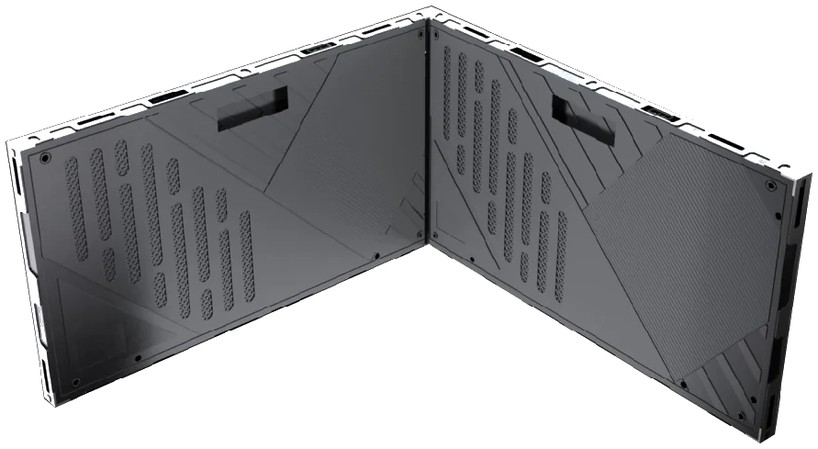

Supports curved designs using special 150×168.75mm modules and 150×337.5mm cabinets. The beveled cabinet supports seamless 90 Degree corners and 4 sided column LED screens.
Wall Mounted

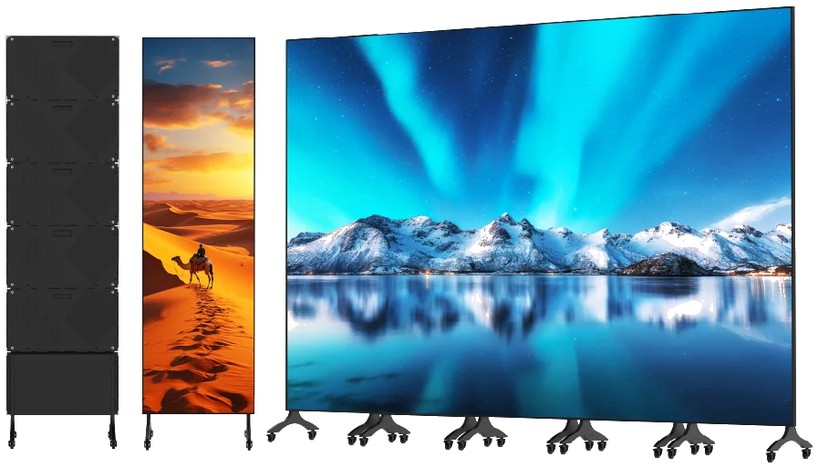

With brackets, installation depth is 42.5mm; without brackets, it is 27.5mm. The free-standing UPoster is plug and play, movable, supports seamless cascade, and is an all-in-one LED display. Size:600x2025mm, weight: 31.4kg.
