Outdoor-FR Series

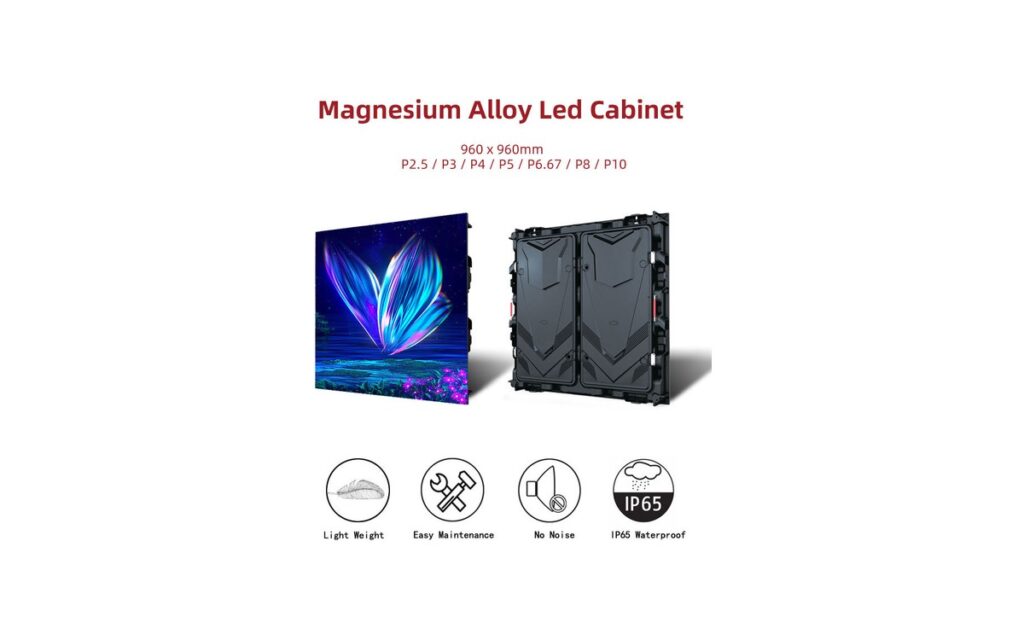

Outdoor-FR is a fixed LED display for outdoor advertising and digital signage, with 960 × 960 mm die-casting aluminum cabinets and customizable screen sizes for pole-mounted, wall-mounted and billboard installations.
Key Features
- 960 × 960 mm die-casting aluminum cabinets
- Custom screen sizes for outdoor installations
- IP65 protection grade across all listed models
- Brightness options from ≥5,000 to ≥9,500 CD/㎡
- Working temperature from -40～+60 ºC

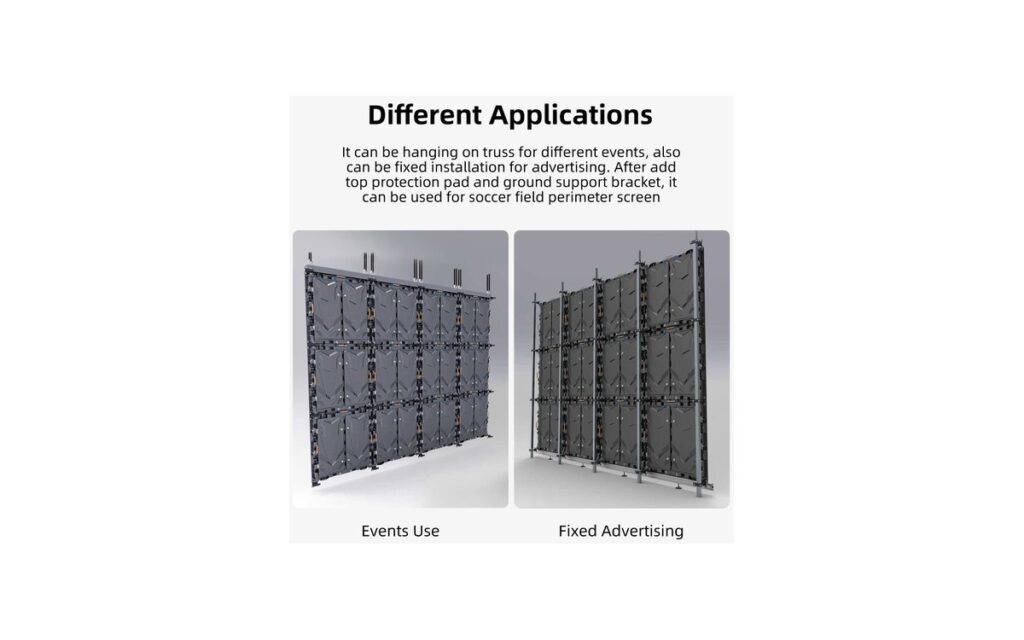

- Pole-mounted, wall-mounted and billboard applications
Technical Specifications
| Model | P3.076 | P4 | P5 | P6.67 | P8 | P10 (2S) | P10 (4S) | P10 (DIP) |
|---|---|---|---|---|---|---|---|---|
| Brightness (CD/㎡) | ≥5,500 | ≥5,000 | ≥6,500 | ≥7,000 | ≥7,500 | ≥8,500 | ≥7,000 | ≥9,500 |
| Max. Power Consumption (W/㎡) | 586 | 509 | 536 | 492 | 400 | 450 | 540 | 520 |
| Working Temperature (ºC) | -40～+60 | -40～+60 | -40～+60 | -40～+60 | -40～+60 | -40～+60 | -40～+60 | -40～+60 |
| Density (Pixels/㎡) | 105,625 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 | 10,000 | 10,000 |
| Module Resolution (Pixel) | 104x52 | 80x40 | 64x32 | 48x24 | 40x20 | 32x16 | 32x16 | 32x16 |
| Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Driving Mode (Duty) | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 | 1/4 | 1/4 |
| Cabinet Size (mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Weight (KG) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 30 |
| Viewing Angle (°) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 120 |
| Gray Grade (Bits) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 16 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Avg. Power Consumption (W/㎡) | 262 | 303 | 280 | 298 | 200 | 285 | 180 | 175 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Product Highlights

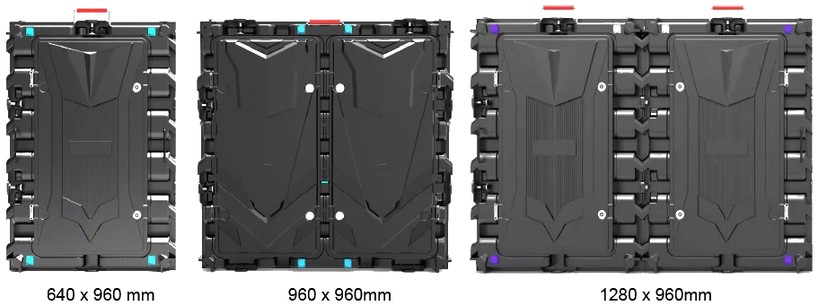

Customized Screen Size
Mix three cabinet sizes to meet screen size requirements: 960×960 / 640×960 / 1280x960mm.
Ultra High Brightness up to 10,000nits
Brightness is adjustable and customizable from 5000 – 10,000nits for clear daylight viewing. A special design for the IC, PCB and power supply transfers power accurately to avoid wasted electricity.

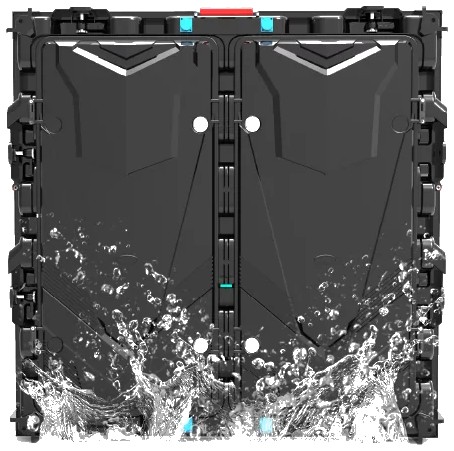

All Weather Resistant for Stable Operation
IP65 waterproof protection and a fully enclosed cabinet support stable outdoor operation. The viewing angle is 140°horizontal and 140°vertical, maximizing visual coverage.

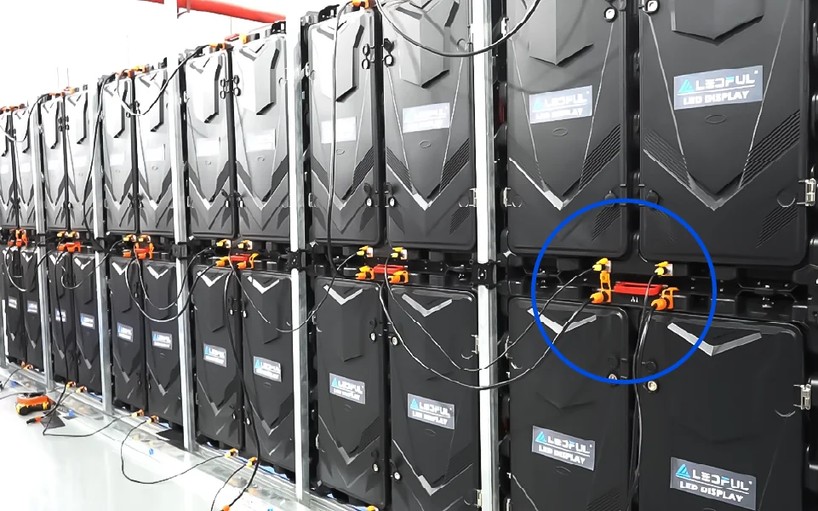

Safe and Convenient Aviation Connector
Waterproof, high temperature resistant aviation connectors are designed for outdoor use and are easy to connect and operate. Optional refresh rates of 3840/7680Hz show dynamic details without delay.

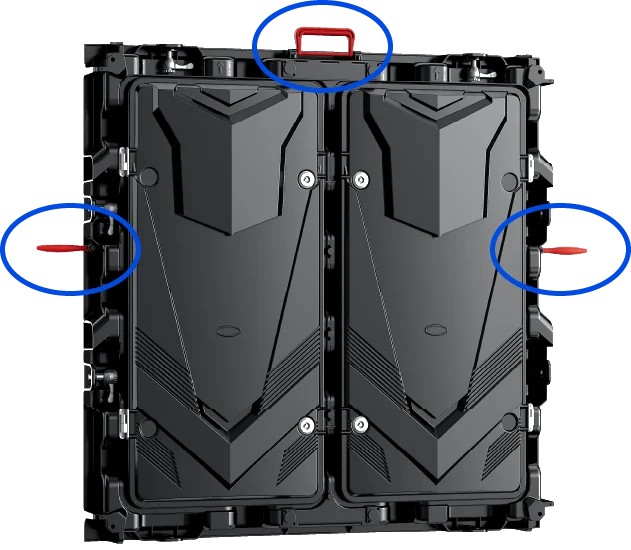

Handle Design and Quick Lock
Upper, right and left side handles make movement easier. Quick locks simplify maintenance and reduce installation time and cost. Control options include Wifi, 4G, cloud, usb and remote control, without long distance or space limitations.

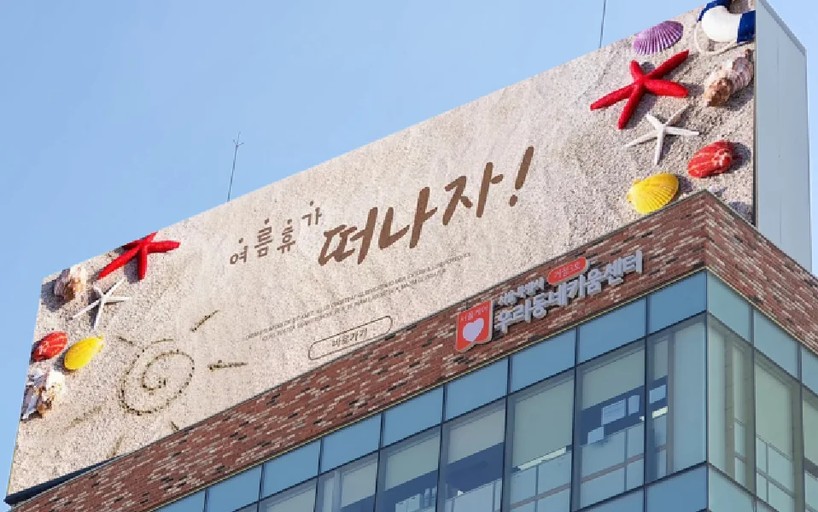

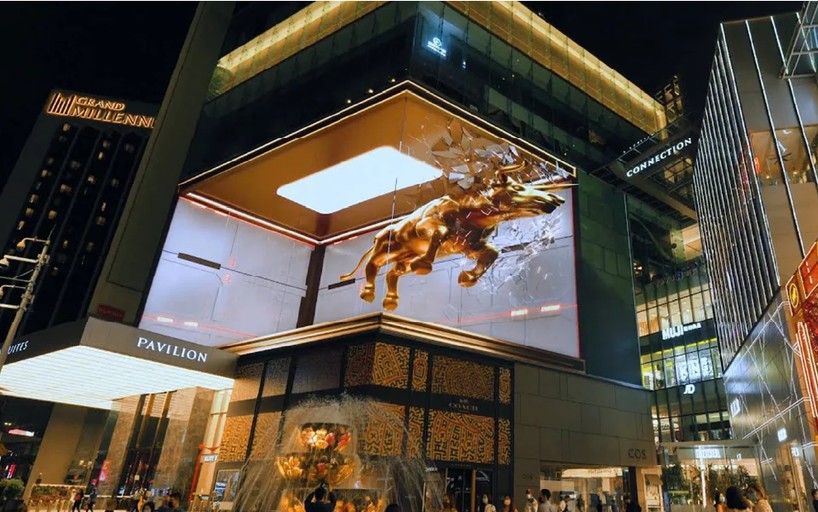

Various Outdoor Designs---Right Angle
The right-angle design conforms to building shapes for a three-dimensional effect. Smooth corners create an attractive naked-eye 3D vision.

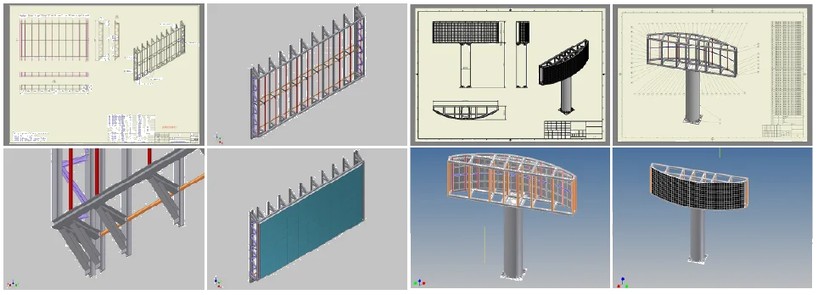

One-stop Cost-effective Solution
The solution includes screen steel structure, power distribution cabinet, installation solution and engineer teaching, with a detailed operation manual and professional process following up.
