Poster-Double-Fold Series
The Poster-Double-Fold Series combines a 640 x 1920mm display area with a thin, lightweight aluminum body and foldable design for easier transport at exhibitions, retail sites and events.
Key Features
- Flexible foldable LED poster display

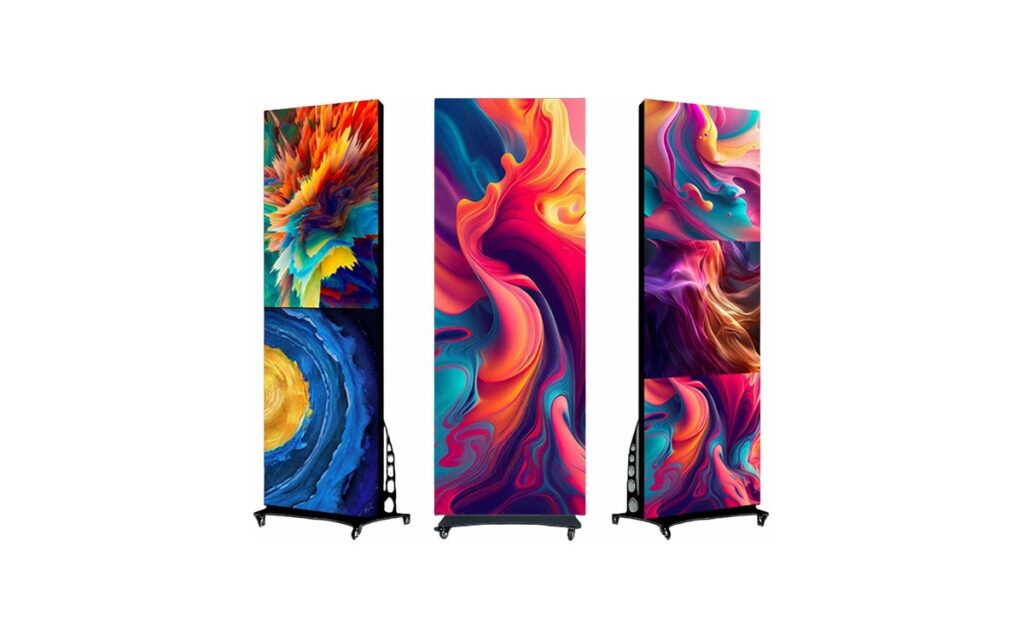

- Seamless cascading for multi-screen setups
- WiFi remote control
- Integrated audio and music
- 640 x 1920mm display area
- 3840Hz refresh rate
Technical Specifications
| Model | 1.86 | 2.5 | 2.5 |
|---|---|---|---|
| Pixel Matrix Per Sq.m | 288,888 | 160,000 | 160,000 |
| Pixel Conguration | SMD1515 | SMD2121 | SMD1921 |
| Scan | 1/43 | 1/32 | 1/32 |
| Grey Scale (bit) | 16 | 16 | 16 |
| Brightness (nits) | 1000 | 1000 | 5000 |
| Power Con. (Max / Avg) | 1200/360W | 1200/360W | 1800/400W |
| Material | CNC Aluminum Profile | CNC Aluminum Profile | CNC Aluminum Profile |
| Module Dimension | 320x160mm / 1.05×0.52ft | 320x160mm / 1.05×0.52ft | 320x160mm / 1.05×0.52ft |
| Display Dimension | 640x1920mm | 640x1920mm | 640x1920mm |
| LPoster Plus Dimension | 664x2124x61mm &984x2124x61mm | 664x2124x61mm &984x2124x61mm | 664x2124x61mm &984x2124x61mm |
| Weight | 55kg | 55kg | 55kg |
| Refresh Rate (HZ) | 3840Hz | 3840Hz | 3840Hz |
| Service Access | Rear Service(Front Optional) | Rear Service(Front Optional) | Rear Service(Front Optional) |
| LPoster PORT | USB, Cong, Ethernet, WiFi, WiFi-St*, 4G*, HDMI in, HDMI out* (*Optional) | ||
| Viewing Angle (H/V) | 140/140 | 140/140 | 140/140 |
| IP Rate | IP31 | IP31 | IP31 |
| Input Voltage (AC) | 110V / 220V | 110V / 220V | 110V / 220V |
Product Highlights

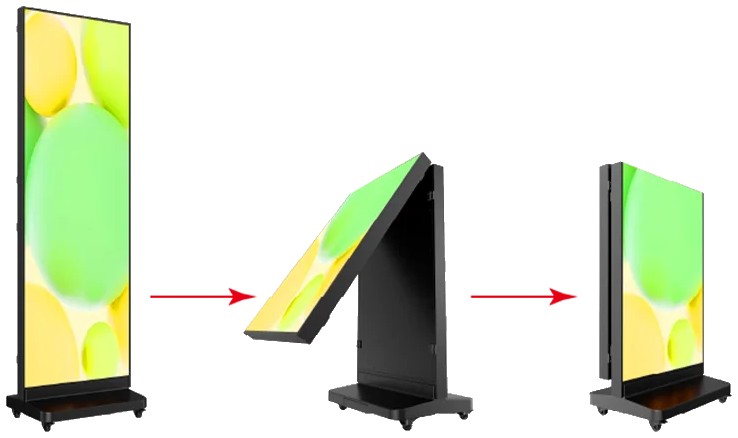

Innovative Folding Design, Space-Saving

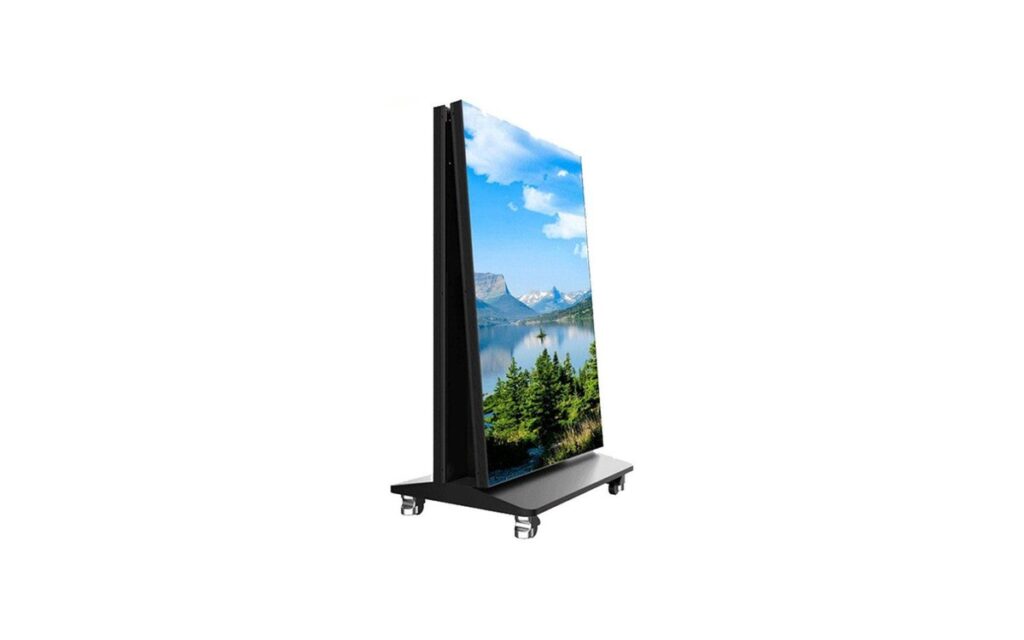

Compact and portable, the display folds to reduce volume by 50%, improving storage and transport versus traditional posters. When folded, it becomes a double-sided screen that can show the same or different content on each side.

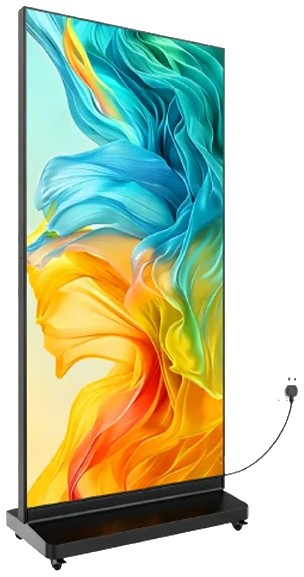

Plug & Play
No installation is required: unfold, plug in and start instantly. GOB LED technology improves durability, damage resistance and maintenance, supporting long-term reliability and extended lifespan.

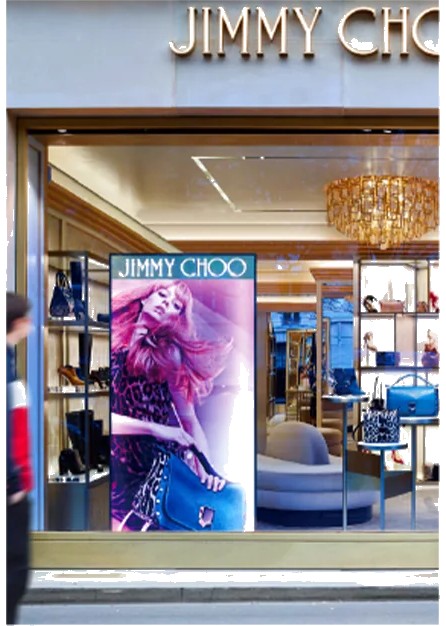

4000nits High Brightness for Shop Window
LPoster PLUS offers different brightness levels: 1000nits for indoor stores and 4000nits for shop windows facing direct sunlight. It also provides a multi-functional interface.

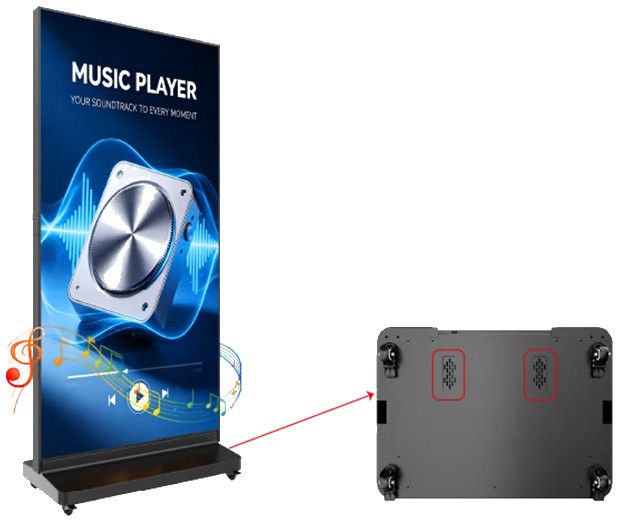

Audio & Music Integrated
Integrated audio and music turn presentations into an audiovisual journey. With flexible magnetically detachable bezels and a fast-lock splicing mechanism, six units can be interconnected seamlessly in 5 minutes, improving efficiency and operation experience versus traditional poster installations.

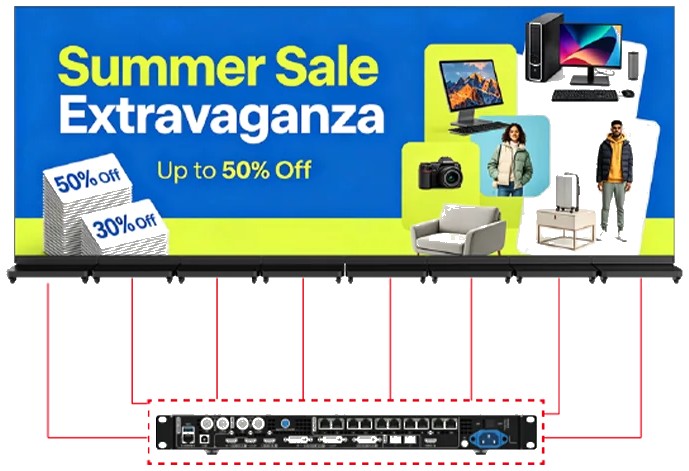

Far More Than Eight Units

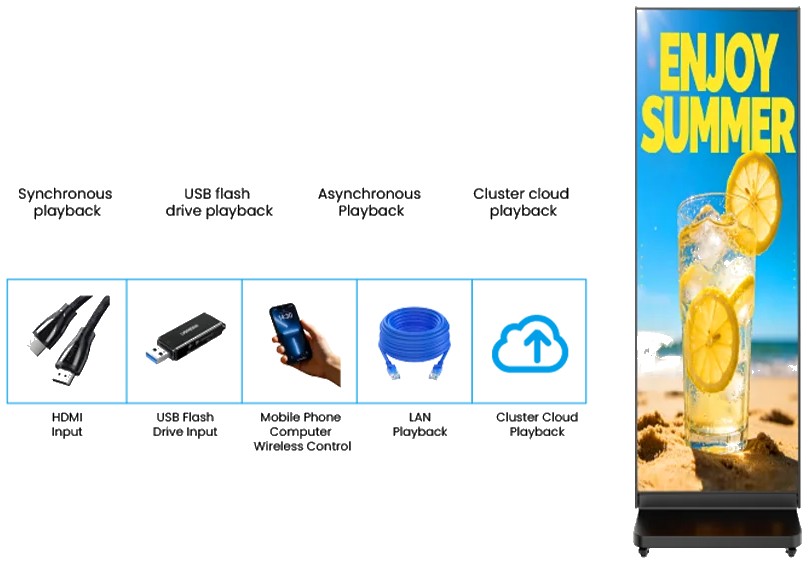

Using data connector connections, LPoster PLUS supports multi-screen joint installation with infinite expandability. It also features Intelligent Cloud Playback.
Wireless & Flexible Control
Smart Cloud Cluster Management provides wireless and flexible control.
