Poster-Transparent Series
Poster-Transparent Series is an all-in-one transparent LED poster with plug-and-play operation, optional brightness levels, and a movable base. Designed for show windows, it displays advertising while keeping in-store products visible.
Key Features
- All-in-one transparent LED poster
- Remote, WIFI, and Cloud control
- Cascade connection supports bigger size
- Movable base support with wheels
- 1000nits, 3000nits, 5000nits brightness optional
- Easy installation and maintenance
- Plug and play
Technical Specifications
| Model | H1.9-V3.9 | H2.8-V5.6 | H3.91-V7.82 |
|---|---|---|---|
| Pixel Matrix Per Sq.m | 129,024 | 63,368 | 32,768 |
| Pixel Configuration | SMD1515 | SMD1921 | SMD1921 |
| Brightness (nits) | 3000 | 5000 | 5000 |
| Scan | 1/14 | 1/16 | 1/8 |
| Module Dimension | 500x125mm | 500x125mm | 500x125mm |
| Cabinet Dimension | 1000×2000mm(Variable dimensions) | ||
| Cabinet Material | Profile aluminum | Profile aluminum | Profile aluminum |
| Cabinet Weight | 30KG | 30KG | 30KG |
| Power Con. (W/sqm.) | Max. 800W / Avg.360W | Max. 1600W / Avg.720W | Max. 1600W / Avg.720W |
| Service Access | Front | Front | Front |
| Refresh Rate (HZ) | ≥1920 | ≥1920 | ≥1920 |
| Grey Scale (bit) | 14~16 | 14~16 | 14~16 |
| Contrast Ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Viewing Angle (H / V) | 160° / 160° | 160° / 160° | 160° / 160° |
| IP Rate | IP24 | IP24 | IP24 |
| Operation Temperature | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ |
| Operation Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Input Voltage (AC) | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz |
Product Highlights
Novel and Elegant Appearance Design

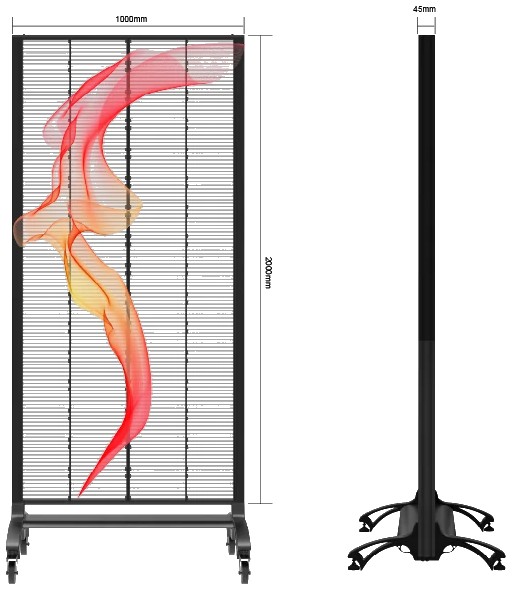

The high-quality aluminum poster has an integrated vertical structure and movable wheels for use in different scenes. It weighs 30kg and is 45mm thin, and supports 3D effect display. With 70% transparency, it suits show windows in jewelry stores, luxury boutiques, and other high-end retail environments, displaying advertising videos while highlighting products.
High Brightness
Choose 3000nits for bright indoor environments or 5000nits for direct sunlight in retail shop windows. The 160° viewing angle supports viewing from multiple directions while maintaining color and image quality.

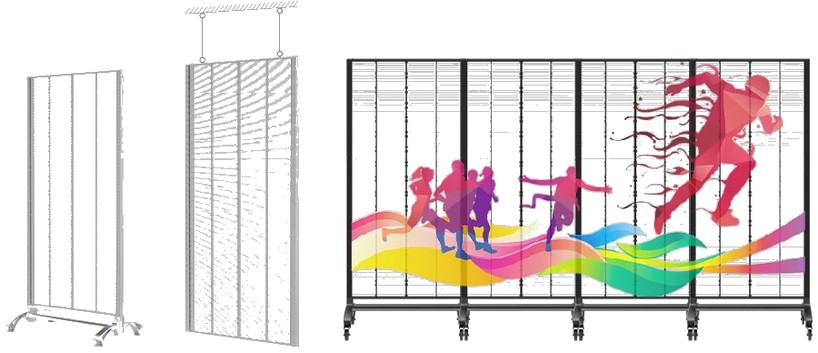

Multiple Installation Options
Installation options include floor standing with a fixed or movable base, hanging, double-sided display, and cascading multiple posters. For plug-and-play use, connect to power and input content through USB, HDMI, or wireless connection.
Easy and Fast Maintenance
The cable-free module HUB connection design allows module maintenance in 10s. Control options include WiFi, Phone (Android, iOS), tablet, Windows, Cloud, USB, and Remote Cluster Control. Mobile devices and PCs can change videos and pictures.
