Poster-Flexible Series
Poster-Flexible Series LED Display for indoor applications, combining high refresh rate, high grayscale, movable wheels and customizable pixel pitch, size and base support.
Key Features
- Front service with magnetic modules
- Light, thin, plug-and-play installation
- Customizable pixel pitch, size and base support
- High refresh rate and grayscale for indoor use
- Advertising machines in various shapes
Technical Specifications
| Model | 1.25 | 1.579 | 1.667 | 1.875 | 2 | 2.5 |
|---|---|---|---|---|---|---|
| Pixel Matrix Per Sqm | 640,000 | 401,076 | 359,856 | 284,440 | 250,000 | 160,000 |
| Pixel Configuration | SMD1010 | SMD1010 / 1212 | SMD1010 / 1212 | SMD1212 / 1515 | SMD1515 | SMD1515 |
| Brightness (nits) | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 |
| Scan | 1/48 | 1/38 | 1/36 | 1/32 | 1/30 | 1/24 |
| Power Con. (W/sqm.) | Max. 1000W / Avg.340W | Max. 1000W / Avg.340W | Max. 800W / Avg.270W | Max. 800W / Avg.270W | Max. 800W / Avg.270W | Max. 800W / Avg.270W |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥2880 | ≥2880 | ≥1920 |
| Module Dimension | 240x120mm / 0.79×0.39ft | |||||
| Cabinet Dimension | 600×1920mm （W×H） | |||||
| Cabinet Material | Silicon Rubber Soft Bracket | |||||
| Cabinet Weight | 60KG | |||||
| Service Access | Full Front Access | |||||
| Grey Scale (bit) | 14 | |||||
| Contrast Ratio | 5000:01:00 | |||||
| Viewing Angle (H / V) | 140° / 140° | |||||
| IP Rate | IP43 | |||||
| Operation Temperature | ﹣20℃ ~ +60℃ | |||||
| Input Voltage (AC) | 110 or 240V | |||||
Product Highlights

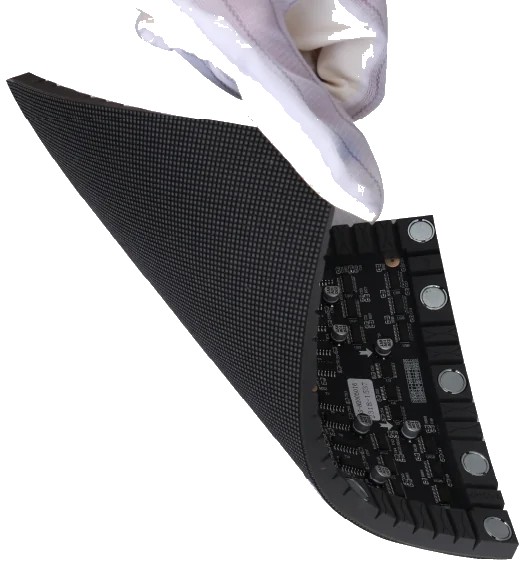

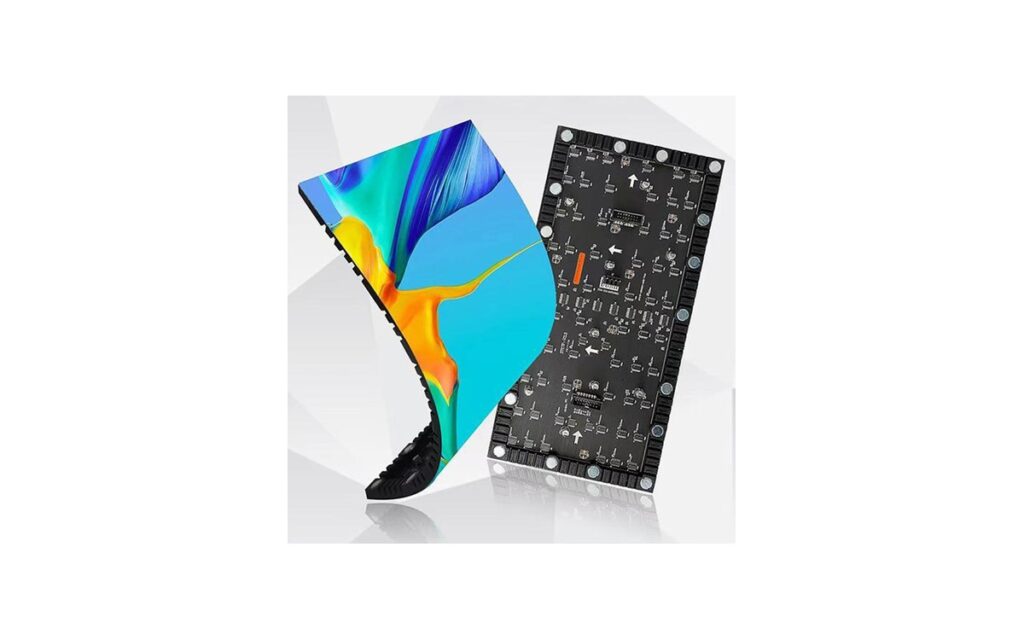

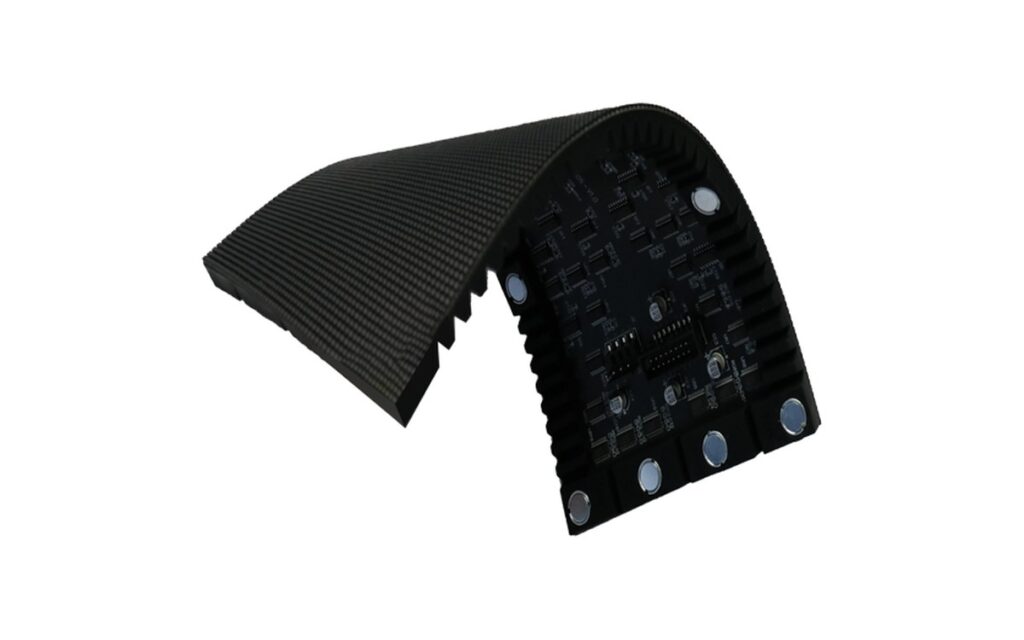

Super Flexibility and Bendability
The soft module uses a super-flexible substrate that bends at large scale for irregular-shape installations. Pixel pitch options are P1.2, 1.5, 1.6, 1.8, 2 and 2.5. Small pixel pitches support close viewing without graininess, for indoor exhibitions, science and technology museums, art museums and vaults.

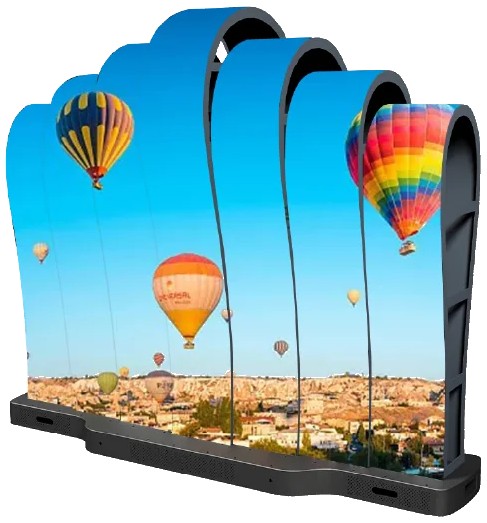

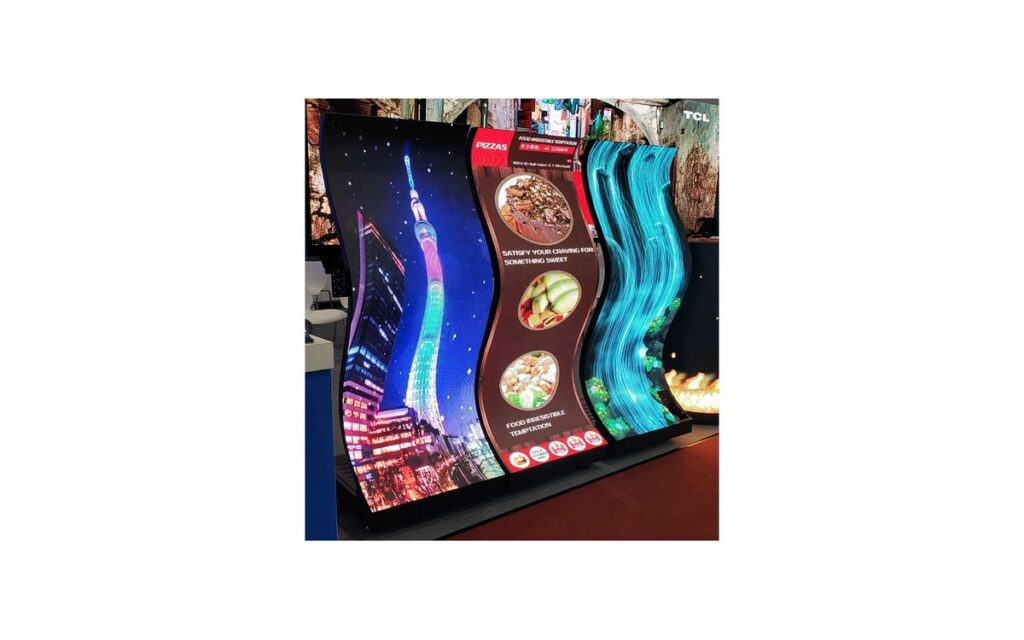

Advertising Machines of Various Shapes
Beyond S-series advertising machines, wave-arc and ribbon shapes can be made to customer needs. Seamlessly connected modules keep curved parts flat. Lightweight, portable and removable modules are lighter than ordinary non-soft modules, supporting quick setup and dismantling for exhibitions and events.

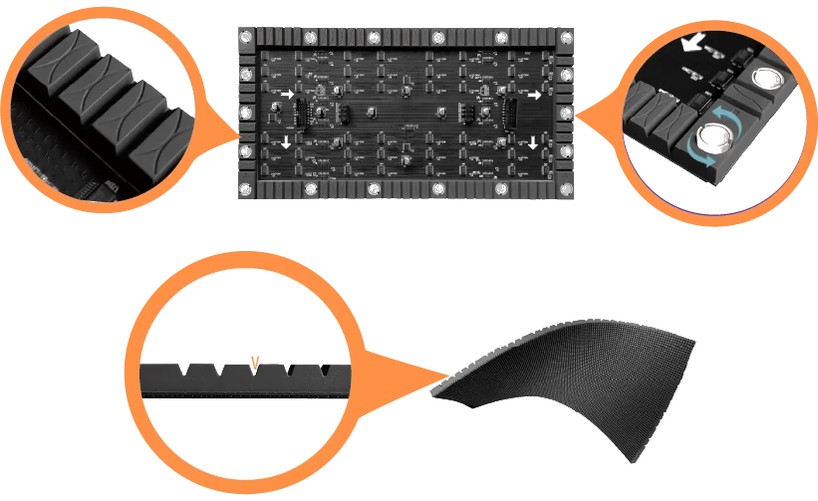

Strong Magnetic Force
High magnetic force secures modules to the cabinet and helps prevent degluing and warped feet in different environments. The V-shaped design increases friction and viscosity, fine-tuned magnets support flatness, X design adds visual appeal, and deep V design improves softness. Supports vertical or horizontal installation, with wheels for movement. Sizes: 600×1920mm and 720×1920mm, also customizable.

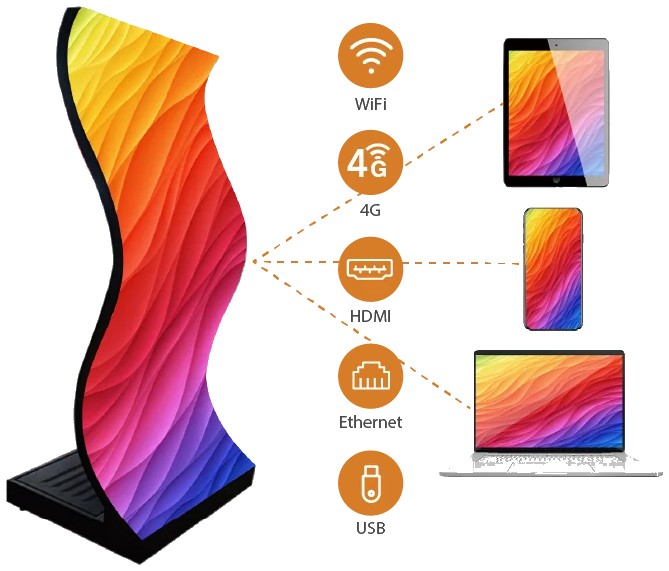

Fast Using
No component installation is needed: connect the socket and video controller. WiFi and 4G support quick control through a mobile phone or computer. Compared with conventional advertising posters, the unique shape is more visually attractive; the S-shape adds a three-dimensional sense and makes content more layered and dynamic.
