Poster-Outdoor Series

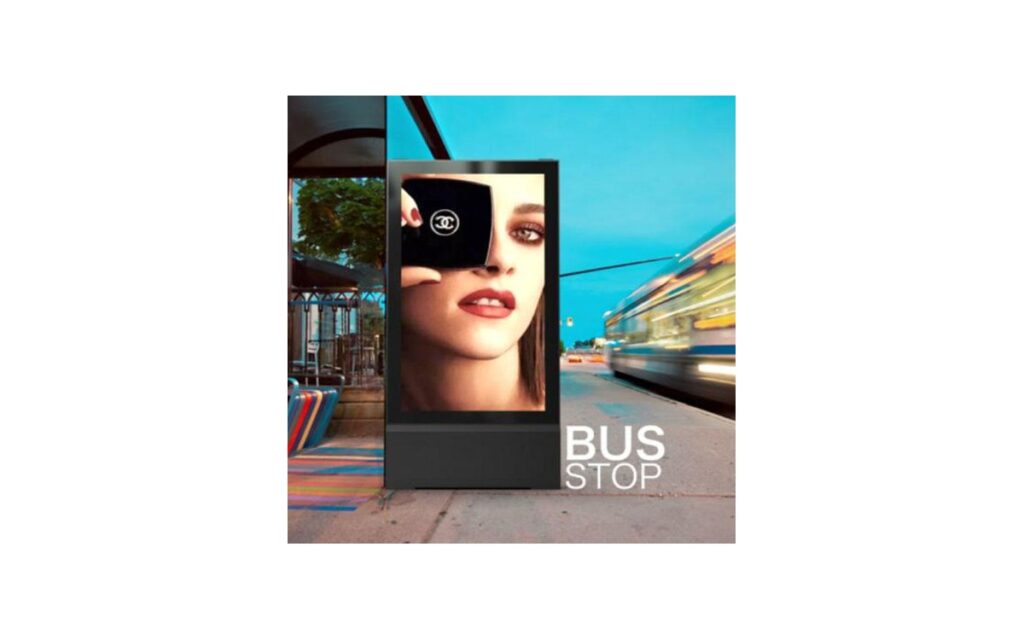

Poster-Outdoor Series is a double-sided, weatherproof LED poster display for outdoor advertising at bus stops, entrances, resorts, casinos, museums, banks, and stores.
Key Features
- Double-sided weatherproof outdoor LED poster display
- High brightness and contrast with IP65 protection
- 8 mm tempered glass and sealed aluminum enclosure
- Fan cooling supports heat dissipation
- Front-service design for easy maintenance
- Single-sided, double-sided and custom sizes available
Technical Specifications
| Model | 3.07 mm | 4mm | 5mm | 2.97mm | 3.91mm | 4.81mm |
|---|---|---|---|---|---|---|
| LED Configuration | SMD1415 | SMD1921 | SMD2727 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density | 105625 dot/m² | 62500 dot/m² | 40000 dot/m² | 112896 dot/m² | 65536 dot/m² | 43264 dot/m² |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 250*250mm | 250*250mm | 250*250mm |
| Display Size | 940*1580mm and Customized | 940*1580mm and Customized | 940*1580mm and Customized | 980*1730mm and Customized | 980*1730mm and Customized | 980*1730mm and Customized |
| Cabinet Size | 1140*2230mm and Customized | 1140*2230mm and Customized | 1140*2230mm and Customized | 1180*2380mm and Customized | 1180*2380mm and Customized | 1180*2380mm and Customized |
| CabinetWeight | Single side, 215kg/pc; Double side, 285kgs/pc | Single side, 215kg/pc; Double side, 285kgs/pc | Single side, 215kg/pc; Double side, 285kgs/pc | Single side, 230kg/pc; Double side, 300kgs/pc | Single side, 230kg/pc; Double side, 300kgs/pc | Single side, 230kg/pc; Double side, 300kgs/pc |
| IP Rating (front/back) | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 |
| Brightness | ≥5000 cd/m² for copper and 6000 cd/m² for gold | ≥5000 cd/m² for copper and 6000 cd/m² for gold | ≥5000 cd/m² for copper and 6000 cd/m² for gold | ≥5000 cd/m² for copper and 5800 cd/m² for gold | ≥5000 cd/m² for copper and 5800 cd/m² for gold | ≥5000 cd/m² for copper and 5800 cd/m² for gold |
| View Angle | 120°/120° | 120°/120° | 120°/120° | 120°/120° | 120°/120° | 120°/120° |
| Max.PowerConsumption | 750 W/m² | 750 W/m² | 750 W/m² | 750 W/m² | 750 W/m² | 750 W/m² |
| Ave.PowerConsumption | 250 W/m² | 250 W/m² | 250 W/m² | 250 W/m² | 250 W/m² | 250 W/m² |
| Refresh Frequency | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| OperatingEnvironment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operating Power | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| OperatingTemperature | -20℃ ~ +50℃ | -20℃ ~ +50℃ | -20℃ ~ +50℃ | -20℃ ~ +50℃ | -20℃ ~ +50℃ | -20℃ ~ +50℃ |
Product Highlights
Single and Double Side LED Totem Display
The double-sided LED poster updates traditional advertising signage and helps deliver the latest ads and messages quickly, saving time and labor costs. Single-sided, double-sided, custom-size and creative-design LED posters are available.
Digital LED Poster Display Strong Protection
The display uses an 8mm strong tempered glass cover, a full sealed aluminum design, IP65 protection on both sides, an aluminum frame and power leakage protection.

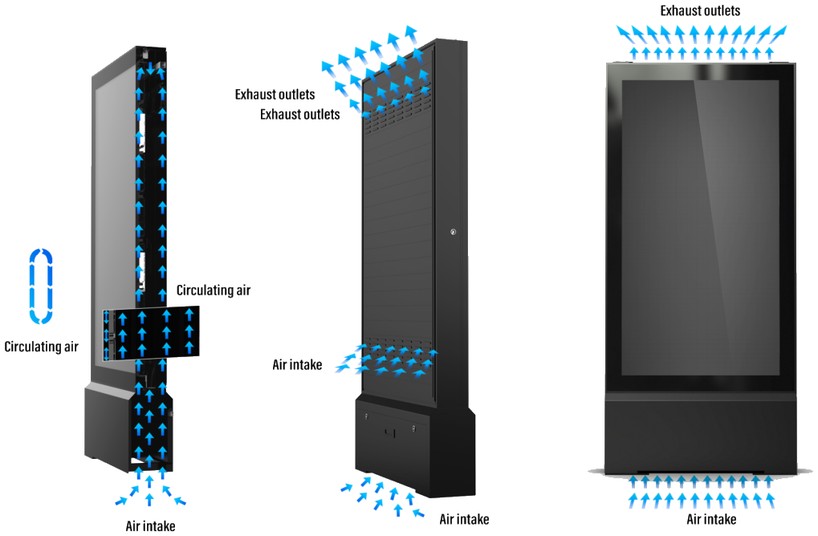

Good Heat Dissipation LED Poster
A fan system below the screen body circulates air and effectively dissipates heat, helping the screen run stably.

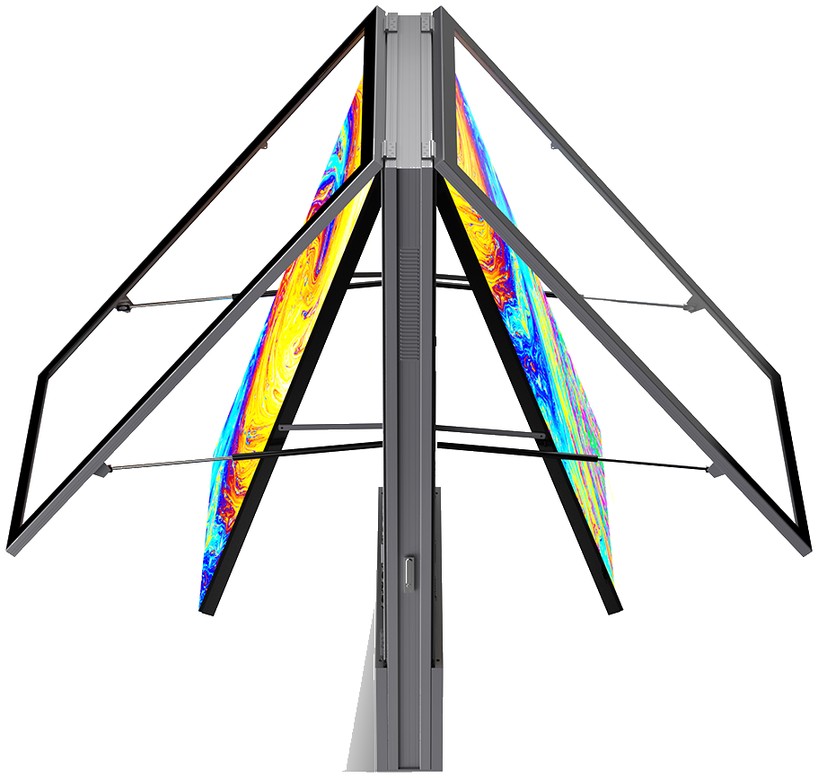

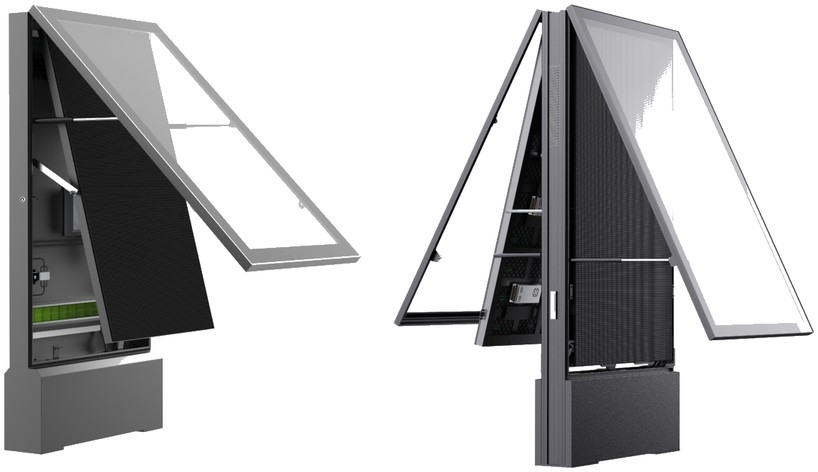

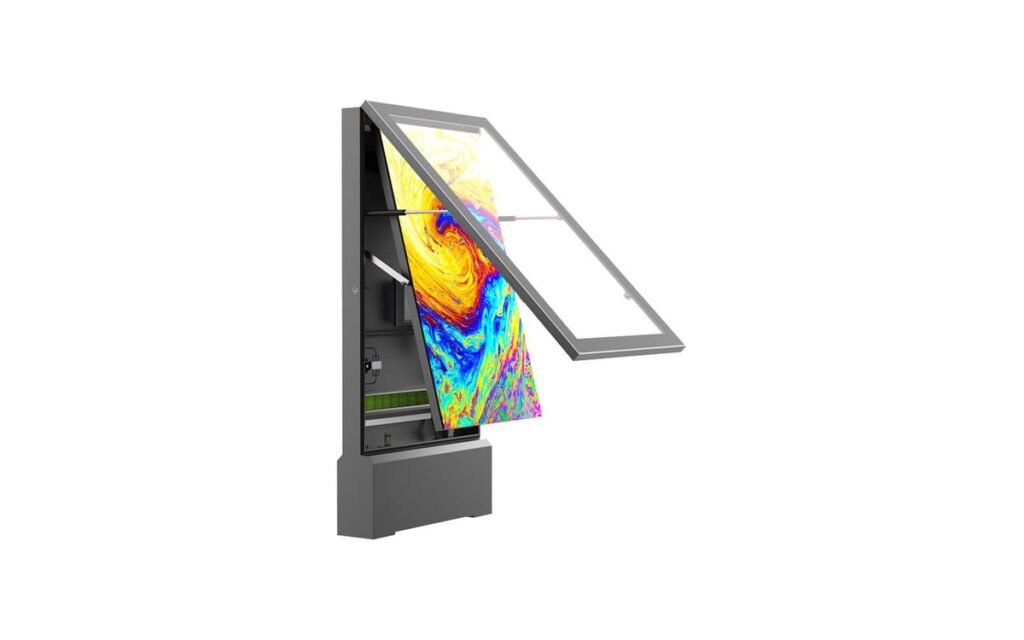

Front Service LED Poster
The tempered glass on both sides is easy to disassemble with simple operation, and the screen can be removed from the front for maintenance.

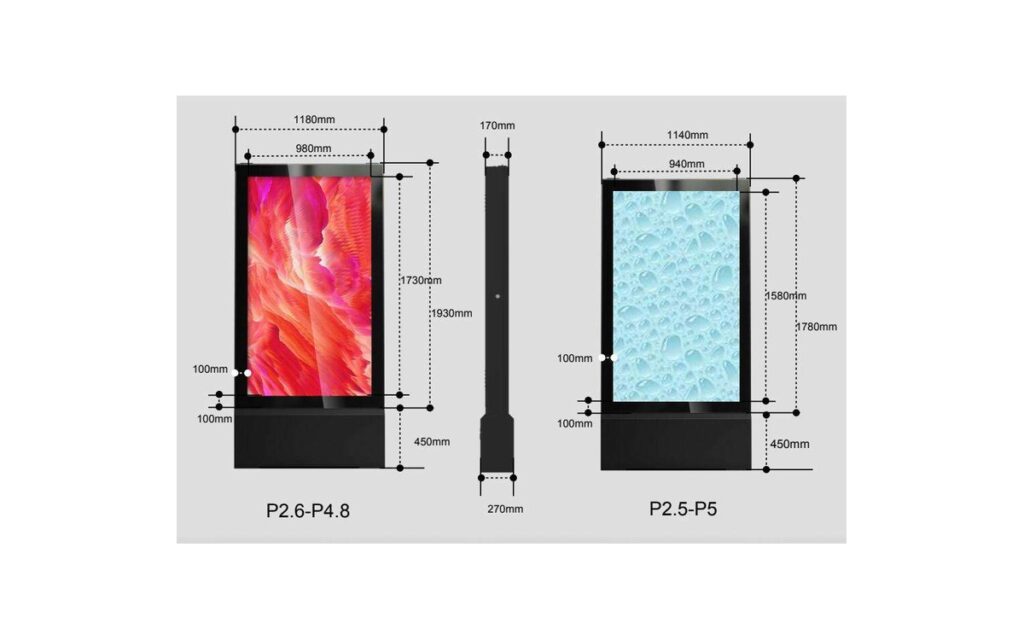

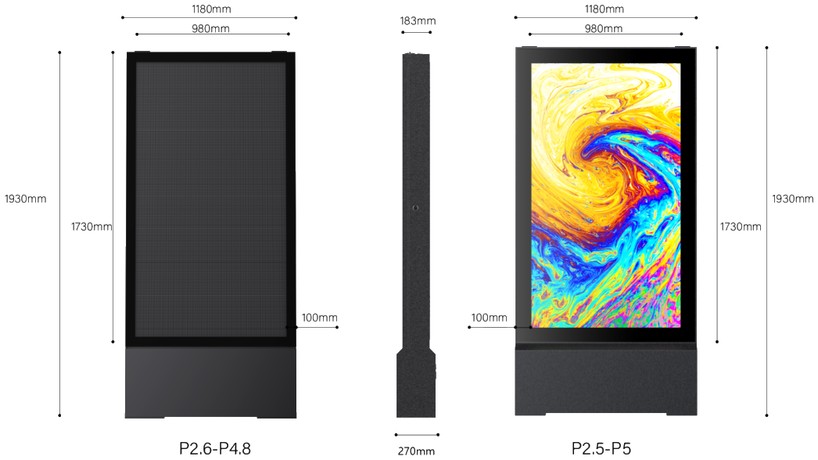

LED Poster Size
Single-sided, double-sided and custom sizes are available.
