Rental-FX Series
Rental-FX is a 500x500mm rental LED display with flexible PCB modules for smooth curved screens. It supports ±30° concave or convex curves, fanless quiet operation and pixel-level calibration.
Key Features
- 500x500mm rental LED cabinets

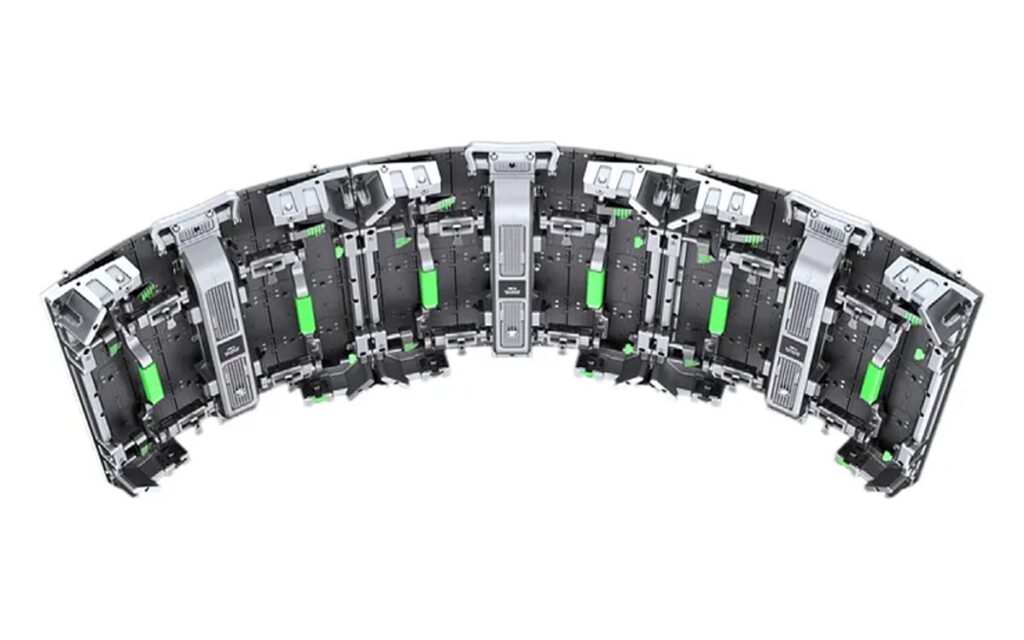

- Flexible PCB modules for curved displays
- ±30° concave or convex curves
- Fanless design for quiet operation
- Pixel-level calibration for uniform images
- 90° corners and circular configurations
- HUB board connection and frameless splicing
Technical Specifications
| Model | P2.604 | P2.976 | P3.91 |
|---|---|---|---|
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm |
| Cabinet size(mm) | 500X500mm | 500X500mm | 500X500mm |
| Module size(mm) | 125mmx500mm | 125mmx500mm | 125mmx500mm |
| Best view distance | ≥2m | ≥2.5m | ≥3m |
| Pixel Density | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ |
| Brightness | Indoor ≥1200cd | ||
| Cabinet Weight | 500x500mm panel 7.5kg | ||
| Waterproof level | IP43 | ||
| Refresh Rate | 3840Hz | ||
| Life Span | ≧100000hours | ||
| Working Voltage | 100-240V, 60Hz | ||
| Humidity-operating | 10%～90% | ||
| Operating temperature | -30ºC~65ºC | ||
Product Highlights
High-quality picture clarity
Multi-pixel pitch options include P2.6/P2.97/P3.91/P4.81. The display is specialized for TV studios, conference centers, monitoring centers, movie theaters, stages and parties, etc.

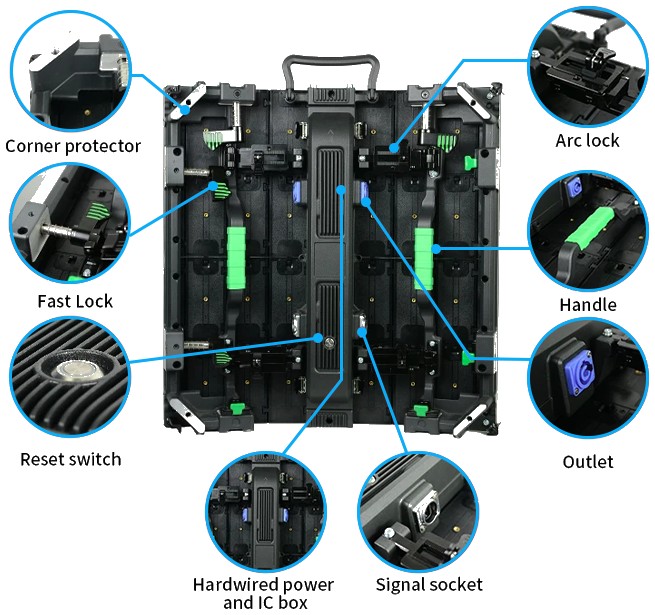

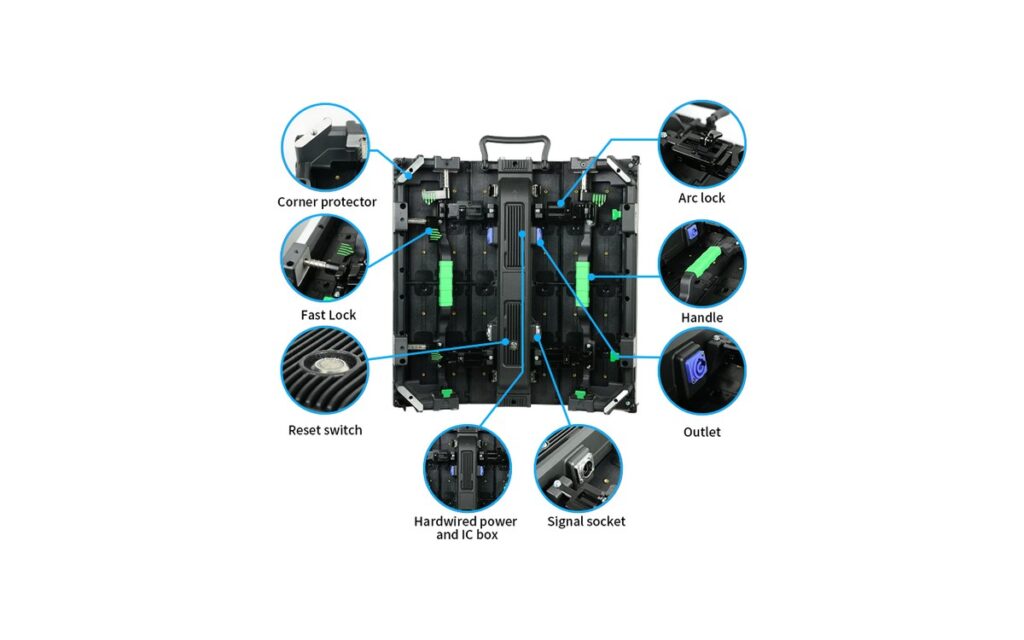

HUB Board Connection

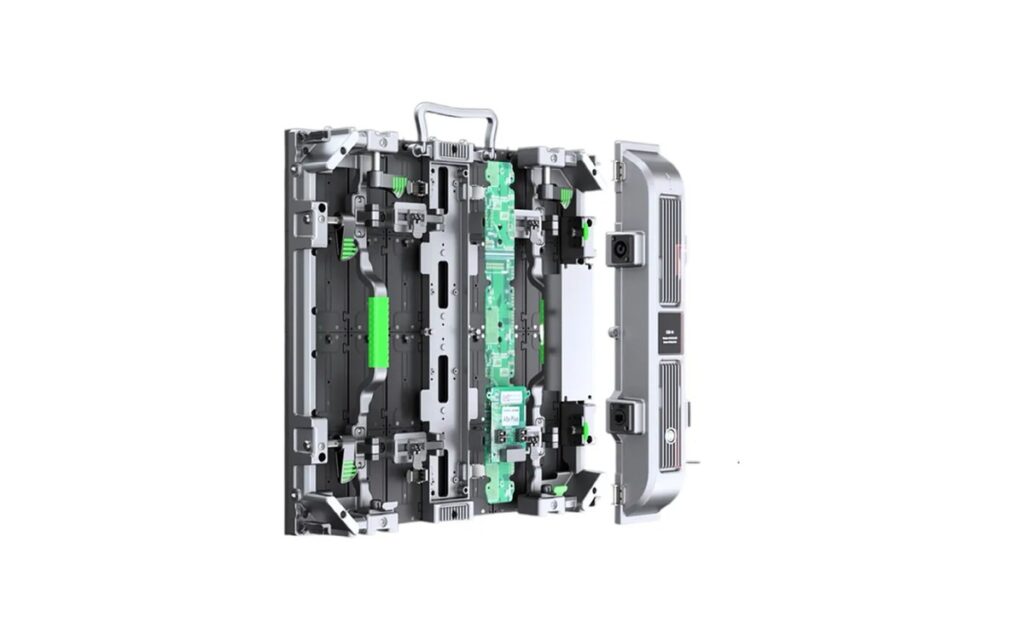

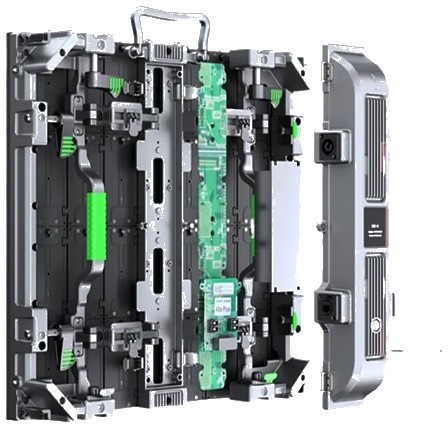

The wire-free HUB board connection transfers signal and power more stably and reliably. It connects modules and power supplies directly, and the back cover can be removed for replacement within 5 seconds.
PRODUCT DETAIL

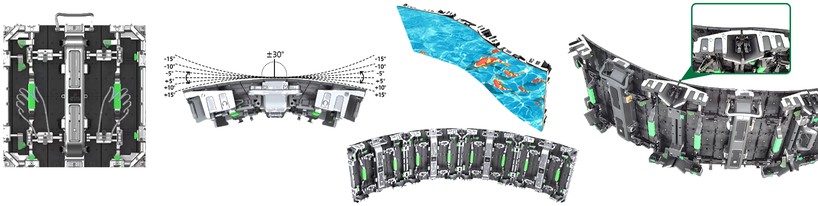

The N-type box is hardwired. The screen module can be bent by 15 degrees and combined with the D-type box to create a screen bending angle.
Seamless frameless splicing
High contrast ratio, high refresh rate and 16 bit high gray level support image quality. The adjustable gap enables true 0-seam splicing and connection of multiple sizes or shapes.
Excellent quality of core technology
Advanced techniques and brand new material support consistent product quality. We keep improving and always adhere to good quality.
