Rental-576×576 Series
The Rental-576x576 Series uses an 85 mm die-cast aluminum cabinet weighing 8.5 kg for easier handling and installation. Available in P3 and P6, with indoor or outdoor options, front magnetic module maintenance and a 3840Hz refresh rate.
Key Features
- 85 mm die-cast aluminum cabinet weighs 8.5 kg
- Quick locks and plug-and-play connections support fast setup

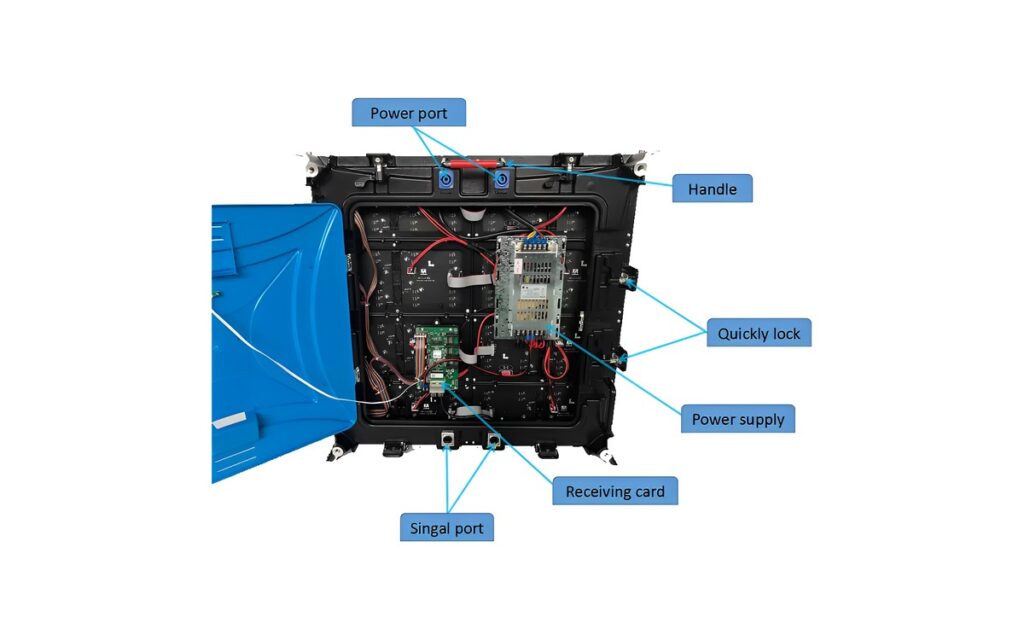

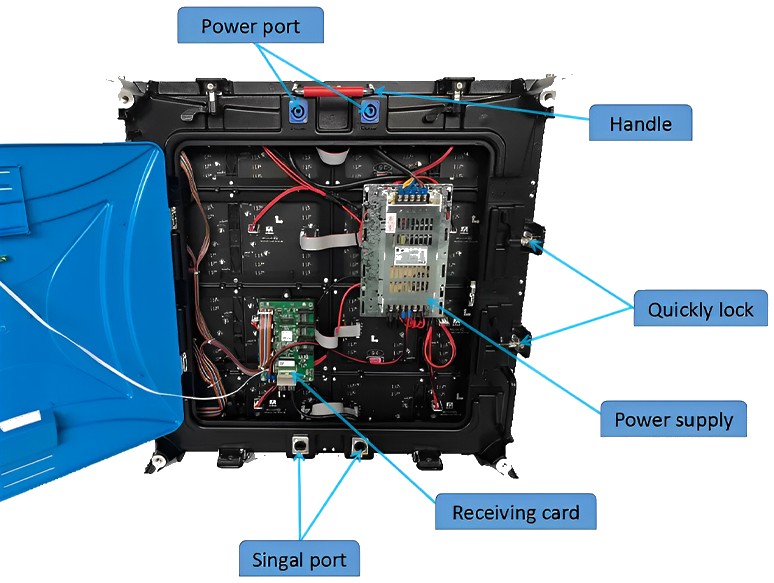

- Front magnetic module maintenance
- P3 and P6 pixel pitch options
- Indoor brightness ≧1200CD, outdoor brightness ≧5500CD
- Indoor IP43 and outdoor IP65 waterproof levels
- Hanging and stacking installation options
Technical Specifications
| Model | P3 | P6 |
|---|---|---|
| Pixel pitch | 3mm | 6mm |
| Cabinet size | 576x576x85mm | 576x576x85mm |
| Cabinet resolution | 256x256dots | 128x128dots |
| Best view distance | ≧2m | ≧4m |
| Pixel Density | 250000dots/㎡ | 62500dots/㎡ |
| Brightness | Indoor≧1200CD,Outdoor≧5500CD | |
| Cabinet Weight | 8.5kg | |
| Waterproof level | Indoor IP43/Outdoor IP65 | |
| Refresh Rate | 3840Hz | |
| Life Span | ≧100000hours | |
Product Highlights
Corner Protection For LED Panel
Four corner protectors help protect the LED cabinet during transportation and installation.

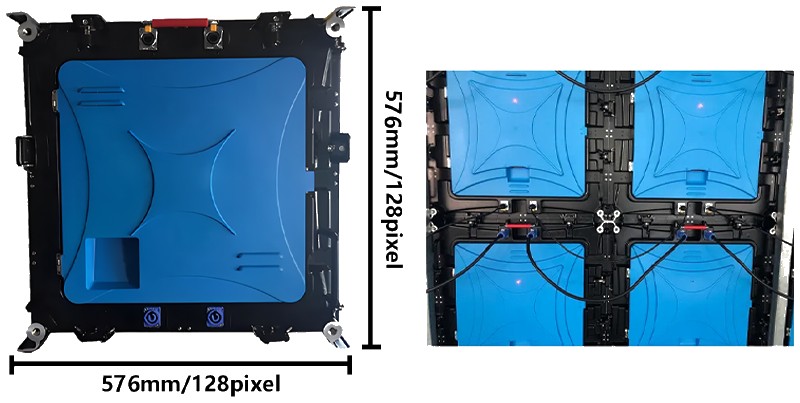

LED Cabinet Size
576*576mm cabinets can be combined in different configurations to meet assembly requirements.

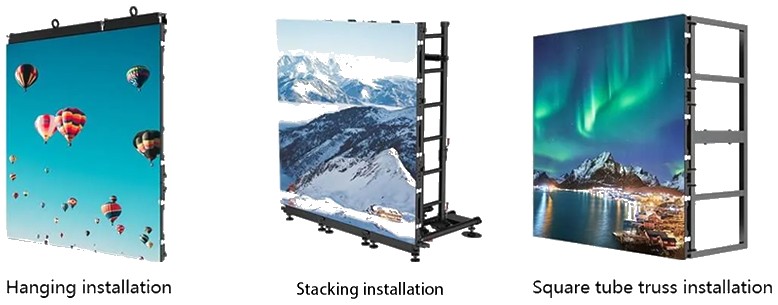

Multiple lnstallation Methods
Hanging and stacking installation options suit different site requirements. Reserved holes support nylon ties for installation on square-tube trusses.
