Rental-J Series
Rental-J Series uses a lightweight die-casting aluminum cabinet with excellent heat dissipation. Curved, 90° corner and cube configurations support wall-mounted, hanging, ceiling or floor installation for events, exhibitions, concerts and commercial venues.
Key Features
- Climbing support design
- Concave or convex curved shape, plus 90° corner options
- Front/rear service for flexible maintenance
- Lightweight, thin cabinet with no light leakage
- Wide 160°/160° viewing angle
- Wall, hanging, ceiling and floor installation options
- ≥3840Hz refresh rate for clear motion
Technical Specifications
| Model | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 | 4.81 |
|---|---|---|---|---|---|---|---|
| Pixel Matrix Per Sqm. | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Brightness (cd/Sqm.) | ≥1000 | ||||||
| Scan | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250×250mm | ||||||

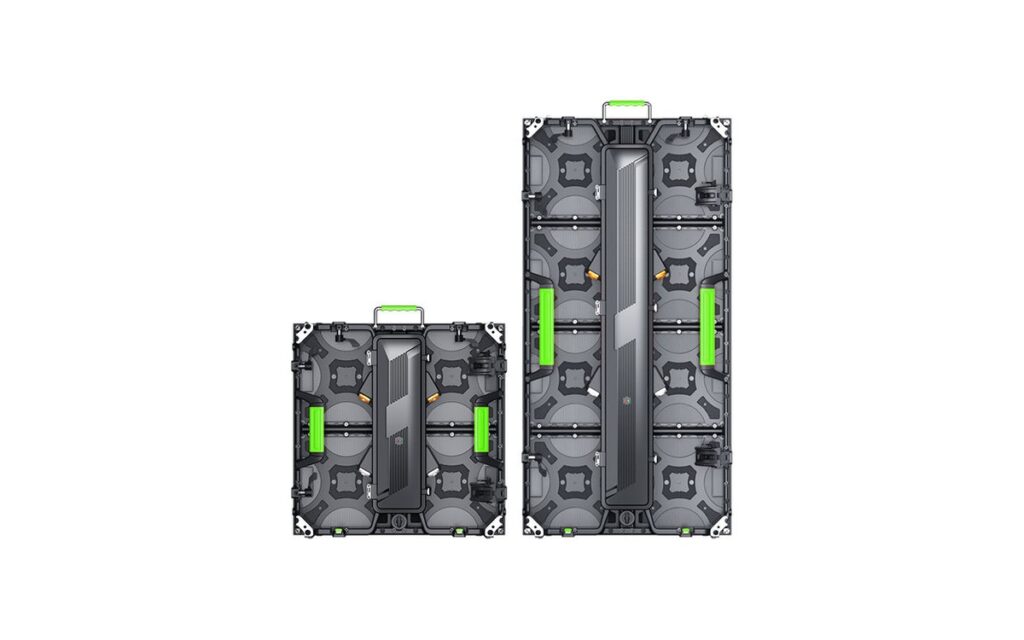

| Cabinet Dimension | 500x500mm,500x1000mm | ||||||
| Cabinet Material | Die Casting Aluminum | ||||||
| Cabinet Weight | 8KG,14KG | ||||||
| Power Con. (W/Sqm.) | Max.800W / Avg.200~300W | ||||||
| Service Access | Front/Rear | ||||||
| Refresh Rate (HZ) | ≥3840 | ||||||
| Grey Scale (bit) | ≥16 | ||||||
| Viewing Angle (H/V) | 160°/160° | ||||||
| IP Rate | IP43 | ||||||
| Input Voltage (AC) | 110V/240V | ||||||
Product Highlights
Excellent Visualization
With a 3840HZ refresh rate, the display is less prone to drag and reduces line phenomena in mobile phone or camera photos. Images appear clear and delicate, with realistic color and high reproduction.

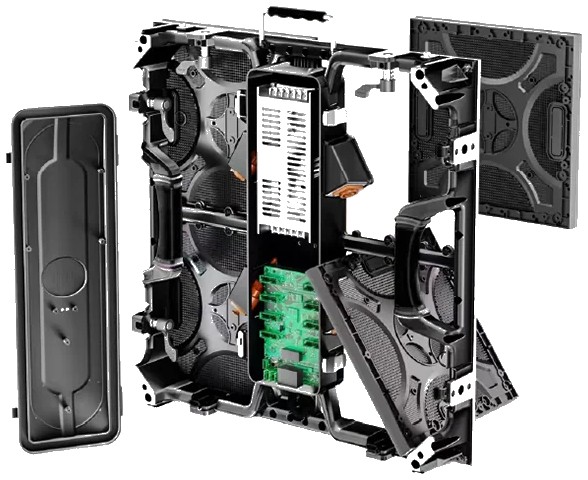

Non-cable-free Connection

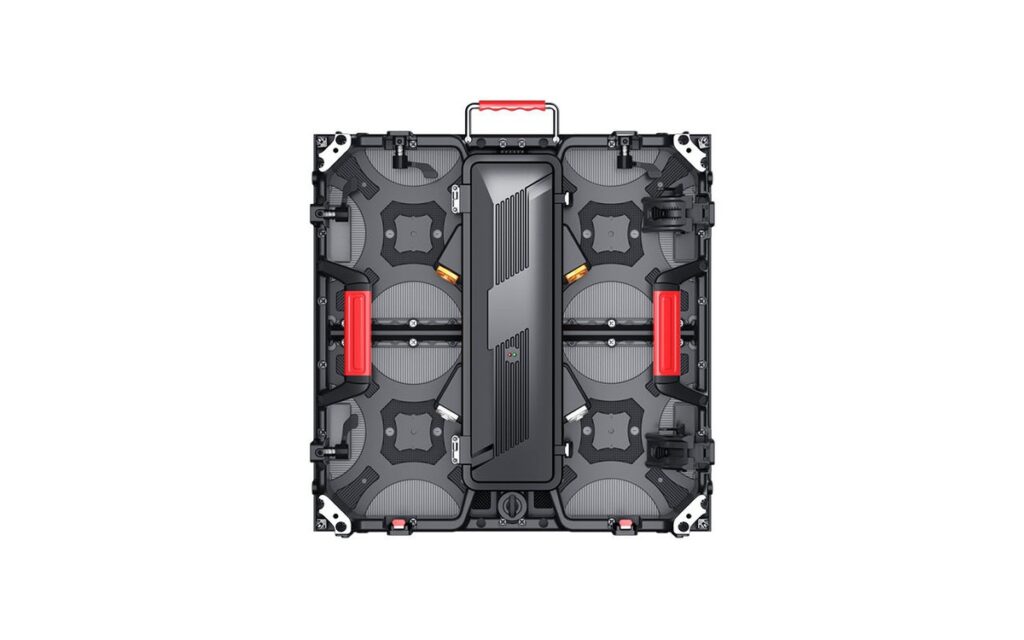

The LED cabinet and power box are integrated, while LED modules use cable connection for cost-effective, easy maintenance. The flip-top power pack has a safety button. Four corner protectors help protect the LED panel during installation, disassembly and transportation.

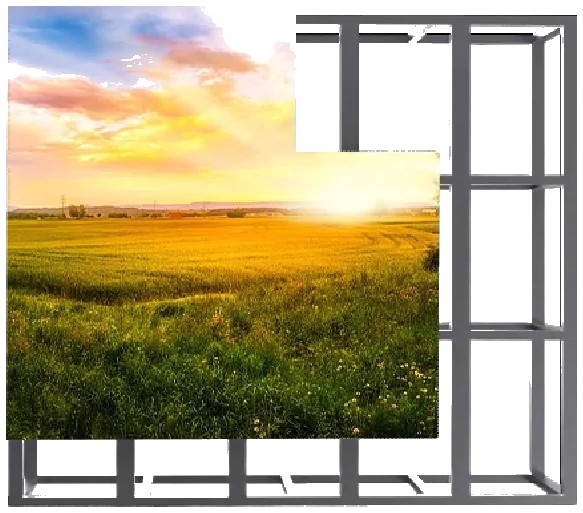

Wall-mounted Installation
Profiled aluminum or steel wall-mounted structures use connecting plates to fix the screen. For hanging installation, the truss structure supports 500x500mm at 8.6KG per piece and 500x1000mm at 11KG per piece. Strong hanging bars help ensure safe installation.

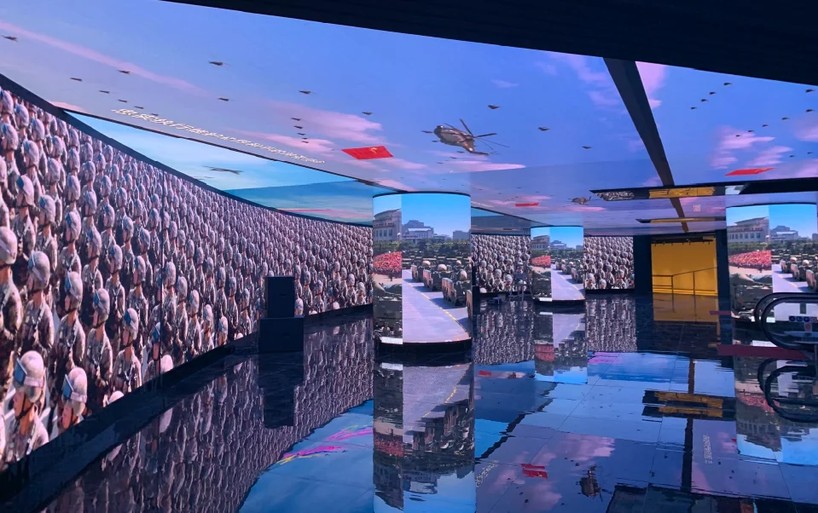

Ceiling Installation
The die-casting aluminum cabinet provides good heat dissipation for ceiling installation and can help improve screen lifespan while delivering an enhanced visual experience. LINEX floor stacking structures use aluminum alloy, screw locks and clamps. The beam works as both a hanging and ground beam for easy installation and locking.

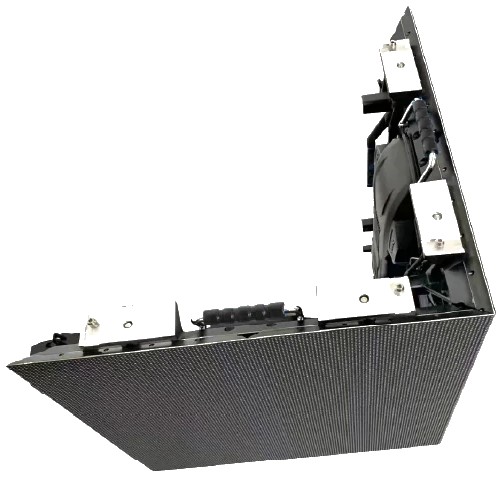

90 Degree Right Angle Design
Left and right sides use beveled cabinets and modules. The curved LED display has a scale lock that adjusts the angle from -15°~+15° for concave or convex screens. 500x500mm and 500x1000mm cabinets can be used together.
Front or Rear Maintenance

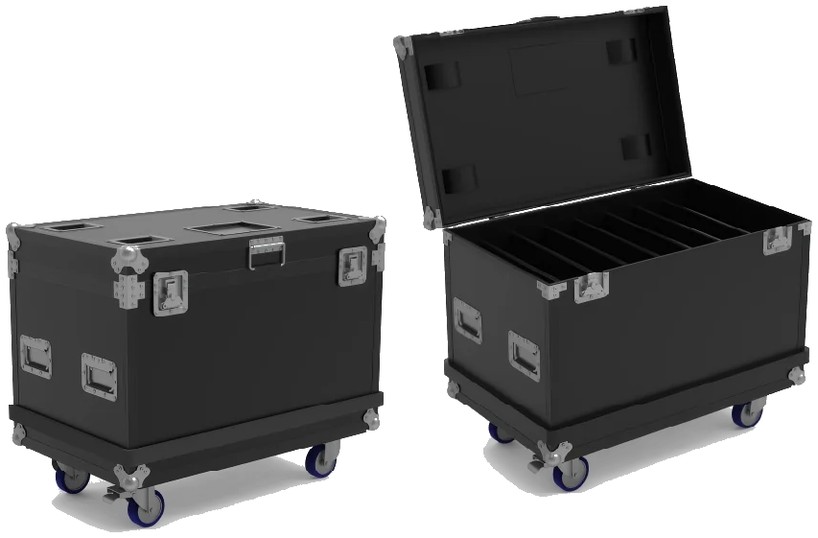

Rear maintenance is standard, with LED modules fixed to the cabinet by screws. Front maintenance is an additional option using LED modules with magnets and a front service tool. Flight case packages include wheels for moving between locations, a composite honeycomb panel exterior, aluminum flight case frame, high density EVA and pearl foam. An ABS plastic flight case is optional.
