Rental-RX Series
Rental-RX Series 500x500mm rental LED displays use flexible PCB modules for smooth curved screens. Cabinets support ±30° concave or convex curves, 90° corners and circular configurations, with fanless operation and pixel-level calibration.
Key Features
- 500x500mm rental LED cabinets
- Flexible PCB modules for curved displays
- ±30° concave or convex curvature

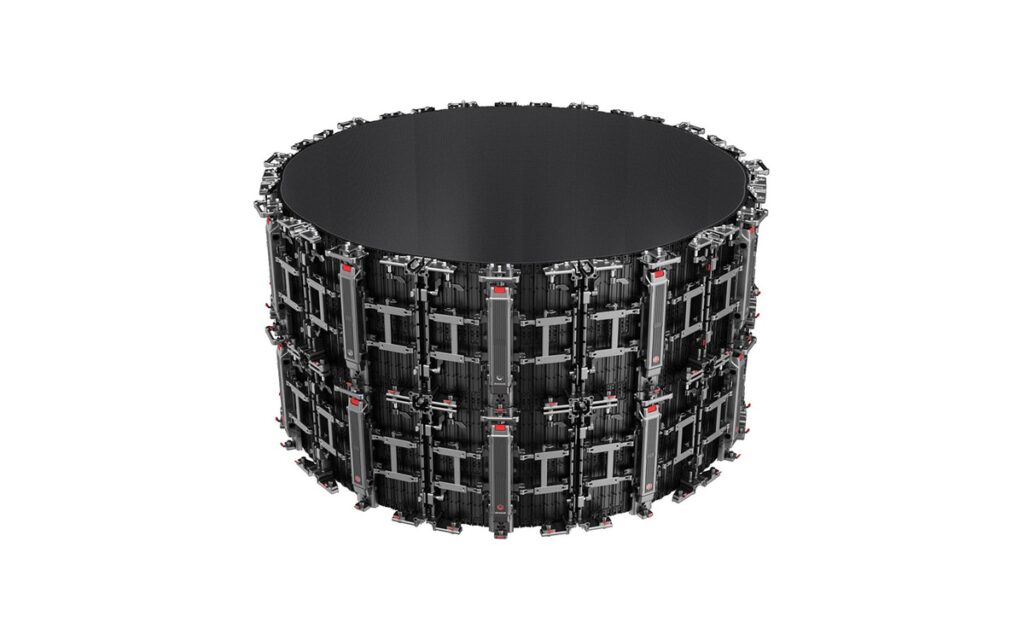

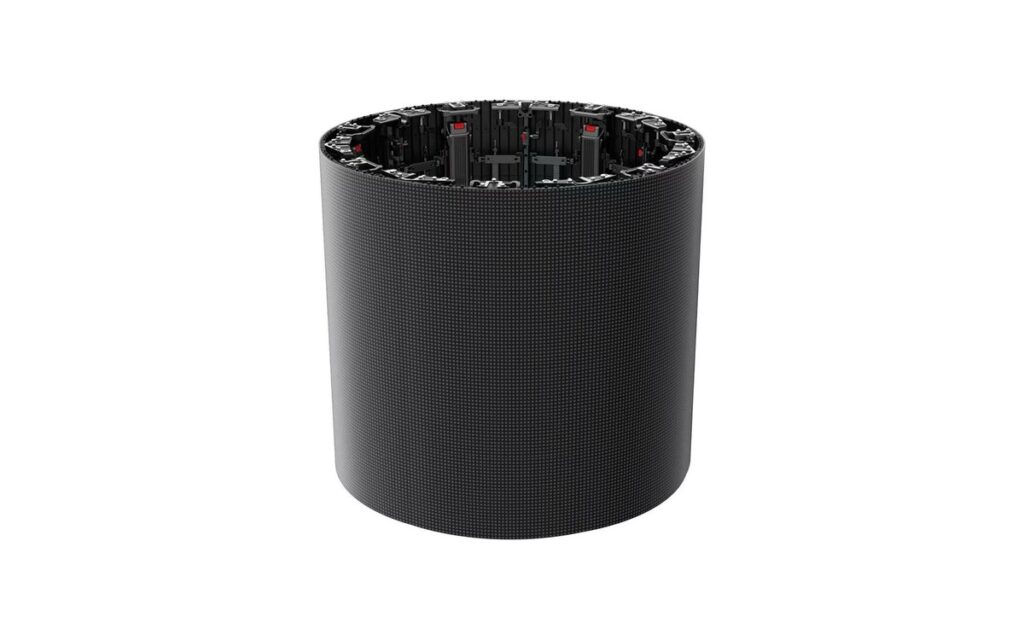

- Supports 90° corners and circular setups
- Fanless design for quiet operation
- Pixel-level calibration for uniform images
Technical Specifications
| Model | P2.604 | P2.976 | P3.91 |
|---|---|---|---|
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm |
| Cabinet size(mm) | 500X500mm | 500X500mm | 500X500mm |
| Module size(mm) | 125mmx500mm | 125mmx500mm | 125mmx500mm |
| Best view distance | ≥2m | ≥2.5m | ≥3m |
| Pixel Density | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ |
| Brightness | Indoor ≥1200cd | ||
| Cabinet Weight | 500x500mm panel 7.5kg | ||
| Waterproof level | IP43 | ||
| Refresh Rate | 3840Hz | ||
| Life Span | ≧100000hours | ||
| Working Voltage | 100-240V, 60Hz | ||
| Humidity-operating | 10%～90% | ||
| Operating temperature | -30ºC~65ºC | ||
Product Highlights

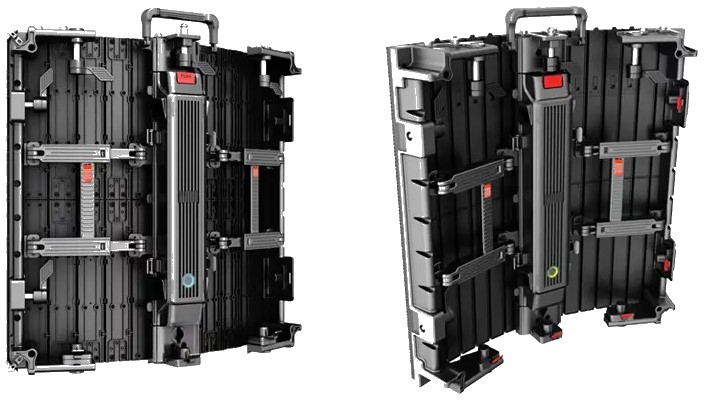

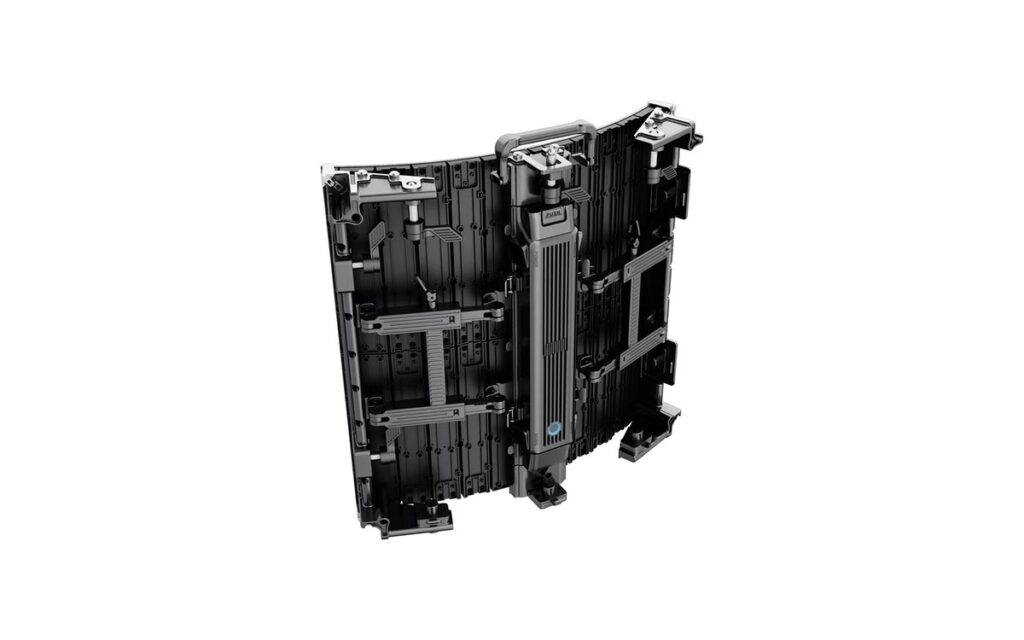

Inward & Outward Contouring
Precision mechanical angle adjustment enables smooth inward and outward curvature, with transitions between flat and curved configurations. The display supports wave-like visual effects and three-dimensional installations for immersive stage designs, architectural feature walls and experiential marketing activations.

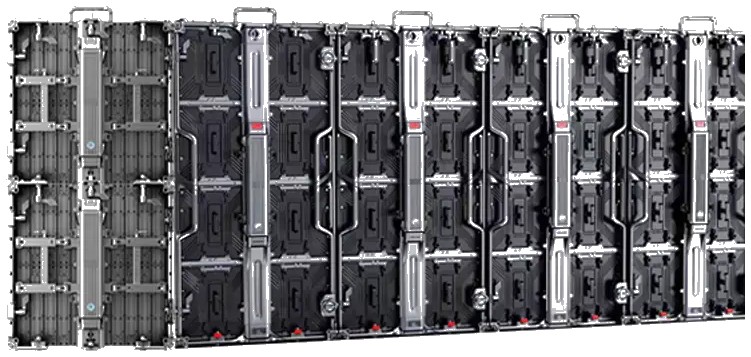

Multiple combinations
Modular cabinet configurations support bespoke layouts, including vertical canvases, horizontal panoramas and fragmented geometric compositions. The system suits concert tours, corporate keynotes and theatrical productions, helping create immersive environments and flexible stage designs.

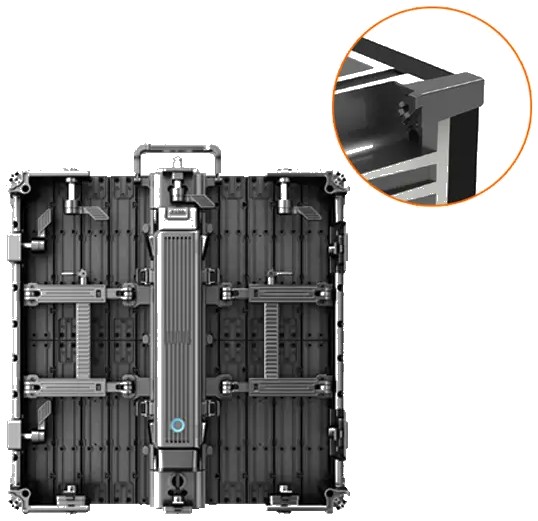

Corner Protection
Protective corners and a reinforced base protect modules during transport, installation and event operation. The rugged construction helps safeguard components against impact, vibration and daily wear, supporting reliability, consistent performance, lower maintenance and fewer replacements for rental companies and production houses.
