Sport-PMR Series

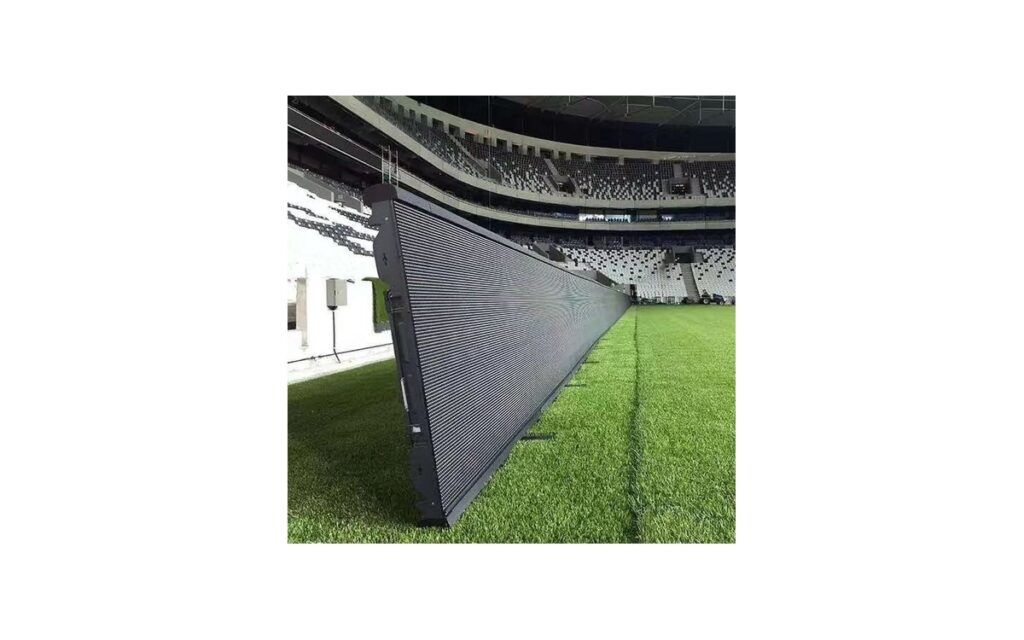

Sport-PMR is a professional perimeter LED display for stadiums and sport events, with a soft top cover, soft mask, energy-saving design, signal and power backup, and quick assembly for rental use.
Key Features
- Soft top cover and rubber mask for athlete protection
- Die casting aluminum cabinet
- Adjustable viewing angle from 30° to 90°
- Refresh rate ≥3840Hz
- Signal and power backup solution
- Quick assembly and disassembly for rental use
Technical Specifications
| Model | 5 | 6.67 | 8 | 10 | 8.33 | 10 |
|---|---|---|---|---|---|---|
| Pixel Matrix Per Sqm. | 40,000 | 22,500 | 15,625 | 10,000 | 14,400 | 10,000 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD2727 | SMD2727 |
| Brightness(nits) | 1200 | 6000 | 6000 | 7000 | 6000 | 7000 |
| Scan | 1/8 | 1//6 | 1/5 | 1/2 | 1/3 | 1/2 |
| Module Dimension | 320x160mm | 400×300mm | ||||
| Cabinet Dimension | 960×960mm /1280×960mm | 1600x900mm | ||||
| Cabinet Material | Die Casting Aluminum | Profile Aluminum | ||||
| Cabinet Weight | 28KG (960x960mm)/35KG(1280x960mm) | 45KG | ||||
| Power Con. (W/Sqm.) | Max.650W / Avg.100~200W | Max.650W / Avg.100~200W | ||||
| Service Access | Rear | Front / Rear | ||||
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ||||
| Grey Scale (bit) | 16bit | 16bit | ||||
| Contrast Ratio | 5000:1 | 5000:1 | ||||
| Viewing Angle (H/V) | 140°/140° | 140°/140° | ||||
| IP Rate | IP43 | IP65 | IP65 | IP65 | IP65 | |
| Operation Temperature | -20℃~+60℃ | -20℃~+60℃ | ||||
| Input Voltage (AC) | AC110/240V,50/60Hz | AC110/240V,50/60Hz | ||||
Product Highlights

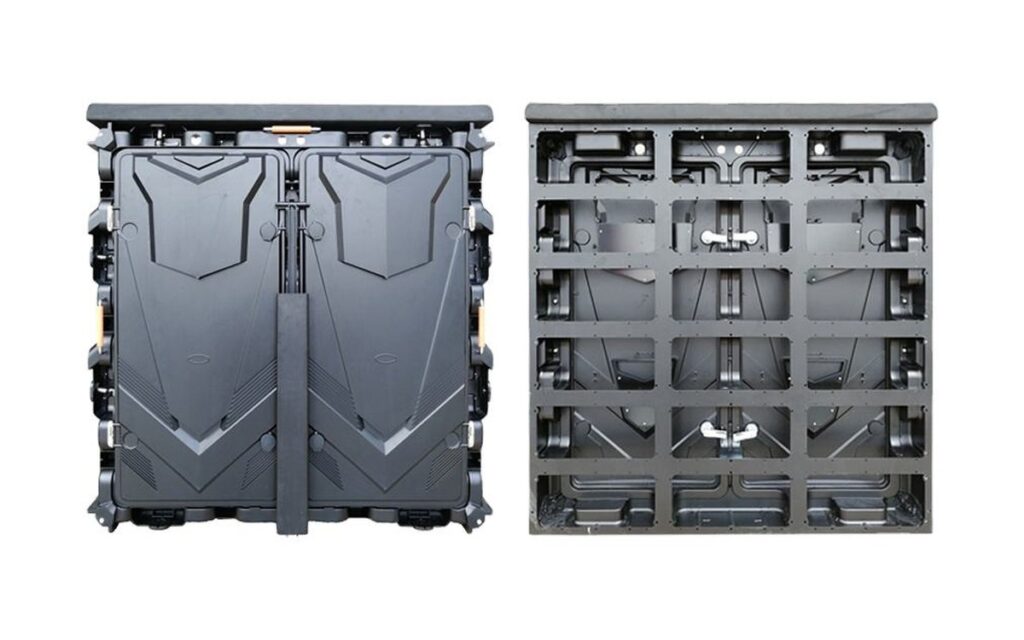

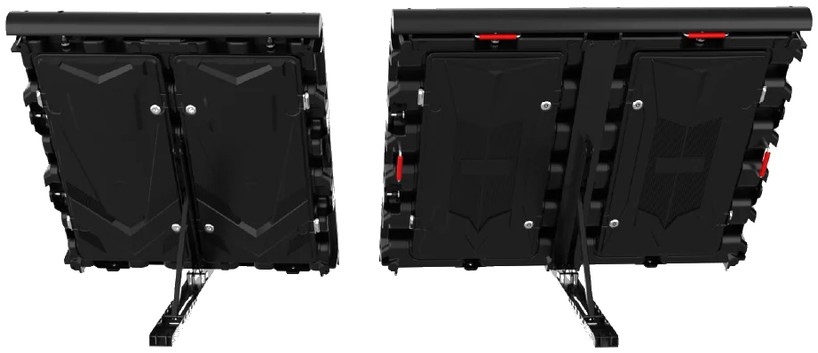

Various Size Optional
Cabinet sizes include 960x960mm, 1280x960mm, 1600x900mm, 1200x900mm and other customized sizes, with die casting aluminum material. Each LED panel has a soft top cover and soft rubber surface mask to protect athletes from injury and protect the screen if hit accidentally by balls or other things.

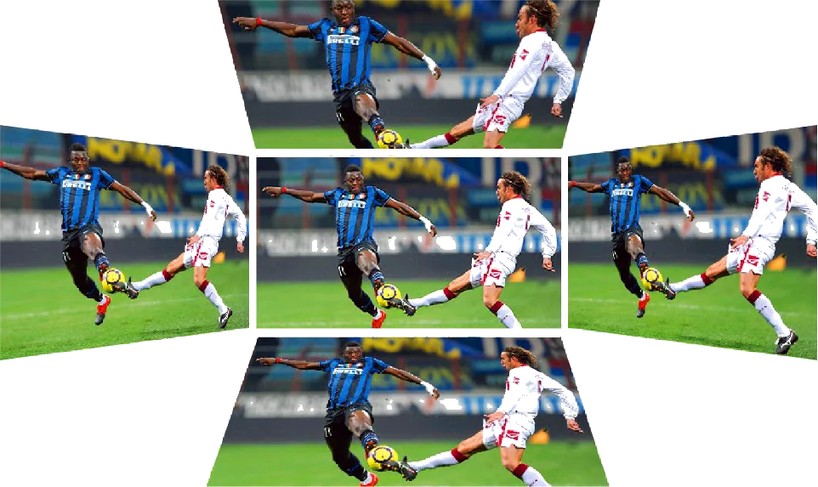

Wider and Brighter

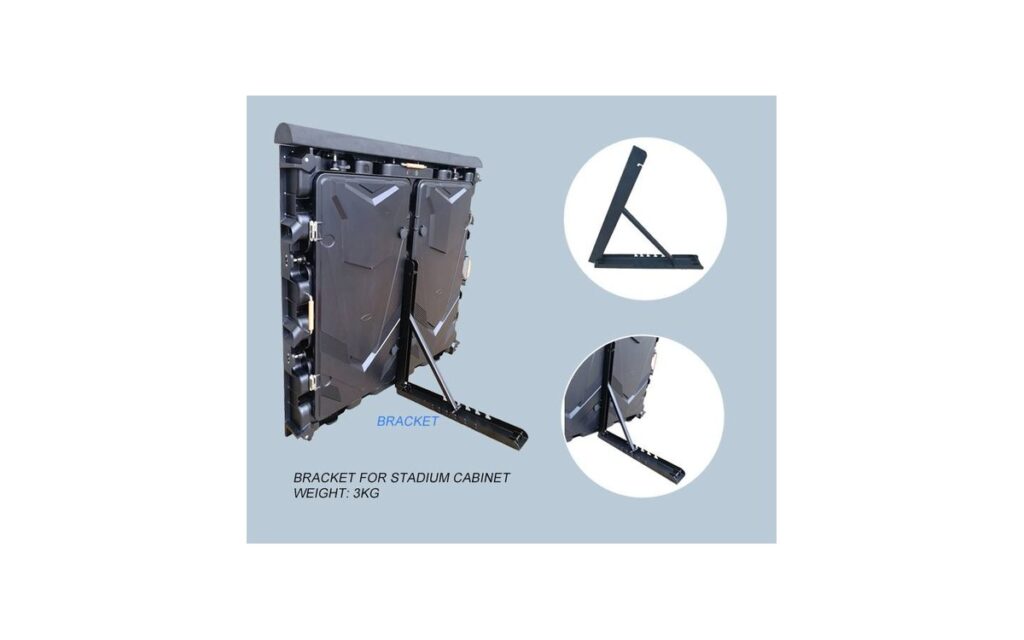

The stated maximum viewing angle is 160°C, giving audiences a better viewing experience. Brightness can reach 7,000nits~10,000nits for performance under strong sunshine. The bracket behind each cabinet adjusts from 30°to 90°degree for the best audience viewing angle.

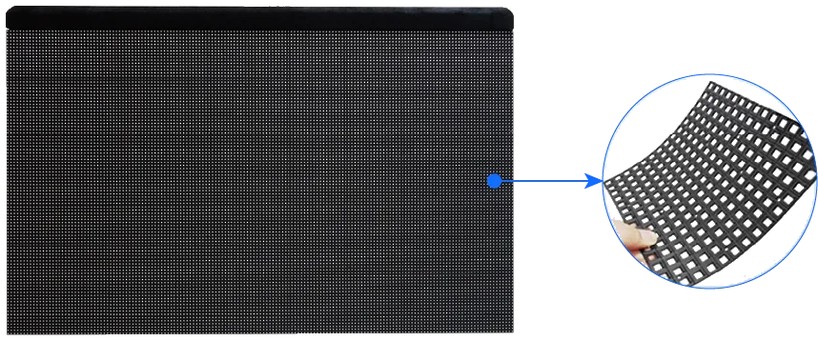

Soft Rubber Mask on Surface
The soft rubber mask protects athletes from accidental impact, enhances display contrast, protects LED lamps, and supports waterproof function. Dual signal and power backup keeps the perimeter LED screen working normally if a power supply, receiver card, or LAN cable is damaged, using the backup receiver card or power supply. This is important for large sport events.
4H Makes Perfect Visual Effect

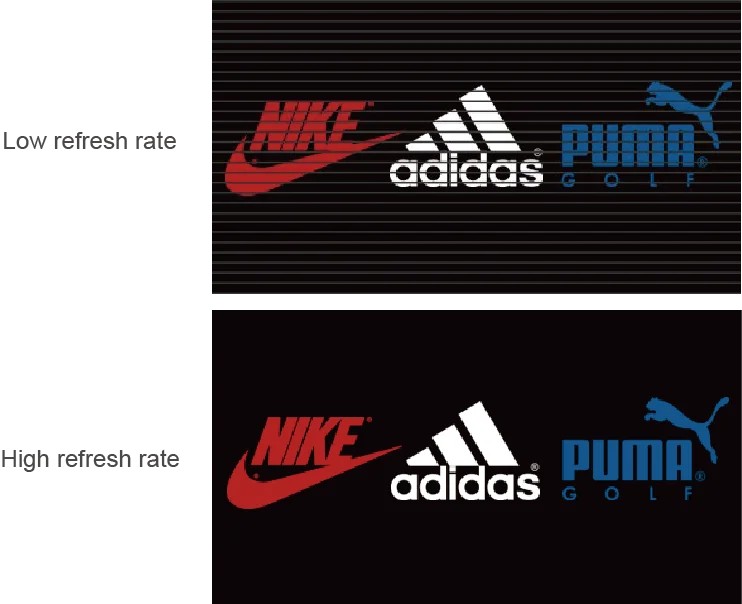

High Brightness: ≥7000nits. High Refresh Rates: ≥3840Hz. High Grey Scale: 14~16 bits. High Contrast: ≥6000:1.
