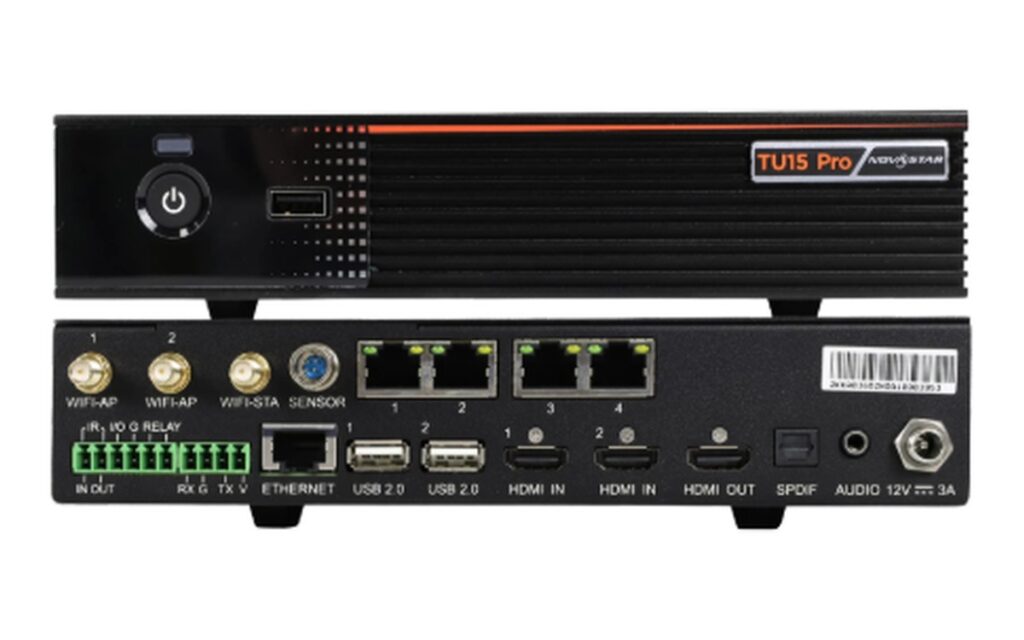

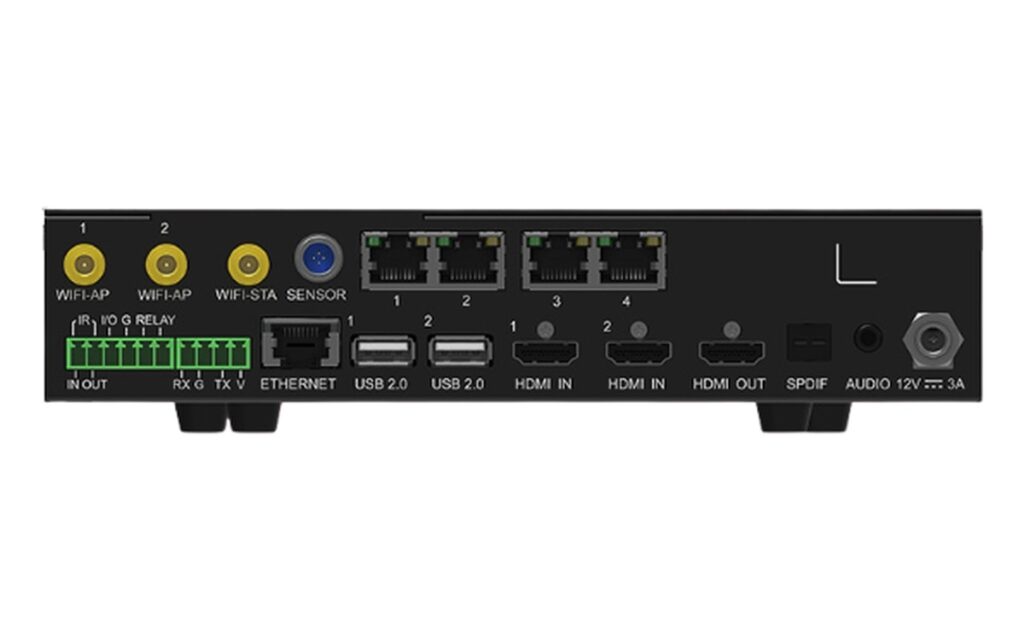

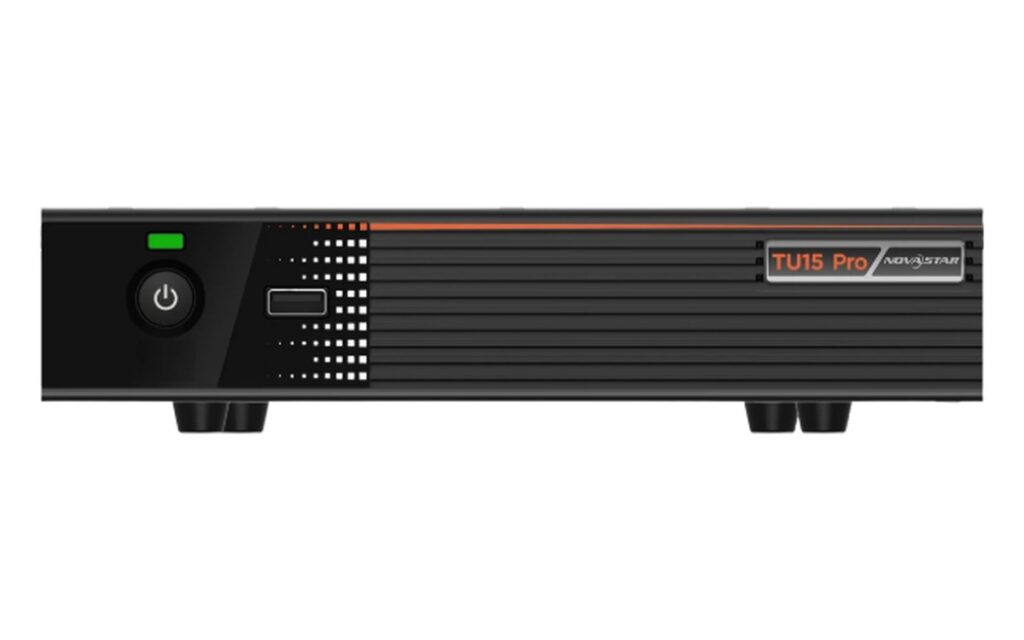

NovaStar TU15 Pro Playback Control Processor
The NovaStar TU15 Pro is an all-in-one Android playback controller for indoor LED displays. It combines Android playback and LED sending functions, with wireless screen mirroring and support for third-party apps.
Key Features
- All-in-one Android playback controller for indoor LED displays
- Runs third-party apps directly on the device
- Wireless mirroring from Windows, macOS, iOS and Android
- 1080p mirroring up to 60 fps, latency ≤80 ms within 8 m
- Four display modes: Standard, Soft, Theater and Meeting
- 4 Ethernet outputs for TU15 Pro
- Network settings, audio adjustment and maintenance tools
Technical Specifications
| Model | Parameter | Specification |
|---|---|---|
| Electrical Specifications | Input voltage | DC 12V 3A, Negative Outside Positive Inside (power adapter input) |
| Rated power consumption | 21 W | |
| Storage Space | RAM | 4 GB |
| Internal storage | 32 GB | |
| Operating Environment | Temperature | −20°C to +60°C |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | −40°C to +80°C |
| Humidity | 0% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 211.7 mm × 185.0 mm × 50.6 mm |
| Net weight | 1.12 kg | |
| Gross weight | 2.9 kg · Note: It is the total weight of the product, accessories, and packing materials according to the packing specifications. | |
| Packing Information | Dimensions (L×W×H) | 387 mm × 359 mm × 173 mm |
| List | 1x TU15 Pro · 1x Power adapter · 1x Bluetooth voice remote · 1x Ethernet cable · 1x HDMI cable · 3x Antennas · 2x Hanging brackets · 1x Certificate of Approval |
