Sport-PRO Series
Sport-PRO is a thin, light aluminium perimeter LED screen with a 960×960 mm cabinet, IP66 protection, front and rear maintenance, and a soft mask for sports venues.
Key Features
- High-end perimeter LED screen solution
- Aluminum profile cabinet
- Front and rear dual maintenance
- Soft top cover and soft mask
- Easy-adjustable base support
- Ultra-wide viewing angle
- High refresh, high grey scale, stable performance
Technical Specifications
| Model | 6.67 | 8 | 10 |
|---|---|---|---|
| Pixel Matrix Per Sqm | 22,477 | 15,625 | 10,000 |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 |
| Brightness (nits) | 6000 | 6000 | 6000 |
| Scan | 1/6 | 1/5 | 1/4 |
| IP Rate | IP66 | IP66 | IP66 |
| Module Dimension | 480×320mm / 1.57×1.05ft | ||
| Cabinet Dimension | 960x960mm / 3.15×3.15ft | ||
| Cabinet Material | Die Casting Aluminum | ||
| Cabinet Weight | 28KG | ||
| Power Con. (W/sqm.) | Max. 650W Avg.100~200W | ||
| Service Access | Rear & Front | ||
| Refresh Rate (HZ) | ≥3840 | ||
| Grey Scale (bit) | 16 | ||
| Contrast Ratio | 8000:01:00 | ||
| Viewing Angle (H / V) | 140° / 140° | ||
| Operation Temperature | ﹣20℃ ~ +60℃ | ||
| Input Voltage (AC) | AC110/240V, 50/60Hz |
Product Highlights
Perfect Visual Effect
Using first-line brand NationStar lamp beads, the display provides high refresh, high brightness 6000~7000nits, stable performance, a lower damage rate and longer lifetime.
Great Protection Ability

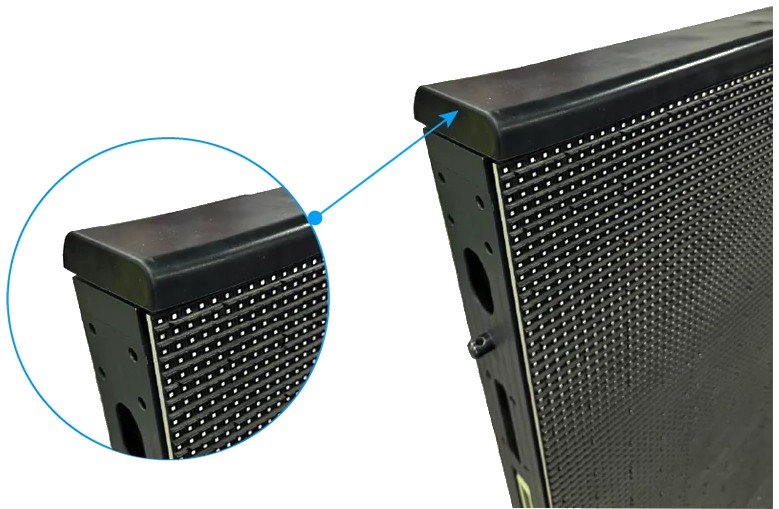

Each LED panel has a soft top cover, and the display surface uses a soft rubber mask to protect athletes from accidental impacts and protect the screen when hit by balls or other objects. The mask enhances contrast for better performance, protects LED lamps, and provides waterproof function.

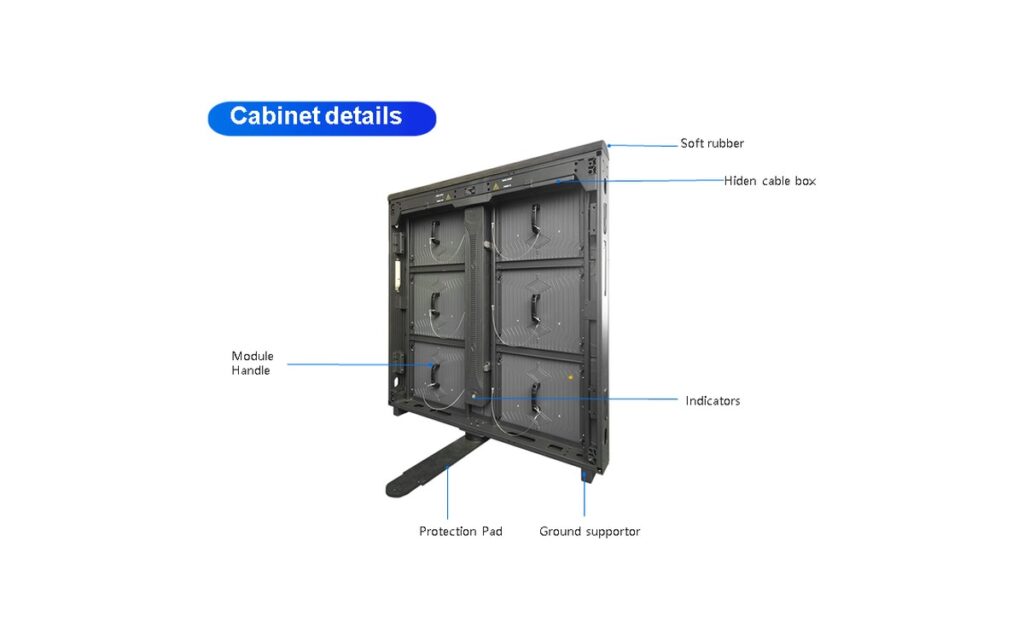

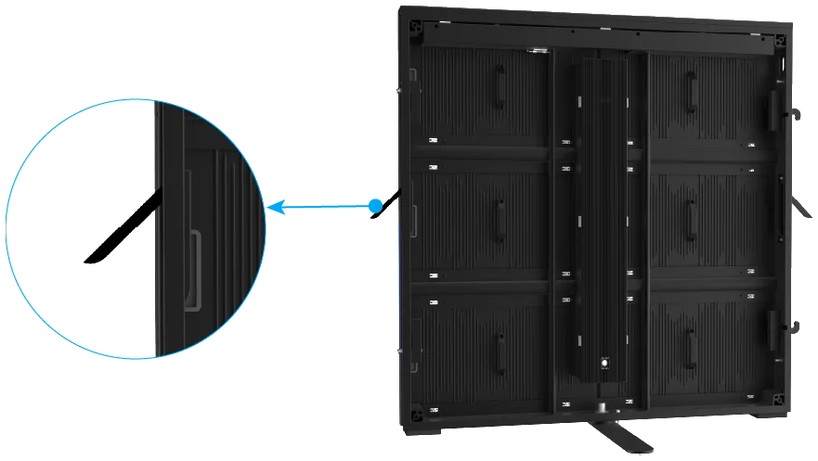

Safety Handle for Easy Moving
The anti-slip safety handle makes installation and movement easy and convenient. The Dual Signal & Power Backup PRO series supports signal and power backup: if a power supply, receiver card or LAN cables are damaged, the backup receiver card or power supply connects and works normally, so the perimeter LED screen keeps working normally without problems, an important feature for some large sport events.
