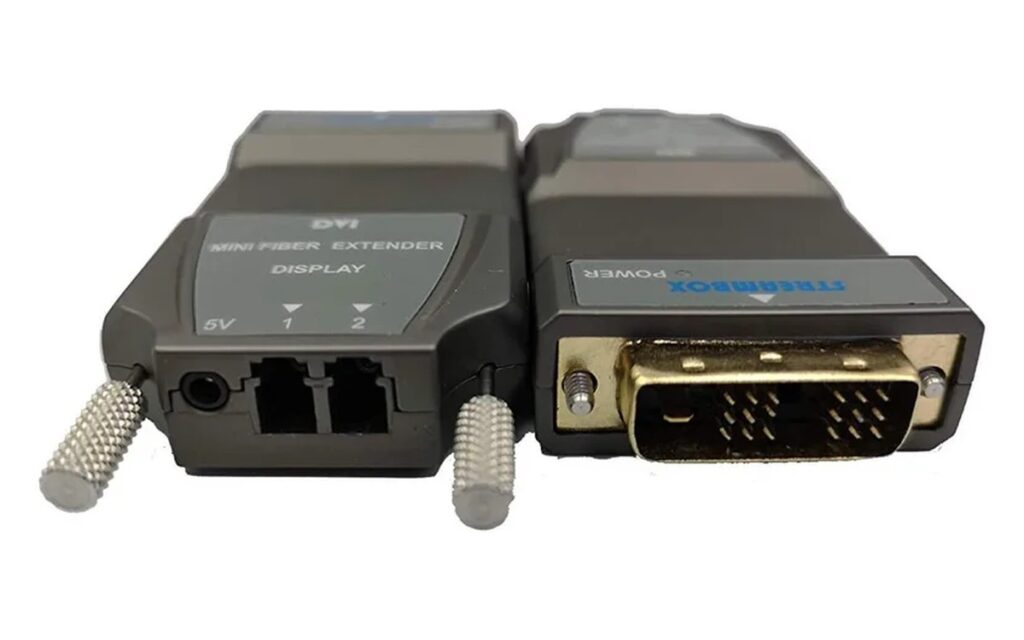

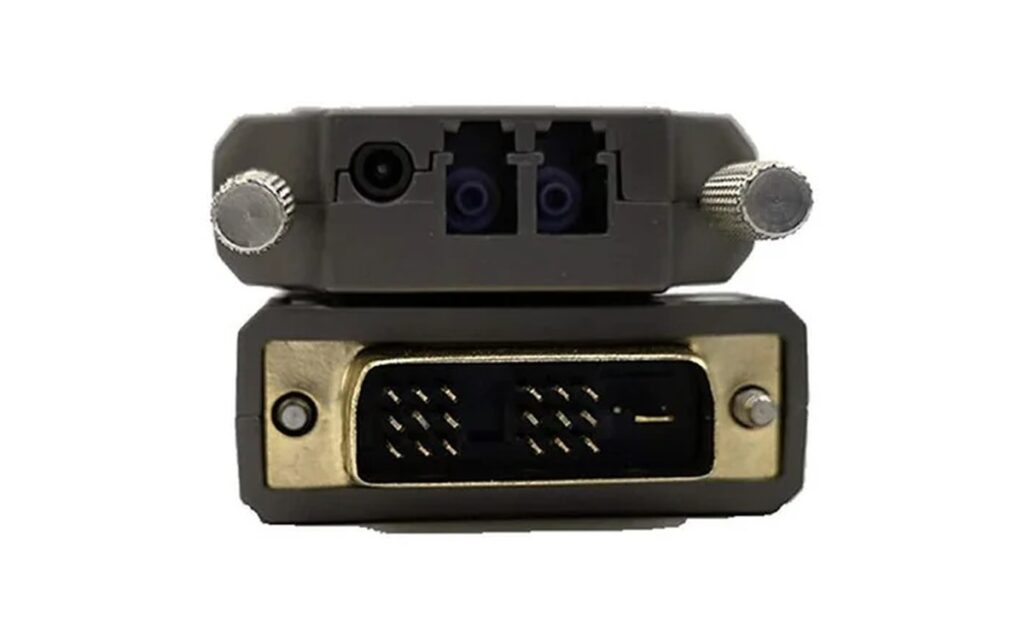

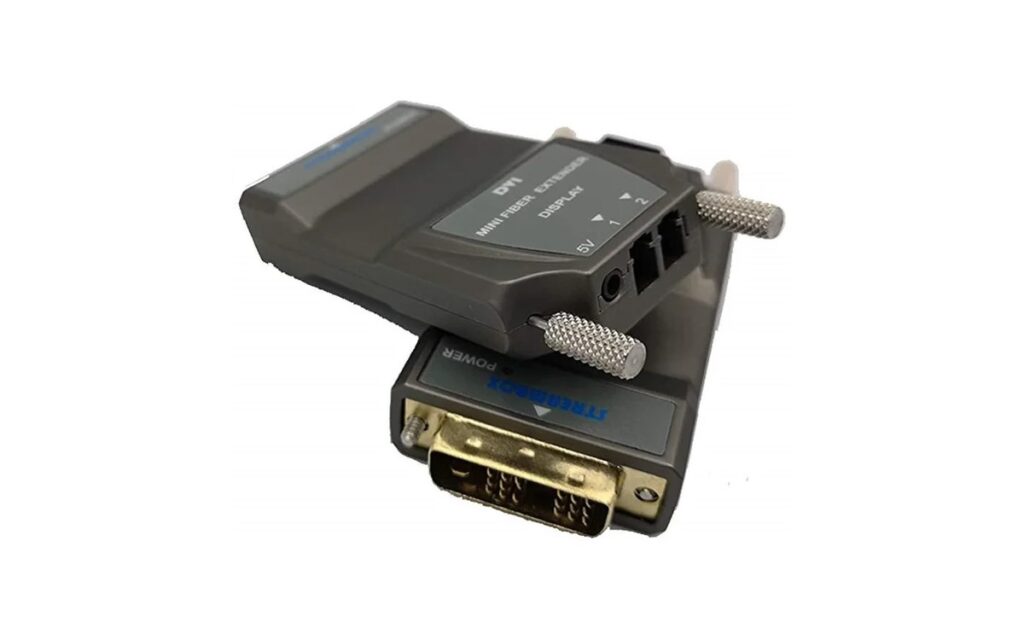

2K@60Hz DVI to Fiber Extender
Compact transmitter and receiver set for extending DVI signals between remote sources and displays. Supports up to 2560 × 816@60Hz and transmission up to 300 m over multi-mode or 2,000 m over single-mode fiber.
Key Features
- Supports single-mode and multi-mode fiber
- Transmission up to 300 m over multi-mode fiber
- Transmission up to 2,000 m over single-mode fiber
- Auto EDID learning and status LED
- Built-in audio transmission
- Powered by DVI or external 5V supply
- Low-power design with improved heat dissipation
Technical Specifications
| Model | Parameter | Specification |
|---|---|---|
| Connectors | Transmitter Input | 1 × DVI |
| Transmitter Fiber Port | 2 × LC | |
| Receiver Fiber Port | 2 × LC | |
| Receiver Output | 1 × DVI | |
| Performance | Supported Standard | DVI-I |
| Input Resolution | SMPTE: 480i@60, 576i@60, 720p@50/60, 1080p@50/60 | |
| VESA: 800×600@60, 1024×768@60, 1280×768@60, 1280×1024@60, 1360×768@60, 1400×1050@60, 1440×900@60, 1600×1200@60, 1680×1050@60, 1920×1080@60, 1920×1200@60 | ||
| Output Resolution | Same as supported input resolutions | |
| Transmission | Multi-Mode Fiber | Up to 300 m |
| Single-Mode Fiber | Up to 1,500 m | |
| Power Supply | Input Voltage | DC 5 V, via AC plug pack for each unit |
| Environmental | Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to +85°C | |
| Physical | Net Weight | 50 g |
| Package Weight | 700 g | |
| Net Dimensions | 69 × 40 × 15 mm | |
| Package Dimensions | 250 × 180 × 80 mm |
