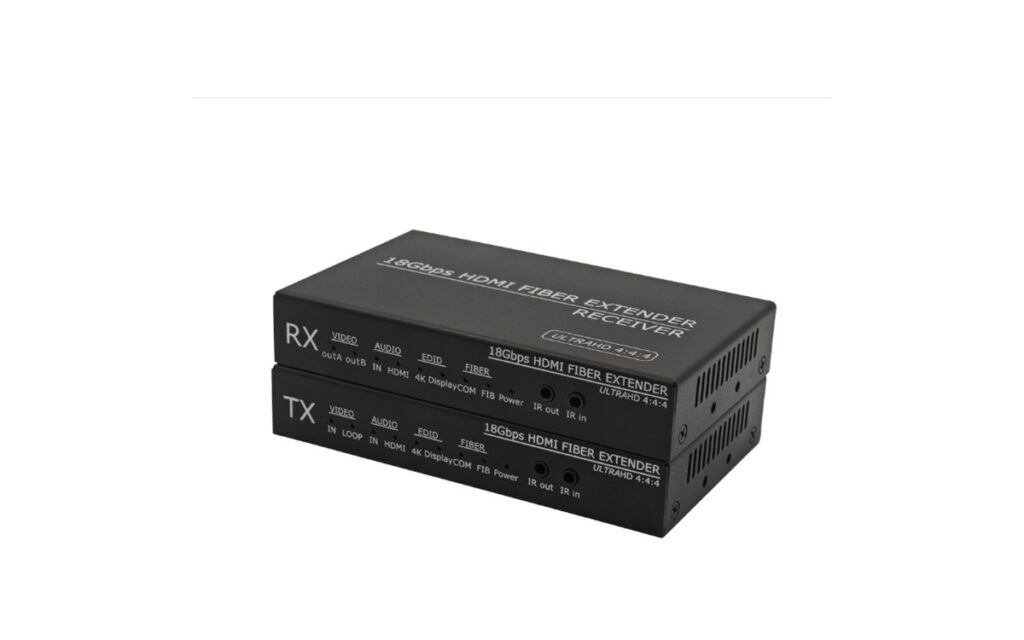

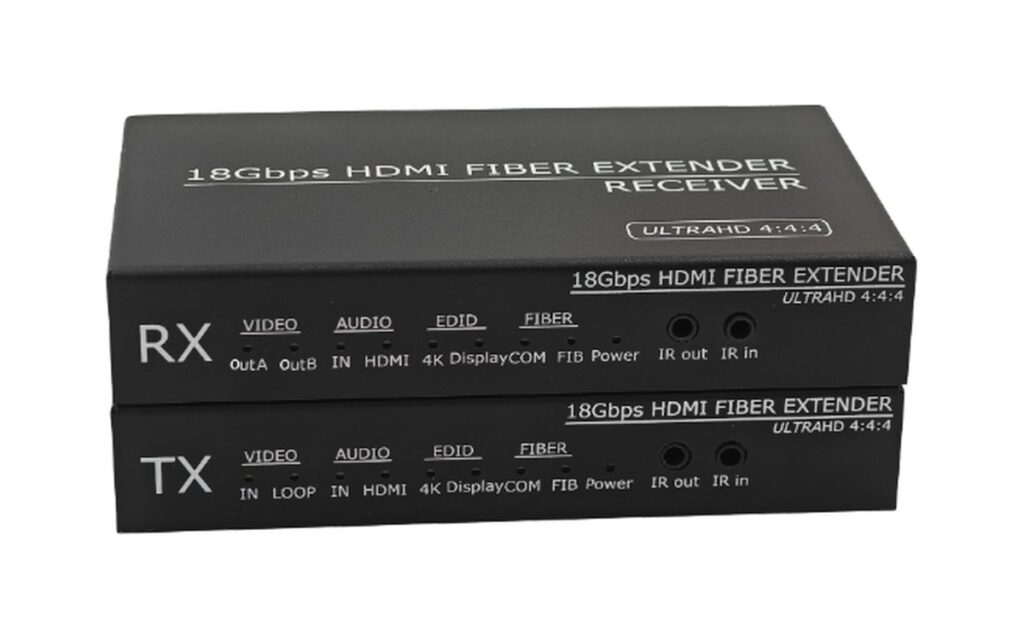

4K60Hz Dual HDMI Output Fiber Extender
The 4K@60Hz HDMI 2.0 fiber extender transmits uncompressed 4K@60Hz 4:4:4 video up to 10 km over single-mode fiber. It provides dual HDMI outputs, audio management and flexible control.
Key Features
- Uncompressed 4K@60Hz 4:4:4 transmission
- Up to 10 km over single-mode fiber
- 18Gbps bandwidth and HDMI 2.0b compliance
- Main and backup HDMI outputs
- Audio embedding and extraction
- Two-way IR, RS-232 and EDID management
- Supports HD audio formats up to LPCM 7.1CH
Technical Specifications
| Model | Specification |
|---|---|

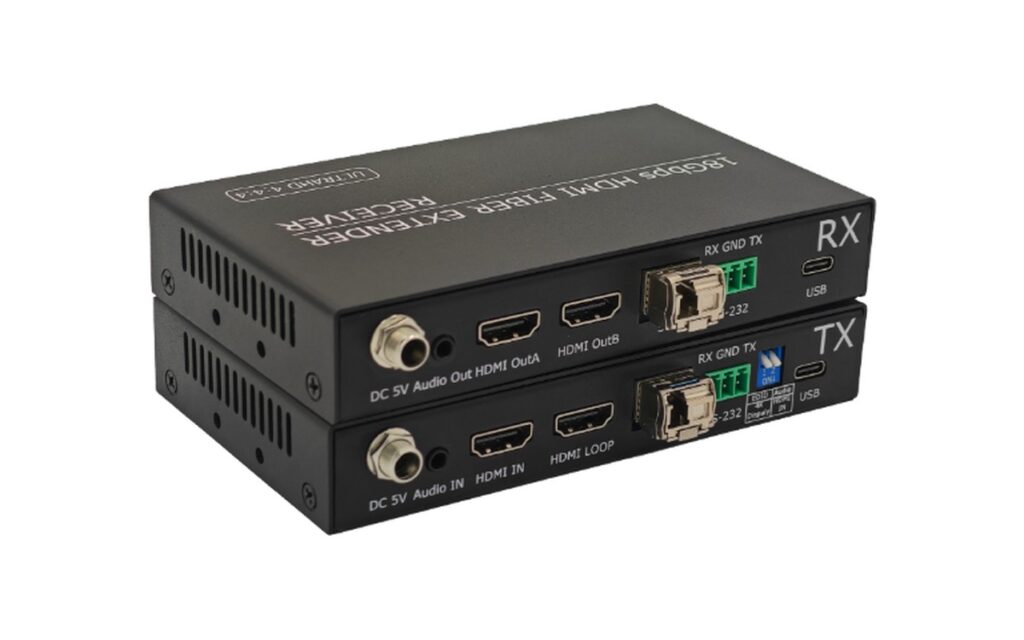

| Transmitter interface – standard | 1 × HDMI2.0 INPUT（4K@60Hz） · 1 × HDMI2.0 LOOPOUTPUT（4K@60Hz） · 1 × Audio INPUT · 1 × SFP · 1 × RS232 · 2 ×IR |
| Receiver interface – standard | 2 × HDMI2.0 OUTPUT（4K@60Hz） · 1 × Audio OUTPUT · 1 × SFP · 1 × RS232 · 2 ×IR |
| Video resolution – HDMI | SMPTE: 720p | 1080p | 2160p · VESA: 800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080 1920x1200 | 2048x1152 | 2560x1600 | 3840x1080 | 3840x2160 | 4096x2160 |
| Refresh | 23.98/24/25/29.97/30/50/59.94/60Hz |
| Supporting standards – HDMI | 1.3、1.4、2.0 |
| DVI | 1.0 |
| Voltage | DC 5V |
| Max power | 10W |
| Temp | -25℃~55℃（Typical value 25℃） |
| Humidity | 20%~90% |
| Weight | 1.0kg （Product weight） · 1.5kg （Transport weight） |
| SIZE | 140mm x 85mm x 25mm （Product size） · 310mm x 220mm x 55mm （Transport dimensions） |
