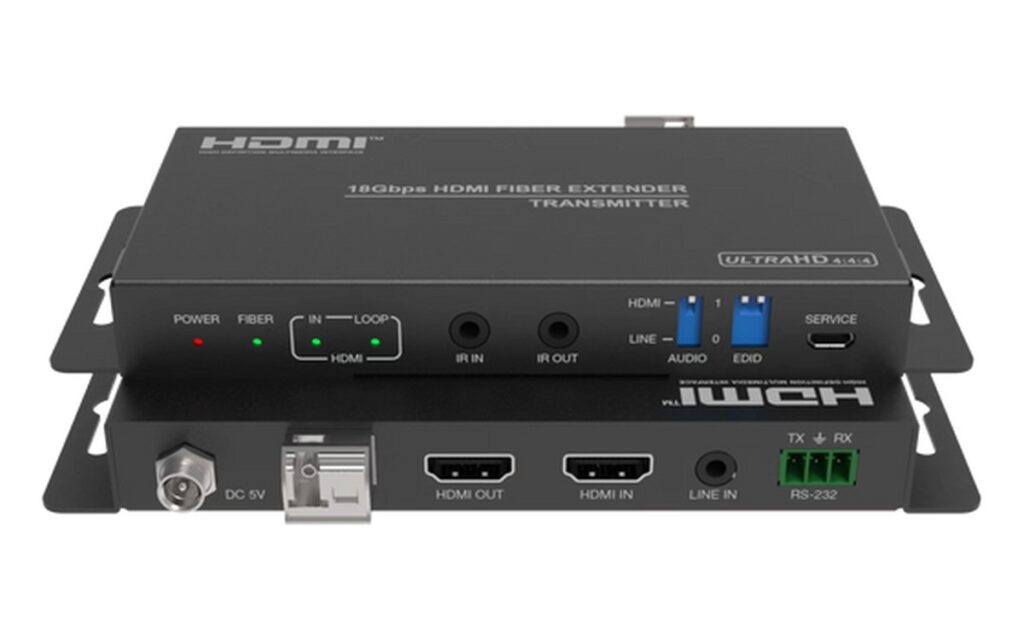

HF4K@60Hz HDMI 2.0 to Fiber Extender
The HF4K@60Hz extender transmits 4K@60Hz 4:4:4 HDMI up to 1,000 m over single-mode or 300 m over multi-mode fiber. It supports HDMI loop output, audio embedding/extraction, EDID, bidirectional IR and RS-232.
Key Features
- 4K@60Hz (18Gbps) RGB 4:4:4 and HDR support
- HDMI 2.0b, HDCP 2.2 and 3D support
- Up to 1,000 m single-mode or 300 m multi-mode fiber
- SFP+ 10 Giga module supports up to 10 kms
- HDMI loop output with audio embedding/extraction
- Bidirectional IR control and RS-232 pass-through
- EDID management by DIP switch
Technical Specifications

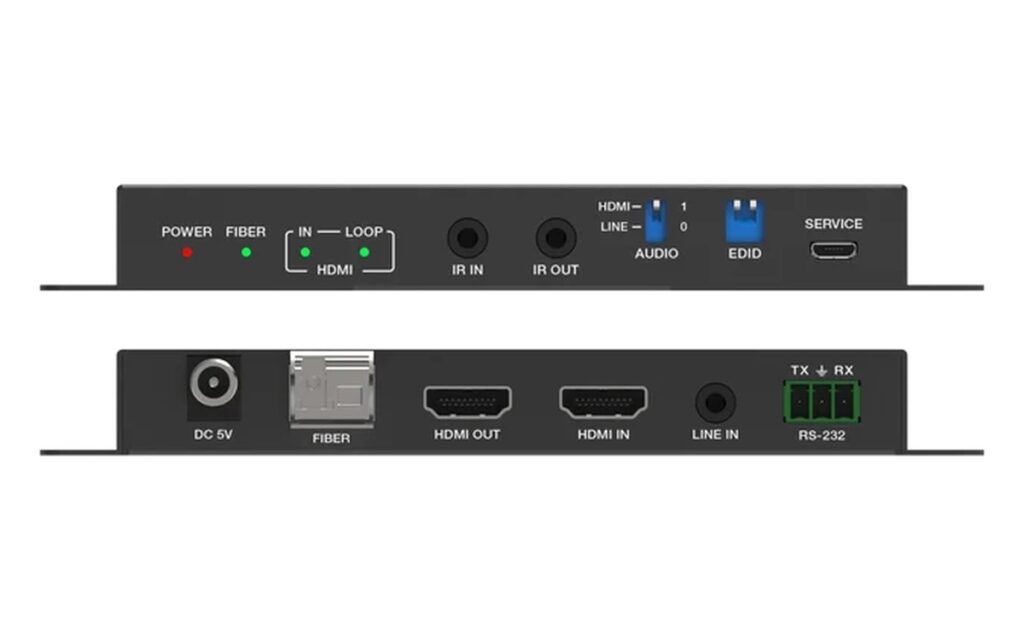

| Model | Description |
|---|---|
| POWER LED | On when the transmitter is powered on. |
| FIBER LED | On when a normal optical fiber link is established between transmitter and receiver. |
| HDMI LED – IN | On when an HDMI signal is detected at the HDMI IN port. |
| HDMI LED – LOOP | On when the transmitter’s HDMI OUT port outputs a signal to a display device. |
| IR IN | Connects to an IR receiver cable; sends IR signals to the receiver’s IR OUT port. |
| IR OUT | Connects to an IR blaster cable; receives IR signals from the receiver’s IR IN port. |
| AUDIO Switch | Selects HDMI IN or LINE IN as the audio source. Supports standalone audio transmission without video input. |
| EDID DIP | Sets the EDID mode; see settings below. |
| SERVICE Port | Firmware update port. |
| DC 5V | DC 5V / 1A power input. |
| FIBER | Connects the transmitter optical module for fiber signal transmission to the receiver. |
| HDMI OUT | HDMI loop output for a TV, projector or other HDMI display. |
| HDMI IN | HDMI input for a PC or other HDMI source device. |
| LINE IN | Analog audio input for an MP3 player or other audio source. |
| RS-232 | RS-232 pass-through port between transmitter and receiver. |
| EDID DIP Setting | Mode |
| 11 | Copy RX HDMI OUT |
| 10 | Copy TX HDMI LOOP OUT |
| 01 | 4K60_2CH |
| 00 | 1080P_2CH |
