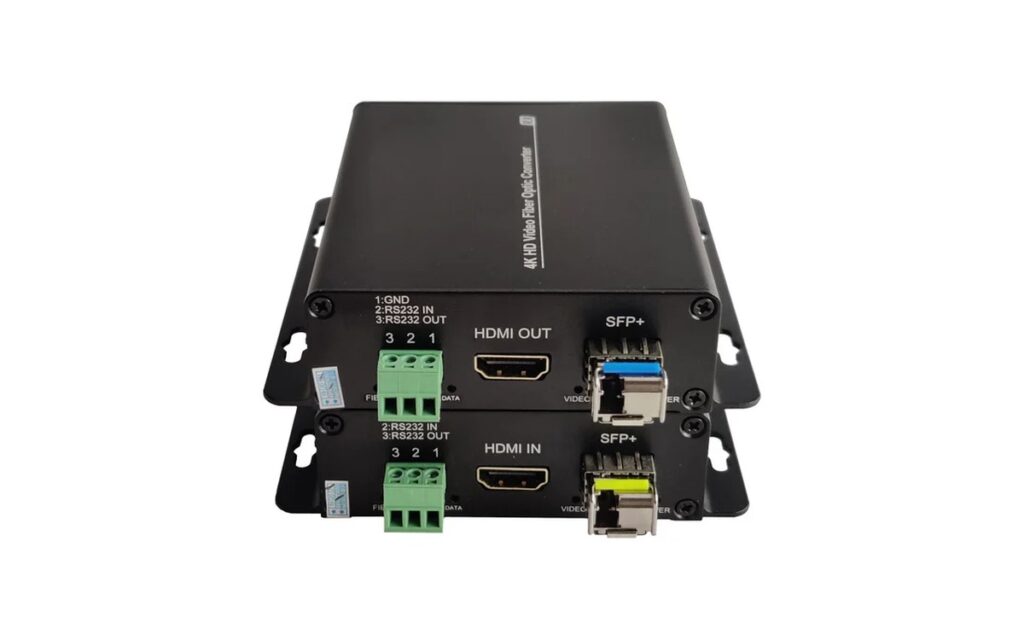

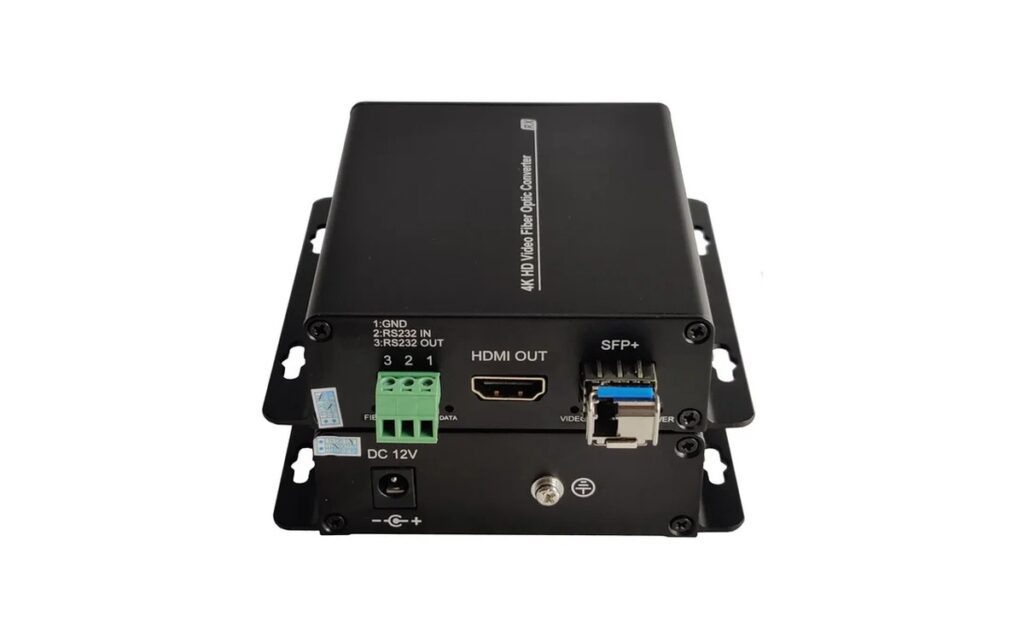

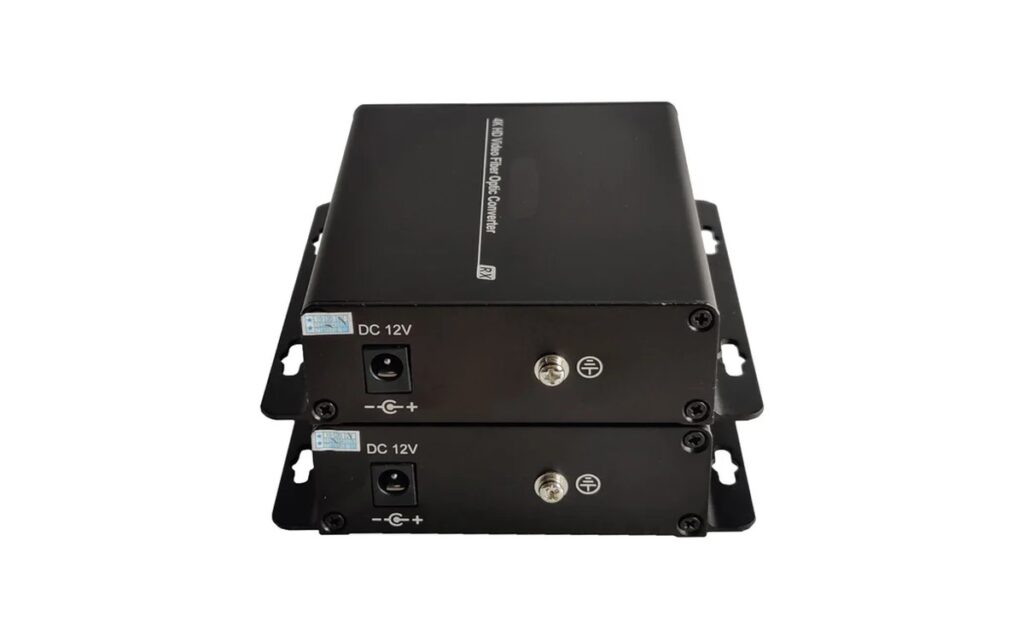

4K@30Hz HDMI to Fiber Extender
The 4K@30Hz HDMI to Fiber Extender transmits HDMI 1.4 video and bidirectional RS232/RS485 data over single-mode fiber up to 10 km. It provides no-compression, zero-delay extension for industrial AV applications.
Key Features
- 4K@30Hz HDMI 1.4 video transmission
- Up to 10 km over single-mode fiber
- Bidirectional RS232/RS485 data transmission
- RGB and YUV 4:4:4 / 4:2:2 / 4:2:0 support
- Auto-learning EDID with power-off memory
- Plug-and-play, hot-swappable operation
- Optional 2U / 16-slot centralized chassis
Technical Specifications
| Model | Parameter | Specification |
|---|---|---|
| Fiber | Wavelength | 1310–1550 nm |
| Transmission Rate | 10 Gbps | |
| Transmitter Power | > -3 dB | |
| Receiver Sensitivity | > -10 dB | |
| Optical Module | Single-fiber, single-mode, up to 10 km | |
| Fiber Connector | LC | |
| Video | HDMI Standard | HDMI 1.4 |
| Video Bandwidth | 10 Gbps | |
| Supported Resolution | 480i to 1080p@50/60Hz; 4K × 2K@24/30Hz | |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 | |
| Maximum Pixel Clock | 297 MHz | |
| HDMI Cable Length | ≤10 m | |
| HDMI Interface | HDMI Female | |
| Data | Serial Standards | EIA RS-232 and RS-485 |
| Data Interface | 3.81 mm Industrial Terminal Block | |
| Baud Rate | 50 bps–115,200 bps; non-standard rates supported | |
| RS-232 | 3-wire (RXD, TXD, GND), full-duplex, point-to-point | |
| RS-485 | 2-wire (A, B), half-duplex, point-to-multipoint master-slave | |
| RS-485 | Pull-up / Pull-down Resistance | 4.7 kΩ / 4.7 kΩ |
| Terminal Resistance | N/A / 120 Ω / 120 kΩ | |
| Power | Power Supply | DC 12 V |
| Power Consumption | < 2 W | |
| Overcurrent Protection | Yes | |
| Short-Circuit Protection | Yes | |
| Mechanical | Material | Aluminum Alloy |
| Product Dimensions | 104 × 103 × 28 mm | |
| Net Weight | 0.4 kg/pair | |
| Installation | Desktop Type | |
| Package | Package Material | Kraft Paper |
| Package Weight | 0.7 kg/unit | |
| Package Dimensions | 275 × 220 × 55 mm | |
| Environmental | Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C | |
| Relative Humidity | 5%–95% RH, non-condensing | |
| Reliability | MTBF | >100,000 hours |
