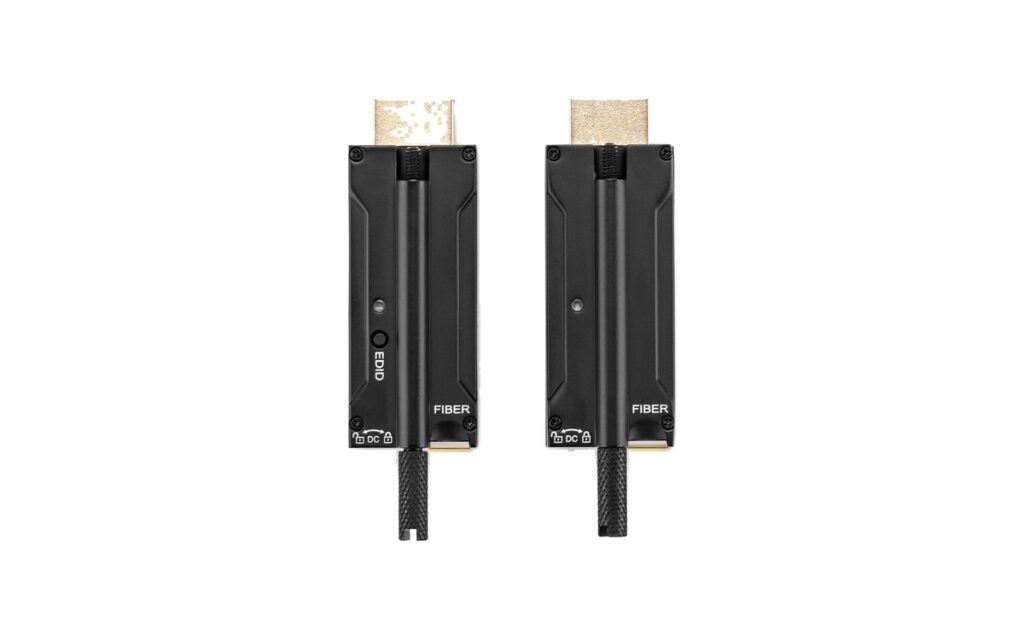

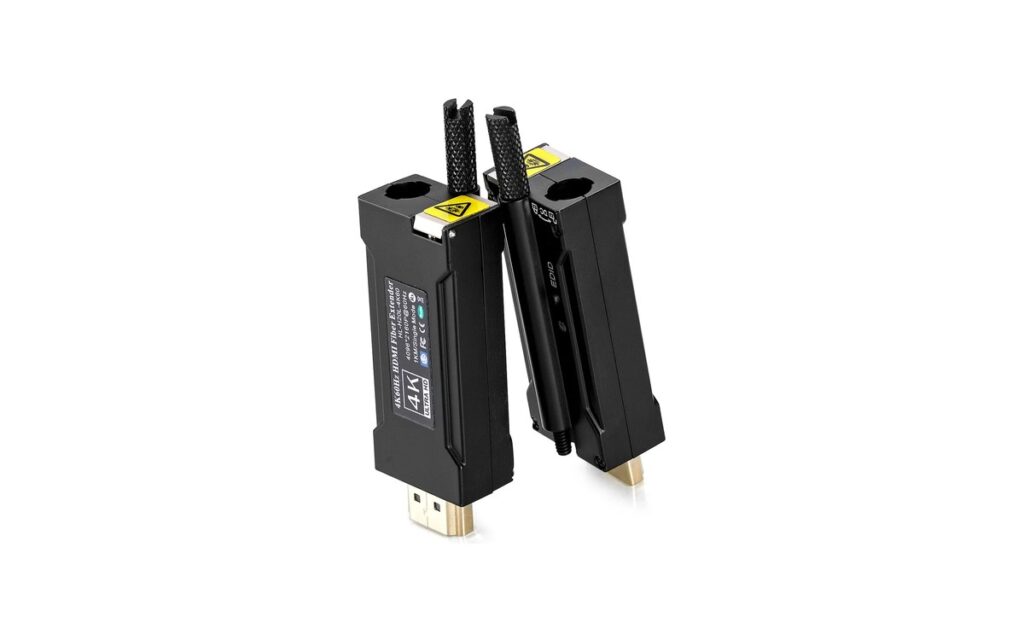

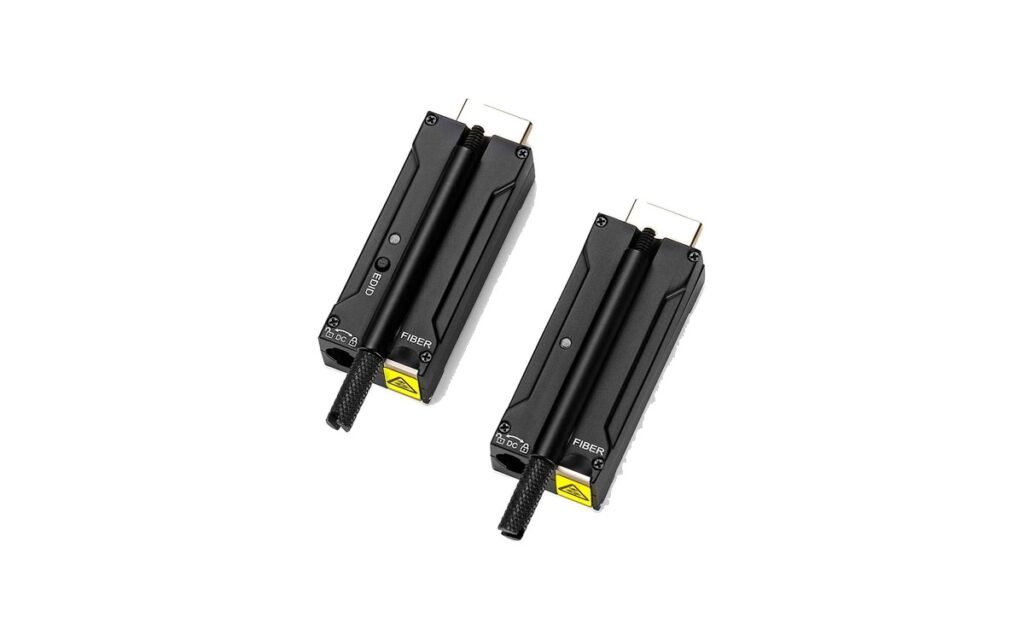

Mini HF4K@60Hz HDMI 2.0 to Fiber Extender
Mini HF4K@60Hz HDMI 2.0 fiber extender transmits 4K×2K@60Hz HDMI signals up to 10 km over a single optical fiber with zero-delay, uncompressed transmission. It supports HDCP 1.4, automatic EDID recognition and power-off EDID memory.
Key Features
- 4K×2K@60Hz HDMI over single optical fiber
- Up to 10 km transmission distance
- Zero-delay, uncompressed transmission
- Automatic EDID recognition and power-off memory
- Supports single mode and multi mode
- Below 1.5 W power consumption
- Compact 60*22*17mm design
Technical Specifications
| Model | Specification |
|---|---|
| Wavelength | 1310-1550nm（Single fiber） |
| Rate | 10Gbps |
| Tx power | ＞-3db |
| Rx sensitivity | ＞-10db |
| Transmission distance | 10KM |
| Fiber port | LC |
| Version | HDMI2.0 |
| Bandwidth | 10.2 Gbps |
| Resolution | 4K*2K*60Hz and downward compatibility |
| Color space | 4K60Hz YUV 4:2:04K30Hz RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Pixel clock | 340MHZ |
| Physical interface | HDMIMale |
| Power supply | 5V |
| Power dissipation | ＜1.5W |
| Physical interface | DC 3.5*1.35mm |
| The shell metal | Zine-alloy |
| Dimensions (length * width * height) | 60*22*17mm |
| Net weight of product | 51.7g/piece |
| Way to install | Direct plug-in |
| Color | Black |
| Material | Kraft paper |
| Package size | 210*160*46mm |
| Gross weight | 0.35KG |
| Working temperature | -20℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0-95% (non-condensing） |
| MTBF | ＞100000 hours |
