Rental-K Series
Rental-K Series is a 500x500mm rental LED display with high-strength die-cast aluminum construction and high-definition visuals. It supports indoor and outdoor live shows, festivals, exhibitions, broadcasting and stage events.
Key Features
- High-strength die-cast aluminum construction
- 7.5kg lightweight design
- 80mm cabinet thickness
- IP65 waterproof protection
- Front and rear maintenance
- Optional 90° right-angle installation
- Optional curved installation
Technical Specifications
| Model | P1.56 | P1.953 | P2.5 | P2.604 | P2.976 | P3.91 | P4.81 |
|---|---|---|---|---|---|---|---|
| Pixel pitch | P1.56mm | 1.953mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Cabinet size(mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet resolution(dots) | 320*320/320*640 | 256*256/256*512 | 200*200/200*400 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Best view distance | ≥1.5m | ≥1.5m | ≥2m | ≥2m | ≥2.5m | ≥3m | ≥4m |
| Pixel Density | 409600dots/㎡ | 262144dots/㎡ | 160000dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ | 43264dots/㎡ |
| Brightness | Indoor ≥1000cd, Outdoor ≥4500cd | ||||||
| Cabinet Weight | 500x500mm panel 8.5kg / 500x1000mm panel 13kg | ||||||
| Waterproof level | IP65 | ||||||
| Refresh Rate | 3840-7680Hz | ||||||
| Warranty | 3 Years | ||||||
| Life Span | ≧100000hours | ||||||
| Working Voltage | 100-240V, 60Hz | ||||||
| Humidity-operating | 10%～90% | ||||||
| Operating temperature | -30ºC~65ºC | ||||||
Product Highlights

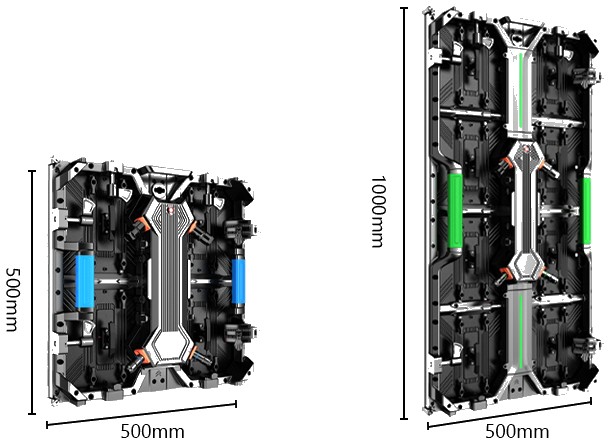

Lightweight and Thin
Portable and stable, the display weighs 7.5kg and is 80mm thick. Its lightweight design simplifies carrying, transport and installation while helping reduce labor costs.

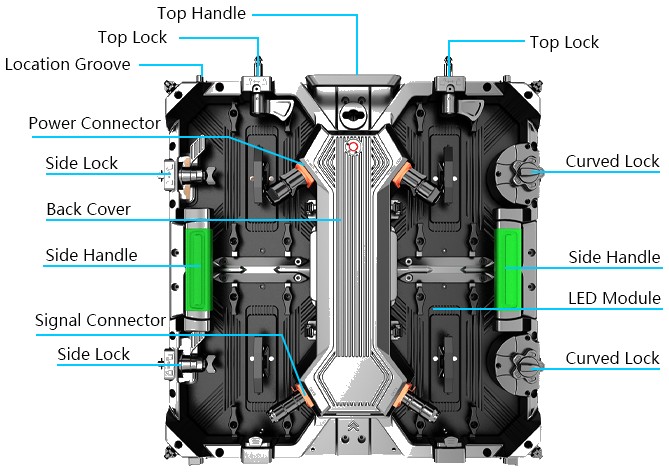

Perfect Structure
LINEX has a domestic top design team and a distinctive design philosophy supported by core technologies. Innovative structural design and avant-garde body lines create an extraordinary experience.

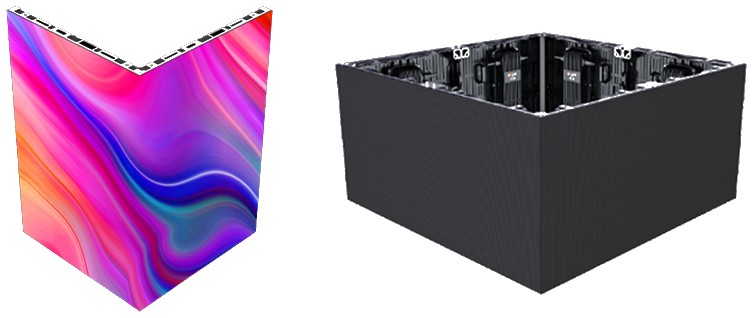

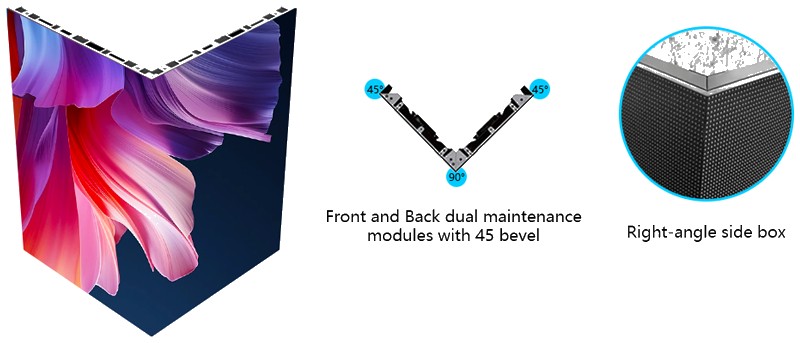

Support Right Angle Installation
Supports 90° right-angle LED display installation for special buildings and applications.
Introduction of cubic LED screen
SMD 3-in-1 encapsulation gives high brightness, high definition and seamless flatness; IP65 gives waterproofing, anti-corrosion, oxidation resistance and long life; 360 degree viewing shows publicity video in all directions; supports all video, graphics, animation, messages and PC online/offline control; custom four-, five-, six-sided shapes and sizes suit advertising media, commercial buildings, malls, stations, bars, exhibition halls and other indoor places.

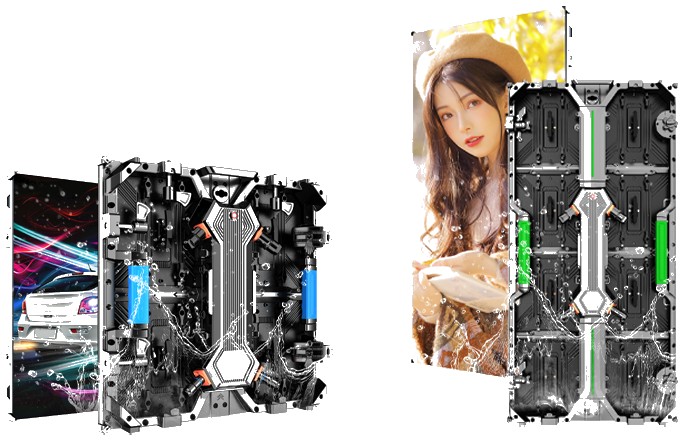

IP65 Waterproof Design
The cabinet has a waterproof design with IP65 protection, making it suitable for various harsh weather conditions.

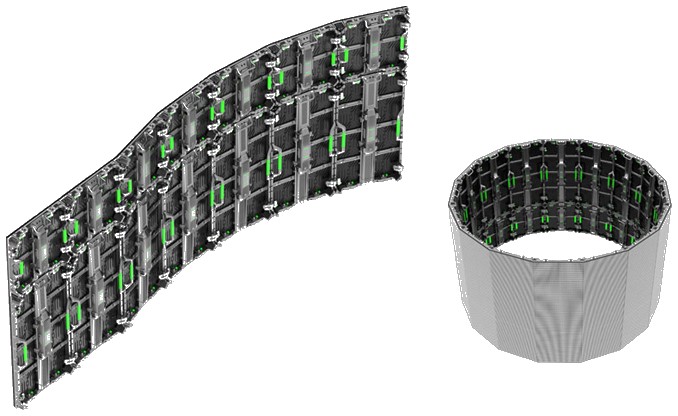

Concave and Convex Curve Lock
Curve locks from -15° to +15° support straight, concave and convex configurations for various application scenarios.

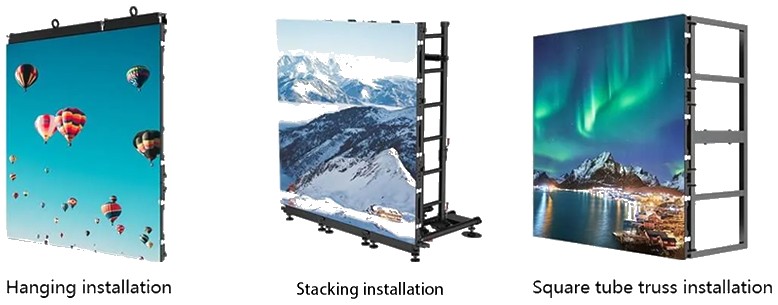

Multiple Installation Methods
Hanging and stacking installation solutions address diverse site requirements. Reserved holes allow nylon ties to support square tube truss installation, helping save labor and material costs.
