Rental-X Series
Rental-X Series LED displays combine flexible cabinet splicing, curved shapes and multiple installation options for indoor and outdoor live shows, stages, exhibitions and events. The design includes an ultra-strong cabinet and status monitor LCD.
Key Features
- Concave and convex curved shapes
- Front and rear service
- Light and thin cabinets
- Multi cabinet sizes for flexible splicing

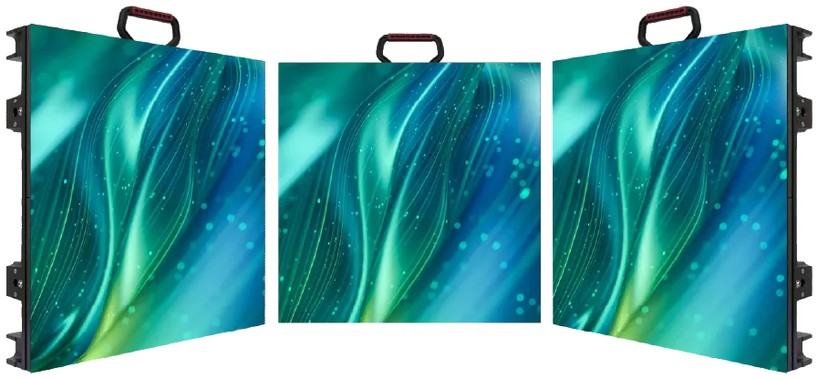

- Beveled cabinets support right angles
- Hanging, freestanding and wall mounting
- Status monitor LCD on backside
Technical Specifications
| Model | 2.6 | 2.97 | 3.91 | 4.81 |
|---|---|---|---|---|
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (nits) | 4000 | 4000 | 5000 | 5000 |
| Scan | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | 500x500mm /500X1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | 8.5kg, 14KG | |||
| Power Con. (W/sqm.) | Max.800W / Avg.200~300W | |||
| Service Access | Rear Service (Front Service Optional) | |||
| Refresh Rate(HZ) | ≥3840 | |||
| Grey Scale (bit) | 16 | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage(AC) | 110V/240V | |||
Product Highlights

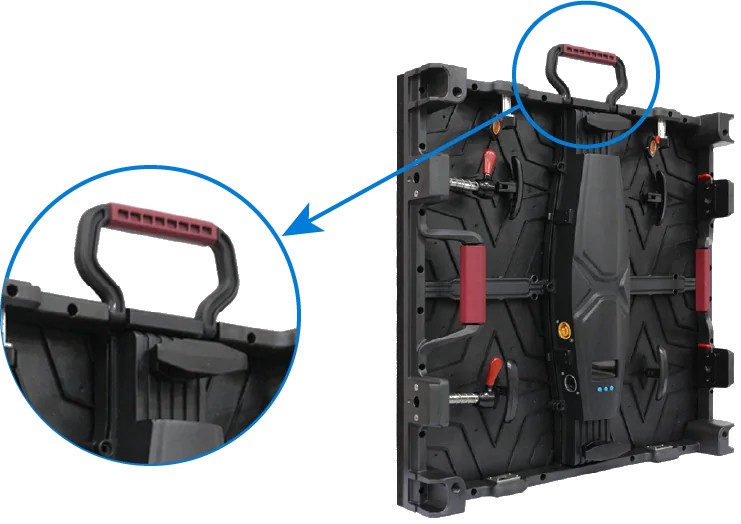

Ergonomically Designed Handle
An ergonomic handle is easy to grasp and carry during screen building. At 8KG, the cabinet supports easy installation and disassembly. Front maintenance is available where rear service access is limited: LED modules can be removed with the front maintenance suction tool for quick, convenient access.

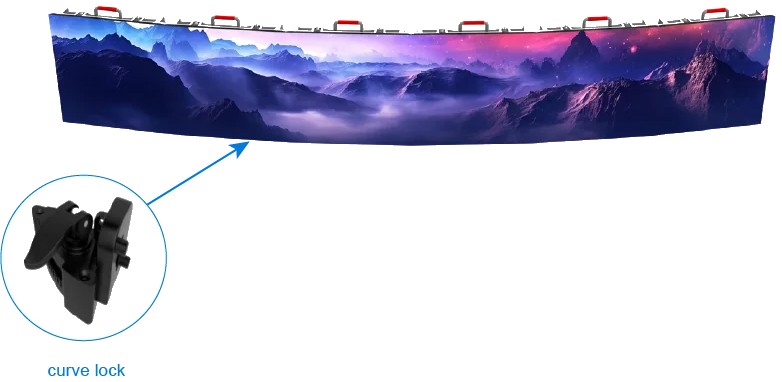

Superior Curving for Maximum Creativity
Cabinet curvature can be adjusted from -10°~ +15° for an ultra-wide, ultra-curved LED display. Two rotary knobs allow the control box to be exchanged in 1 second. The complete box includes the power supply, receiver card, cables and HUB board, reducing maintenance time during events.
No Light Leakage Trouble
Specific strips on the cabinet side and behind the neighbouring module prevent light leakage. Cabinets can be hung or stacked. The light and thin X & T series supports faster, easier installation, with 4 quick locks per cabinet for assembly in 1~3 hours for a normal-size screen.

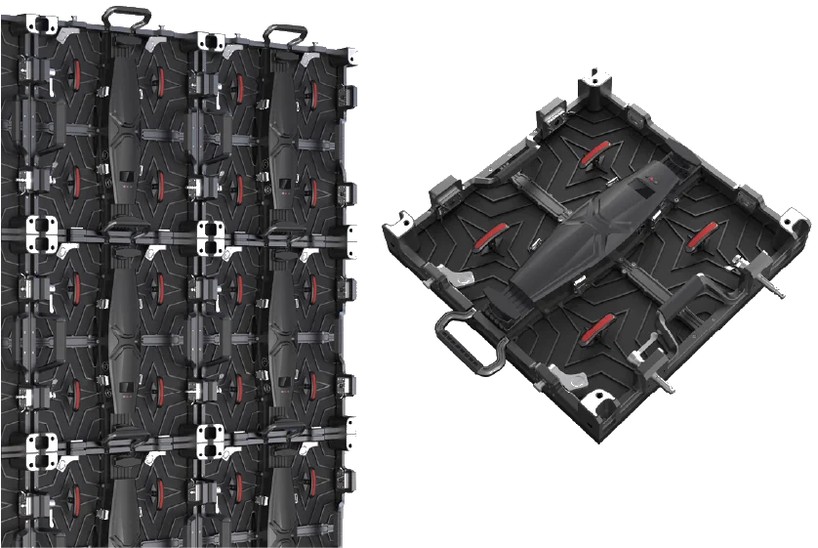

Positioning Pin Cabinet Design
Positioning pins help align two cabinets quickly and accurately. A climbing structure supports convenient maintenance and helps prevent the module from slipping or bumping when it is replaced.

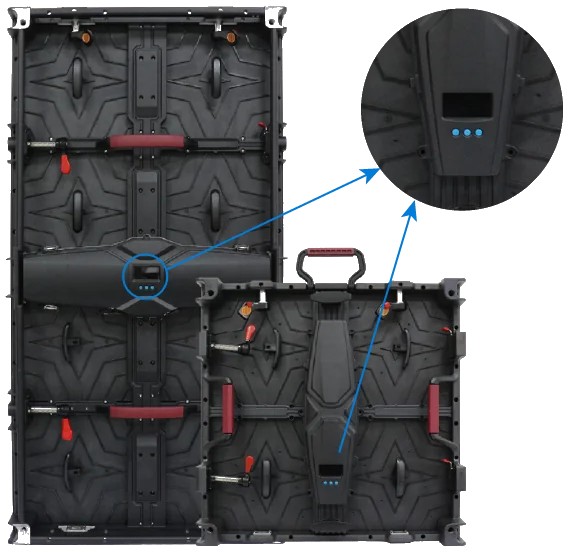

Status LCD
Each LED panel has a small LCD showing working hours, temperature, current and voltage, helping manage panels and balance brightness and lifespan. LINEX provides truss, floor stacking structure, tent, stage and other structures for rental LED screens.
Ultra Fast Response
Response speed exceeds the response limit of the naked eyes during high-speed dynamic images on an LED screen. This helps avoid ghosting or twisting and provides dynamic images.
