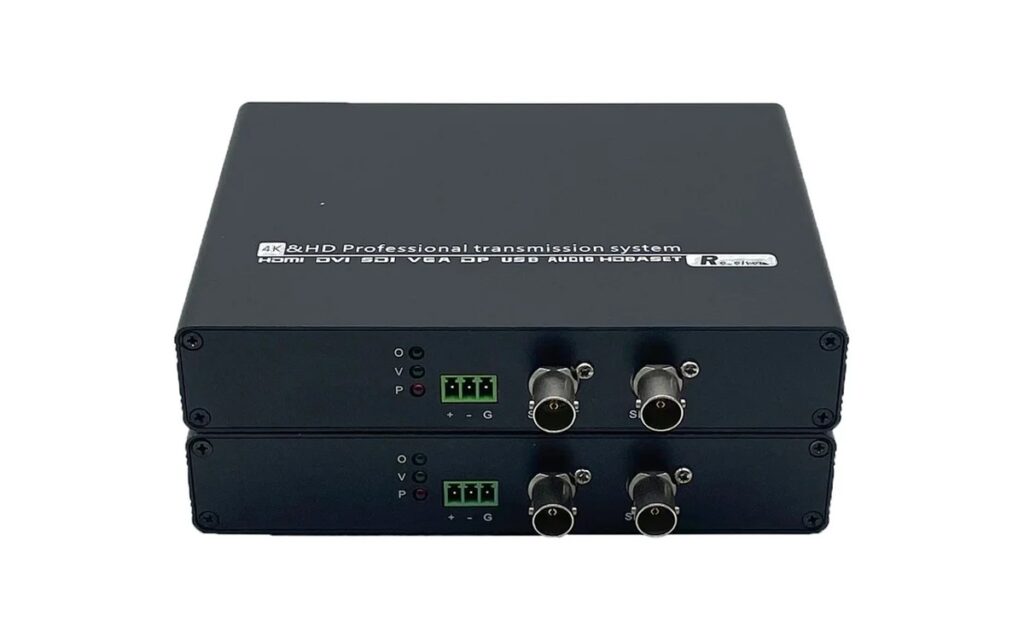

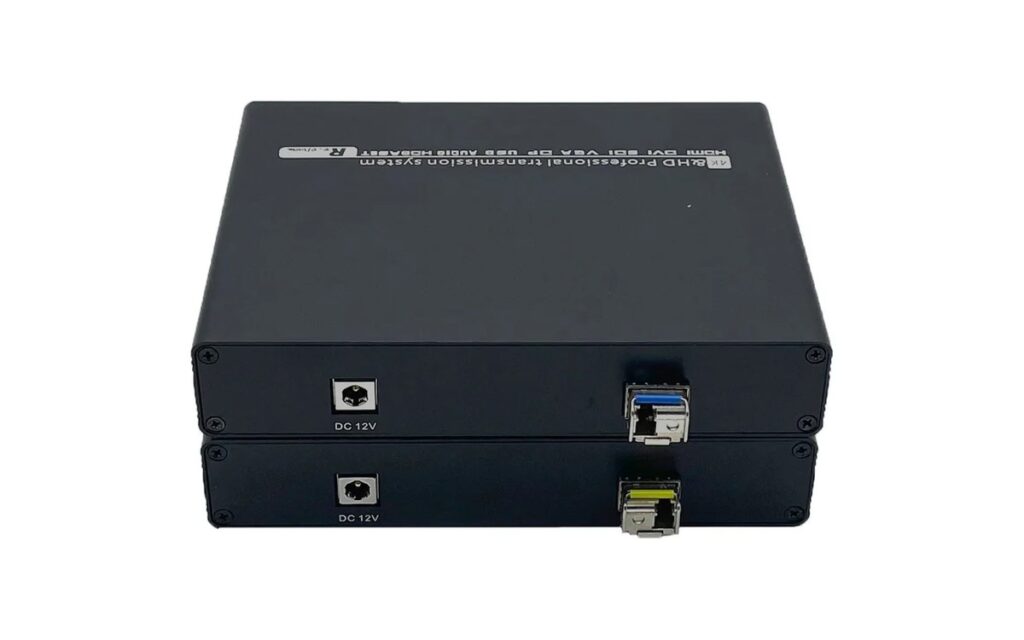

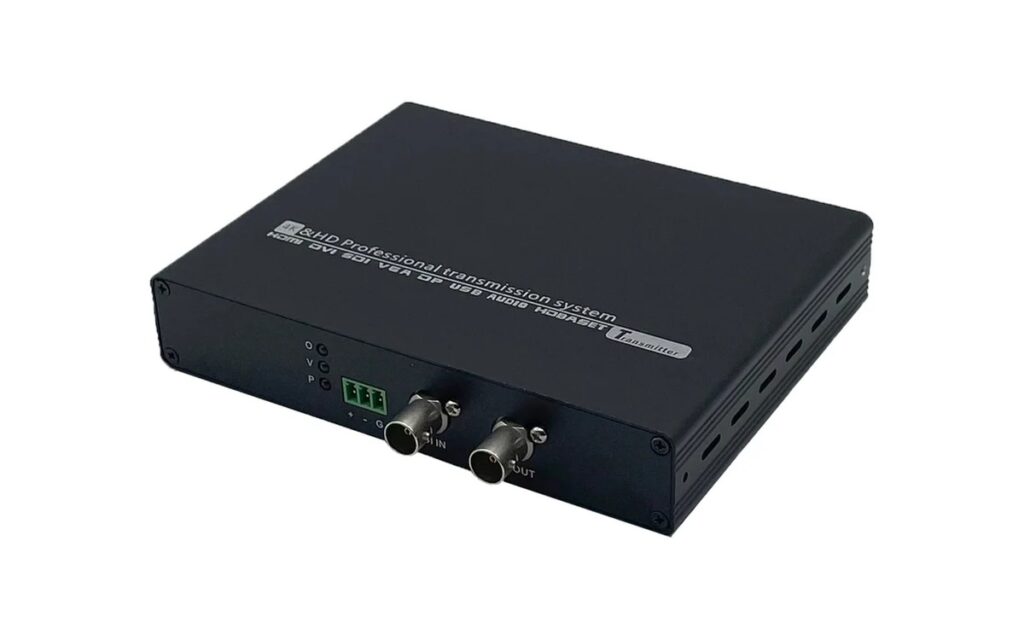

SDI to Fiber Extender
Transmit SDI video over a single optical fiber for broadcast, AV and LED display applications. Available in 3G-SDI, 6G-SDI and 12G-SDI versions, with single-mode or multi-mode fiber support.
Key Features
- 3G-SDI, 6G-SDI and 12G-SDI versions
- Single-fiber transmission with SFP / LC interfaces
- Up to 20 km over single-mode fiber
- Supports SDI equalization and re-clocking
- Compatible with SMPTE SDI standards and DVB-ASI
- Supports single-mode and multi-mode fiber
- Plug-and-play installation with LED status indicators
Technical Specifications
| Model | Specification |
|---|---|
| Product Type | SDI to Fiber Extender / Transmitter & Receiver |
| SDI Versions | 3G-SDI, 6G-SDI and 12G-SDI options |
| Video Connector | BNC, 75 Ω |
| Optical Connector | Simplex LC |
| Optical Ports | 1 |
| Transmission Fiber | Single fiber |
| Transmission Distance | Up to 20 km over single-mode fiber; distance depends on optical budget |
| Standard Fiber Option | Single-mode, 1310 nm / 1550 nm |
| Multi-Mode Support | Supported |
| Video Bit Rate | Up to 3.2 Gbps for 3G-SDI version |
| Supported 3G Standards | SD-SDI, HD-SDI, 3G-SDI; SMPTE 259M, 292M, 424M and 425M |
| Other Compliance | SMPTE ST-2081, ST-2082 and DVB-ASI |
| SDI Equalization | Automatic cable equalization for signals up to 3.2 Gbps |
| Video Formats | PAL, NTSC, 720p and 1080p/i formats |
| CWDM Wavelengths | 1310 nm, 1550 nm and optional CWDM wavelengths compliant with ITU-T G.694.2 |
| Power Supply | AC 100–240 V to DC 5 V / 2 A |
| Power Consumption | < 3 W |
| Operating Temperature | -5°C to +75°C |
| Storage Temperature | -5°C to +85°C |
| Relative Humidity | 0–95% RH, non-condensing |
| MTBF | >100,000 hours |
