Indoor-Iron Series
Indoor-Iron Series LED displays feature iron cabinets, front magnetic module access and fast installation. Available in P2.5, P3, P4 and P5 for commercial displays, conference rooms and control centers.
Key Features
- P2.5, P3, P4 and P5 pixel pitches
- Iron / Aluminum cabinet material
- Front magnetic module access
- 800nits～1,200nits brightness
- H:160° / V:160° viewing angle
- 1,920Hz～3,840Hz refresh rate
- 13bits～24bits gray scale
Technical Specifications
| Model | P2.5 | P3 | P4 | P5 |
|---|---|---|---|---|
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm |
| LED Type | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Module Resolution | 128dots × 64dots | 64dots × 64dots | 64dots × 32dots | 64dots × 32dots |
| Driving Mode | 1/32scan | 1/32scan | 1/16scan | 1/8scan |
| Module Pixels | 8,192dots | 4,096dots | 2,048dots | 2,048dots |
| Module Size | 320mm × 160mm | 192mm × 192mm | 256mm × 128mm | 320mm × 160mm |
| Cabinet Size | 640mm × 640mm | 768mm × 768mm | 768mm × 768mm | 960mm × 960mm |
| Cabinet Resolution | 256dots × 256dots | 256dots × 256dots | 192dots × 192dots | 192dots × 192dots |
| Pixel Density | 160,000dots/㎡ | 111,111dots/㎡ | 62,500dots/㎡ | 40,000dots/㎡ |
| Minimum Viewing Distance | ≥2.5 m | ≥3m | ≥4m | ≥5m |
| Brightness | 800nits～1,200nits | 800nits～1,200nits | 800nits～1,200nits | 800nits～1,200nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Refresh Rate | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz | 1,920Hz～3,840Hz |
| Gray Scale | 13bits～24bits | 13bits～24bits | 13bits～24bits | 13bits～24bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 560W/㎡ | 560W/㎡ | 560W/㎡ | 560W/㎡ |
| Average Power Consumption | 160W/㎡ | 160W/㎡ | 160W/㎡ | 160W/㎡ |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz | AC220V～AC110V @ 50Hz / 60Hz |
| Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Iron / Aluminum | Iron / Aluminum | Iron / Aluminum | Iron / Aluminum |
| Cabinet Weight | 55kg/㎡ or 45kg/㎡ | 55kg/㎡ or 45kg/㎡ | 55kg/㎡ or 45kg/㎡ | 55kg/㎡ or 45kg/㎡ |
Product Highlights

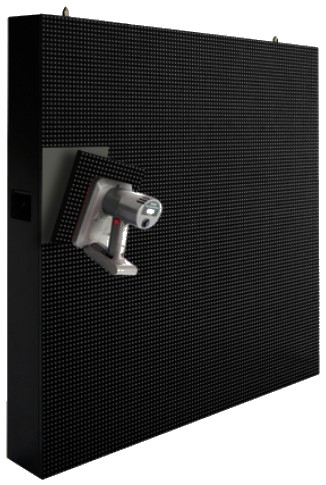

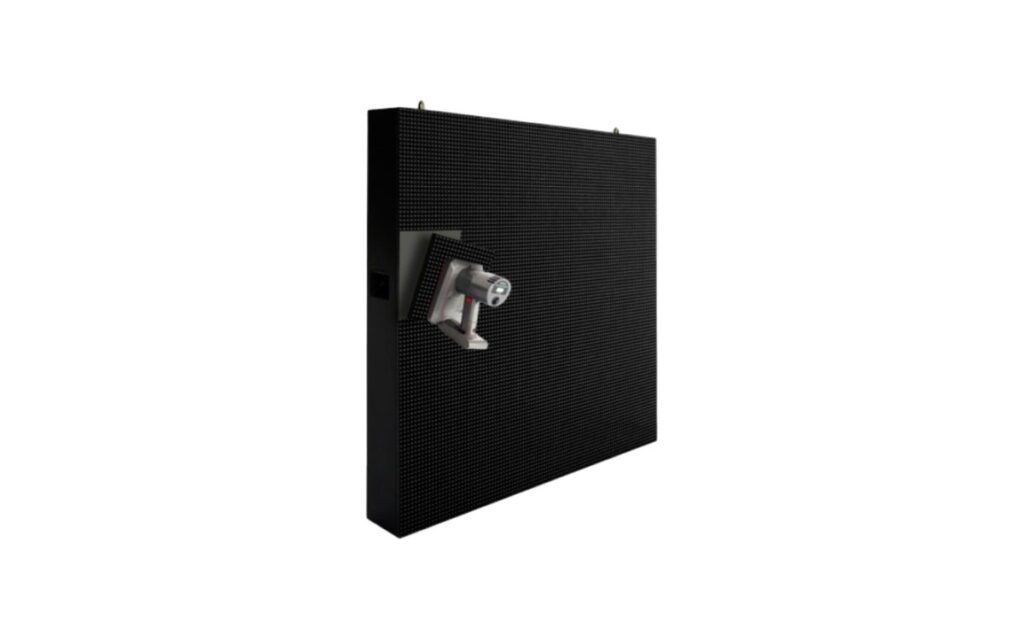

Fast Installation
Modules can be removed directly from the front using the magnetic suction tool, helping reduce installation time and labor.

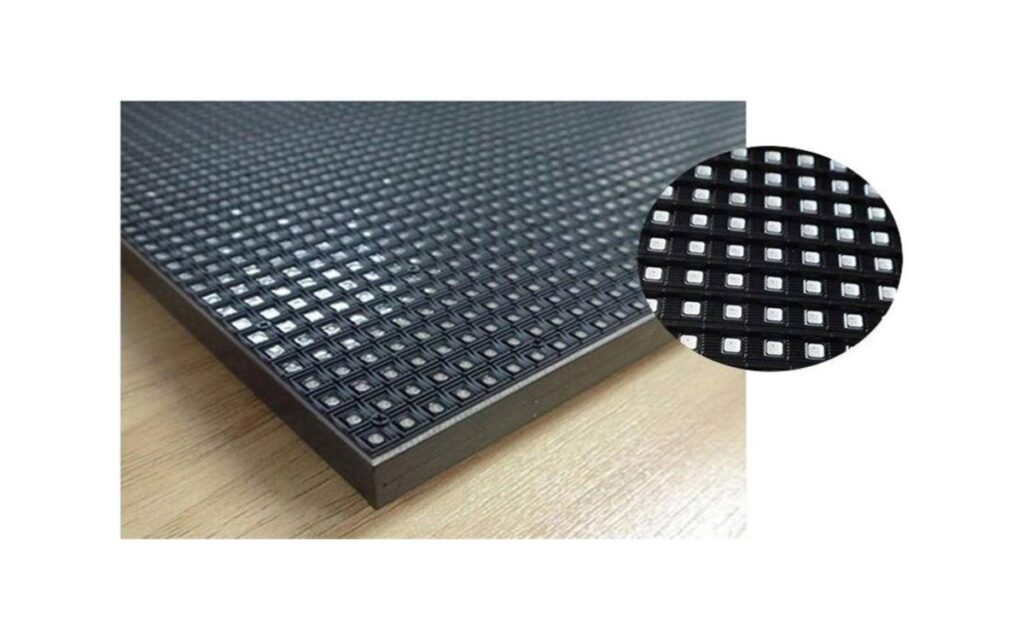

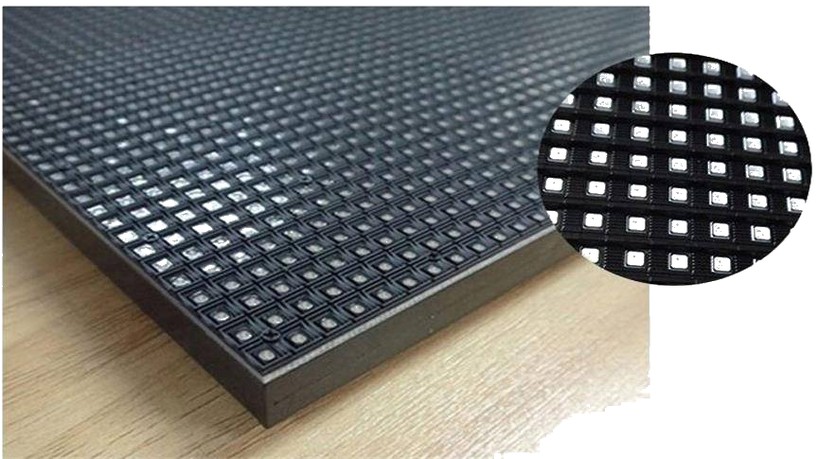

Indoor & Outdoor Installations High Quality SMD
High-quality SMD LEDs and PCB design are available across P2.5, P3, P4 and P5 models. The series is growing in market popularity.

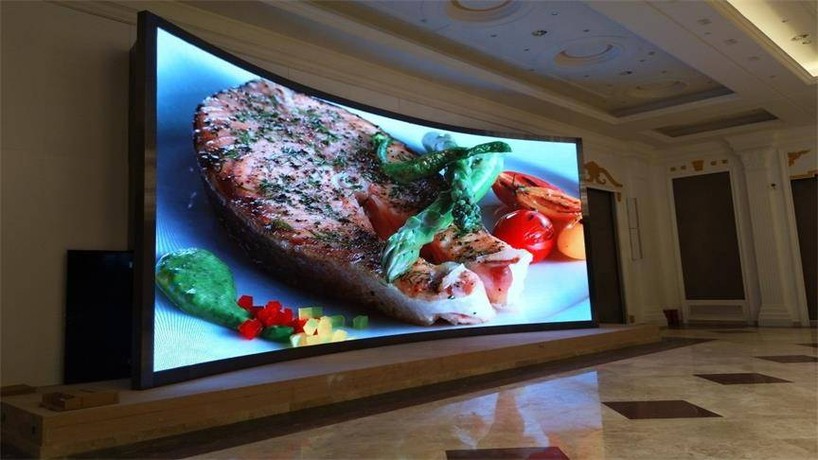

Wide Angle
Horizontal and vertical viewing angles reach 160°. The indoor full-color screen supports stable performance and varied content.

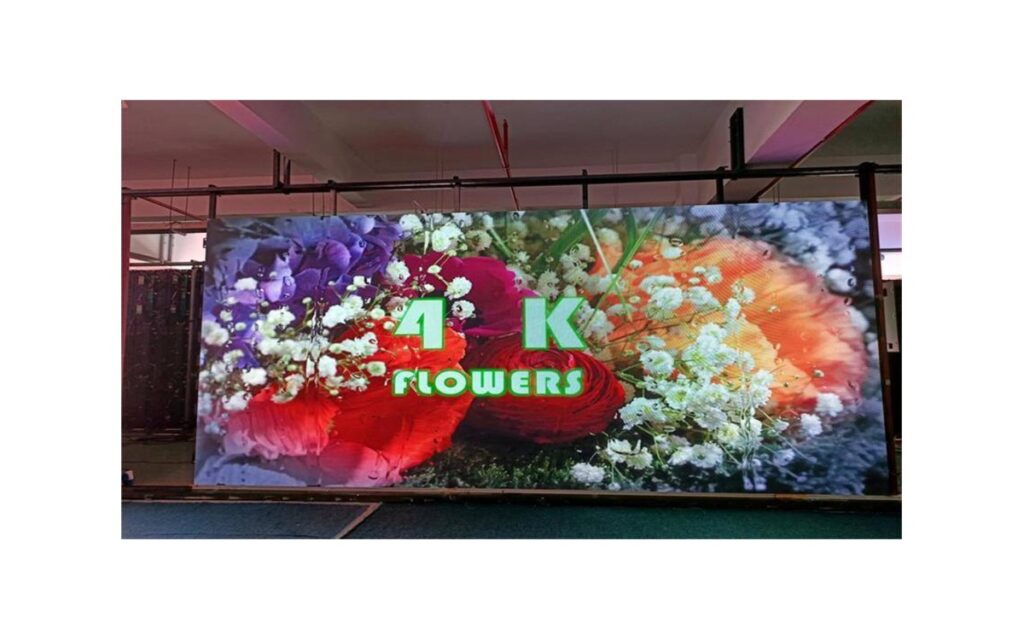

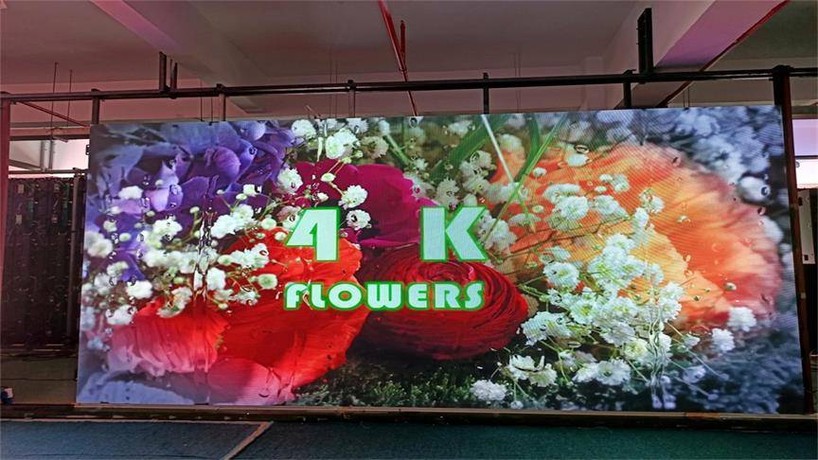

Ultra Visual Performance
Black SMD LEDs and PCB design support long lifespan, excellent white balance and color uniformity, 1,920Hz-3,840Hz refresh rate, 13bits-24bits gray scale and high color contrast.
