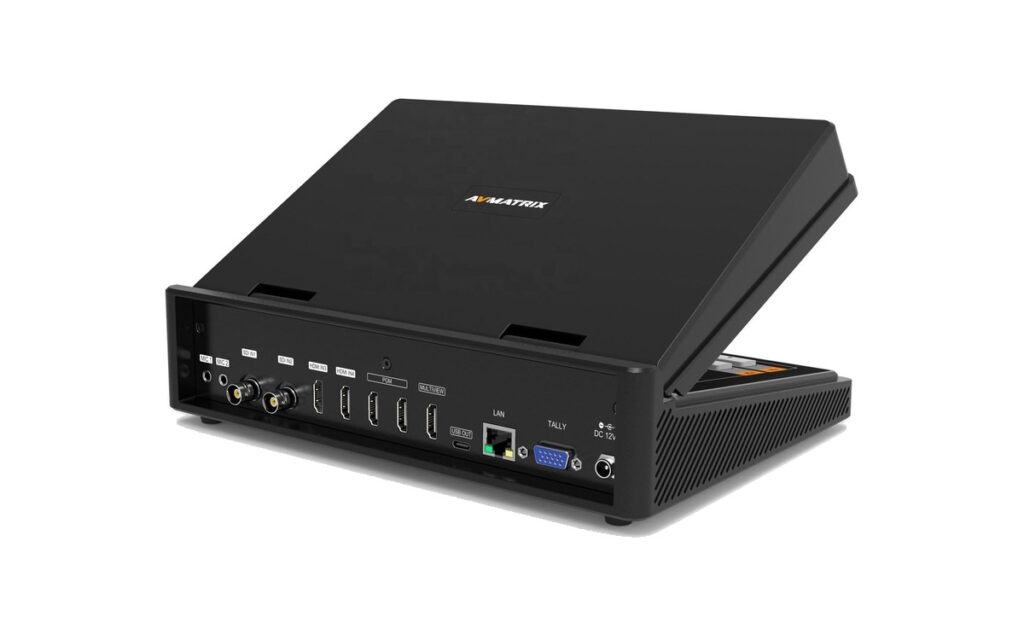

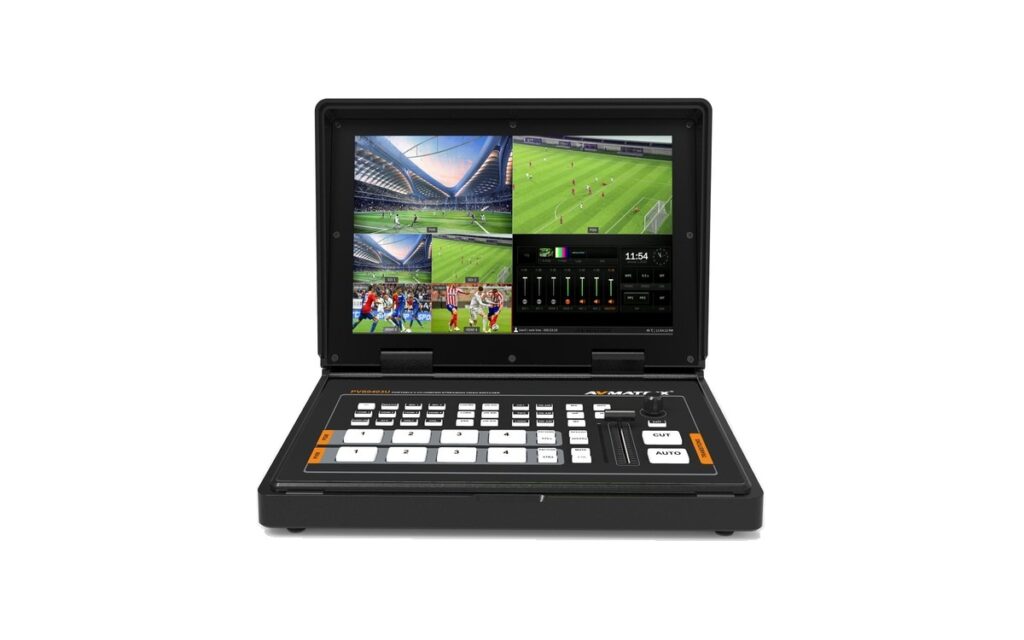

AV Matrix PVS0403U Video Switcher
The AV Matrix PVS0403U is a portable 4-CH SDI and HDMI video switcher with configurable outputs. It supports PC capture and streaming, keying, audio mixing, and multiple transitions.
Key Features
- 2×HDMI and 2×3G-SDI inputs with auto-detection
- Configurable 2×HDMI PGM, HDMI multiview, and USB Type-C outputs
- USB capture and streaming on PC
- Luma/chroma key, PIP×2, POP, downstream key, and LOGO overlay
- T-bar, Auto, Cut, WIPE, MIX, and DIP transitions
- Audio mixer for 2×SDI, 2×HDMI, and 2×MIC/line In, with delay
- LAN remote control, media library, FTB, MUTE, STILL, and GPIO tally
Technical Specifications
| Model | Item | Specification |
|---|---|---|

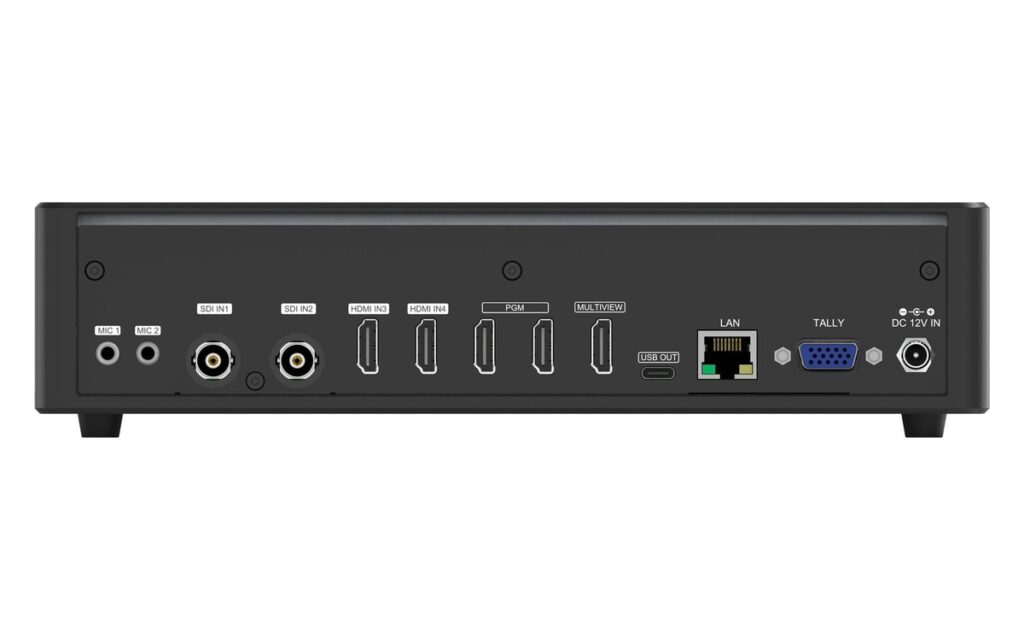

| CONNECTIONS | Video In | HDMI type-A ×2, SDI ×2 |
| Video Out | HDMI type-A PGM ×2 · HDMI type-A Multiview ×1 · USB2.0 type-C ×1(Streaming on PC) · SDI1~2, HDMI3~4, PGM, Clean PGM, PVW, Color bar, Multiview | |
| Audio In | MIC/ Line ×2(3.5mm stereo audio) | |
| PC Control Port | LAN ×1(For PC remote control) | |
| Media Library | USB type-A ×1(For image import and firmware upgrade) | |
| Tally Port | DB-15 ×1 | |
| Power In | DC 12V ×1 | |
| FUNCTIONS | Transitions | T-Bar/ AUTO/ CUT |
| Effects | WIPE(12 patterns)/ MIX/ DIP/ STILL(freeze)/ MUTE/ FTB | |
| Layouts | 2 styles of Multiview layout(6 windows and status) | |
| Keys | Upstream Key: Luma Key ×1/ Chroma Key ×1/ PIP ×2/ POP · Downstream Key: DSK ×1/ Logo ×1 | |
| Audio Mixer | HDMI×2, SDI×2 and MIC/ Line ×2 · Audio delay: 0-500ms | |
| Media Format | Default image: 39 preset patterns · Local image: Up to 16 imported images · Capture image: Up to 16 captured images | |
| Generators | Pattern generator ×1 · Color generators ×2 | |
| STANDARDS | HDMI In Format Support | 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98 · 1080i 50/ 59.94/ 60 · 720p 60/ 59.94/ 50/ 30/ 25/ 24 · 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60 |
| HDMI PGM Out | 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98 · 1080i 60/59.94/50 | |
| HDMI Multiview Out | 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98 · 1080i 60/ 59.94/50 | |
| HDMI Color Space | RGB/YUV | |
| SDI In Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 · 1080psF 30/29.97/25/24/23.98 · 525i 59.94 / 625i 50 · 1080i 60/59.94/50 · 625i 50 PAL · 525i 59.94 NTSC | |
| SDI Color Space | YUV | |
| USB Capture Out | MJPG, up to 1080p 60 | |
| Media Format | USB disk format support: FAT32, Ext3, Ext4, up to 256GB · Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga(within 4096×3840) · Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga · Logo size support: 10×10 pixel to 600×600 pixel | |
| OTHERS | Power | Wide voltage: 7~24V; Operating power:12W(12V 1.8A) |
| Dimension (LWD) | 261.4 × 193.9 × 58mm | |
| Weight | 1673.5g | |
| Temperature | Working: -20℃~60℃, Storage: -30℃~70℃ |
