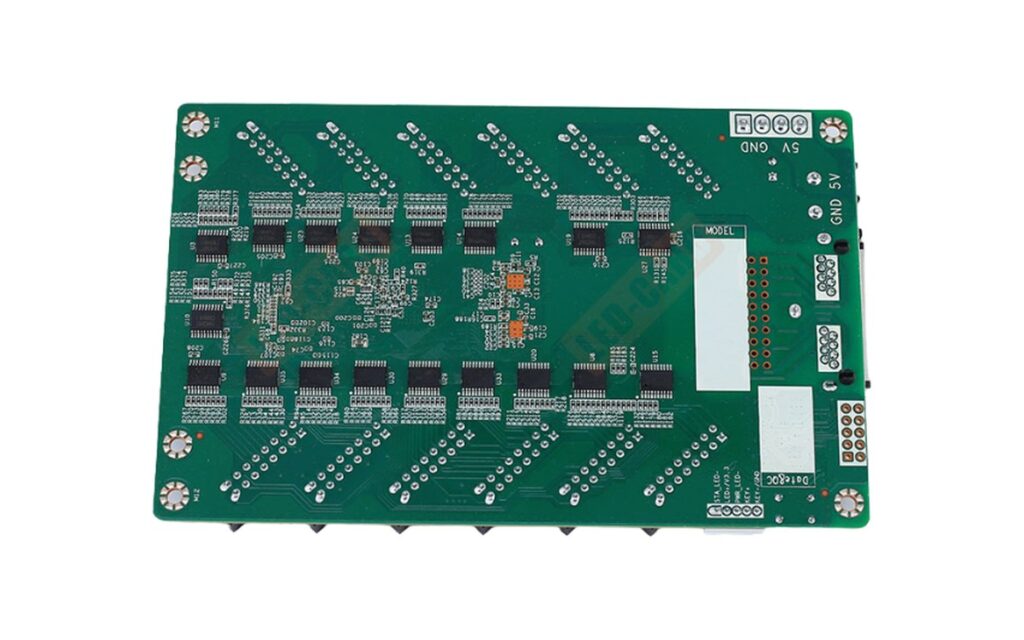

NovaStar MRV412 Receiving Card
NovaStar MRV412 is a general LED receiving card with 12 standard HUB75E connectors. It supports up to 512 × 512 pixels at 60Hz with PWM driver ICs, plus color management, calibration, 3D and image rotation.
Key Features

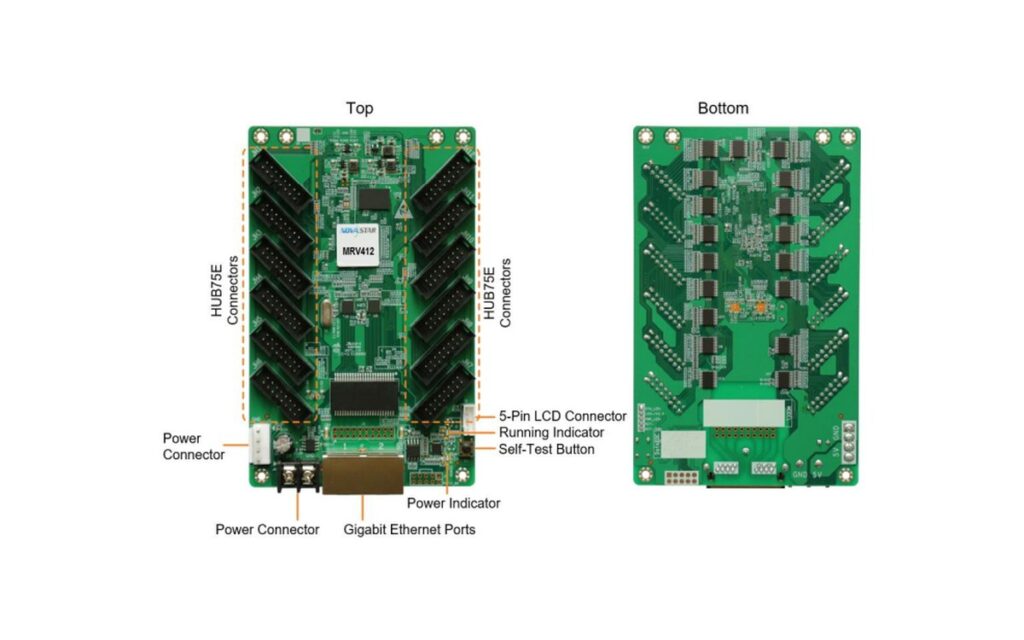

- 12 standard HUB75E connectors
- Up to 512 × 512 @ 60Hz with PWM driver ICs
- Up to 24 groups of parallel RGB data
- 18-bit+ grayscale for smoother low-brightness images
- Pixel-level brightness and chroma calibration
- Supports 3D output with compatible controllers
- 90° image rotation and seam correction
Technical Specifications
| Model | Parameter | Specification |
|---|---|---|
| Loading & Interface | Loading Capacity | Up to 512 × 512 pixels @ 60Hz |
| HUB Connectors | 12 × standard HUB75E connectors | |
| Parallel Data | Up to 24 groups of parallel RGB data | |
| Module Connection | Direct LED module connection; no additional hub boards required | |
| Visual Optimization | Calibration | Pixel-level brightness and chroma calibration |
| Gamma Adjustment | Individual RGB Gamma adjustment | |
| 3D Function | Supported with a compatible independent controller | |
| Reliability | Backup | Loop backup and configuration parameter backup |
| Monitoring | Hardware Monitoring | Real-time temperature and voltage monitoring |
| Maintenance | Mapping Function | Displays receiving card location and port information on LED tiles |
| Firmware Readback | Supports firmware and parameter recovery |
