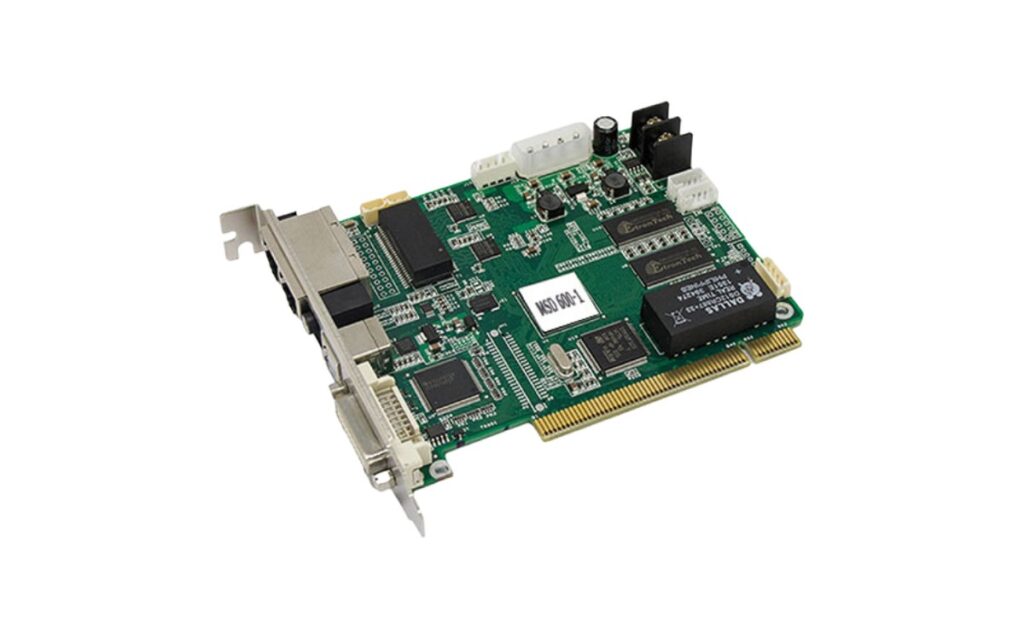

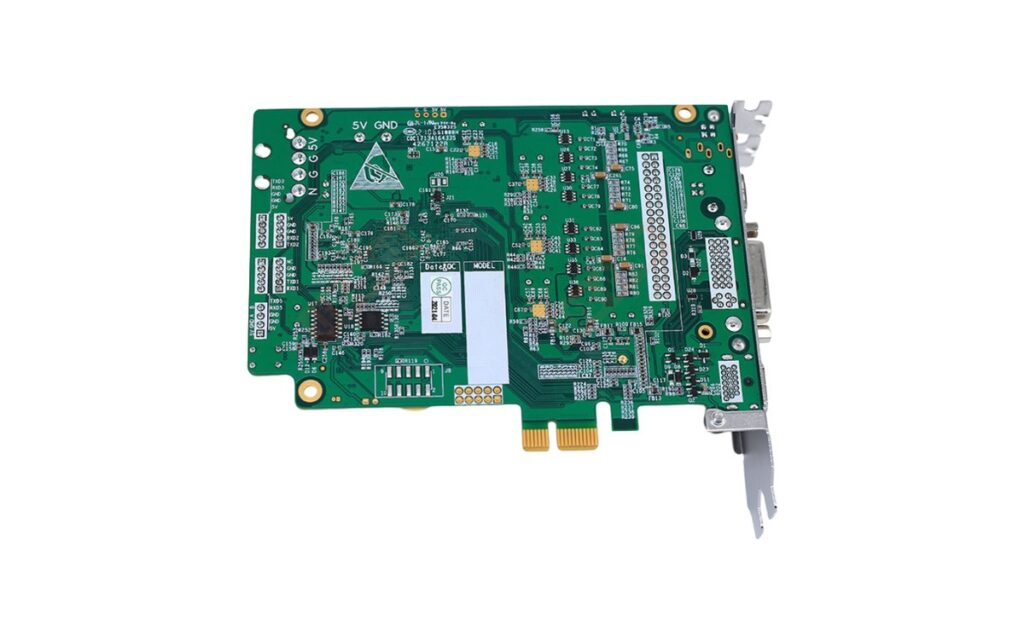

NovaStar MSD600-1
NovaStar MSD600-1 is a sending card with 1x DVI, 1x HDMI input and 4x Gigabit Ethernet outputs, supporting resolutions up to 1920×1200@60Hz. It suits rental and fixed installations, including concerts, live events and sports centers.
Key Features
- Up to 2.3 million pixels loading capacity
- 3840 pixels maximum width, 1920 pixels maximum height
- 1 × HDMI 1.3 and 1 × DVI inputs
- 4 × Gigabit Ethernet ports
- Light sensor interface for automatic brightness adjustment
- Pixel-level brightness and chroma calibration
- Up to 20 devices can be cascaded via UART
Technical Specifications
| Model | Specification |
|---|---|
| Model | NovaStar MSD600-1 |
| Product Type | LED Sending Card |
| Loading Capacity | Up to 2.3 million pixels |
| Maximum Width | 3840 pixels |
| Maximum Height | 1920 pixels |
| Video Inputs | 1 × HDMI 1.3, 1 × DVI |
| Ethernet Outputs | 4 × Gigabit Ethernet ports |
| Audio Input | Independent audio input |
| Brightness Control | Light sensor interface for automatic brightness adjustment |
| Calibration | Pixel-level brightness and chroma calibration |
| PC Interface | Standard PCI slot |
| Control Software | NovaLCT |
| Application | Corporate video walls, indoor advertising screens and permanent LED installations |
