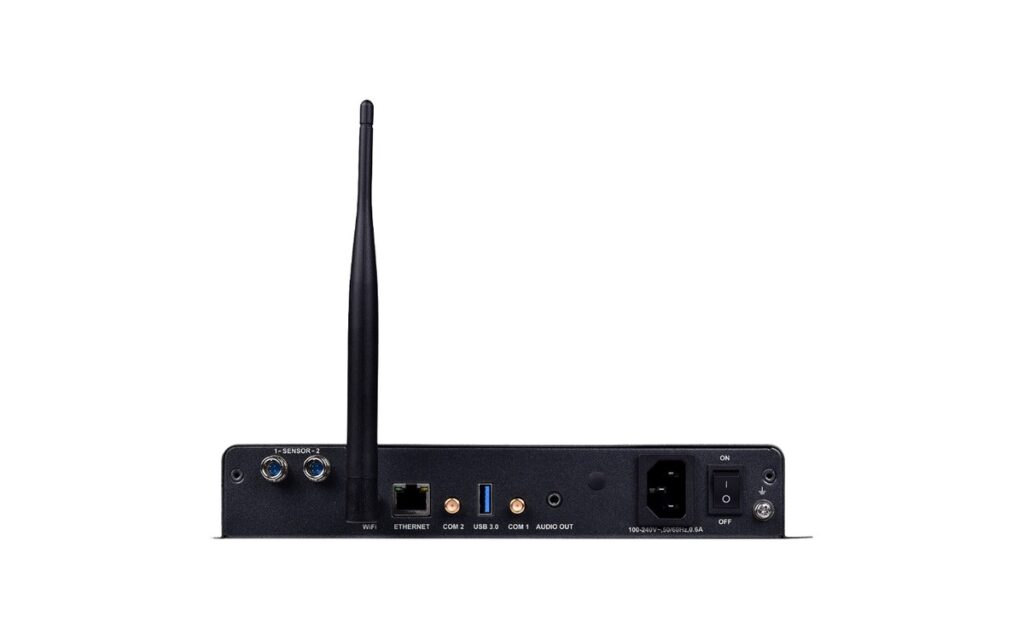

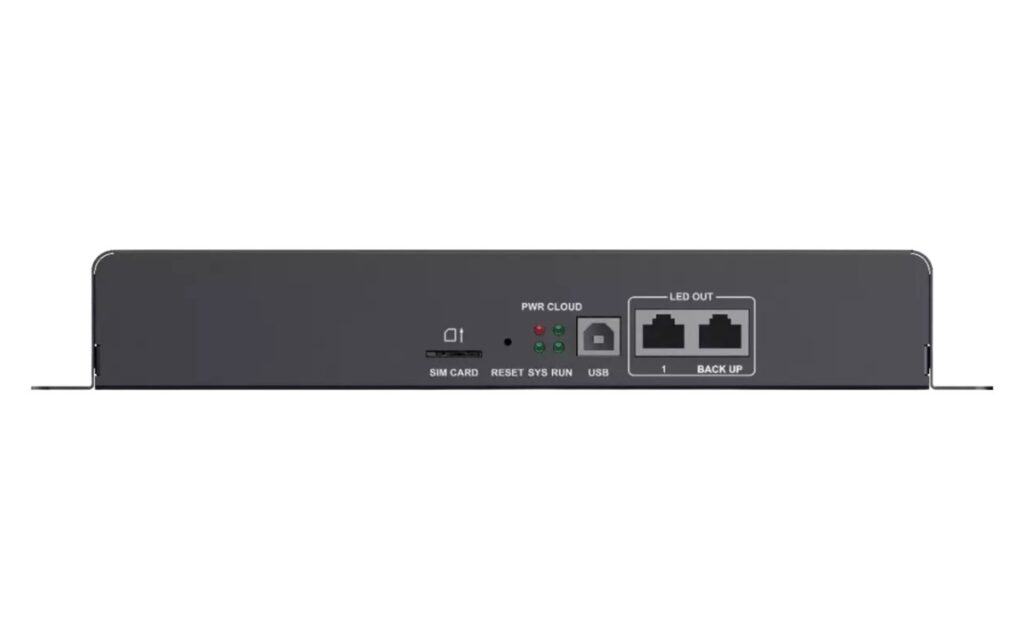

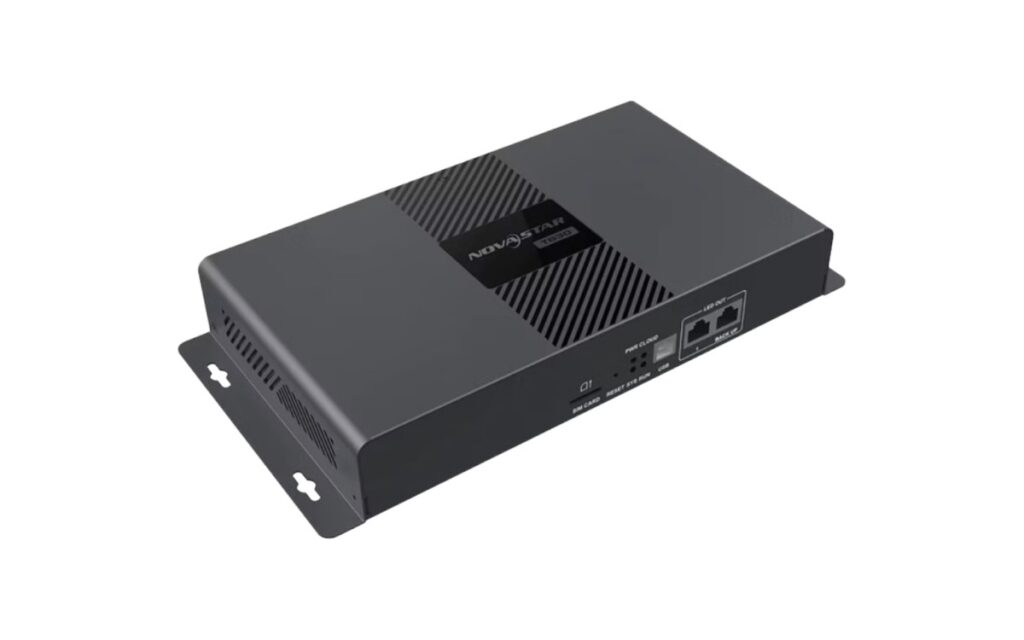

NovaStar Taurus TB30 – product main view

NovaStar Taurus TB30

Name: NovaStar Taurus TB30
Brand: LINEX TECH
Availability: InStock

LED Video Processors & Controllers

NovaStar Taurus TB30 is a 4K multimedia player for commercial LED displays, supporting up to 650,000 pixels with dual Gigabit Ethernet backup, sensor inputs, Wi-Fi and VNNOX cloud management.

Key Features

4K@60Hz hardware decoding or multiple 1080p videos
Up to 650,000 pixels, max width or height 4096 pixels
Dual Gigabit Ethernet primary/backup redundancy
Brightness, temperature and humidity sensor connections
Dual-mode Wi-Fi AP/STA and VNNOX cloud management
Optional 4G/5G connectivity and USB 3.0 expansion

Get a Quote WhatsApp Us

How we test and pack this order →

Technical Specifications

Model	TB10 Plus	TB20 Plus	TB30	TB50	TB60
Max. Loading Capacity	0.65 Million Pixels	0.65 Million Pixels	0.65 Million Pixels	1.3 Million Pixels	2.3 Million Pixels
Max. Width & Height	Normal Scenario: Max.Width 2048 or Max.Height 2048 · Ultra-wide screen: Max. Width 8192 or Max.Height 2048	Normal Scenario: Max.Width 2048 or Max.Height 2048 · Ultra-wide screen: Max. Width 8192 or Max.Height 2048	Max.Width 4096 or Max.Height 4096	Max.Width 4096 or Max.Height 4096	Max.Width 4096 or Max.Height 4096
CPU	Quad-core A53@1.4GHz	Quad-core A53@1.4GHz	Quad-core A55@1.8GHz	Quad-core A55@1.8GHz	Quad-core A55@1.8GHz
RAM+ROM	2GB+32GB	2GB+32GB	1GB+32GB	1GB+32GB	1GB+32GB
Storage Expansion	USB Driver, can be expanded up to 128G	USB Driver, can be expanded up to 128G	USB Driver, can be expanded up to 128G	USB Driver, can be expanded up to 128G	USB Driver, can be expanded up to 128G
Video Decoding	4K@60Hz	4K@60Hz	4K@60Hz	4K@60Hz	4K@60Hz
OS	Android 10.0	Android 10.0	Android 11.0	Android 11.0	Android 11.0
Playback	1x 4K · or 2x 1080p · or 4x 720p · or 4x 480p · or 20x 360p	1x 4K · or 2x 1080p · or 4x 720p · or 4x 480p · or 20x 360p	1x4K · or 2x1080p · or 5x720p · or 6x480p · or 6x360p	1x4K · or 2x1080p · or 5x720p · or 6x480p · or 6x360p	1x4K · or 2x1080p · or 5x720p · or 6x480p · or 6x360p
Multi-device Synchronous Playback	√	√	√	√	√
Synchronous and Asynchronous Switching	×	√	×	√	√
HDMI Cascading Playback	×	×	×	√ (1080P, Max. up to 10 devices)	√ (1080P, Max. up to 10 devices)
Sensor Access	⃝	⃝	⃝	⃝	⃝
Audio Output	√	√	√	√	√
USB Driver Display	√(USB2.0)	√(USB2.0)	√(USB3.0)	√(USB3.0)	√(USB3.0)
Wired Network	100 Mbps	100 Mbps	1 Gbps	1 Gbps	1 Gbps
Wi-Fi	2.4GHz WI-FI，AP+STA Dual Mode	2.4GHz WI-FI，AP+STA Dual Mode	2.4GHz WI-FI，AP+STA Dual Mode	2.4GHz WI-FI，AP+STA Dual Mode	2.4GHz WI-FI，AP+STA Dual Mode
4G Network	⃝	⃝	⃝	⃝	⃝
Certifications	√	√	√	√	√
VNNOX Care/VNNOX Media	√	√	√	√	√
NovaStar SDK	√	√	√	√	√
Bare Product	×	×	√(T30)	√(T50)	×
