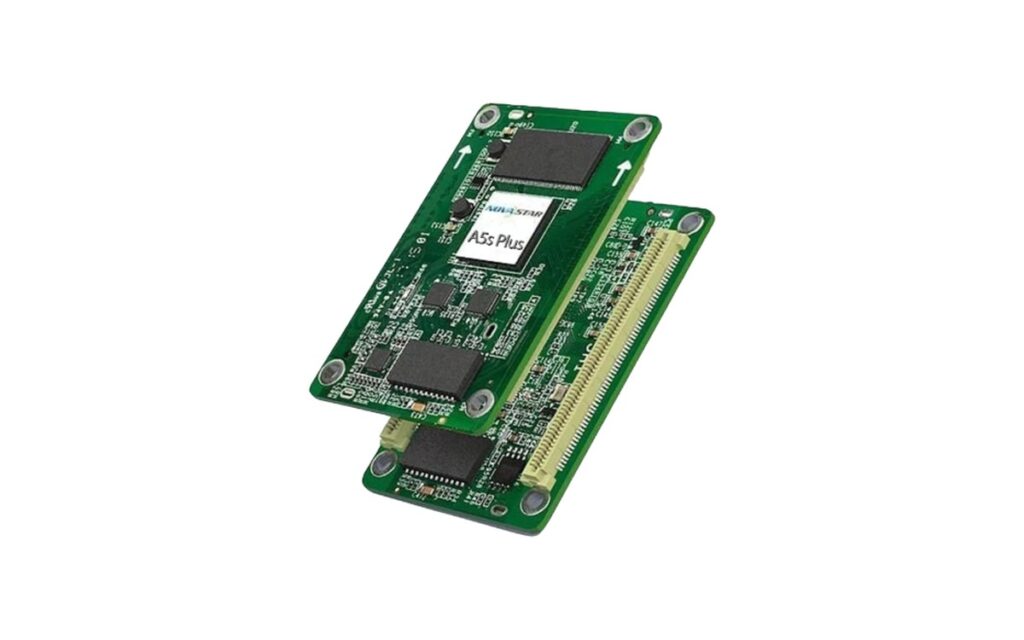

NovaStar A5S PLUS Receiving Card – alternate view 1

NovaStar A5s Plus Receiving Card

Name: NovaStar A5s Plus Receiving Card
Brand: LINEX TECH
Availability: InStock

LED Video Processors & Controllers

NovaStar A5s Plus is a compact LED receiving card with high-density connectors for stable, dust- and vibration-resistant operation. It supports color management, 18bit+, pixel-level calibration, low latency, 3D, RGB Gamma adjustment and 90° image rotation.

Key Features

Up to 512 × 384@60 Hz (8-bit) with PWM driver ICs
32 parallel RGB or 64 serial data groups
Expandable to 128 data groups
18bit+ grayscale and Clear View technology
Pixel-level brightness and chroma calibration
Loop backup and dual-card redundancy
Status monitoring for control rooms, studios and live events

Get a Quote WhatsApp Us

How we test and pack this order →

Technical Specifications

Model	A5s Plus	A7s Plus	A8s-N	A10s Plus-N	A10s Pro
Loading capacity	512×384	512×512	512×384	512×512	512×512
Parallel RGB data groups	32	32	32	32	32
Serial data groups	64	64	64	64	64
HDR	×	×	√	√	√
Mapping	√	√	√	√	√
Temperature, voltage and communication status monitoring	√	√	√	√	√
Dual-card backup	√	√	√	√	√
Automatic calibration	√	√	√	√	√
Pixel level brightness and chroma calibration	√	√	√	√	√
Calibration coefficient backup	×	×	√	√	√
Firmware program readback	√	√	√	√	√
Individual gamma adjustment for RGB	√	√	√	√	√
18bit+	√	√	√	√	√
22bit+	×	×	√	√	√
Precise grayscale	×	×	√	√	√
Color management	√	√	√	√	√
Full grayscale calibration	×	×	×	×	√
Shutter fit	×	×	×	×	√
Dynamic booster	×	×	×	×	√
