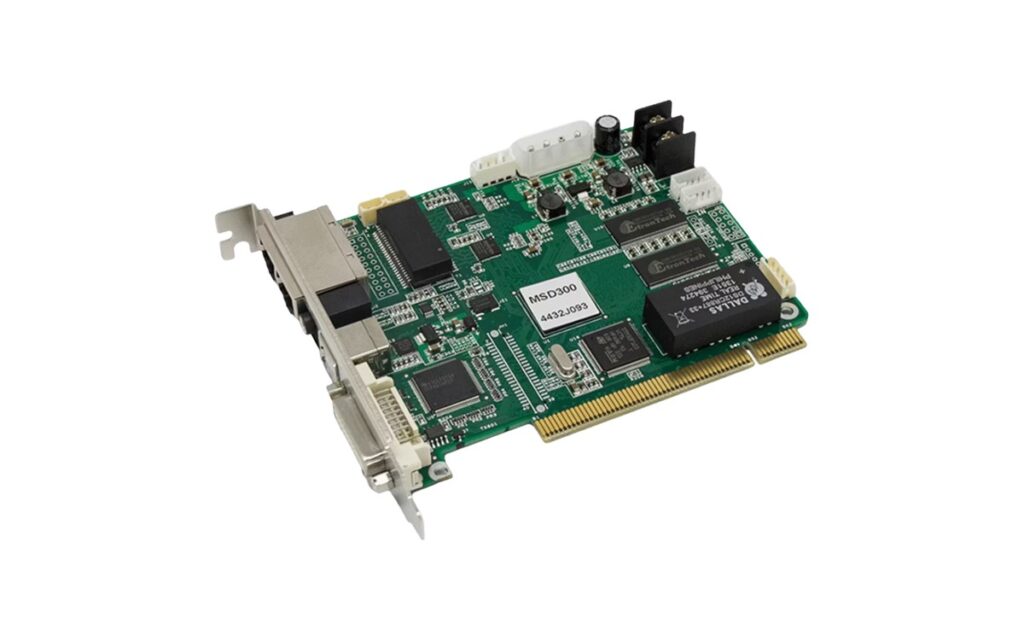

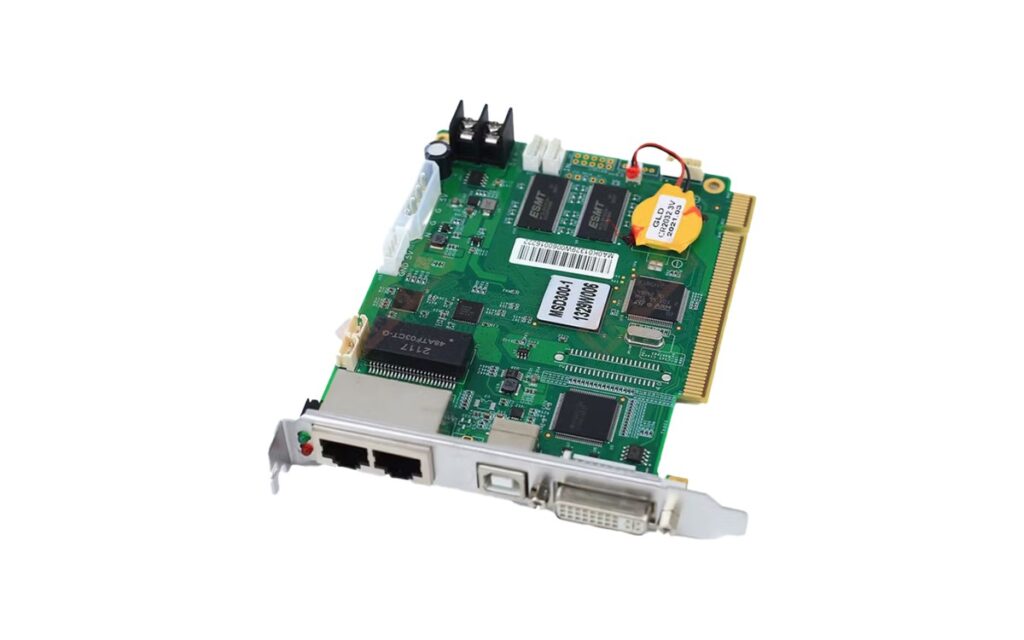

NovaStar MSD300-1
The NovaStar MSD300-1 sending card supports 1x DVI input, 2x Ethernet outputs and resolutions up to 1920×1200@60Hz. It loads up to 1,300,000 pixels for rental and fixed installations.
Key Features
- 1x DVI input and 2x Gigabit Ethernet outputs
- Loads up to 1,300,000 pixels
- Supports input resolutions up to 1920×1200@60Hz
- Type-B USB PC communication
- UART cascading for up to 20 devices
- Light sensor connector for brightness adjustment
Technical Specifications
| Model | Specification |
|---|---|
| Model | NovaStar MSD300-1 |
| Product Type | LED Sending Card |
| Loading Capacity | Up to 1.3 million pixels |
| Maximum Width | 3840 pixels |
| Maximum Height | 1920 pixels |
| Video Input | 1 × DVI |
| Ethernet Outputs | 2 × Gigabit Ethernet ports |
| Audio Input | Independent audio input |
| Brightness Control | Light sensor interface for automatic brightness adjustment |
| Calibration | Pixel-level brightness and chroma calibration |
| PC Interface | Standard PCI slot |
| Control Software | NovaLCT |
| Application | Indoor commercial LED screens, retail signage and outdoor billboards |
