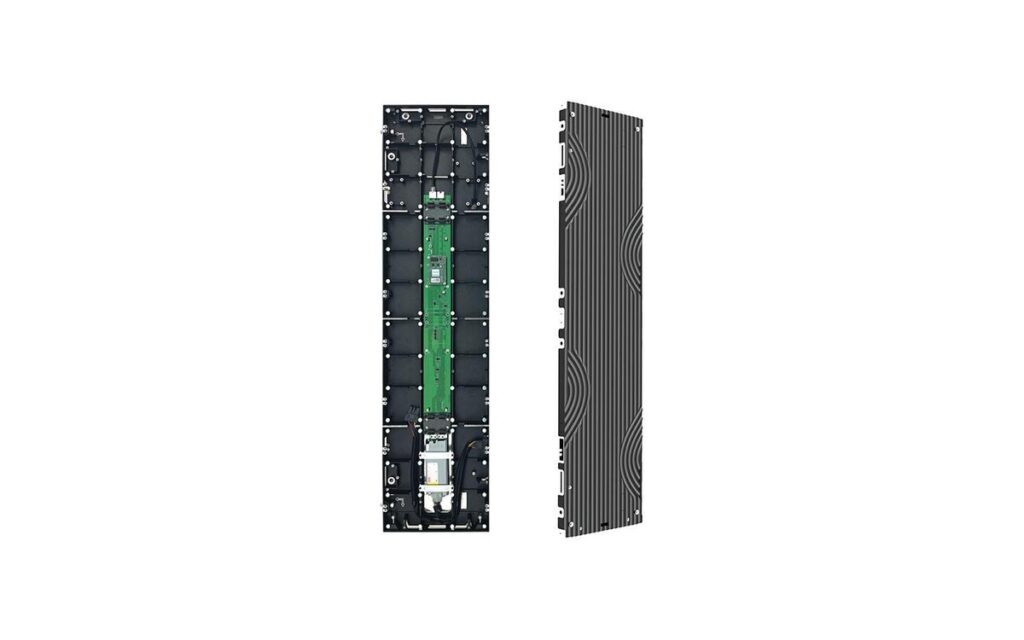

Indoor-Slim Series
Indoor-Slim Series is an ultra-thin, lightweight indoor LED display with multiple cabinet sizes and full front access. Beveled cabinets create seamless 90°corners for flexible indoor installations.
Key Features
- Ultra-light and thin, 33mm depth and 8kg per cabinet
- Cable-free connection and full front service

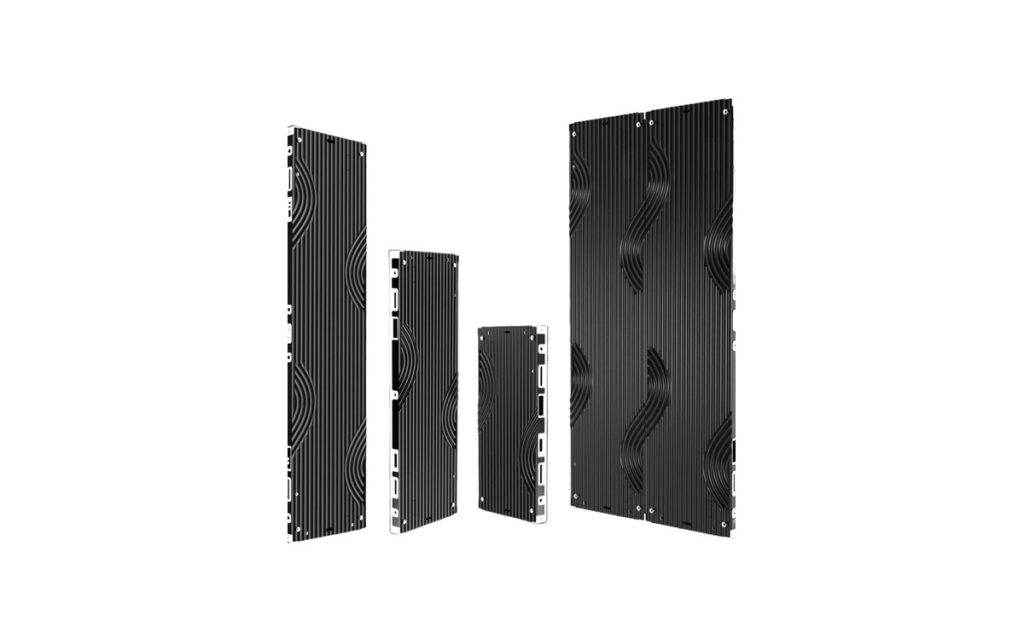

- Multiple cabinet sizes for flexible configurations
- Beveled cabinets enable seamless 90°corners
- Wall-mounted, hanging and mobile floor-standing options
- ≥3840 refresh rate and 10000:1 contrast ratio
Technical Specifications
| Model | 1.25 | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 |
|---|---|---|---|---|---|---|---|
| Pixel Matrix Per Sqm. | 640, 000 | 409, 600 | 262, 144 | 160, 000 | 147, 456 | 112, 896 | 65, 536 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness(nits) | ≤1000 | ||||||
| Scan | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Module Dimension | 250x250mm | ||||||

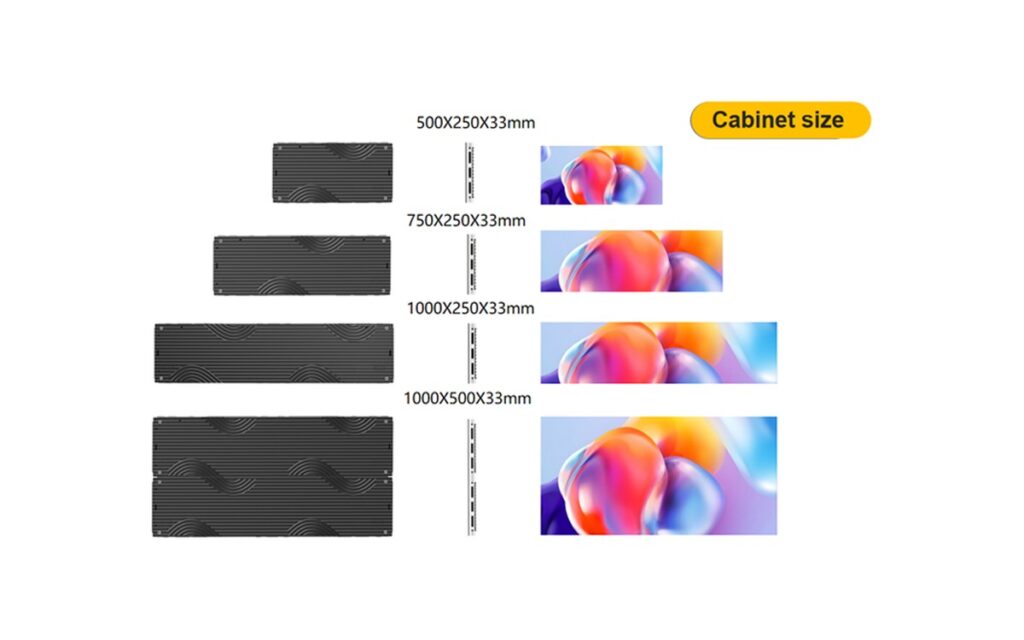

| Cabinet Dimension | 1000×500×33mm, 1000×250×33mm, 750×250×33mm, 500×250×33mm | ||||||
| Cabinet Material | Die Casting Aluminum | ||||||
| Cabinet Weight | 8KG | ||||||
| Power Con. (W/Sqm.) | Max.800W/Avg.100-200W | ||||||
| Service Access | Full Front Access | ||||||
| Refresh Rate(HZ) | ≥3840 | ||||||
| Grey Scale (bit) | 16bit | ||||||
| Contrast Ratio | 10000:1 | ||||||
| Viewing Angle (H/V) | 160°/160° | ||||||
| IP Rate | IP65(front) | IP65(front) | IP31 | IP31 | IP31 | IP31 | IP31 |
| Operation Temperature | -20℃~+60℃ | ||||||
| Operation Humidity | 10%～90% | ||||||
| Input Voltage(AC) | AC90-264V, 47-63Hz | ||||||
Product Highlights
Cable Free Design
Cable-free design speeds installation to save labor, time and cost. Gilding module pins stabilize data transmission and reduce defects. Ceiling-mounted front installation supports front service. 16pcs strong magnets and tight module pins improve safety and help deliver an enhanced visual experience.

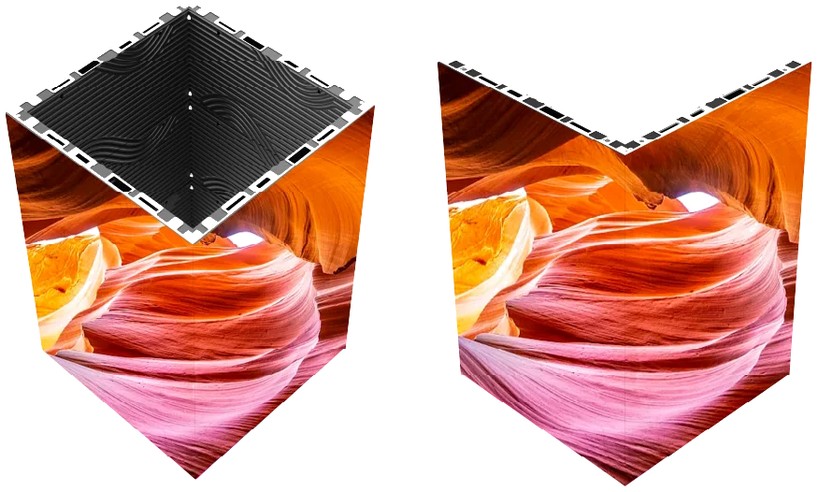

Cube Design
Beveled cabinets enable seamless right-angle and 4 sided column LED screens, while CNC professional cutting improves precision. A double-sided display is only 53mm deep and 16kg/sqm, providing an elegant advertising installation that can help achieve faster ROI.

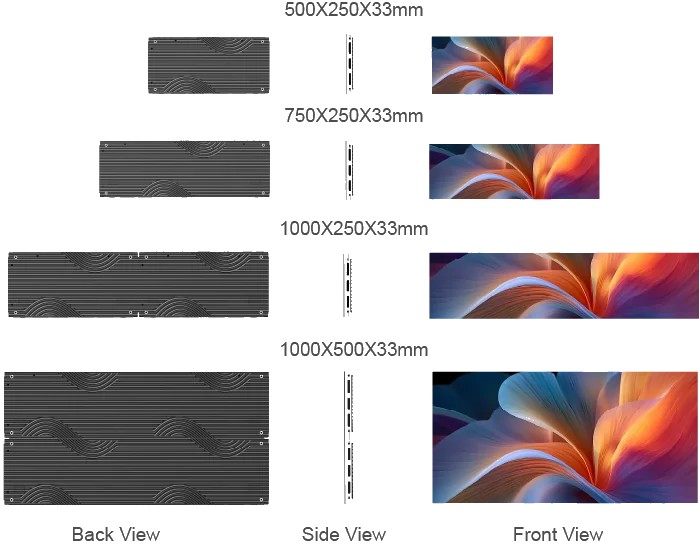

Flexible Splicing
Multi-size options are 1000x500mm, 1000x250mm, 750x250mm and 500x250mm. Cabinets install vertically or horizontally and can mix sizes to match screen requirements. Free Standing WALLPoster is plug and play, movable, supports seamless cascade and works as an all-in-one LED display. Flight-case packing supports individual or cascaded use for different events.

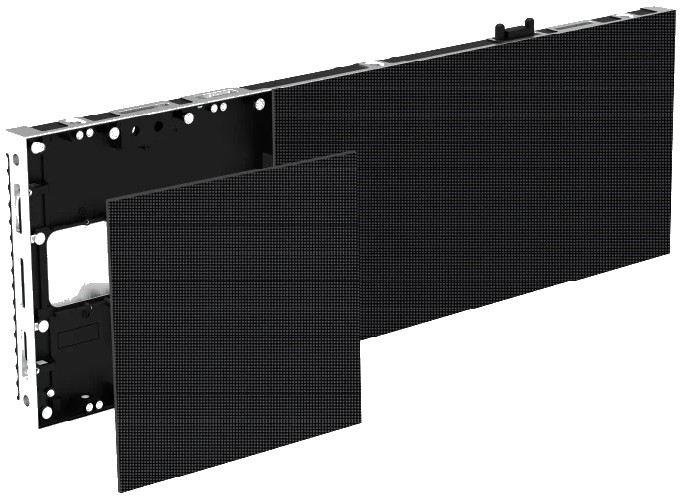

Front Maintenance
Modules can be replaced by anyone using a special suction tool. Modules, PSU, receiving cards and HUB provide full front access and maintenance. The cable-free design enables easy, quick service in only 1 second. At only 16kg/sqm, the display and strong hanging bars support safe hanging installation.

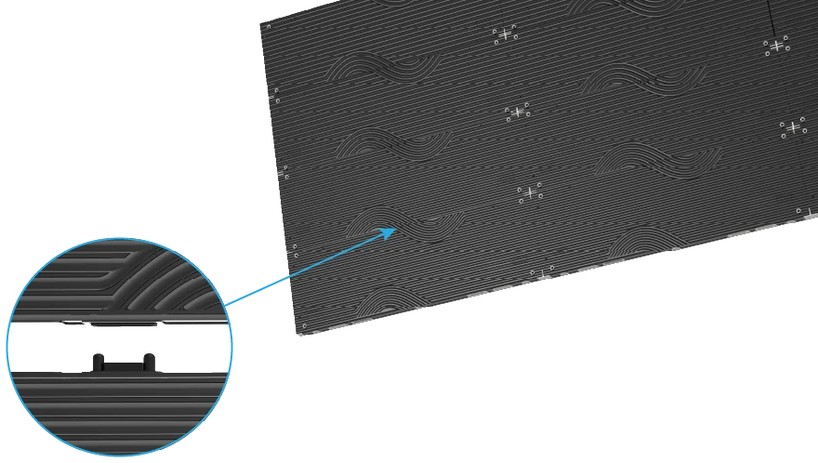

Precise Aluminum Cabinet
The die casting aluminum cabinet has tolerance less than ±0.1mm for seamless assembly and flatness. Its high-strength structure resists distortion after long-term use.

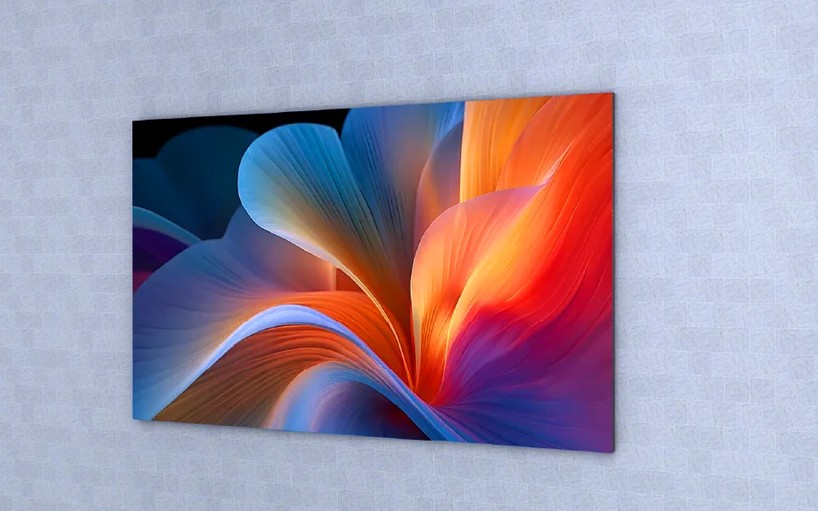

Ultra Light & Slim

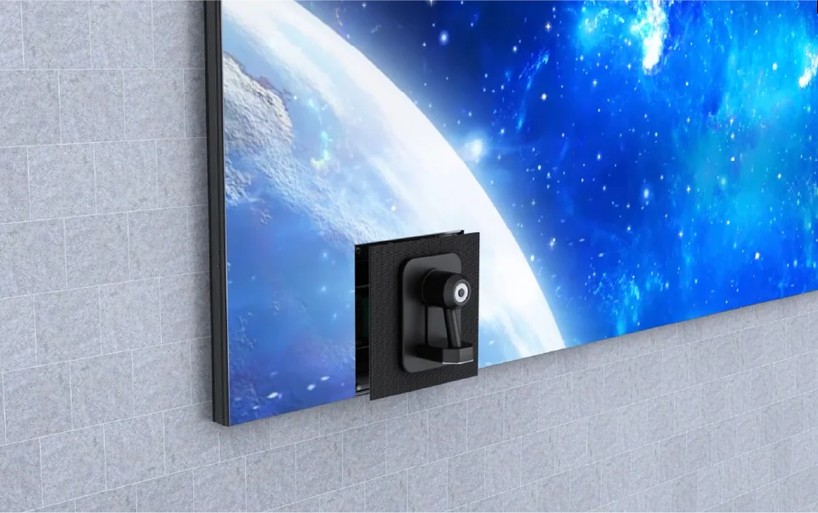

At 33mm deep and 8kg per cabinet, the design addresses limited indoor space. The 1000x500mm double-sided display is only 53mm thick. The exclusive wall-mounting bracket saves installation time and cost. Installed depth is 43mm with brackets or 33mm without brackets for a slim appearance.
