Indoor-BM Series
Indoor-BM Series LED displays provide a cost-effective, thin and light solution with die-casting aluminum cabinets, 640×480 standard size and front service. Multi-size options support churches, conference rooms, retail shops and street windows.
Key Features
- Cost-effective die-casting aluminum cabinet
- Thin and light cabinet design
- Full front service for key components
- Multi-size options for flexible layouts
- High contrast for clear visuals
- Optional GOB, COB and high brightness
Technical Specifications
| Model | BM1.8 | BM2 | BM2.5 | BM1.8-HI | BM2.5-HI |
|---|---|---|---|---|---|
| Pixel Pitch(mm) | 1.86 | 2 | 2.5 | 1.86 | 2.5 |
| Pixel Matrix Per Sq.m | 288,369 | 250,000 | 160,000 | 288,369 | 160,000 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD1415 | SMD1920 |
| Brightness (cd/㎡) | 700 | 700 | 800 | 4000 | 4000 |
| Scan | 1/43 | 1/40 | 1/32 | 1/43 | 1/32 |
| Power Con.(W/㎡) (Max / Avg) | 550W/150W | 550W/150W | 550W/150W | 600W/ 180W | 600W/ 180W |
| IP Rate | IP43 | ||||
| Module Dimension | 320x160mm / 1.05×0.53ft | ||||
| Cabinet Dimension | 640x480mm / 2.10×1.57ft (Customizable) | ||||

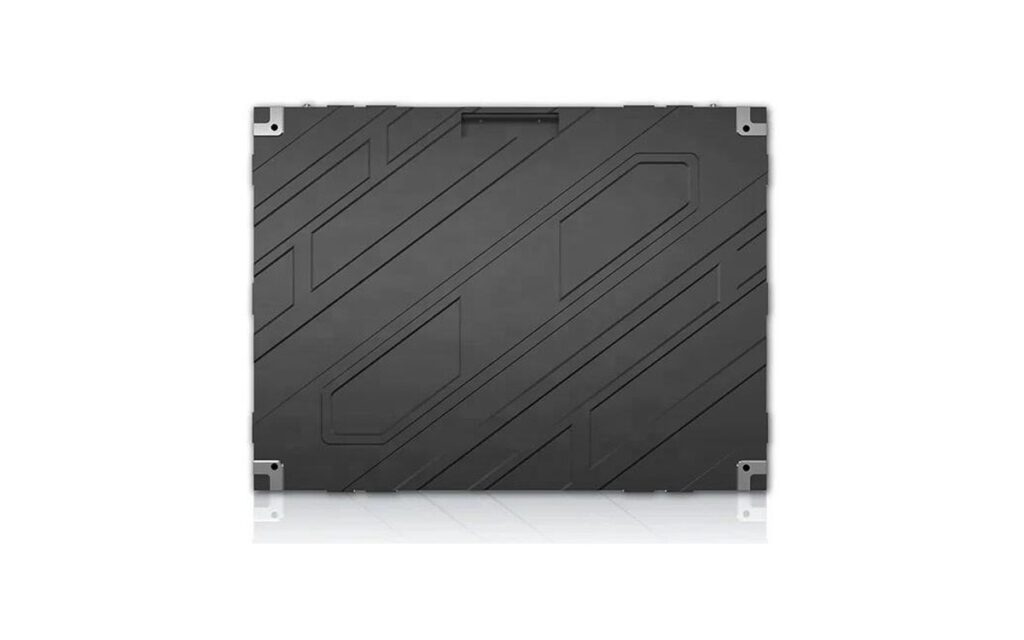

| Cabinet Material | Die Casting Aluminum | ||||
| Cabinet Weight | 7.8KG | ||||
| Service Access | Front | ||||
| Refresh Rate (HZ) | ≥3840 | ||||
| Grey Scale (bit) | 16 | ||||
| Viewing Angle (H/V) | 160°/160° | ||||
| Operation Temperature | -20℃ ~ +60°℃ | ||||
| Input Voltage (AC) | 110V / 220V | ||||
Product Highlights
Optional Size

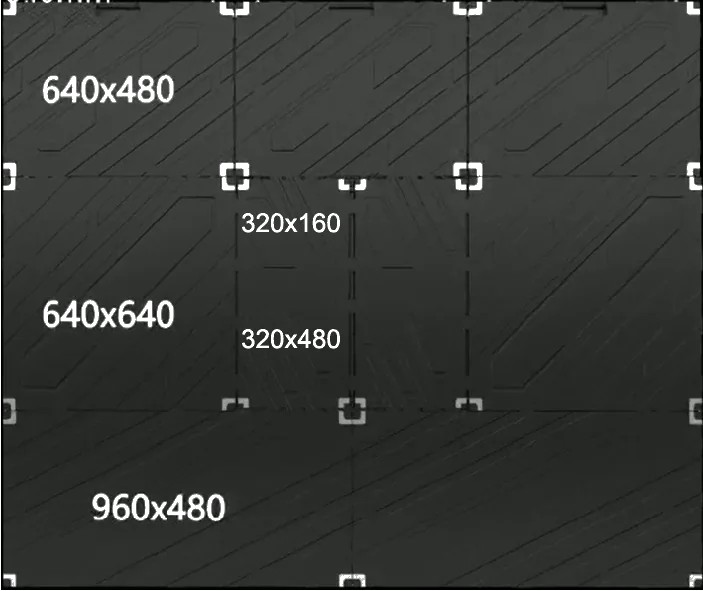

Standard size supports 640×480. Multi-size options include 320x160mm, 320x480mm, 320×160, 320×480, 640x640mm and 960x480mm. Vertical and horizontal arrangements can match any required screen size. Die-casting aluminum with precision tolerance below ±0.2mm supports seamless, perfect splicing.
GOB & COB

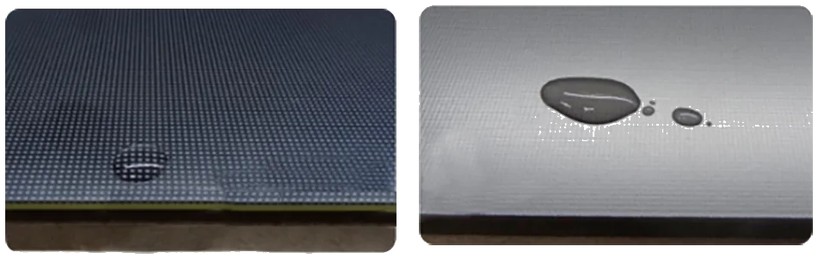

GOB (Glue On Board) adds glue to the surface of SMD, while COB (Chip On Board) uses LED chips directly without encapsulation. Both make the screen surface waterproof, anti-hit, anti-static and strong. COB offers better performance, higher contrast ratio, wider viewing angle and more vivid colors. The cabinet is 61mm thick and weighs 7.8kg at 640x480mm.
Front Maintenance Service

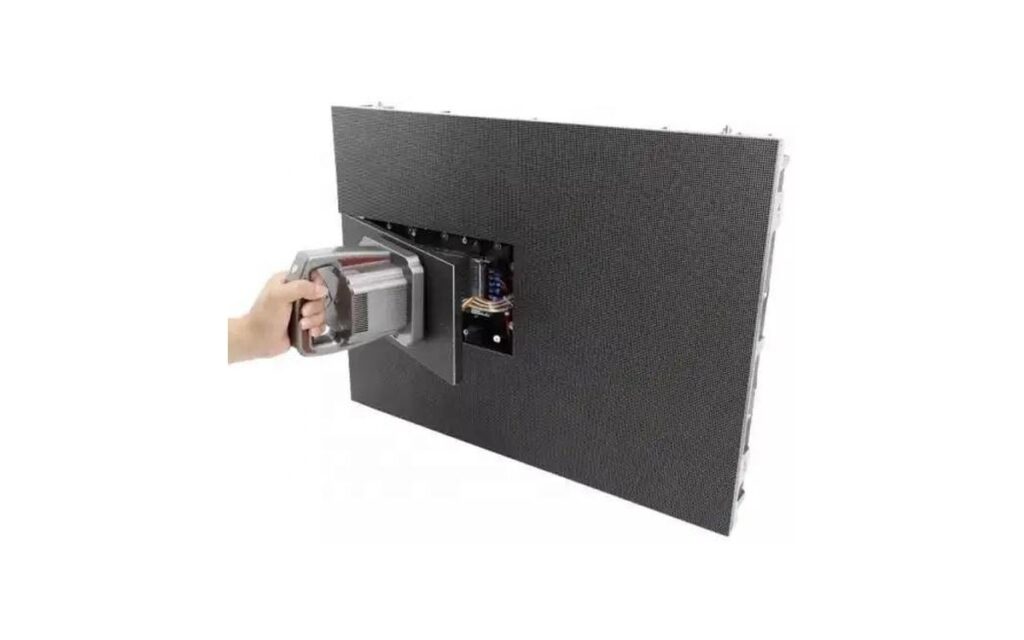

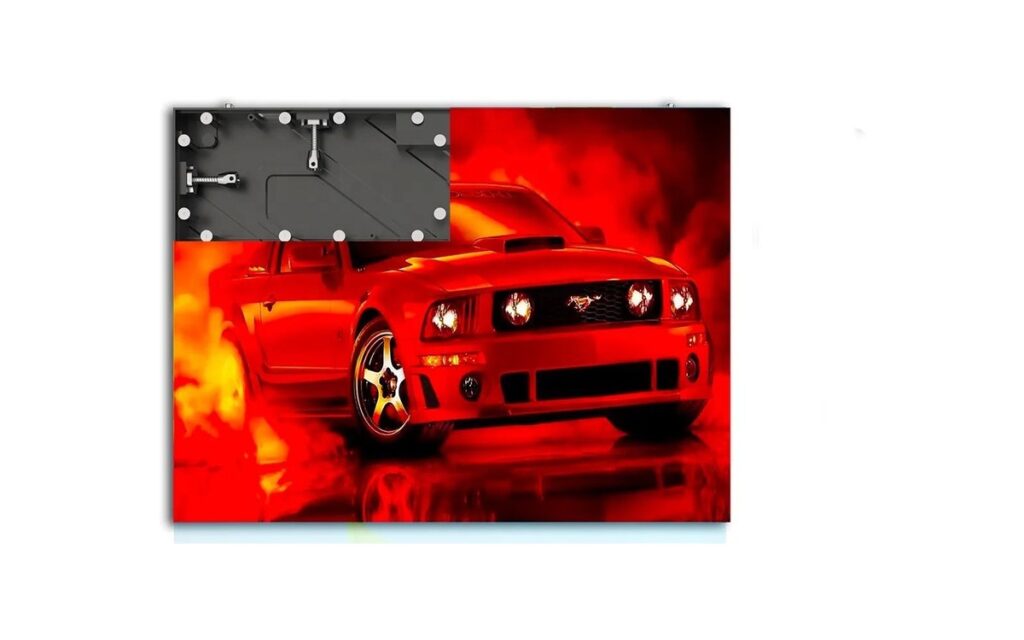

Users can replace the module, power supply or receiving card individually from the front. P1.8 and P2.5mm offer an optional 4000nits high-brightness version designed for window screens facing sunlight, keeping images vivid and clear.
Movable BMposter

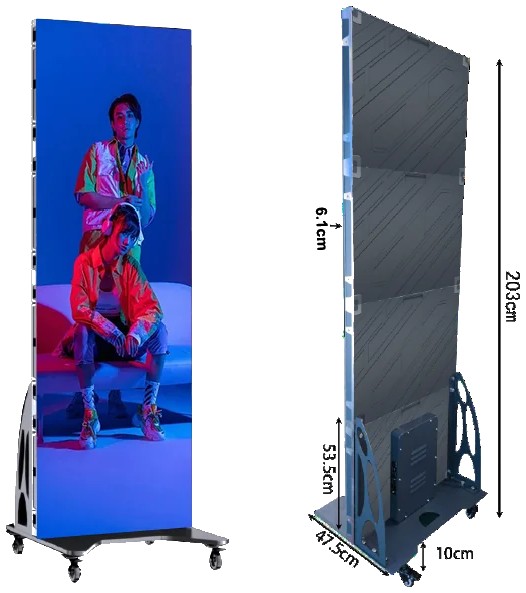

Standard sizes are 640×1920 and 960x1920mm. Several units can cascade seamlessly, with plug-and-play phone control. Customized curved and 90 degree designs can be made smoothly using a special connection plate.
Safetly Hanging

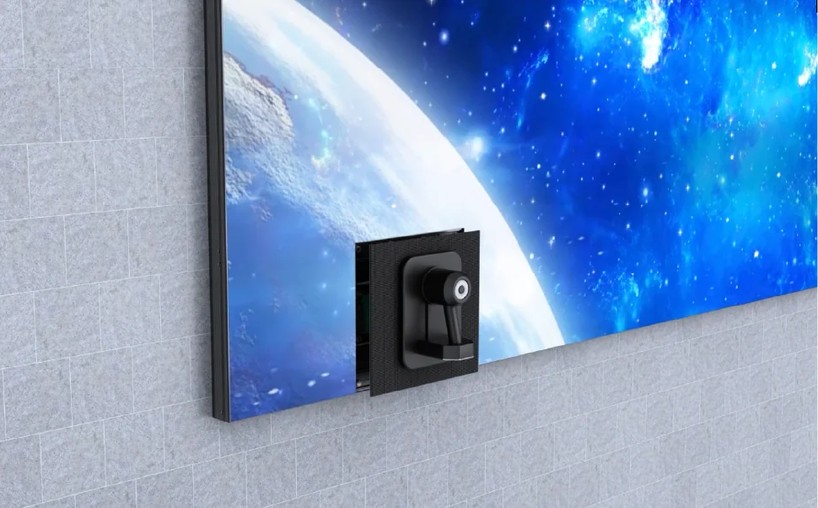

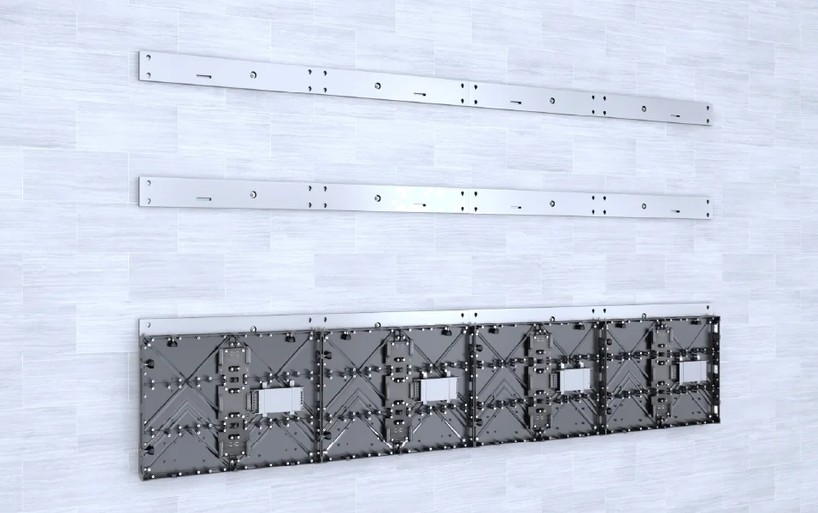

A light cabinet can be safely hung with a hanging bar to save space. For permanent wall installation, aluminum mounting brackets fix the cabinets and improve flatness.
Related Products
Common FAQs
A 640×480 mm cabinet built from 320×160 mm modules, weighing 7.8 kg per cabinet.
P1.86, P2 and P2.5 mm, with 288,369 to 160,000 pixels per square metre.
700–800 nits for standard indoor use, with a 4,000 nit high-brightness option for window-facing installations.
Yes — key components are serviceable from the front, and GOB or COB packaging is available as an option.
Per square metre based on pitch, cabinet quantity, brightness option and destination.
