Indoor-Z Series
Indoor-Z Series is an ultra-thin, lightweight indoor LED display with multiple cabinet sizes and flexible installation options. Beveled cabinets support seamless 90° corners for conference rooms, control rooms, retail spaces and other indoor venues.
Key Features
- Ultra-thin, lightweight indoor LED display
- 500*500mm, 500*750mm and 500*1000mm size options
- Hard connection with cable-free design

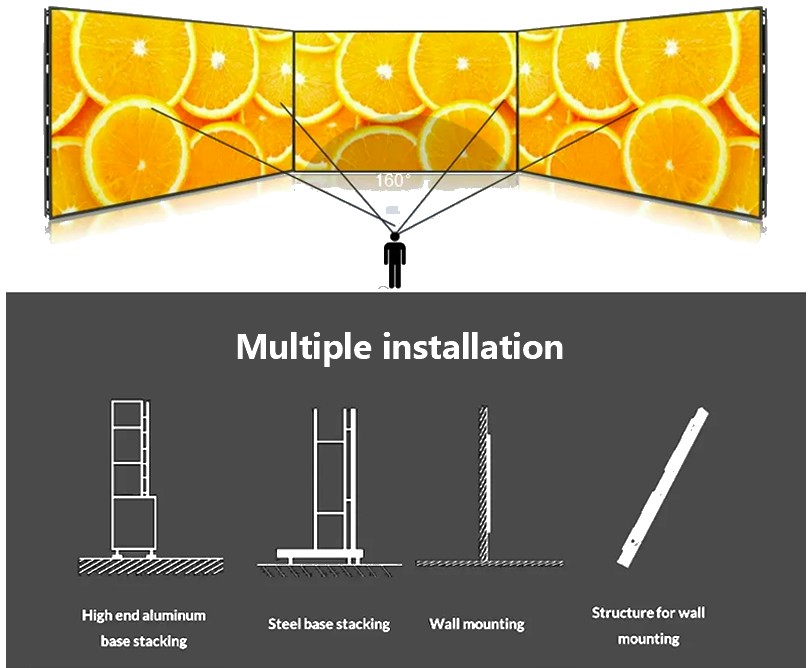

- Wall-mounted, hanging and mobile floor-standing options
- SMD 3 in 1 LED encapsulation technology
- Frontal service for easy installation
Technical Specifications
| Model | P2.604 | P2.976 | P3.91 | P4.81 |
|---|---|---|---|---|
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Cabinet size | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
| Cabinet resolution | 192x192dots | 168x168dots | 128x128dots | 104x104dots |
| Best view distance | ≧2m | ≧2m | ≧3m | ≧4m |
| Pixel Density | 147456dots/m 2 | 112896dots/m 2 | 65410dots/m 2 | 43264dots/m 2 |
| Best view distance | ≧2m | ≧2m | ≧3m | ≧4m |
| Brightness | ≧1300 | ≧1300 | ≧5500 | ≧5500 |
| Cabinet Weight | 7.5kg | |||
| Waterproof level | IP43 | |||
| Refresh Rate | 3840Hz | |||
| Life Span | ≧100000hours | |||
Product Highlights
P1.9/P2.604/P2.976/P3.91/P4.81
P1.9/P2.604/P2.976/P3.91/P4.81 options support concave splicing, with up to 10* arc splicing connection.
Keep your screen always cutting-edge
A shareable HUB and power supply, combined with the same panel design, makes it easy to renew or upgrade an old screen after long-term use while maintaining the newest technology and better display effects.
Seamless Splicing for closer viewing
The fine die-casting aluminum cabinet provides HD seamless display, eliminates visual seams and delivers a large, complete display effect.
larger Viewing Angle
Large vertical and horizontal viewing angles keep brightness and color consistent from different angles, with no color cast or glare.
Related Products
Common FAQs
500×500 mm, weighing 7.5 kg per cabinet.
P2.604, P2.976, P3.91 and P4.81 mm, from 192×192 to 104×104 dots per cabinet.
≥1,300 nits for indoor builds and ≥5,500 nits for the dual-use outdoor version.
Retail spaces, transport hubs and public information screens where a standard 500×500 cabinet keeps installation simple.
Per square metre, depending on pitch, quantity, version and destination.
